PCE Instruments PCE-PDFL 10 PCE-PDFL 10 PDF data logger Unit of measurement Humidity, Temperature, Air pressure, Atmosph

The data logger has a measuring range of -30 … +60 °C and can be used in cold environments. In addition to temperature and humidity measurement, the data logger can also measure the absolute air pressure in the ambient atmosphere in a measuring range between 700 … 1100 hpa. Through its various sensors, the data logger already covers a large area of measurement tasks. Typical applications of the data logger are, for example, the monitoring of refrigeration systems, greenhouses or also with the monitoring of an office workstation.

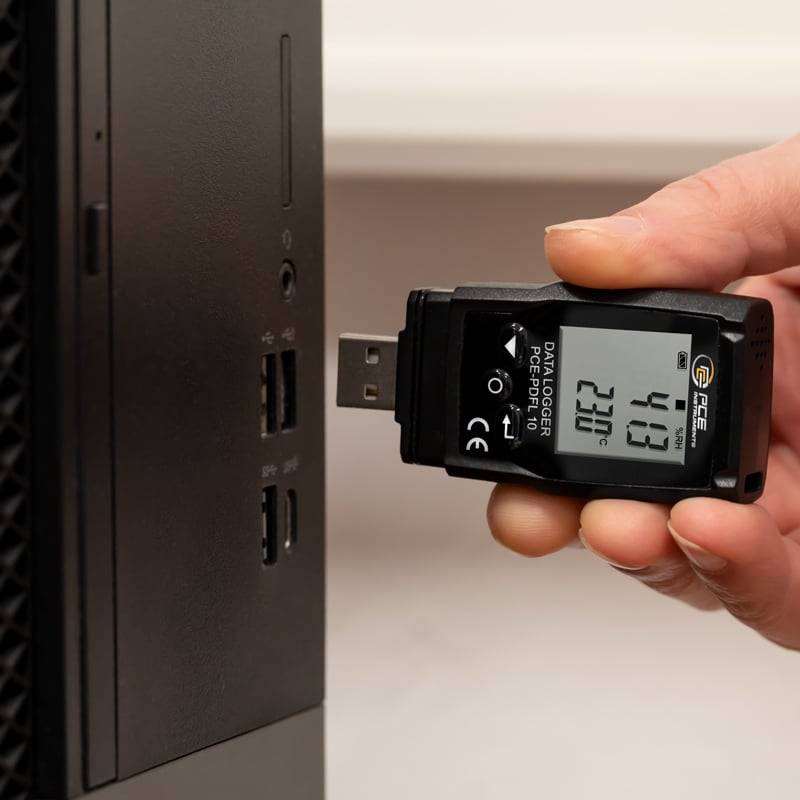

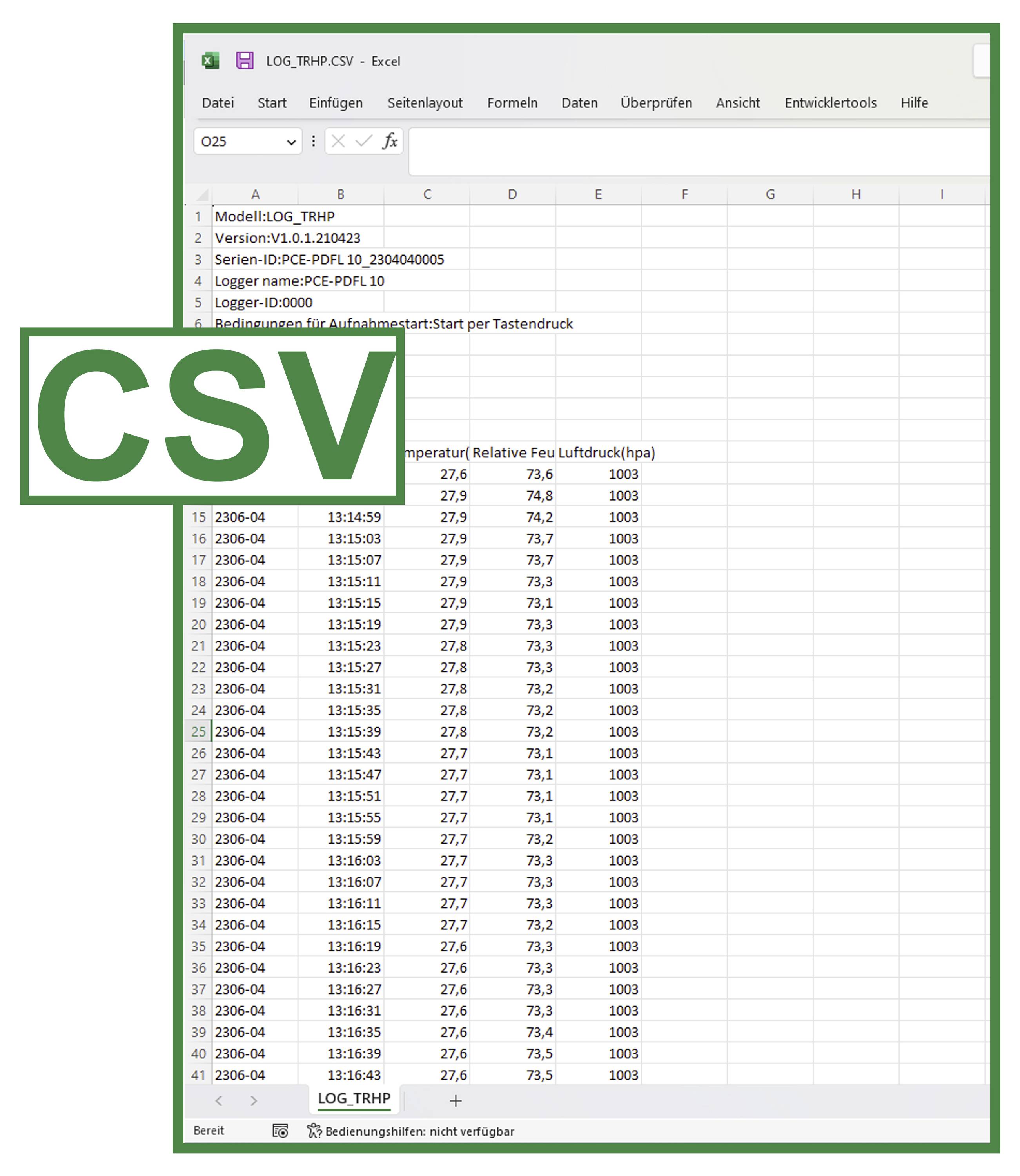

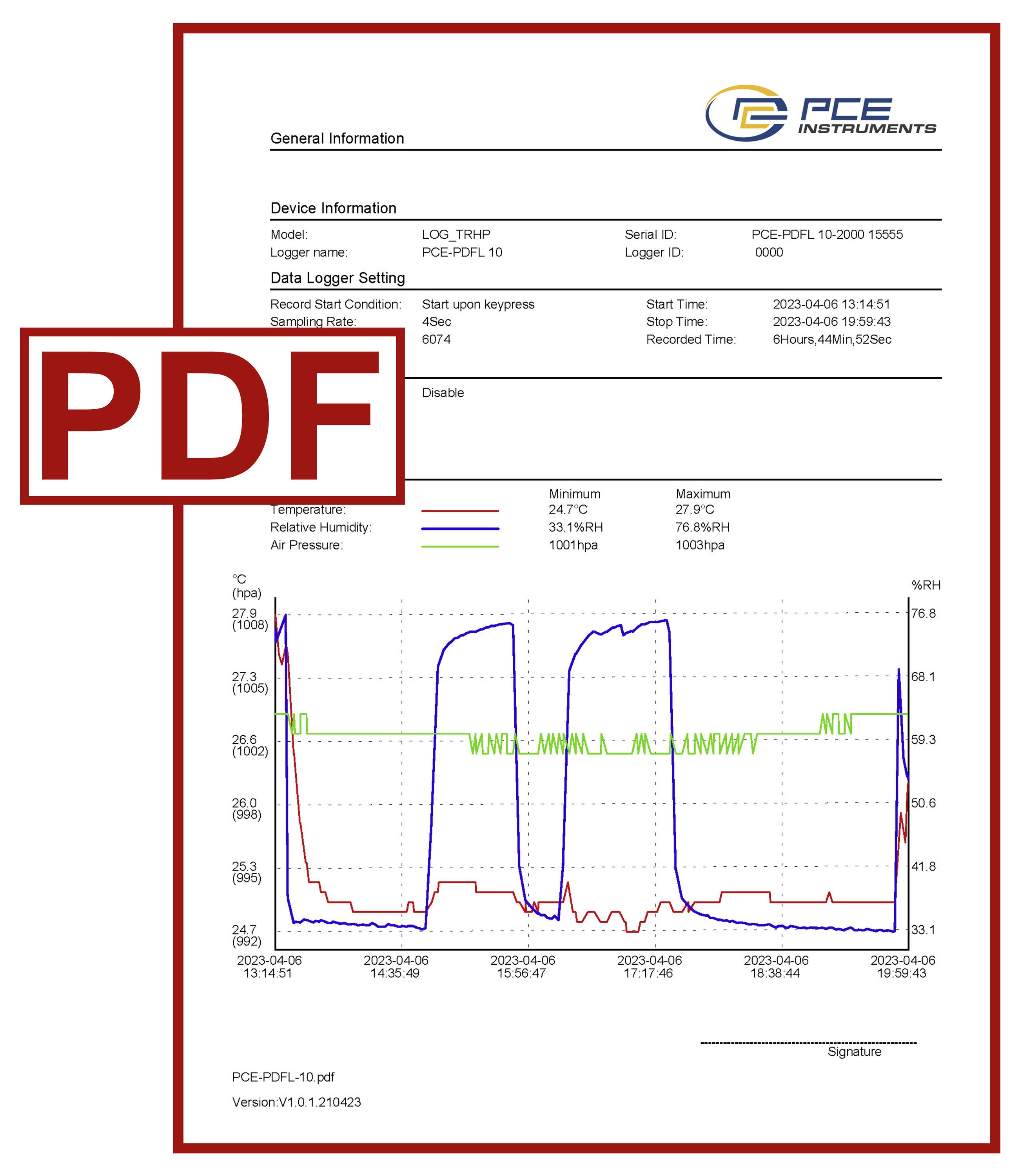

The measured values are saved on the internal memory by the datalogger. The storage space of the data logger is 13340 measuring points. Once the measurement process is completed, the saved measurement data can be read independently from the data logger, the operating system. This is possible because the data logger is recognized as a mass data storage device. When the measurement data is saved, the measurement points are saved in a .pdf and in a .csv file.

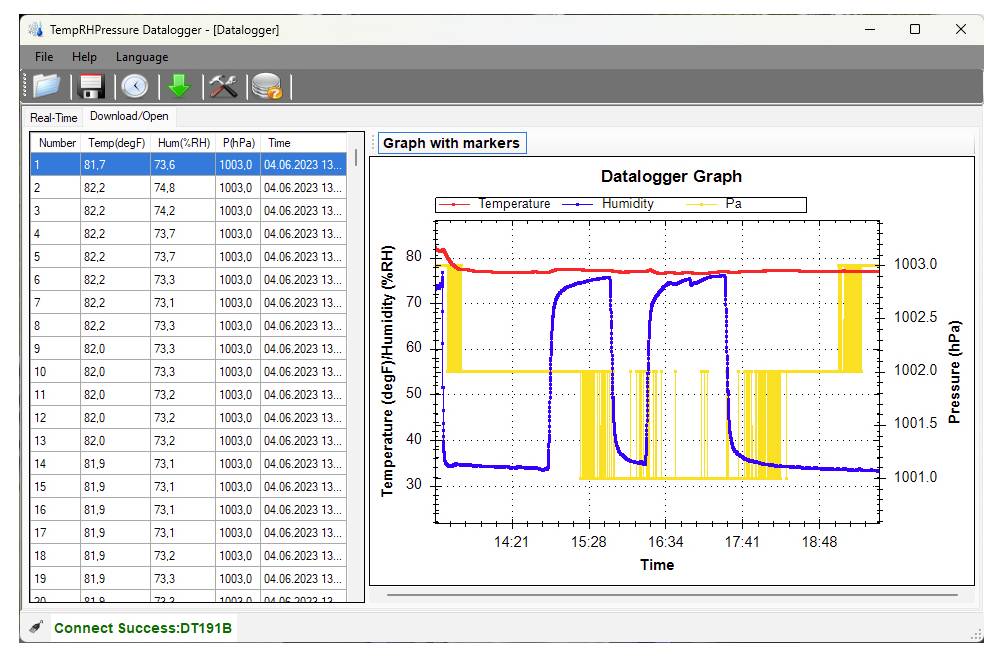

The measured values can be displayed graphically with the accompanying software for the data logger. In addition, settings for the data logger can be made via the software. For example, the storage interval can be set between 1 minute and 24 hours, visual alarm limits and start/stop pulses can be set with the data logger. The data logger can be equipped with an ISO calibration certificate as an option.

This text is machine translated.
