PCE Instruments PCE-PDR 10 PCE-PDR 10 Pressure data logger
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

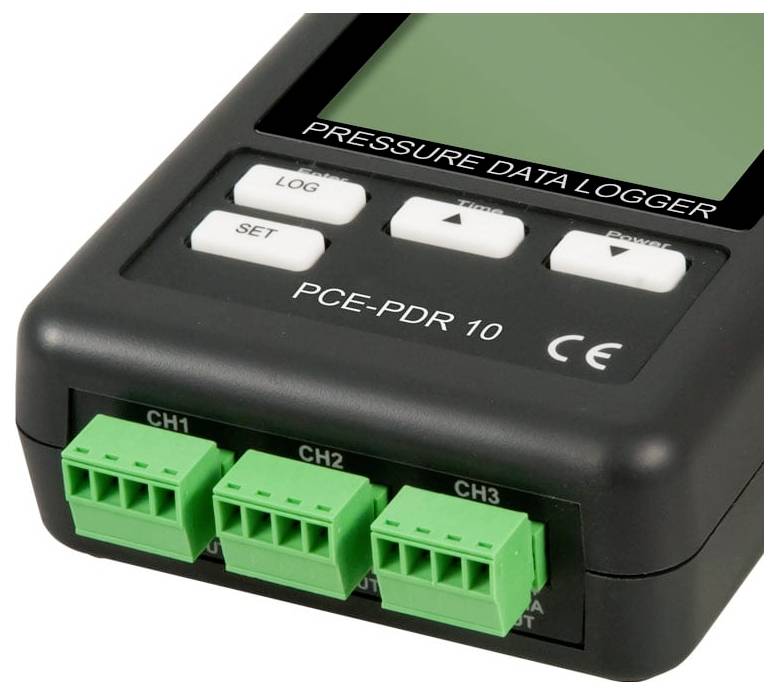

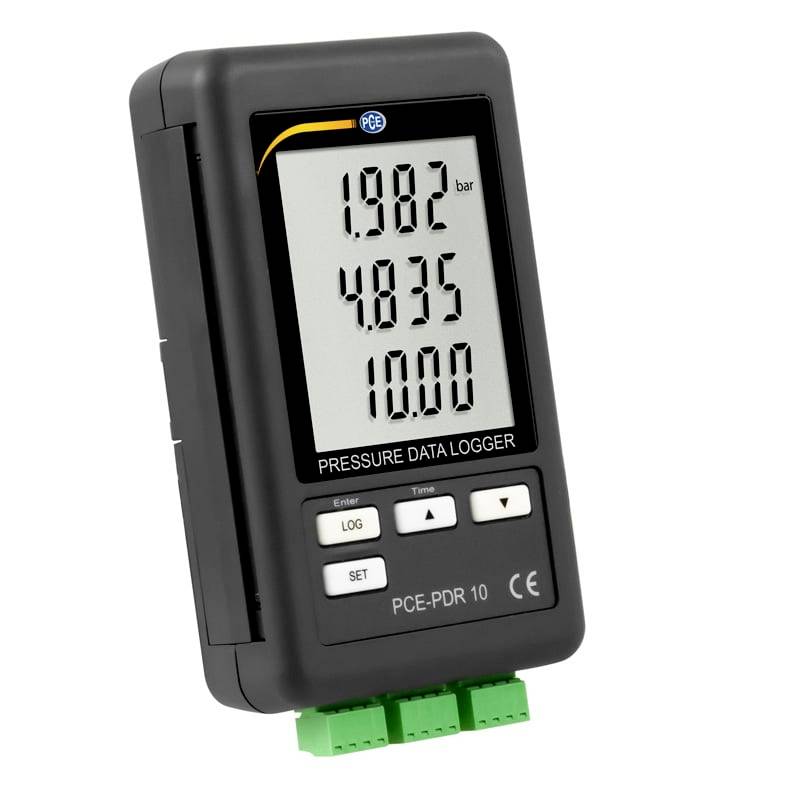

Pressure gauge PCE-PDR 10
- 4 ... 20 mA measuring signal
- Intelligent storage system
- Connection to a PC via RS232
- Wall mounting for fixed installation
- SD card slot for up to 16 GB

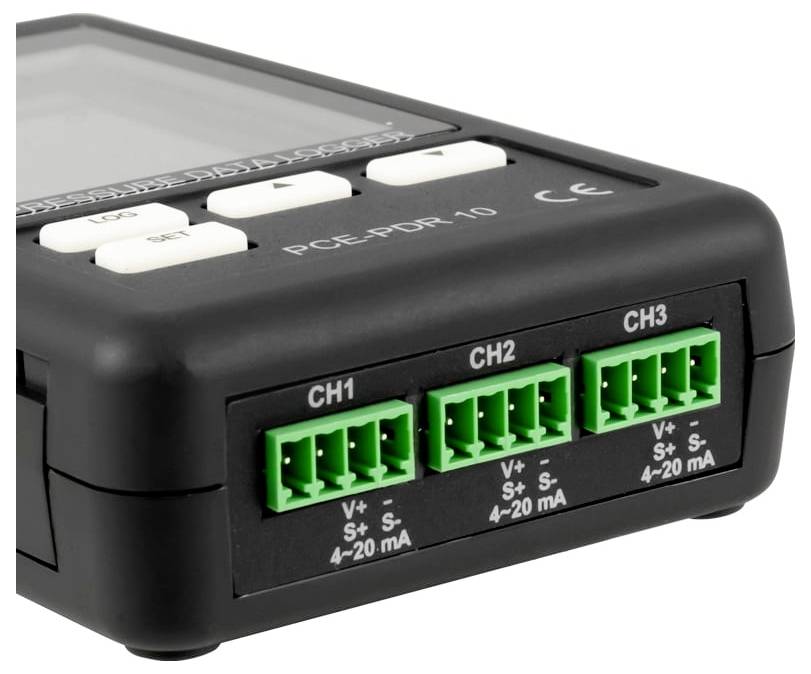

- Measurement of three pressure sensors simultaneously
- Terminal connection
- Base
Technical specifications
- Measuring range 4 ... 20 mA, linear Measurement accuracy ± (0.5 % + 2 d) Measurement rate 1 s. LC display 60 x 50 mm Storage interval 5, 10, 30, 60, 120, 300, 600, car (im Storage interval "Auto ", the measured value is only saved when ± 10 digits are changed) Usable memory cards 1 ... 16 GB Incorrectly stored readings < 0.1% of total memory, typical Outputs RS232 Power supply via 9 VDC power supply unit Power supply by batteries 6 x 1.5 V AAA (for supplying the clock display) Working conditions 0 ... 50 °C,< 85% r.h. Dimensions 132 x 80 x 32 mm Weight 199 g.
- Product type
Pressure data logger
Manufacturer's standards (no certificate)
- Type
PCE-PDR 10
Documents & Downloads
Datasheet
Datasheet 2452559 PCE Instruments PCE-PDR 10 PCE-PDR 10 Pressure data logger
User & Safety Instructions
User & Safety Instructions 2452559 PCE Instruments PCE-PDR 10 PCE-PDR 10 Pressure data logger
Description

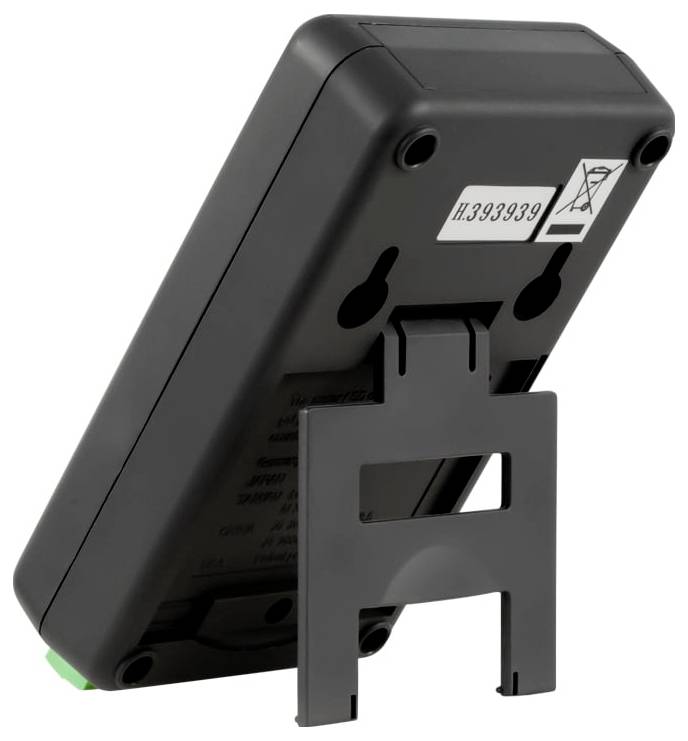

Pressure gauge PCE-PDR 10 pressure data logger with three sensor connections / SD card / CSV data format / Stand Wall mounting / Battery operation / Mains operation / 4 ... 20 mA / LC display / Storage in CSV / further developed storage interval of the pressure data logger PCE-PDR 10 is a display for measuring pressure. Up to three pressure sensors can be connected to this pressure data logger and read out synchronously and logged. By the 4 ... 20 mA input signal can be connected to many different pressure sensors. Thanks to the further developed storage interval, measured values can also be stored only after a change of ±10 digits by the pressure data logger. This filters constant and superfluous measured values through the pressure data logger. This saves a lot of storage space. The pressure data logger can be freely positioned at a workstation with the base. The pressure data logger can also be fixed to a wall using the wall mounting kit included in the delivery.
This text is machine translated.
This text is machine translated.
Scope of delivery
- 1 x pressure gauge PCE-PDR 10
- 1 x power supply 9 V 1.0 A
- 1 x wall mounting bracket
- 1 x SD card
- 1 x user manual - sensors optional!
