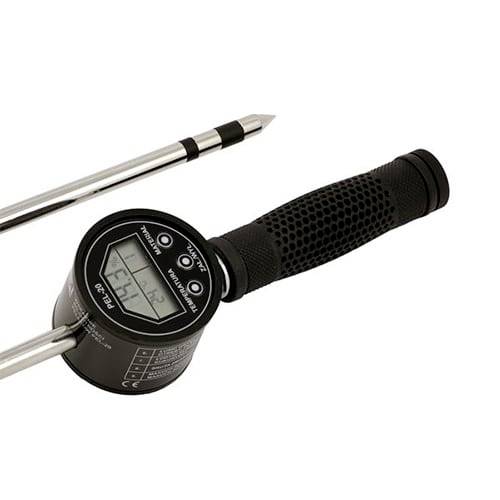

PCE Instruments PCE-PEL 20 Moisture meter

Mobile pellets Humidity meter / sensor length 1000 mm / measuring range 10% to 20% / battery operated / simple and fast measurement of pellets Humidity meter PCE-PEL 20 was developed in cooperation with biomass power plant operators. Since the heating value of the pellets depends heavily on the humidity of the, our pellets humidity meter is used especially here in order to achieve as high efficiency as possible. The pellets humidity meter performs a resistance humidity measurement. This means that the pellet moisture meter measures the resistance of the test substance and draws conclusions on the moisture on the basis of stored characteristics. For this purpose, it is particularly important to set the appropriate characteristic and temperature in the pellets humidity meter. The pellets moisture meter is suitable for orientation measurements of pellets made of sawdust, wood chips, straw, hay, paper chips, Sunflower, buckwheat, corn, soy, etc., the pellets humidity meter, with its 1000 mm long probe, must be simply inserted into the pellet and the measured value can be read after stabilization. The measurement is carried out by the pellet moisture meter at the tip of the probe. It is recommended to carry out several measurements at different places in order to obtain an overall picture of the moisture content of the pellets. Thus, the Pellets humidity meter PCE-PEL 20 helps to determine the humidity of the pellets cost-effectively, quickly and easily.
