PCE Instruments PCE-PFG 20 Hardness tester
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Measurement range 0 ... 20 N Resolution 0.005 N. Accuracy ±0.3 % of the measuring range Measuring units N, kgf, lbf Display 1.8 " graphic display Alarm modes below, inside, outside Sampling rate 500 Hz Memory 100 measurements Power supply Lithium battery 3.7 V / 1500 mAh Battery life up to 36 hours power supply / USB-Charging adapter 5 V / 1 A Outputs interface: USB B switching output / Alarm mode: MD6 with 2.85 V when active Protection class IP 54 Operating and storage conditions 5 ... 45 °C 35 ... 65 % RH non-condensing Force introduction M6 x 10 mm Thread dimensions 189 x 707 x 34 mm Weight 450 g
- Product type
Hardness tester
- Content
1 pc(s)
Manufacturer's standards (no certificate)
Documents & Downloads
Datasheet
Datasheet 2452819 PCE Instruments PCE-PFG 20 Hardness tester
User & Safety Instructions
User & Safety Instructions 2452819 PCE Instruments PCE-PFG 20 Hardness tester
Description

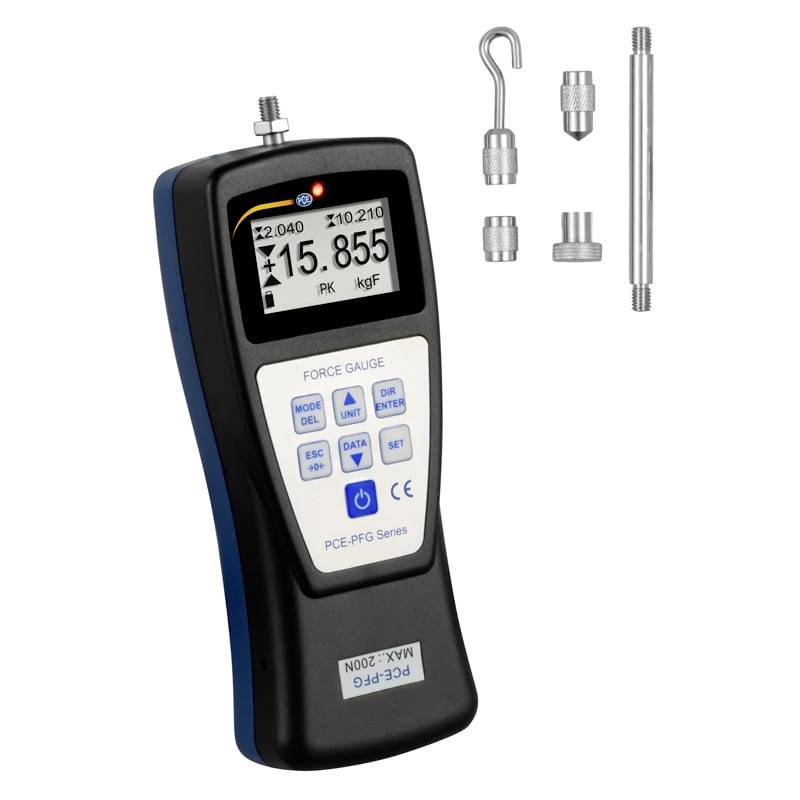

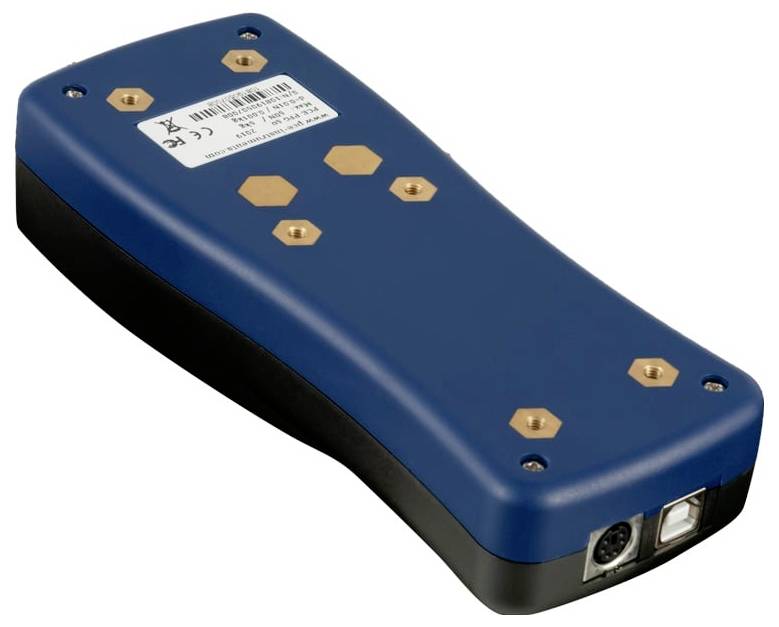

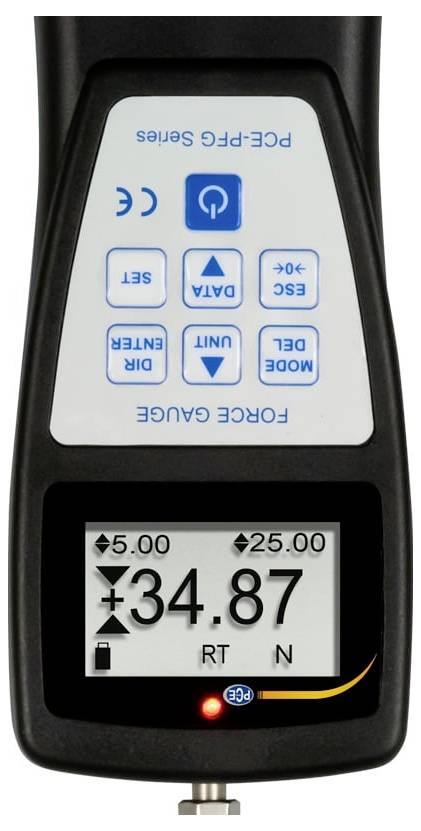

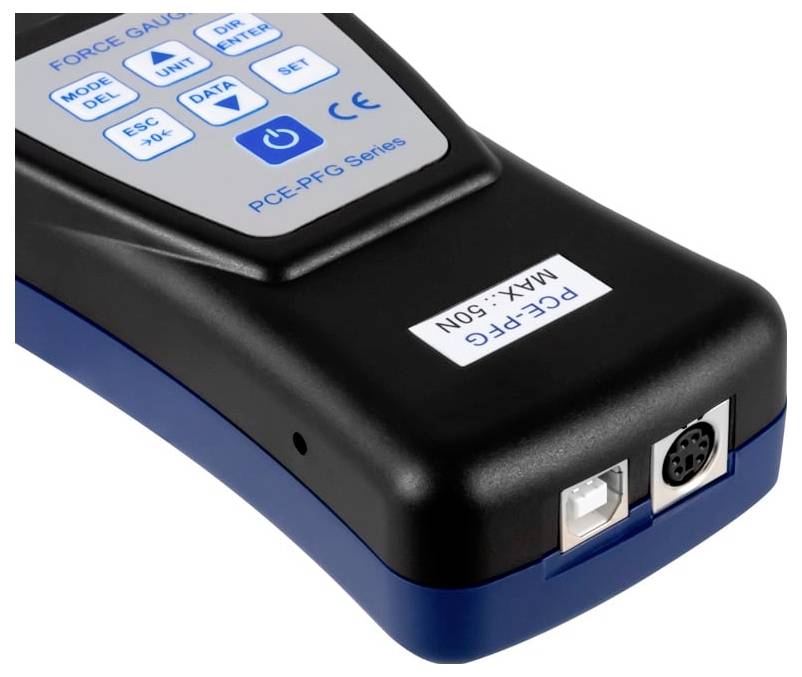

Durometer with internal S force measuring cell, graphic display, memory and USB-B interface The Durometer is a handy, digital measuring device for measuring tensile and compressive forces. The Durometer offers a sampling rate of 500 Hz and various measurement options such as real-time measurement (RT), maximum value measurement (PEAK), configurable average value acquisition (average) and automatic data storage of up to 100 measurements. The measured data as well as a statistical evaluation of the data stored in the durometer (MIN / MAX / average) are displayed in the graphic display and can be transferred to a PC via the USB interface. In addition, the Durometer offers a limit value function MIN / MAX, which can switch a multi-colored LED (yellow/green/red) and switch contacts. The graphic display can be rotated and the Durometer can be securely fastened to a test stand with the M4 threaded holes on the back. The force is transmitted to the internally installed force measuring cell via a M6 threaded rod. For this purpose, the scope of delivery of the Durometer includes different recording pieces. The Durometer can be operated with a battery charge up to 36 hours in continuous operation (without background lighting) and is a reliable partner as a mobile Durometer.
This text is machine translated.
This text is machine translated.
Scope of delivery

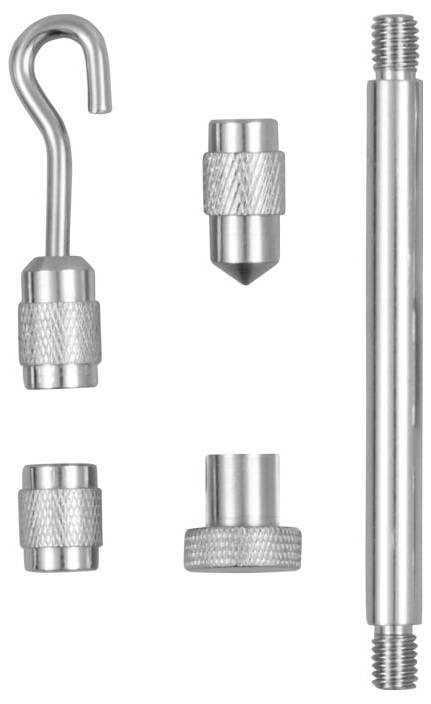

- 1 x Durometer PCE-PFG 20
- 1 x flat head adapter Ø13 mm
- 1 tip adapter
- 1 x hook adapter
- 1 x extension rod (75 mm)
- 1 x USB cable
- 1 x USB charger
- 1x user manual
- 1 x plastic carry case
