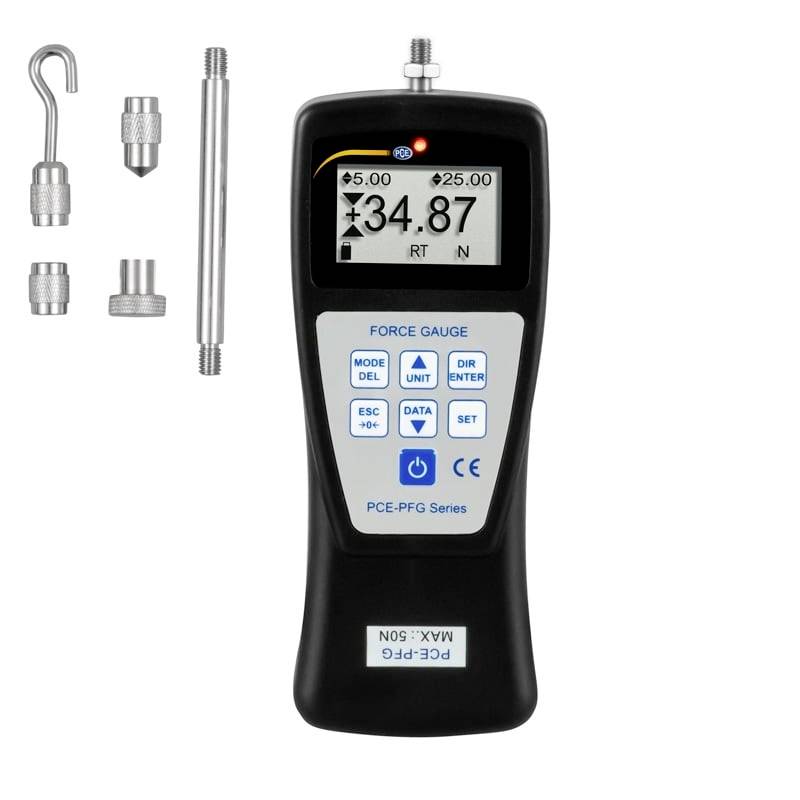

Digital force gauge display showing 34.87, with interchangeable probe attachments pictured beside the handheld device.

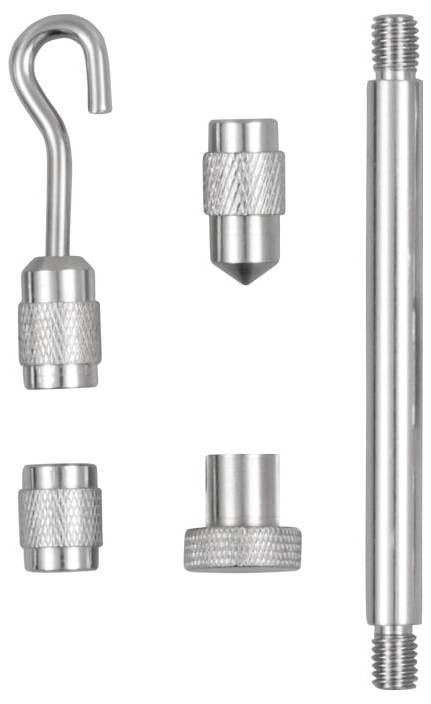

Five silver metal cable-end fittings and hardware pieces on a white background, including a hooked connector and threaded rod.

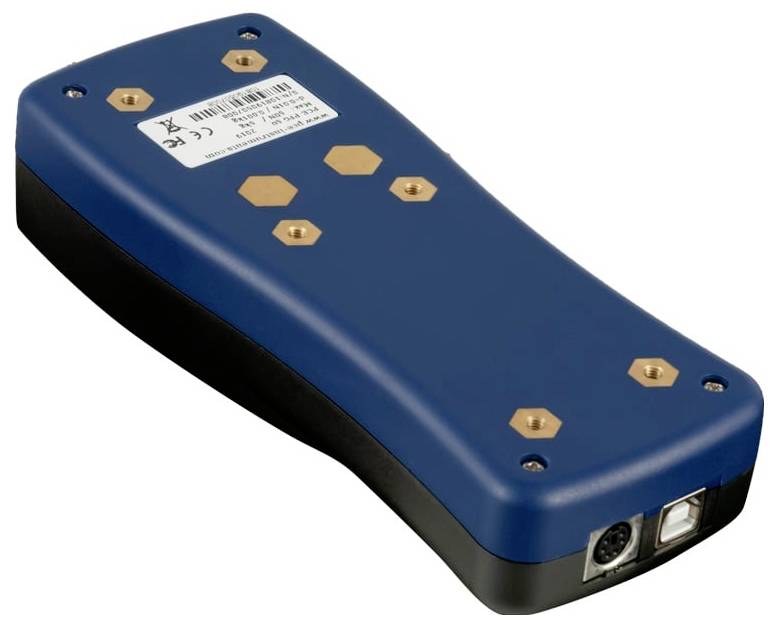

Blue handheld electronic device with a white label, gold contact pads, and front connector ports on a white background.

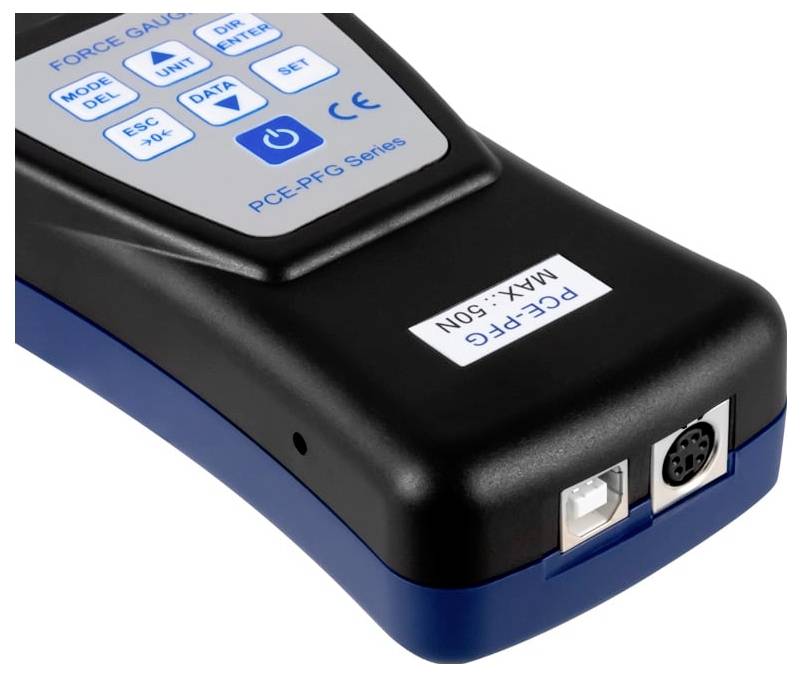

Handheld force gauge with display buttons, labeled 'PCE-PFG Series' and 'MAX-50N', showing USB and connector ports.

Handheld PCE-PFC series power factor meter showing a digital reading of 34.87 with RT and N indicators and control buttons for mode, enter, unit, Δ/V/A, ESC, and set.

1/5

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

PCE Instruments PCE-PFG 50 Dynamometer Manufacturer's standards (no certificate)

4 measurement modes (real-time measurement / maximum value / average measurement / automatic memory measurement)
Internal memory for up to 100 measured values
Statistical evaluation ( MIN / MAX / average)
Rotating display
Notification

Technical specifications

Measurement range 0 ... 50 N Resolution 0.01 N. Accuracy ±0.3 % of the measuring range measuring units N, kgf, lbf Display 1.8 " graphic display Alarm modes below, inside, outside Sampling rate 500 Hz Memory 100 measurements Power supply Lithium battery 3.7 V / 1500 mAh Battery life up to 36 hours power supply / USB charging adapter 5 V / 1 A outputs Interface: USB B switching output / alarm mode: MD6 with 2.85 V when active Protection class IP 54 Operating and storage conditions 5 ... 45 °C 35 ... 65 % RH non-condensing Force introduction M6 x 10 mm thread Dimensions 189 x 707 x 34 mm Weight 450 g

Product type: Dynamometer

: Manufacturer's standards (no certificate)

Documents & Downloads

Datasheet

Datasheet 2452563 PCE Instruments PCE-PFG 50 Dynamometer Manufacturer's standards (no certificate)

User & Safety Instructions

User & Safety Instructions 2452563 PCE Instruments PCE-PFG 50 Dynamometer Manufacturer's standards (no certificate)

Description

Dynamometer with internal S force measuring cell, graphic display, memory and USB-B interface The dynamometer is a handy, digital measuring device for measuring tensile and compressive forces. The dynamometer offers a sampling rate of 500 Hz and various measurement options such as real-time measurement (RT), maximum value measurement (PEAK), configurable average value acquisition (average) and automatic data storage of up to 100 measurements. The measured data as well as a statistical evaluation of the data stored in the dynamometer (MIN / MAX / average) are displayed in the graphic display and can be transferred to a PC via the USB interface. In addition, the dynamometer offers a limit value function MIN / MAX, which can switch a multi-colored LED (yellow/green/red) and switch contacts. The graphic display can be rotated and the dynamometer can be securely fastened to a test stand with the M4 threaded holes on the back. The force is transmitted to the internally installed force measuring cell via a M6 threaded rod. For this purpose, there are different recording gaps in the scope of supply of the dynamometer. The dynamometer can be operated with a battery charge for up to 36 hours in continuous operation (without background lighting) and is a reliable partner as a mobile dynamometer.
