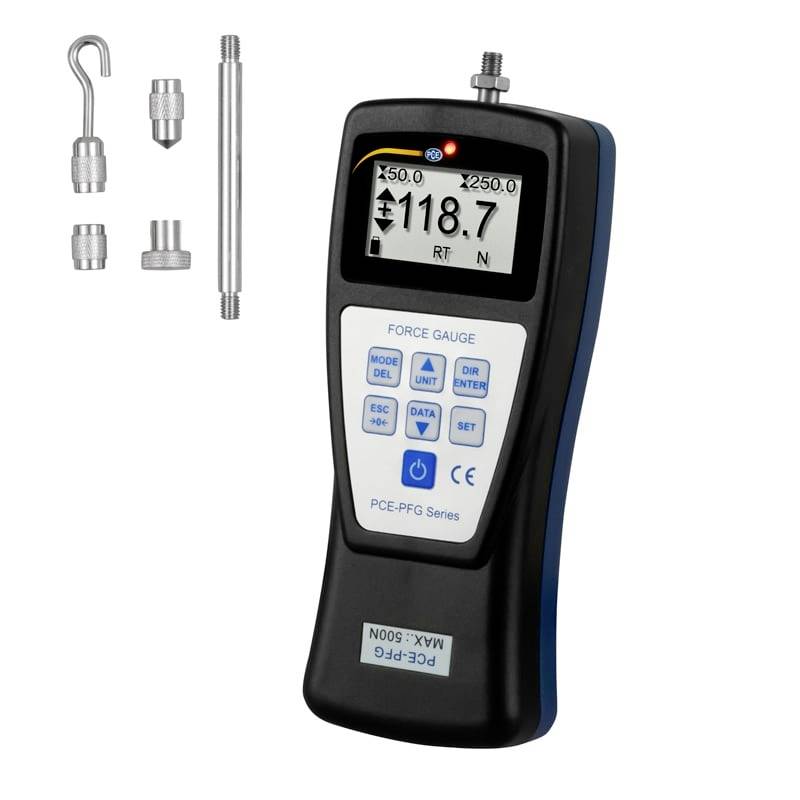

Handheld digital force gauge with display reading 118.7, shown with interchangeable test attachments.<br>

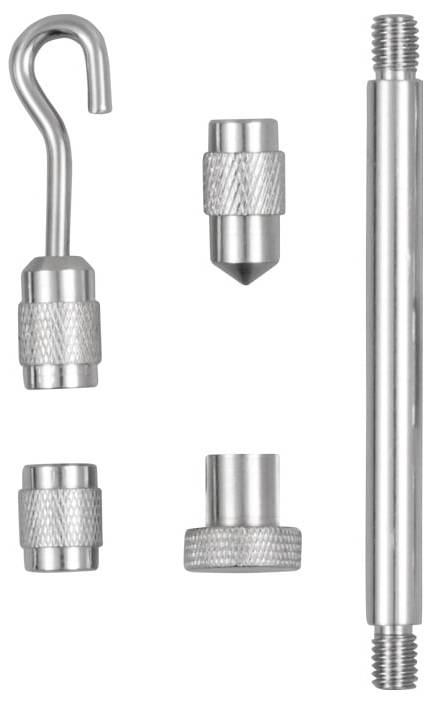

Five silver metal cable hardware parts and a hook fitting, shown as separate components on a white background.

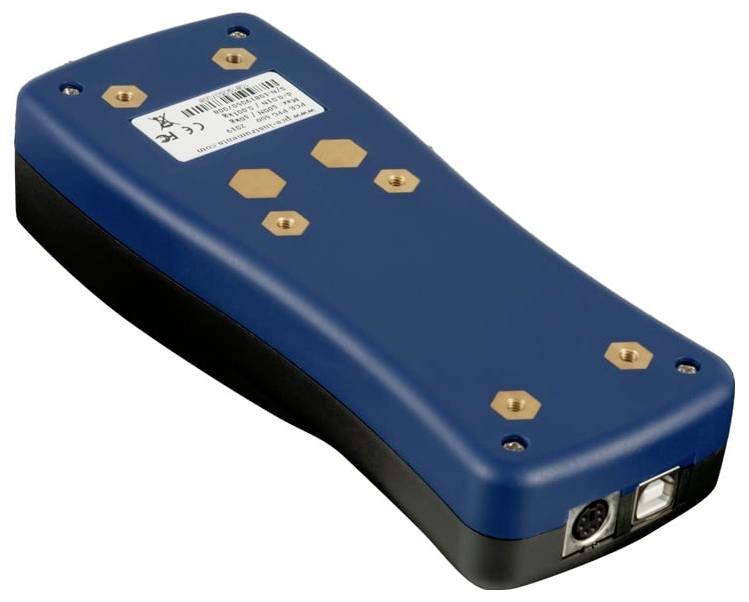

Blue rectangular electronic device with rounded edges, black underside, and a front connector port, shown isolated on a white background.

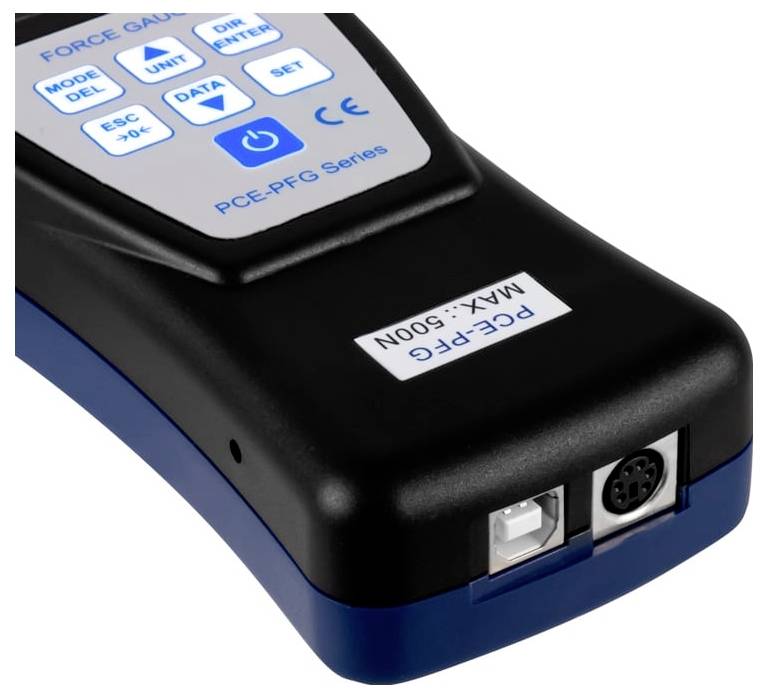

Handheld PCE-PFG Series force gauge with display and control buttons, labeled max 500N, showing USB and round connector ports.<br>

Portable sulfur analyzer display showing force gauge and digital readout at 118.7 RT N, with mode buttons and a lit status indicator.

1/5

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

PCE Instruments PCE-PFG 500 Force gauge Manufacturer's standards (no certificate)

4 measurement modes (real-time measurement / maximum value / average measurement / automatic memory measurement)
Internal memory for up to 100 measured values
Statistical evaluation ( MIN / MAX / average)
Rotating display
Notification

Technical specifications

Measurement range 0 ... 500 N Resolution 0.1 N. Accuracy ±0.3 % of the measuring range measuring units N, kgf, lbf Display 1.8 " graphic display Alarm modes below, inside, outside Sampling rate 500 Hz Memory 100 measurements Power supply Lithium battery 3.7 V / 1500 mAh Battery life up to 36 hours power supply / USB charging adapter 5 V / 1 A outputs Interface: USB B switching output / alarm mode: MD6 with 2.85 V when active Protection class IP 54 Operating and storage conditions 5 ... 45 °C 35 ... 65 % RH non-condensing Force introduction M6 x 10 mm thread Dimensions 189 x 707 x 34 mm Weight 450 g

Product type: Force gauge

: Manufacturer's standards (no certificate)

Documents & Downloads

Datasheet

Datasheet 2452564 PCE Instruments PCE-PFG 500 Force gauge Manufacturer's standards (no certificate)

User & Safety Instructions

User & Safety Instructions 2452564 PCE Instruments PCE-PFG 500 Force gauge Manufacturer's standards (no certificate)

Description

Force meter PCE-PFG 500 with internal S force cell, graphic display, memory and USB-B interface The force meter PCE-PFG is a handy, digital measuring device for measuring tensile and compressive forces. The force meter offers a sampling rate of 500 Hz and different measurement options such as a real-time measurement (RT), a maximum value measurement (PEAK), a configurable average value acquisition (average) as well as an automatic measurement storage of up to 100 measurements. The measured data as well as a statistical evaluation of the data stored in the force meter (MIN / MAX / average) are displayed in the graphic display and can be transferred to a PC via the USB interface. In addition, the force meter offers a limit value function MIN / MAX, which can switch a multi-colored LED (yellow/green/red) and switch contacts. The graphic display can be rotated and the force meter can be securely fastened to a test stand with the M4 threaded holes on the back. The force is transmitted to the internally installed force measuring cell via a M6 threaded rod. For this purpose, there are different mounting gaps in the scope of delivery of the force measuring device. The force meter can be operated with a battery charge up to 36 hours in continuous operation (without background lighting) and is a reliable partner as a mobile force meter.
