PCE Instruments PCE-PFG 500-ICA Force gauge 0 - 2000 N ISO standards
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

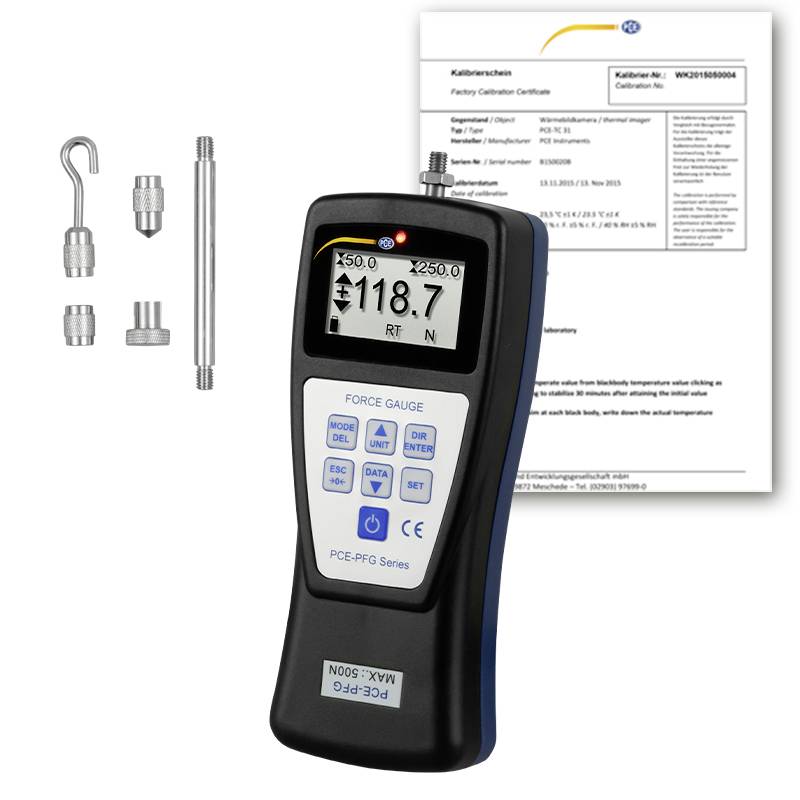

PCE instruments force meter PCE-PFG 500-ICA
- 4 Measurement modes (real-time measurement / maximum value / average measurement / automatic storage measurement)
- Internal memory for up to 100 measurements
- Statistical analysis ( MIN / MAX / Average)
- Rotating display
- Alarm function with multi-colored LED (yellow/green/red) and switch contact output 2.85 V
- USB B interface
- Battery runtime up to 36 hours
- Incl. ISO calibration certificate
Technical specifications
- Power
- Measuring range 0 ... 500 N
- Resolution 0.1 N
- Accuracy ±0.3 % of measurement range.
- General Technical Data
- Outputs (additional information) switching output
- Unit(s) N, kgf, lbf
- Connections M6 x 10 mm
- Display type Graphic LCD
- Display size 1.8 inches
- Measurement rate 500 Hz
- Storage medium Internal memory
- Memory capacity: 100 measurements

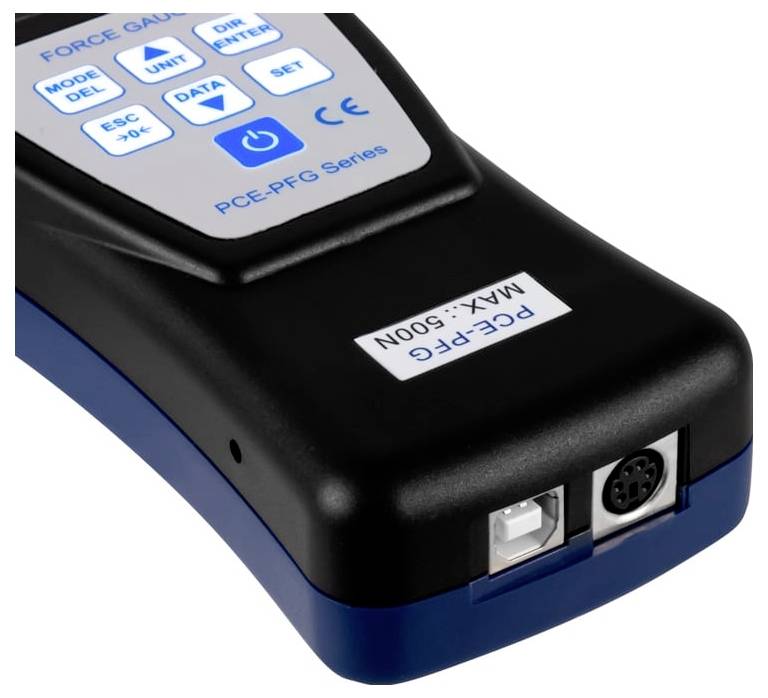

- Interface USB-B
- Operating time 36 h
- Alarm modes below, inside, outside
- Menu language English (US), English (GB)
- Protection class (device) IP54
- Power supply 5 V / 1 A
- Connector type for device Euro plug
- Battery/Battery 1 x 3.7 V internal , Lithium-Ion polymer battery
- Capacity 1500 mAh
- Operating conditions 5 ... 45 °C , 35 ... 65 % r.F.
- Storage conditions 5 ... 45 °C , 35 ... 65 % r.F.
- Dimensions ( L x W x H ) 77 x 189 x 34 mm
- Weight 450 g
- Product type
Force gauge
- Display
Digital
Graphical
- Force reading range (max.)
2000 N
ISO standards
- Power supply (details)
5 V
- Dim
(L x W x H) 189 x 707 x 34 mm
- Weight
240 g
- Resolution (force)
0.5 N
- Basic accuracy
0.3 %
- Calibration service
Incl. ISO calibration certificate
- Force reading range
0 - 2000 N
- Force reading range (min.)
0 N
- Reading frequency
500 Hz
- Width
707 mm
- Height
34 mm
- Length
189 mm
- Interfaces
USB 2.0 port B
- Plastic free packaging
Plastic-free packaging
Documents & Downloads
Datasheet
Datasheet 3812675 PCE Instruments PCE-PFG 500-ICA Force gauge 0 - 2000 N ISO standards
User & Safety Instructions
User & Safety Instructions 3812675 PCE Instruments PCE-PFG 500-ICA Force gauge 0 - 2000 N ISO standards
Description
The force meter is a handy, digital measuring device for measuring tensile and compressive forces. Thereby, the force meter offers a sampling rate of 500 Hz and different measurement options, like a real-time measurement (RT), a maximum measurement (PEAK), a configurable average value recording (AVERAGE), as well as an automatic measurement storage of up to 100 measurements.
The measured data, as well as a statistical evaluation of the data stored in the force meter (MIN / max / average), are shown in the graphic display and can be transferred to a PC via the USB interface. In addition, the force meter has a limit value function MIN / MAX, which can switch a multi-colored LED (yellow/green/red) and switch contacts.

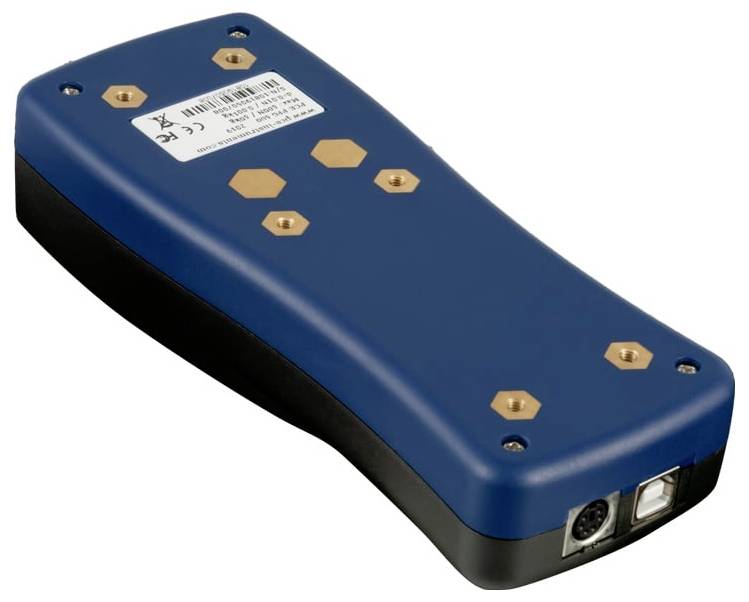

The graphic display can be rotated and the force gauge can be securely attached to a test stand using the M4 threaded holes on the rear. The force is released into the internally installed force measuring cell via an M6 threaded rod. For this purpose, the force meter comes with different locating pieces. The force measuring device can be operated with one battery charge up to 36 hours in continuous operation (without background lighting) and is a reliable partner as a mobile force measuring device.
This text is machine translated.
The measured data, as well as a statistical evaluation of the data stored in the force meter (MIN / max / average), are shown in the graphic display and can be transferred to a PC via the USB interface. In addition, the force meter has a limit value function MIN / MAX, which can switch a multi-colored LED (yellow/green/red) and switch contacts.
The graphic display can be rotated and the force gauge can be securely attached to a test stand using the M4 threaded holes on the rear. The force is released into the internally installed force measuring cell via an M6 threaded rod. For this purpose, the force meter comes with different locating pieces. The force measuring device can be operated with one battery charge up to 36 hours in continuous operation (without background lighting) and is a reliable partner as a mobile force measuring device.
This text is machine translated.

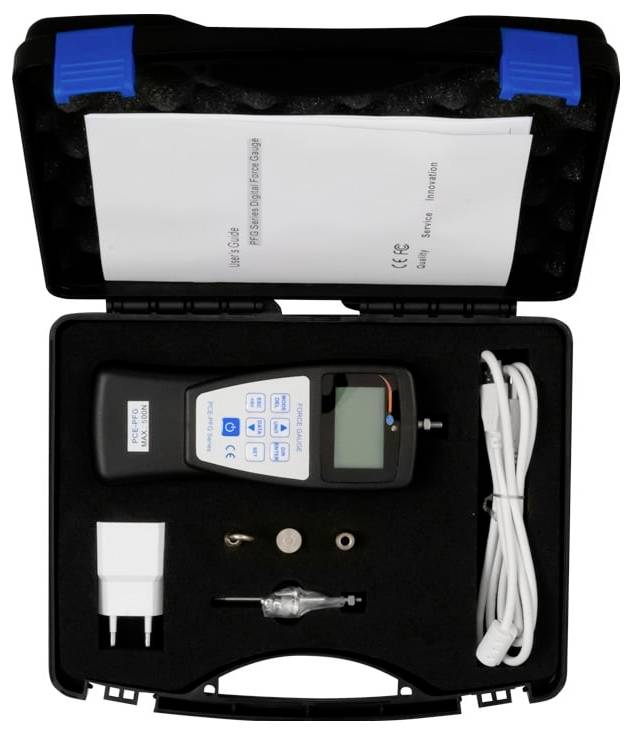

Scope of delivery
- 1 x force meter PCE-PFG 500-ICA

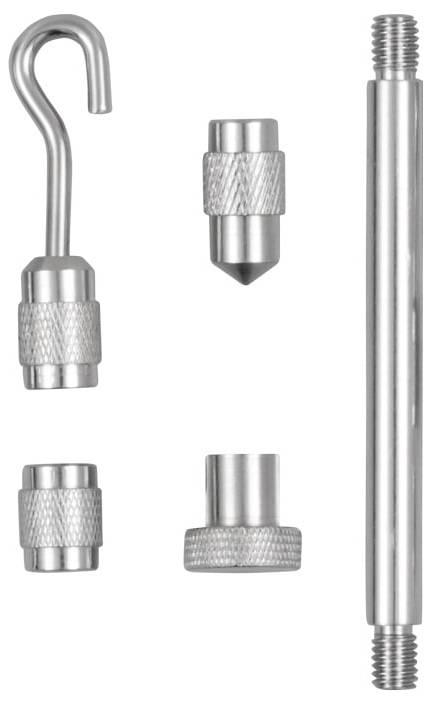

- 1 x Flat-head adaptor Ø13 mm
- 1 x pointed head adaptor
- 1 x hook adapter
- 1 x extension rod (75 mm)
- 1 x USB cable
- 1 x USB charger
- 1x user manual
- 1 x transport case
- 1 x ISO calibration certificate
