PCE Instruments PCE-PGM 100-ICA PCE-PGM 100-ICA Gloss meter Calibrated to (ISO standards)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
PCE instruments Glanyard meter PCE-PGM 100-ICA
- Different measurement geometries
- 3.5 inches TFT
- Internal measured value memory
- Calibration plate included in delivery
- Very low measurement time
- With analysis software
- Incl. ISO calibration certificate
Technical specifications
- Shine
- Measuring geometry 20°
- Measuring range 0 ... 1000 GU
- Resolution: 0.1 Gu
- Accuracy ±1.5 / ±1.5 %
- Shine
- Measuring geometry 60°
- Measuring range 0 ... 1000 GU
- Resolution: 0.1 Gu
- Accuracy ±1.5 / ±1.5 %
- Shine
- Measuring geometry 85°
- Measuring range 0 ... 160 GU
- Resolution: 0.1 Gu
- Accuracy ±1.5 / ±1.5 %
- General Technical Data
- Display type TFT color display
- Display size 3.5 inches
- Storage medium Internal memory
- Memory capacity: 1000 values
- Interface Mini-USB, RS232
- Standard(s) ISO 2813, GB/T 9754, ASTM D 523, ASTM D 2457
- Measuring surface additional information 20°: 10x10 mm / 60°: 9x15 mm / 85°: 5x36 mm
- REPEATABILITY ±0.1 GU / ±0.2 GU / ±0.2 GU (%)
- Measurement time 0.1 s.
- REPRODUCIBILITY ±0.2 GU / ±0.5 GU / ±0.5 GU (%)
- Measuring geometry 20°, 60°, 85°
- Colour grade corresponds to CIE 1931 (2°) under a CIE C light source
- Readability 0.1 GU
- Menu language English (US), Chinese, English (GB)
- Protection class (device) IP20
- Power supply 100 ... 240 V AC | 50 ... 60 Hz
- Connector type for device Euro plug
- Battery/battery 1 x 3.7 V internal , lithium-ion battery
- Capacity 3200 mAh
- Operating conditions 0 ... 40 °C , 0 ... 85 % r.F.
- Storage conditions -20 ... 50 °C , 0 ... 85 % r.F.
- Dimensions ( L x W x H ) 160 x 75 x 90 mm
- Weight 350 g
- Product type
Gloss meter
ISO standards
- Dim
(L x W x H) 160 x 75 x 90 mm
- Display
Digital
- Weight
350 g
- Calibration service
Incl. ISO calibration certificate
- Features
Data logger
- Width
75 mm
- Height
90 mm
- Length
160 mm
- Interfaces
Mini USB
RS232
- Plastic free packaging
Plastic-free packaging
Documents & Downloads
Datasheet
Datasheet 3812681 PCE Instruments PCE-PGM 100-ICA PCE-PGM 100-ICA Gloss meter Calibrated to (ISO standards)
User & Safety Instructions
User & Safety Instructions 3812681 PCE Instruments PCE-PGM 100-ICA PCE-PGM 100-ICA Gloss meter Calibrated to (ISO standards)
Description
The gloss gauge works with measurement geometries of 20°, 60° and 85°. The gloss measuring instrument uses the reflection principle. This is the fact that the gloss measuring device emits light on a surface to be tested. Part of the light is then absorbed from the surface and another part is reflected. After this has been done, the gloss measuring device calculates the appropriate gloss level. Based on its measurement range, the gloss measuring device offers the possibility to determine extensive surfaces.
Due to these properties, the gloss measuring device is ideal for quality and input control measurements. The accompanying software makes possible and simple a later evaluation of the measurement data.
This text is machine translated.
Due to these properties, the gloss measuring device is ideal for quality and input control measurements. The accompanying software makes possible and simple a later evaluation of the measurement data.
This text is machine translated.

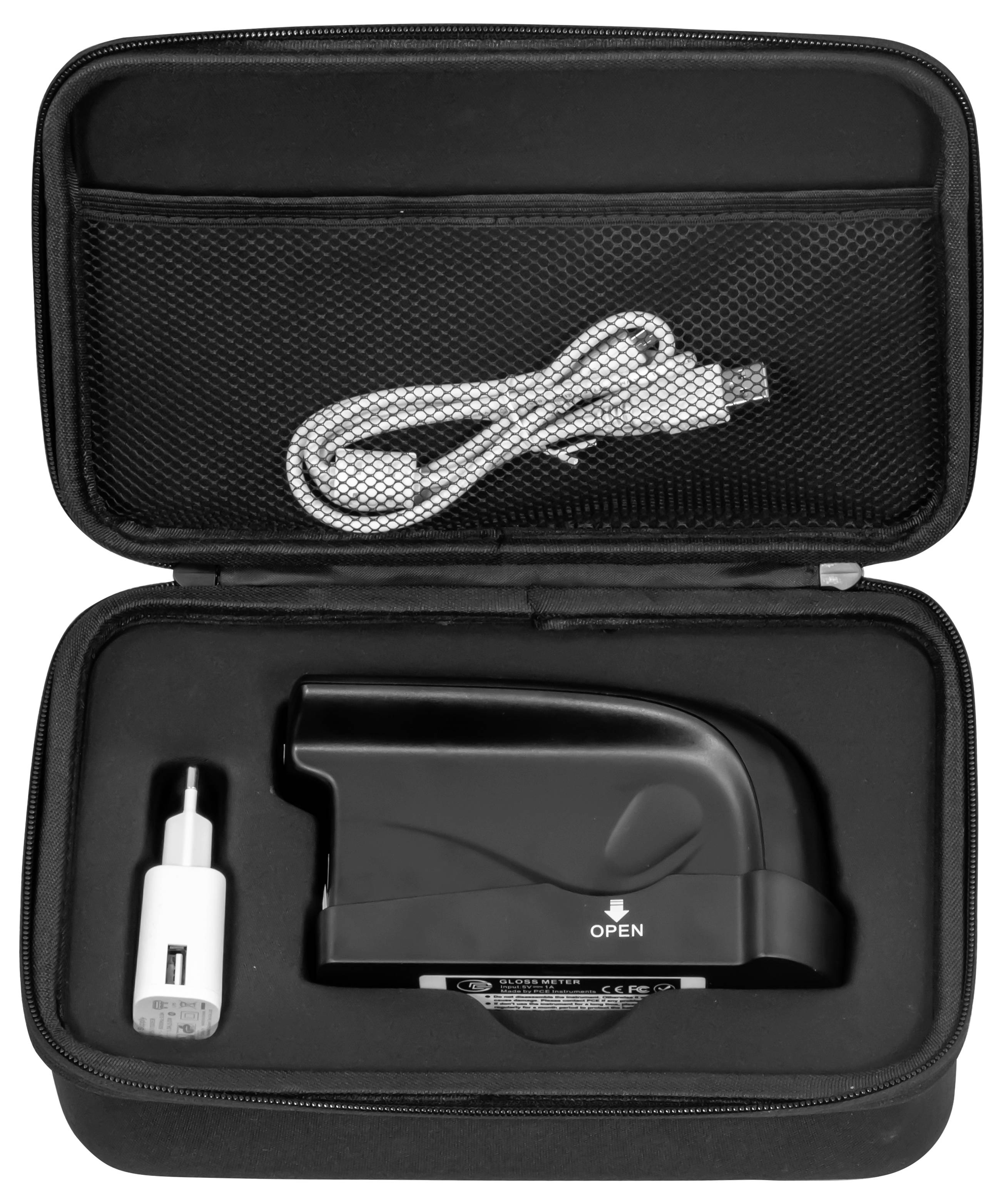

Scope of delivery
- 1 x gloss meter PCE-PGM 100-ICA
- 1 x Charging adapter 5 V
- 1x USB cable

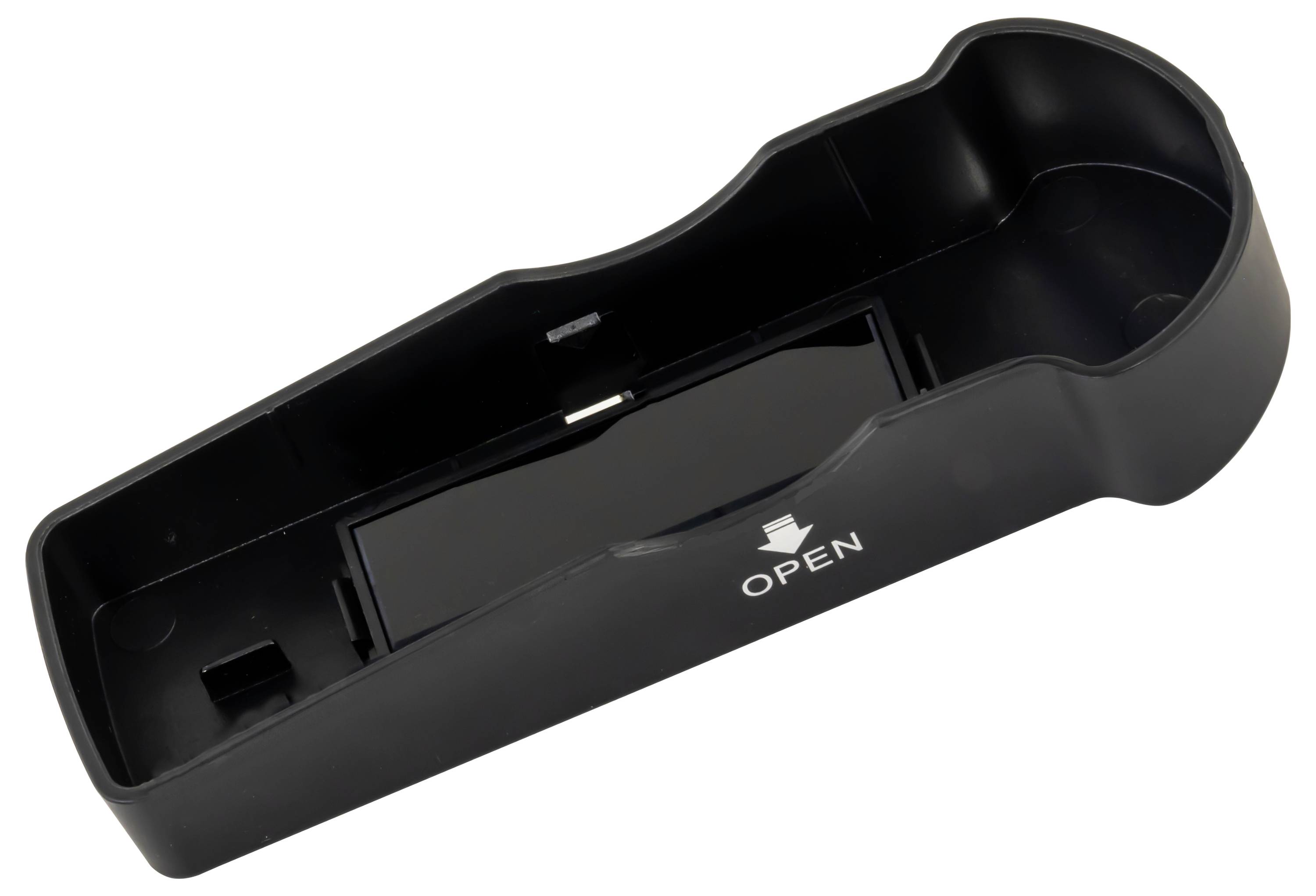

- 1 x calibration plate
- 1 x evaluation software (on CD-ROM)
- 1x user manual

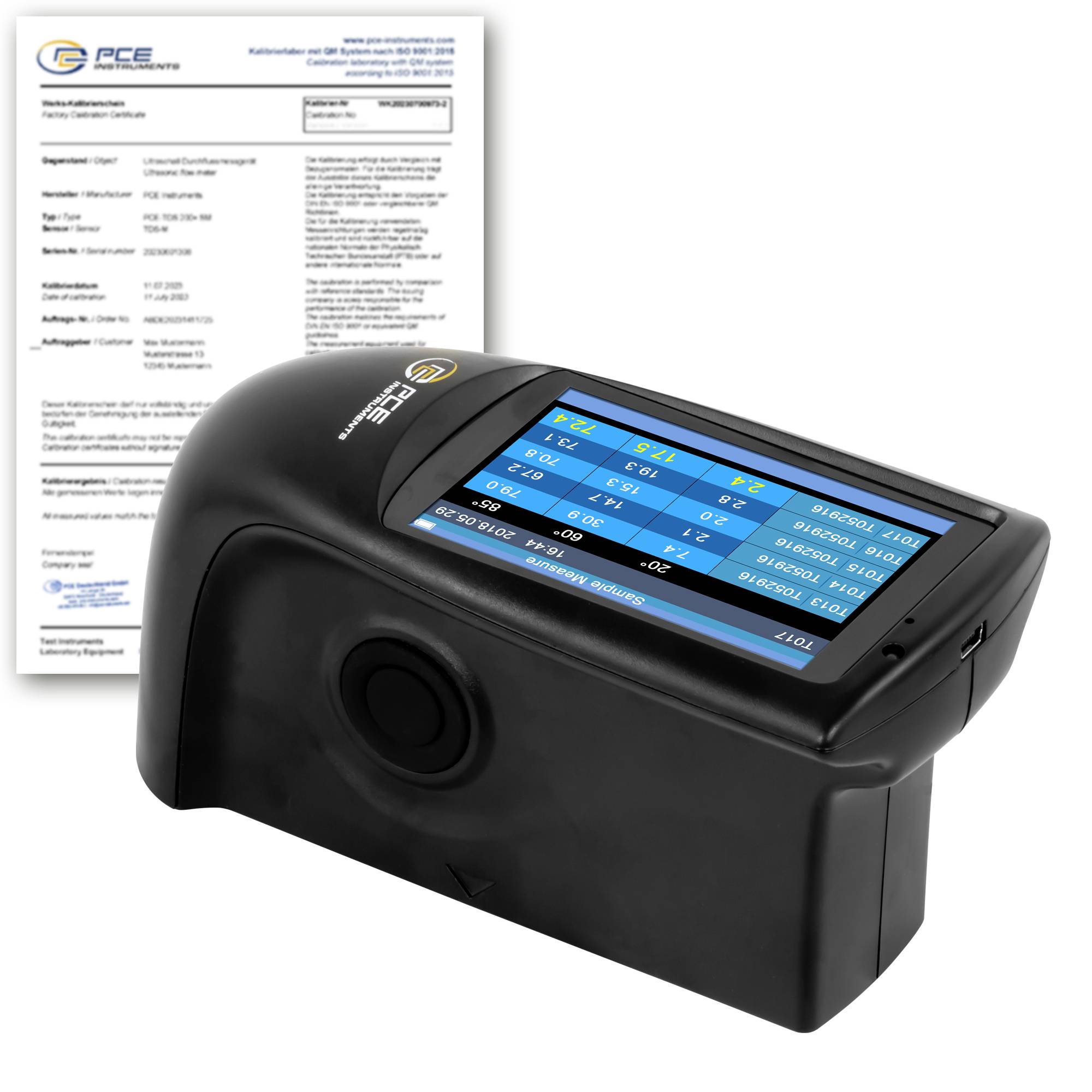

- 1 x ISO calibration certificate
