Buy PCE Instruments PCE-PGM 100 PCE-PGM 100 Gloss meter

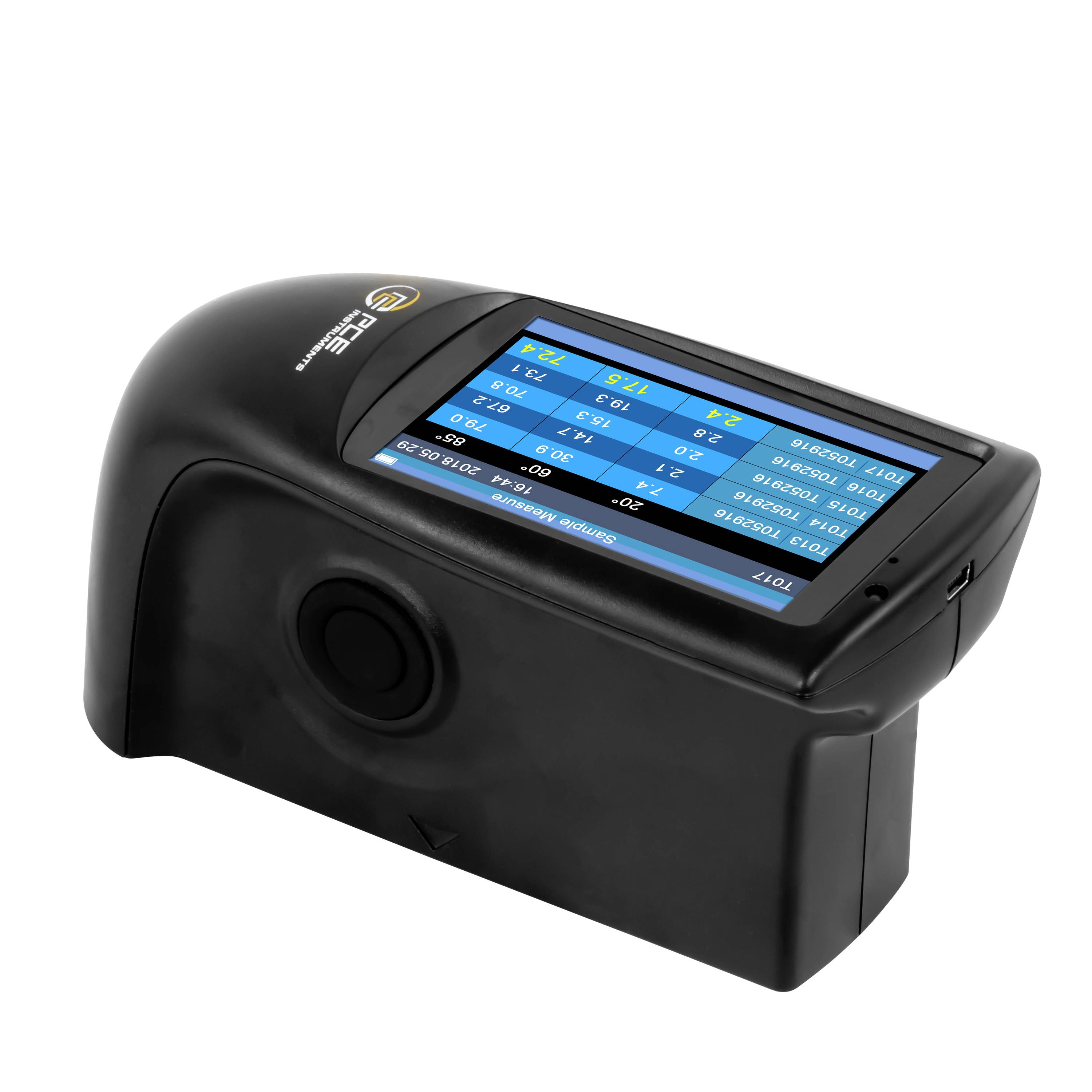

Black handheld electronic device with a blue touchscreen display, shown in three-quarter view on a white background.

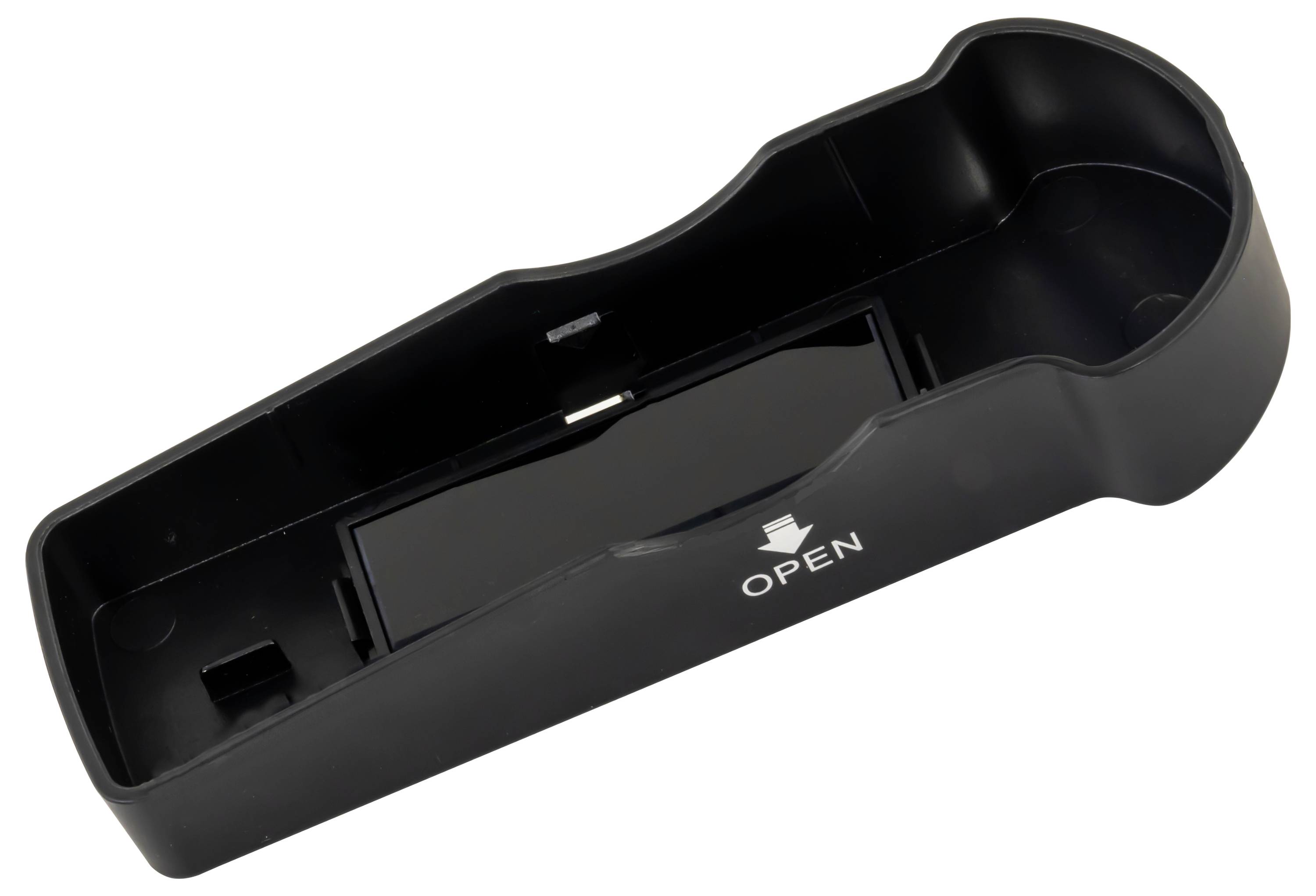

Black plastic battery holder or device compartment labeled 'OPEN' on a white background.

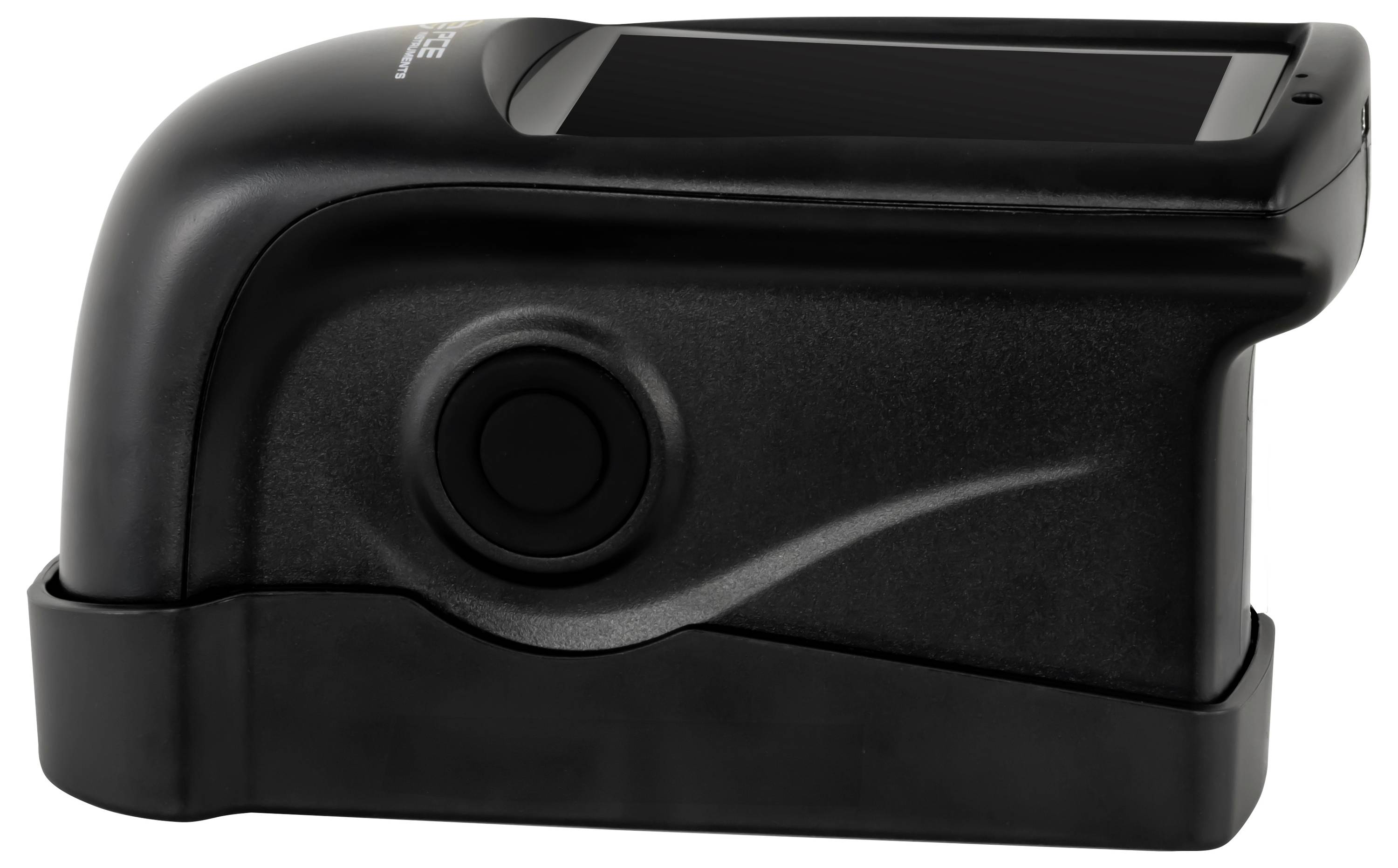

Black handheld barcode scanner in a charging cradle, shown in side view on a white background.

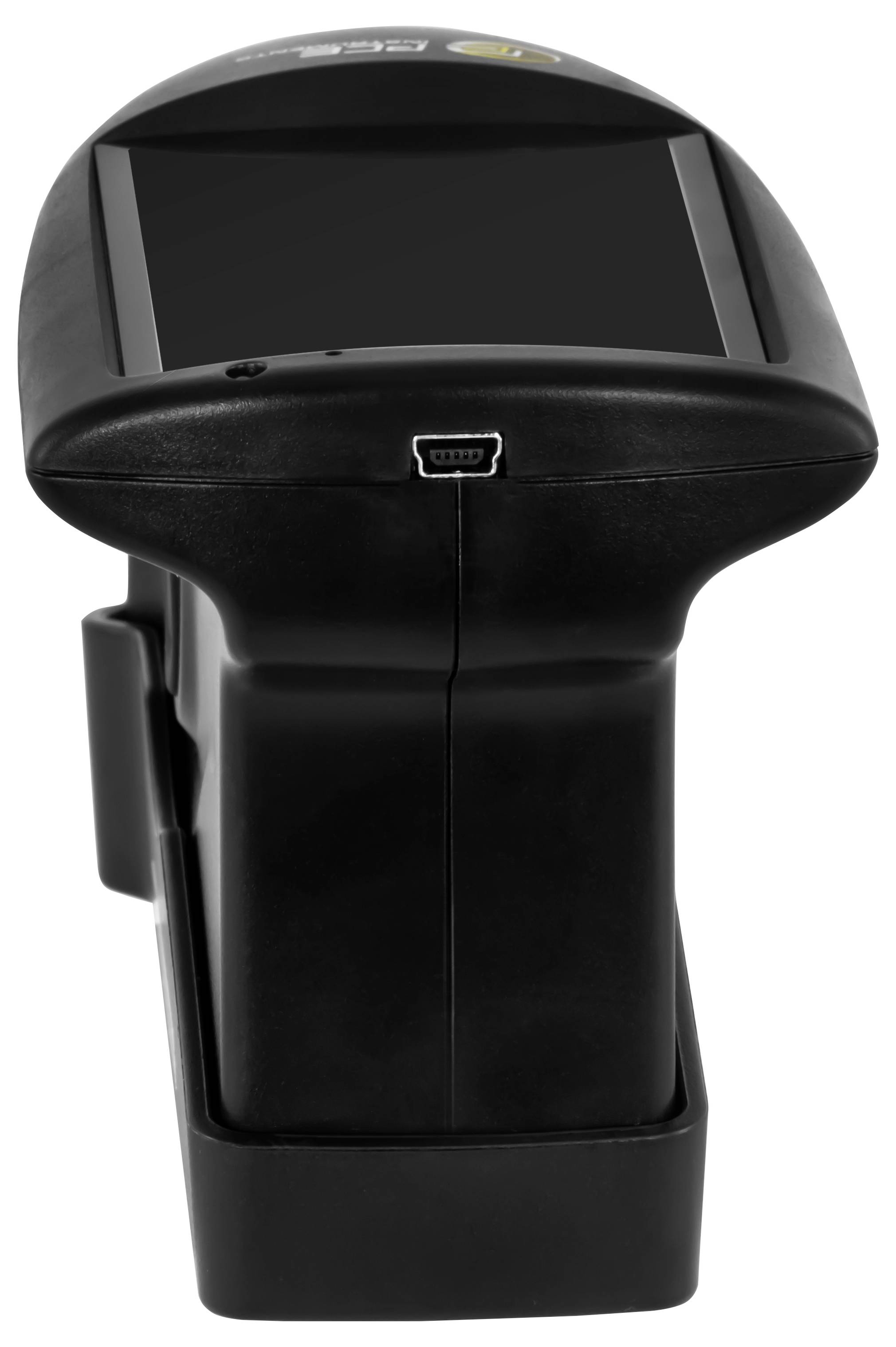

Black handheld electronic device with a small screen and USB port, shown front view on a white background

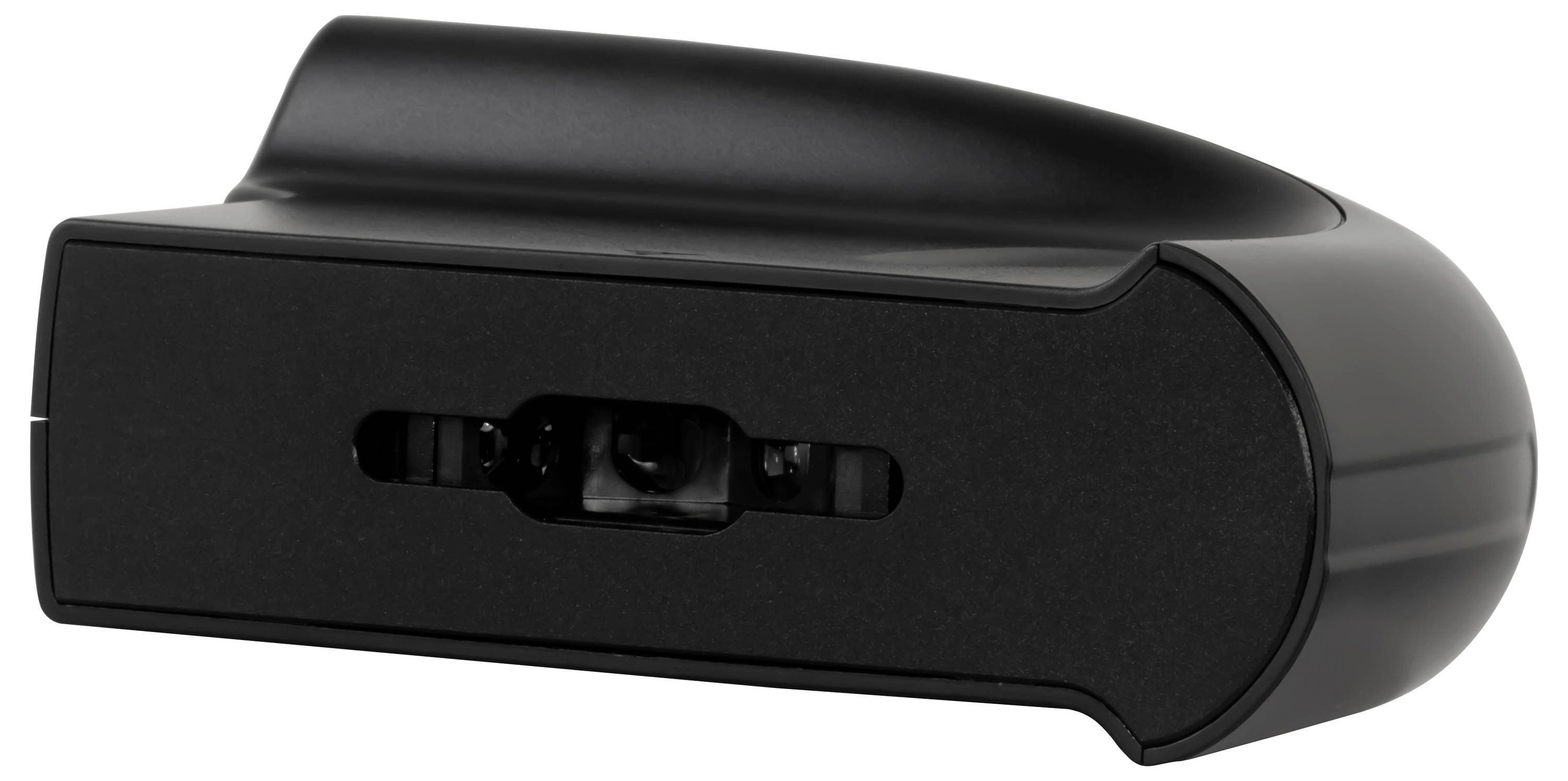

Black rectangular electronic device with a curved top and front window, shown on a white background.

1/5

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Gloss measuring device PCE-PGM 100

Different measuring geometries
3.5" TFT
Internal measured value memory
Calibration plate included in delivery
Very low measurement time
With evaluation software

Technical specifications

Measuring geometries 20 ° / 60 ° / 85 ° Display 3.5 " TFT Display STANDARDS ISO 2813 GB/T 9754 ASTM D 523 ASTM D 2457 Measuring area 20 ° : 10x10 mm 60 ° : 9X15 mm 85 ° : 5x36 mm Measuring range 20 ° : 0 ... 1000 GU 60 ° : 0 ... 1000 GU 85 ° : 0 ... 160 GU Readability 0.1 GU Repeatability Measurement range 0 ... 10 GU: ±0.1 GU Measurement range 10 ... 100 GU: ±0.2 GU Measuring range 100 ... 1000 GU: ±0.2 GU (%) Reproducibility Measurement range 0 ... 10 GU: ±0.2 GU Measurement range 10 ... 100 GU: ±0.5 GU Measuring range 100 ... 1000 GU: ±0.5 GU (%) Farbart corresponds to CIE 1931(2 °) under a CIE C. Light source Measuring accuracy ±1.5 / ±1.5 % Measurement time 0.1 seconds Dimensions 160 x 75 x 90 mm Weight 350 g Menu language English, Chinese Power supply 3200 mAh Li-ion battery Interface USB / RS-232 Measurement memory Basic measurement: 1000 software included Ambient temperature 0 ... +40 °C). Storage temperature -20 ... +50 °C relative humidity < 85 % rel. humidity (non-condensing)

Product type: Gloss meter

: Manufacturer's standards (no certificate)

Dim: (L x W x H) 160 x 75 x 90 mm

Weight: 350 g

Width: 75 mm

Height: 90 mm

Length: 160 mm

Documents & Downloads

Datasheet

Datasheet 2452565 PCE Instruments PCE-PGM 100 PCE-PGM 100 Gloss meter

User & Safety Instructions

User & Safety Instructions 2452565 PCE Instruments PCE-PGM 100 PCE-PGM 100 Gloss meter

Description

Gloss degree measuring device for mobile use / flexibility through different measuring geometries / 3.5" TFT display / very low measuring time / internal measured value memory / including evaluation software The gloss degree measuring device works with measuring geometries of 20 °, 60 ° and 85 °. The gloss level meter uses the reflection principle. This is the fact that the gloss level meter emits light on a surface to be tested. A part of the light is then picked up from the surface and another part is reflected. Once this has been done, the gloss level meter calculates the corresponding gloss level. Due to the measuring range, the gloss level meter offers the possibility to determine extensive surfaces. Due to these properties, the gloss level meter is suitable for gloss measurements in quality and input control. The accompanying software makes a later evaluation of the measured data possible and easy.
