Buy PCE Instruments PCE-PH 28L pH meter Temperature, pH

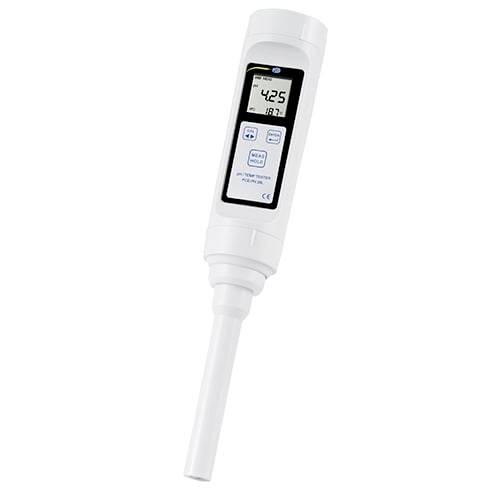

White handheld digital liquid tester with LCD display and long probe on a plain background.

Digital water quality meter with LCD showing 4.32 and 19.3, attached to a probe labeled pH solution and low conductivity electrode.

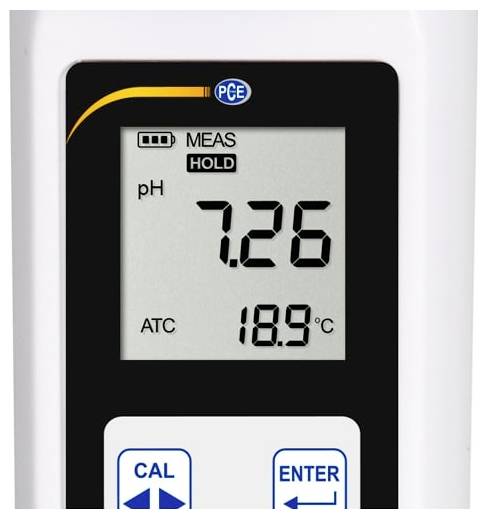

Digital pH meter display showing pH 7.26 and temperature 18.9°C, with 'MEAS' and 'HOLD' status indicators.

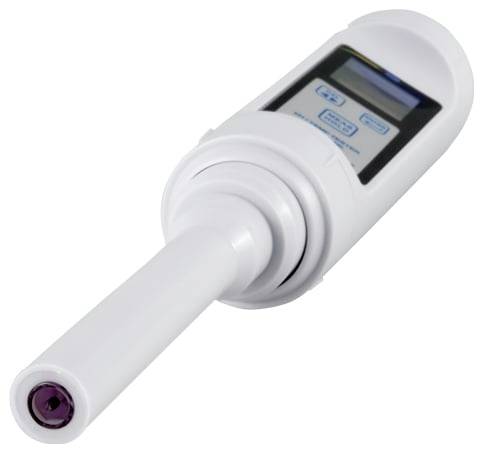

White handheld electronic device with a long probe and small display screen, shown on a plain background.

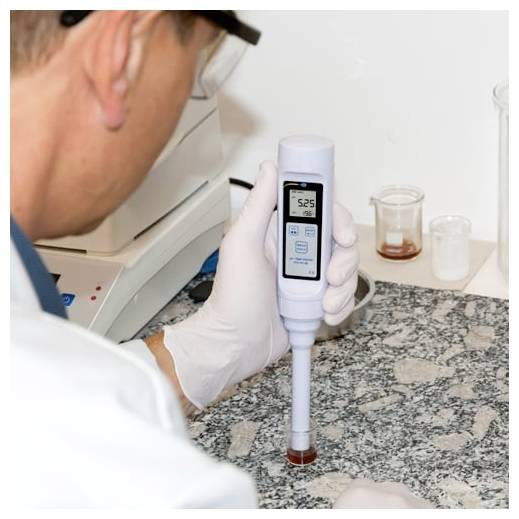

Lab technician using a digital meter to measure a small liquid sample in a vial on a countertop in a laboratory.

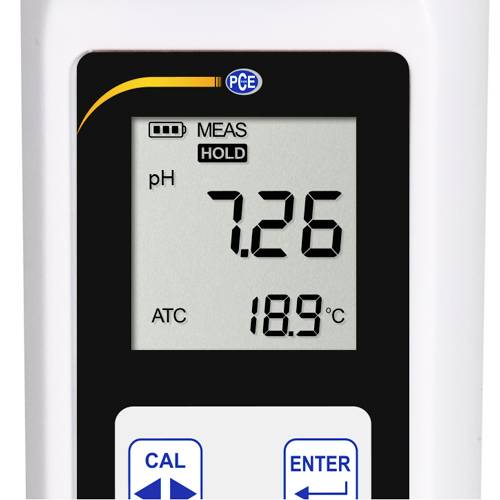

Digital pH Meter with display showing: '7.26' for pH value and '18.9°C' for temperature. Symbols for calibration and measurement status at the top.

A female scientist is working in a laboratory. She is wearing a white lab coat and conducting an experiment with chemical substances.

1/7

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

PH meter PCE-PH 28L

LCD display1-, 2- or 3-point calibrationLong plastic electrodeExchangeable pH electrodeAutomatic temperature compensationFor small sample quantities

Technical specifications

Measuring range - 1 ... 15 pH Accuracy ± 0.01 pH Resolution 0.01 pH Calibration points 1, 2 or 3 Automatic buffer recognition Yes Temperature measuring range 0.0 ... 60 °C 32 ... 140 °F Resolution temperature: 0.1 °C Accuracy Temperature ±1 °C Calibration point 1 Temperature compensation automatic 0 ... 60 °C Operating conditions 0 ... 60 °C / max. 80 % r.h. Power supply 2 x 1.5 V AAA batteries Dimensions 280 x 40 mm Weight 100 g.

Product type: pH meter

Reading type: Temperature
pH

Display: LCD

: Manufacturer's standards (no certificate)

Automatic temperature compensation: Yes

Dim: (L x W x H) 40 x 25 x 280 mm

Weight: 100 g

Temperature reading range: 0.0 up to 60 °C

Temperature reading range (max.): 60 °C

Temperature reading range (min.): 0.0 °C

pH reading range: -1 - 15 pH

pH reading range (max.): 15 pH

pH reading range (min.): -1 pH

Width: 25 mm

Height: 280 mm

Length: 40 mm

Documents & Downloads

Datasheet

Datasheet 2452575 PCE Instruments PCE-PH 28L pH meter Temperature, pH

User & Safety Instructions

User & Safety Instructions 2452575 PCE Instruments PCE-PH 28L pH meter Temperature, pH

Description

Digital pH tester PCE-PH 28L simple pH digital meter for measuring viscous liquids / flat pH electrode with long shaft / automatic temperature compensation The digital pH tester PCE-PH 28L is equipped with a flat electrode membrane. The pH electrode of the digital pH tester is installed in a shaft. The pH tester can be used to measure samples of viscous media in test tubes. This property allows very small amounts of liquids to be used with the digital pH tester to determine the pH value. The pH tester can thus be used in beaker or test tubes for small sample quantities. This means that the pH tester can be used not only in the field but also in the laboratory at very low sample volumes. In addition to the pH value, the digital pH tester also measures the temperature of the measuring medium. The digital pH tester automatically performs the temperature compensation with the temperature measurement value. The pH tester is calibrated using buffer solutions at pH 4, 7 or 10. Calibration powder is included in the delivery, which can be used for the first time.

This text is machine translated.
