Name: PCE Instruments PCE-PH 30-ICA Conductivity tester Calibrated to (ISO standards) Conductivity, pH, ORP, Salt content, TDS
Brand: PCE Instruments
SKU: 3812686

Digital temperature and humidity meter with calibration certificate displayed behind it.<br>

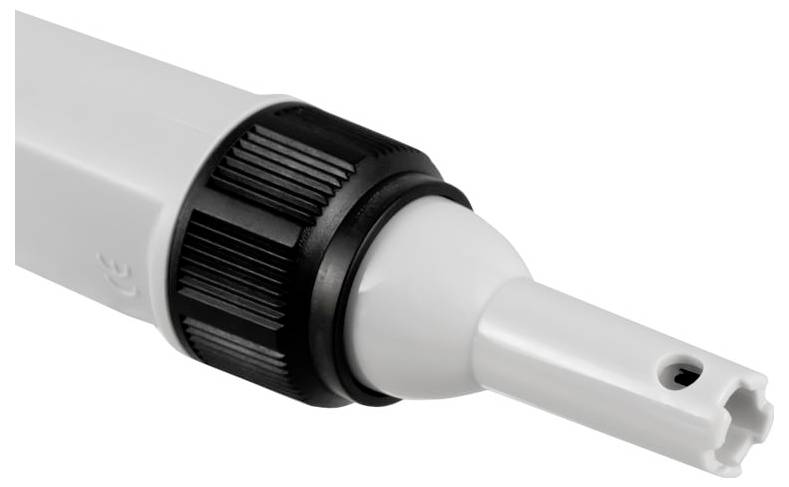

Close-up of a white plastic probe tip with a black ridged collar and side hole, shown against a plain white background.

Handheld PCE pH meter display showing 265 ppm and 12.9°C, with HOLD, MODE, and CAL buttons.

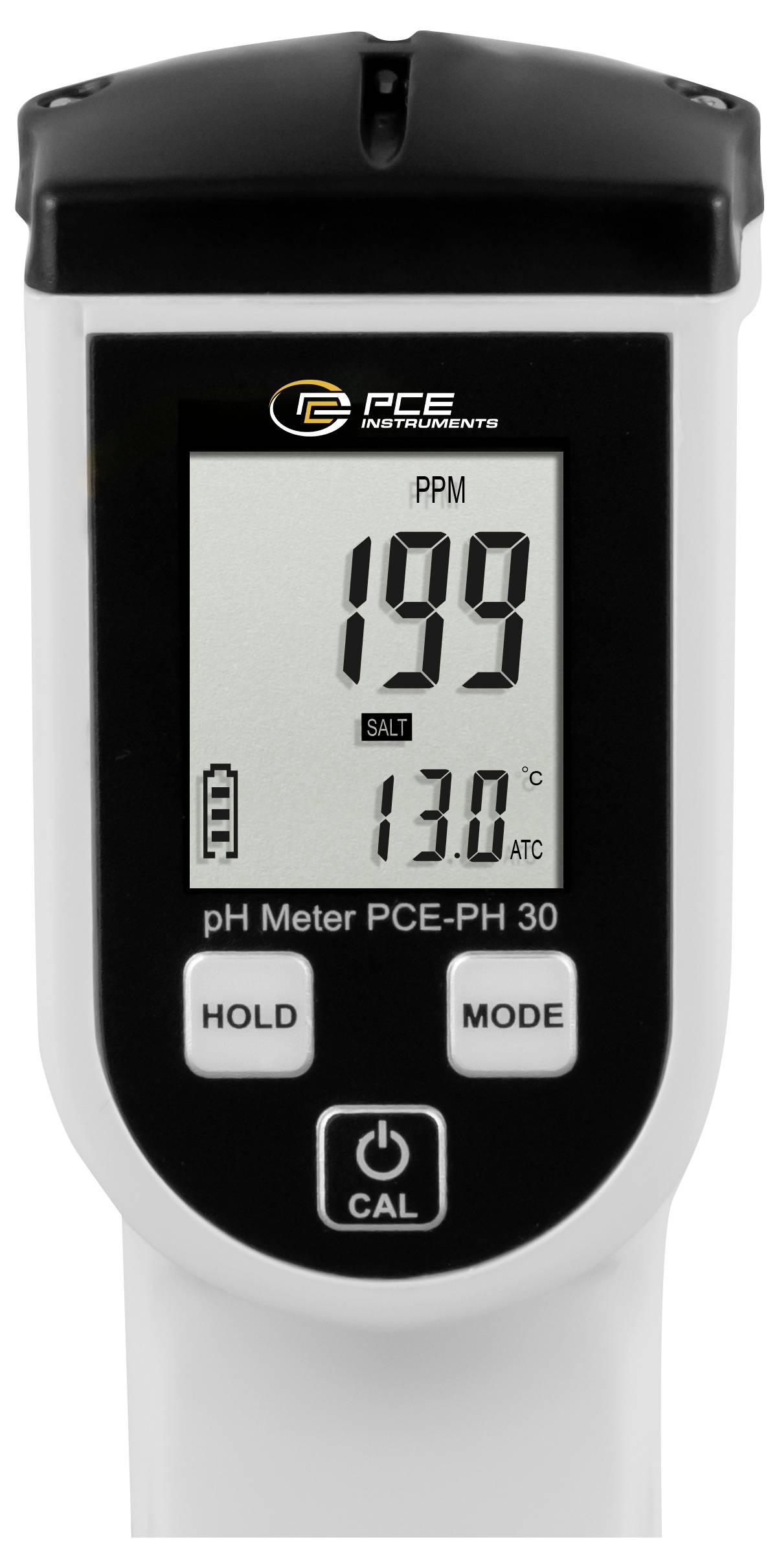

Digital PCE PH 30 meter showing 19.9 ppm salt and 13.0°C, with hold, mode, and cal buttons visible.

1/4

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

PCE instruments pH tester PCE-PH 30-ICA

6-in-1 pH tester
IP57 housing
Automatic temperature compensation
Battery powered operation
3 pH calibration point
Interchangeable electrodes
Max-Min Hold function
Automatic electrode detection
incl. super smash bros. ISO calibration certificate

Technical specifications

Conductivity
Measurement range 0 ... 2000 µS
Resolution 1 µS
Accuracy ±2 % FS
PH
Measurement range -2 - +16 pH
Resolution 0.01 pH
Accuracy ±0.01 pH +1 digit
Redox
Measuring range -1000 ... +1000 mV
Resolution 1 mV
Accuracy ±2 mV +1 digit
Salt content
Measuring range 0 – 1000 ppm
Resolution 1 ppm
Accuracy ±2 % FS
TDS
Measuring range 0 – 1300 ppm
Resolution 1 ppm
Accuracy ±2 % FS
Temperature
Measurement range 0 - 90 °C
Resolution 0.1 °C
Accuracy ±0.2 °C +1 digit
General Technical Specifications
MEASUREMENT FUNCTIONS MIN, MAX, HOLD
Temperature compensation 0 ... 90 °C, automatic
Display type LCD
Number of calibration points 3
Menu language English (US), English (GB)
Protection class (device) IP57
Battery 4 x 1.5 V AAA battery , alkaline-manganese
Capacity: 1200 mAh
Operating conditions 0 ... 60 °C , 0 ... 80 % r. F.
Storage conditions 0 ... 60 °C , 0 ... 80 % r.h.
Dimensions (L x W x H) 195 x 40 x 36 mm.
Weight 135 g

Product type: Conductivity tester

Reading type: Conductivity
pH
ORP
Salt content
TDS
Temperature

Accuracy: 0.1 °C, 0.01 pH

Display: LCD

: ISO standards

Automatic temperature compensation: Yes

Operating temperature: 0-60 °C

Resolution: 0.1 °C

Power supply (details): 1.5 V

Dim: (L x W x H) 195 x 40 x 36 mm

Weight: 135 g

Conductivity reading range: 0 - 2000 µS

Conductivity reading range (max.): 2000 µS

Conductivity reading range (min): 0 µS

TDS reading range: 0 - 1300 ppm

TDS reading range (max.): 1300 ppm

TDS reading range (min.): 0 ppm

Temperature reading range: 0 up to 90 °C

Temperature reading range (max.): 90 °C

Temperature reading range (min.): 0 °C

pH reading range: -2 - 16 pH

pH reading range (max.): 16 pH

pH reading range (min.): -2 pH

Width: 40 mm

Height: 36 mm

Length: 195 mm

Plastic free packaging: Plastic-free packaging

Documents & Downloads

Datasheet

Datasheet 3812686 PCE Instruments PCE-PH 30-ICA Conductivity tester Calibrated to (ISO standards) Conductivity, pH, ORP, Salt content, TDS

User & Safety Instructions

User & Safety Instructions 3812686 PCE Instruments PCE-PH 30-ICA Conductivity tester Calibrated to (ISO standards) Conductivity, pH, ORP, Salt content, TDS

Security datasheet

Security datasheet 3812686 PCE Instruments PCE-PH 30-ICA Conductivity tester Calibrated to (ISO standards) Conductivity, pH, ORP, Salt content, TDS

Description

The pH tester is the optimal tool for checking the most important water parameters. The portable pH tester is used to control the pH value and conductivity. It also serves the simultaneous temperature measurement. In addition, the pH tester can be used to measure the redox potential.

A three-point calibration and automatic temperature compensation of up to 90 °C guarantee high accuracy even in case of fluctuating measuring temperatures. The pH tester has an easy-to-read display. The test device comes with pH and temperature probe, calibration and storage fluid. The redox probe is available separately as accessories.

This text is machine translated.
