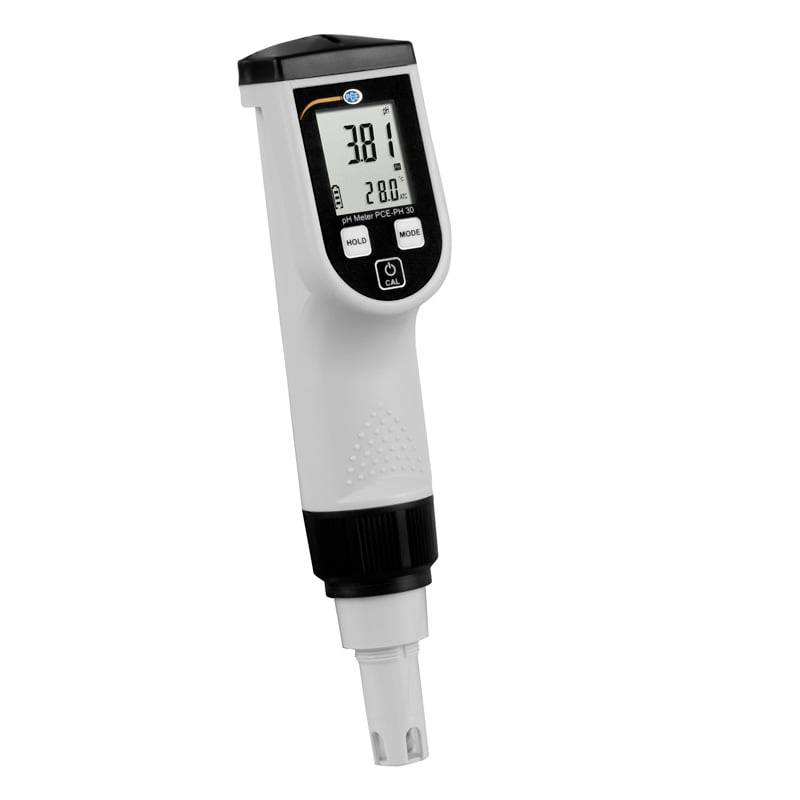

Handheld digital pH meter showing a reading of 3.81 on a white background.

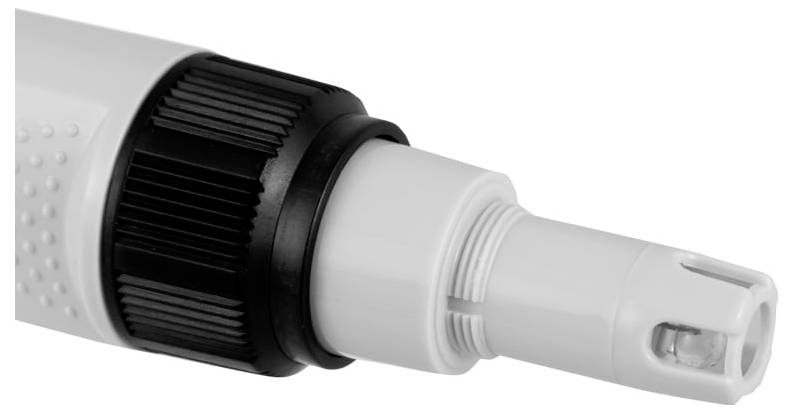

Close-up of a white and black plastic medical device tip with a clear cap, shown against a plain background.

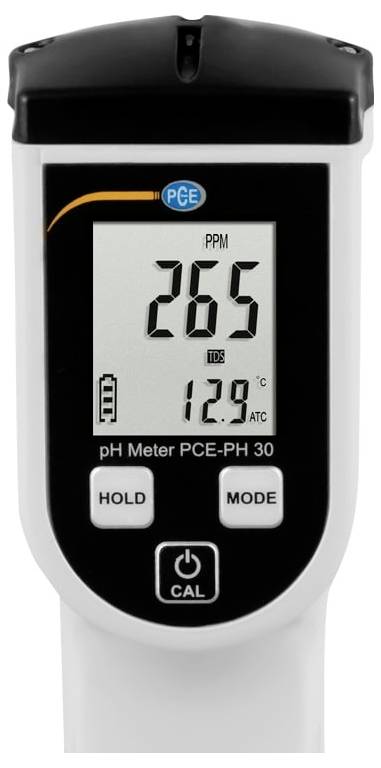

Handheld PCE pH meter showing readings of 26.5 PPM and 12.9°C, with Hold, Mode, and Cal buttons.

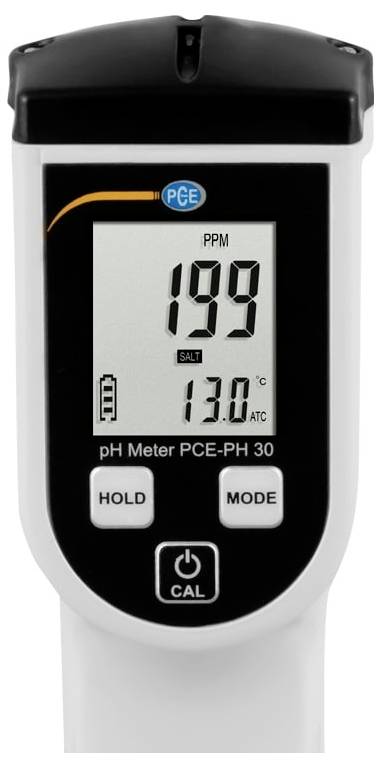

Digital PCE PH 30 pH meter showing 1.99 pH, salt mode, 13.0°C ATC, with Hold, Mode, and Cal buttons.

Handheld digital pH meter showing pH 3.81 and temperature 28.0°C, with HOLD, MODE, and CAL buttons visible.

A man kneels by the shore of a lake, holding a camera. An open toolbox lies beside him. The surroundings are green and tranquil.

A person is measuring the water temperature of a pond with a digital thermometer, which shows 20.8 degrees Celsius.

1/7

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Tester for pH / conductivity / TDS / salt content / temperature PCE-PH 30 including Redox electrode SE-PH30-ORP

6-in-1 pH testerIP57 housingAutomatic temperature compensationBattery powered operation3 pH calibration pointInterchangeable electrodesMax-Min Hold functionAutomatic electrode detection

Technical specifications

PH measuring functionMeasuring range: -2 ... 16 pHResolution 0.01 pHAccuracy ±0.01pH+1DgtATC: 0 ... 90 °CCalibration: PH 4, 7, 10 Measuring function: RedoxMeasuring range ± 1000 mVResolution 1 mVAccuracy ± 2 mV + 1 DGT Measuring function: ConductivityMeasuring range: 0 ... 2000 µS, 2 ... 20 MSResolution 1 µS, 0.01 mSAccuracy ± 2% of MB.ATC: 0 ... 50 °CCalibration 0 µS, 1413 µS, 12.88 mS Measuring function TDSMeasuring range: 0 ... 1300 ppm, 1.3 ... 13 pptResolution 1 ppm, 0.01 pptAccuracy ± 2% of MB.ATC: 0 ... 50 °C Measuring function: Salt contentMeasuring range: 0 ... 1000 ppm, 1 ... 12 pptResolution 1 ppm, 0.01 pptAccuracy ± 2% of MB.ATC: 0 ... 50 °C Measuring function: TemperatureMeasuring range: 0 ... 90 °CResolution: 0.1 °CAccuracy ±0.2 °C + 1 DGT LCD displayPower supply 4 x 1.5 V AAA batteriesDimensions 195 x 40 x 36 mmWeight approx.: 135 g

Product type: pH meter

Reading type: pH
ORP
Temperature
Conductivity

Display: LCD

: Manufacturer's standards (no certificate)

Automatic temperature compensation: Yes

Dim: (L x W x H) 195 x 40 x 36 mm

Weight: 135 g

Conductivity reading range: 0 - 2000 µS

Conductivity reading range (max.): 2000 µS

Conductivity reading range (min): 0 µS

TDS reading range: 1.30 - 13 mg/l

TDS reading range (max.): 13 mg/l

TDS reading range (min.): 1.30 mg/l

Temperature reading range: 0 up to +90 °C

Temperature reading range (max.): +90 °C

Temperature reading range (min.): 0 °C

pH reading range: 2 - 16 pH

pH reading range (max.): 16 pH

pH reading range (min.): 2 pH

Width: 40 mm

Height: 36 mm

Length: 195 mm

Documents & Downloads

Datasheet

Datasheet 2620717 PCE Instruments PCE-PH 30R pH meter pH, ORP, Temperature, Conductivity

User & Safety Instructions

User & Safety Instructions 2620717 PCE Instruments PCE-PH 30R pH meter pH, ORP, Temperature, Conductivity

Description

Redox meter for water analysis e.g. in aquariums pH value, conductivity, redox test device with changeable sensors / well-readable LC display / automatic temperature compensation The redox meter is the optimum tool for checking the most important water parameters. The portable Redox meter is intended for controlling the pH and conductivity. It also serves the simultaneous temperature measurement. In addition, the Redox measuring device can be used to measure the redox potential. Three-point calibration and automatic temperature compensation up to 90 °C guarantee high accuracy even in fluctuating measuring temperatures. The redox meter has a easy to read display. The test device is delivered including redox probe, calibration and storage liquid.

This text is machine translated.

Scope of delivery

1 x Redox measuring device PCE-PH 30R 1 x Redox electrode SE-PH30-ORP 1 x conductivity electrode 1 x 1413 µS/cm calibration liquid 1 x storage solution 1 x Holding loop 4 x 1.5 V AAA Battery 1x user manual
