PCE Instruments PCE-PH20S-ICA pH meter Calibrated to (ISO standards) pH
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
PCE instruments earth pH-meter PCE-PH20S-ICA
- Waterproof (IP 67)
- Special external measuring electrode to cable
- High accuracy
- Auto-Power-Off for battery protection
- Supplied with calibration solutions
- Data Hold function
- Easy to read digital display
- Easy to use
- incl. super smash bros. ISO calibration certificate
Technical specifications
- PH
- Measurement range 0 - 14 pH
- Resolution 0.01 pH
- Accuracy ±0.07 pH (in the range 5 ... 9 pH) / ±0.1 pH (in the range 4 ... 4.9 and 9.1 ... 10 pH) / ±0.2 pH (in the range 1 ... 3.9 and 10 ... 13 pH)

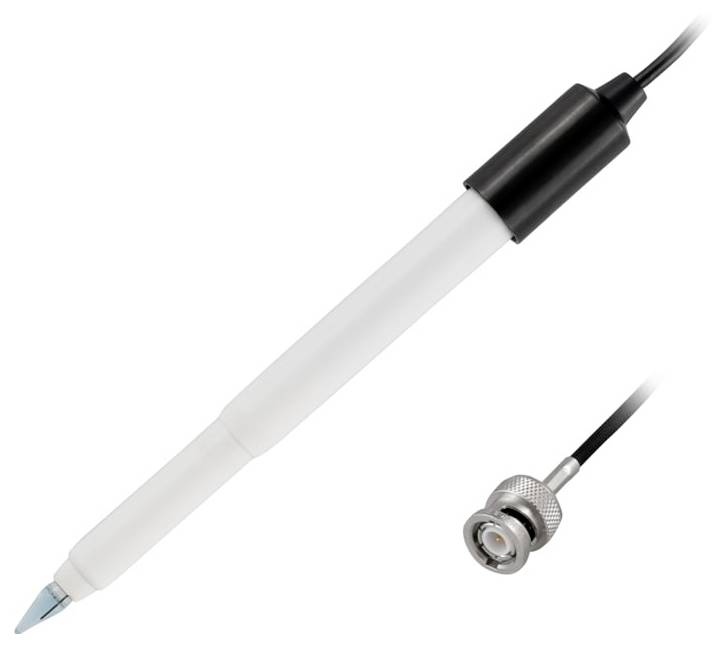

- Electrode
- Name PE-06HDA
- Measurement range 1 - 13 pH
- Temperature range 5 to 60°C
- Application Ground
- Reference system AG/AgCl
- Reference electrolyte saturated KCL gel
- Epoxy resin shank material
- Shaft length 160 mm
- Shaft diameter: 12 mm
- Cable length: 1 m
- BNC port
- General Technical Specifications
- Measuring functions HOLD
- Display type LCD
- Display size 1.35 inches
- Automatically switches off approx. 10 min.
- Number of calibration points 3
- Automatic calibration with pH4, pH7, pH10 using calibration solutions
- IP67 protection (device)
- Battery 4 x 1.5 V AAA battery , alkaline-manganese
- Capacity: 1200 mAh
- Operating conditions 0 ... 60 °C , 0 ... 80 % r. F.
- Storage conditions 0 ... 60 °C , 0 ... 80 % r.h.
- Dimensions (L x W x H) 180 x 40 x 32 mm.
- Weight 220 g
- Product type
pH meter
- Reading type
pH
- Accuracy
0.07 pH
- Display
LCD
Digital
ISO standards
- Resolution
0.01 pH
- Power supply (details)
1.5 V
- Dim
(L x W x H) 180 x 40 x 32 mm
- Weight
220 g
- pH reading range
0 - 14 pH
- pH reading range (max.)
14 pH
- pH reading range (min.)
0 pH
- Width
40 mm
- Height
32 mm
- Length
180 mm
- Plastic free packaging
Plastic-free packaging
Documents & Downloads
Datasheet
Datasheet 3812690 PCE Instruments PCE-PH20S-ICA pH meter Calibrated to (ISO standards) pH
User & Safety Instructions
User & Safety Instructions 3812690 PCE Instruments PCE-PH20S-ICA pH meter Calibrated to (ISO standards) pH
Security datasheet
Security datasheet 3812690 PCE Instruments PCE-PH20S-ICA pH meter Calibrated to (ISO standards) pH
Description
The soil pH-meter was developed for directly determining the pH-value in the soil. With the help of this soil pH-meter it is possible to measure the pH-value of the soil or a solution containing a soil sample quickly and accurately. The ground electrode is inserted into the previously slightly loosened ground and the pH value is read off on the digital display.
Always make sure that the measuring principle requires a minimum residual moisture in the soil. This soil pH-meter is therefore the ideal solution for the exact measurement of the pH-value in the soil, in substrates, for garden irrigation solutions, which are used in greenhouses and also in agricultural products and plants. The meter is always delivered calibrated at the factory. A continuous re-calibration of the pH meter is performed using the supplied calibration standards (buffer solutions). The calibration data is saved when changing the batteries.

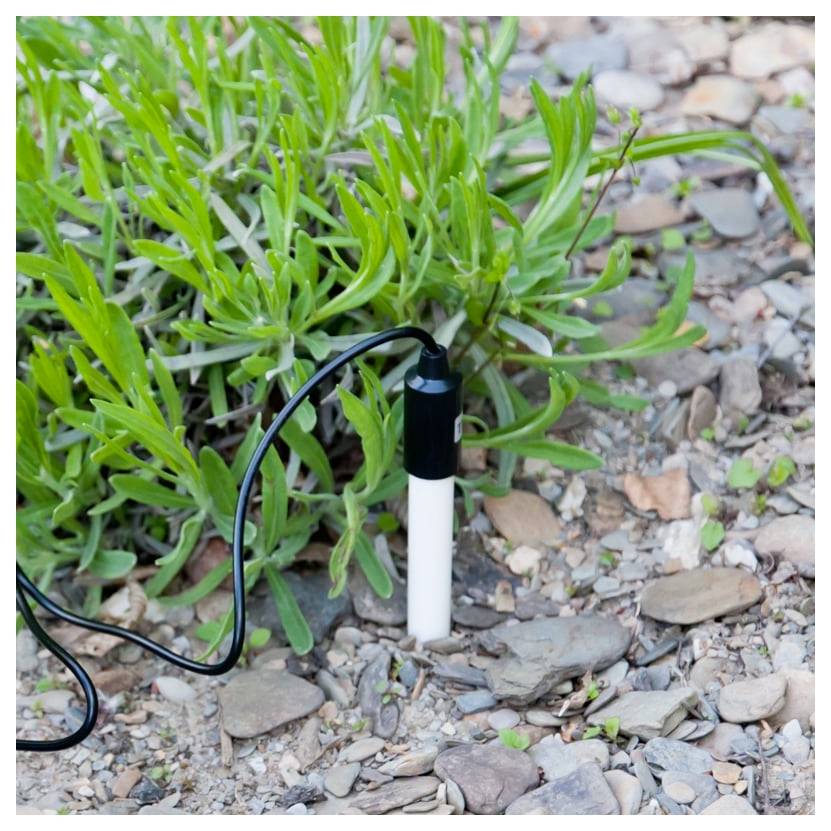

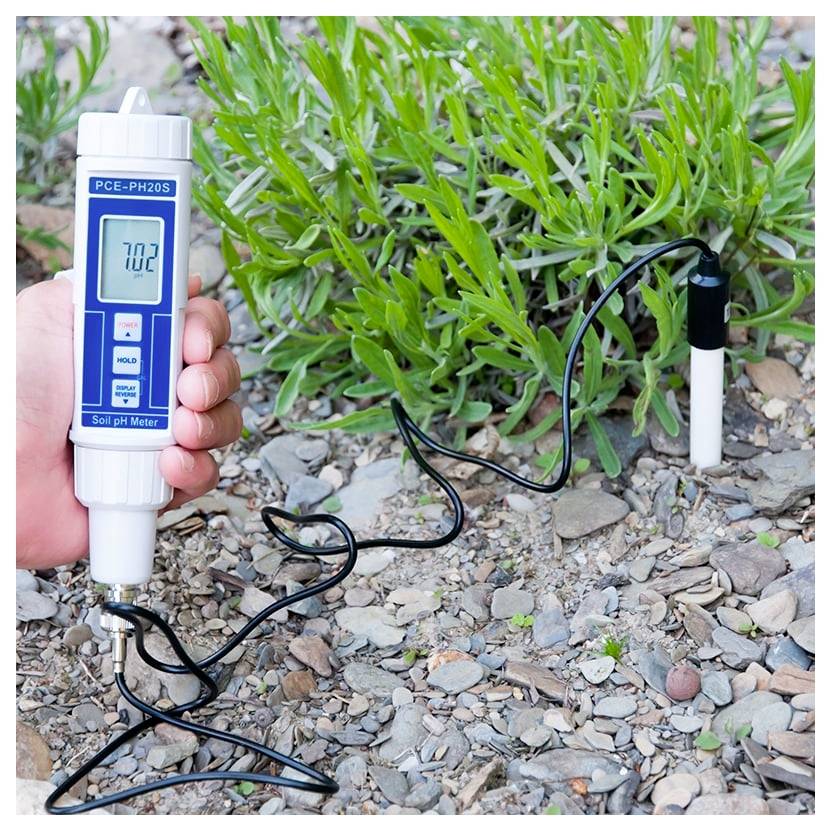

As a rule, you can simply stick the electrode into the ground and read the pH directly from the digital display. If you would like to make a DIN-standard measurement or if you cannot penetrate deep enough into the soil due to the hardness of the soil, you should make a DIN soil solution and use it for accurate measurement.
This text is machine translated.
Always make sure that the measuring principle requires a minimum residual moisture in the soil. This soil pH-meter is therefore the ideal solution for the exact measurement of the pH-value in the soil, in substrates, for garden irrigation solutions, which are used in greenhouses and also in agricultural products and plants. The meter is always delivered calibrated at the factory. A continuous re-calibration of the pH meter is performed using the supplied calibration standards (buffer solutions). The calibration data is saved when changing the batteries.
As a rule, you can simply stick the electrode into the ground and read the pH directly from the digital display. If you would like to make a DIN-standard measurement or if you cannot penetrate deep enough into the soil due to the hardness of the soil, you should make a DIN soil solution and use it for accurate measurement.
This text is machine translated.

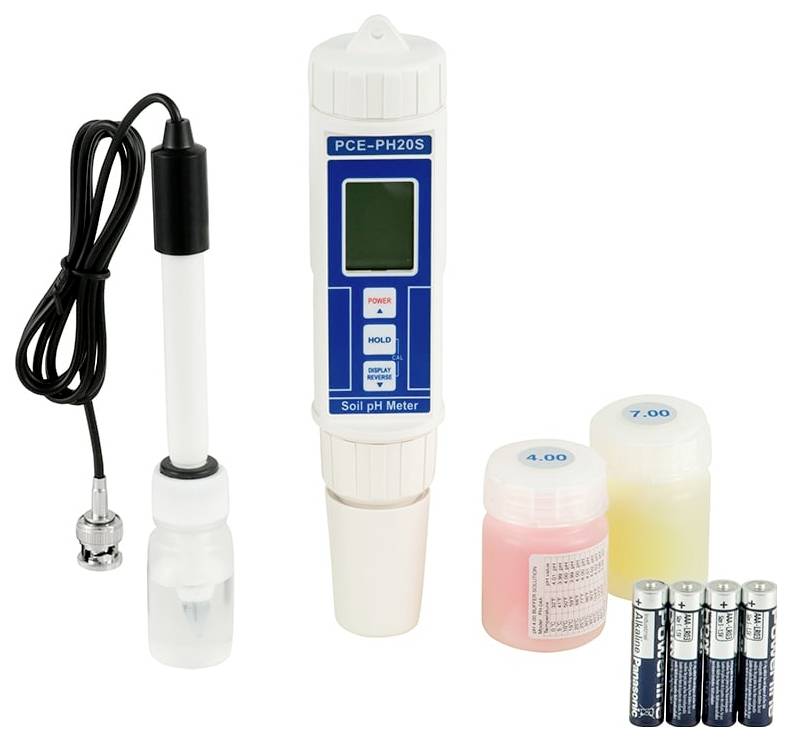

Scope of delivery
- 1 x soil pH meter PCE-PH20S-ICA
- 1 x pH ground electrode
- 4 x 1.5 V AAA batteries
- 1 x calibration kit with pH4 +7 solutions (75 ml bottles each)
- 1 x Operating manual
- 1 x ISO calibration certificate
