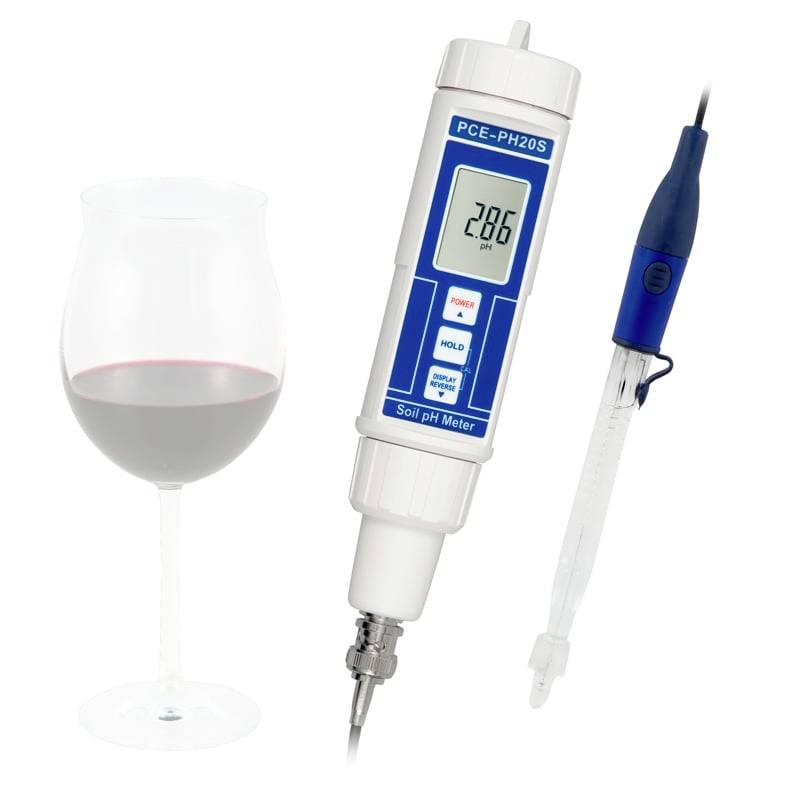

Wine glass beside a digital soil pH meter and probe on a white background.

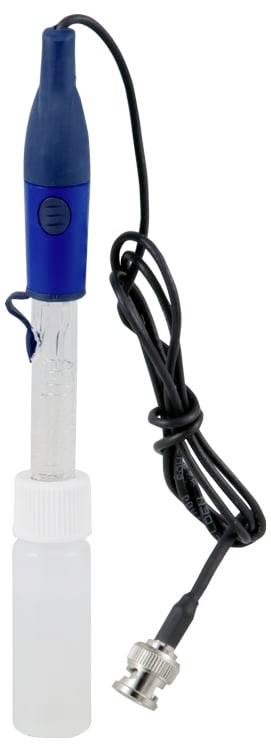

Blue handheld electronic tester with attached cable and metal connector, shown upright on a clear sampling bottle.

Blue handheld electric screwdriver or rotary tool with a long bit and attached power cord on a white background.

1/3

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

PH meter PCE-PH20 including pH electrode PCE-PH WINE especially for wine

Waterproof (IP 67)Special external measuring electrode for wine and beerHigh accuracyAuto power-off to save battery powerSupplied with calibration solutionsData hold functionEasy to read digital displayEasy to use

Technical specifications

Measurement range 0.00...14.00 pHResolution 0.01 pHAccuracy:±0.07 pH (in the range 5 ... 9 pH±0.1 pH (in the range 4 ... 4.9 and 9.1 ... 10 pH±0.2 pH (in the range 1 ... 3.9 and 10 ... 13 pHCalibration automatically at pH 4, 7 or 10 using calibration solutionsPH electrode with BNC connector for liquidsPower supply 4 x 1.5 V AAA batteriesEnvironmental conditions 0 ... +60 °C / <80 % r.F.Dimensions 180 x 40 mm Weight 220 g.

Product type: pH meter

Reading type: pH

Display: Digital

: Manufacturer's standards (no certificate)

Resolution: 0.01

Power supply (details): 6 V

Dim: (L x W x H) 40 x 40 x 180 mm

Weight: 220 g

Temperature reading range: 0 up to 60 °C

Temperature reading range (max.): 60 °C

Temperature reading range (min.): 0 °C

pH reading range: 0 - 14 pH

pH reading range (max.): 14 pH

pH reading range (min.): 0 pH

Width: 40 mm

Height: 180 mm

Length: 40 mm

Interfaces: BNC plug

Documents & Downloads

Datasheet

Datasheet 2620718 PCE Instruments PCE-PH20WINE pH meter pH

User & Safety Instructions

User & Safety Instructions 2620718 PCE Instruments PCE-PH20WINE pH meter pH

Description

PH meter PCE-PH20WINE easy-to-use pH meter for measuring the pH value / external pH electrode / calibrated / waterproof (IP 67) The pH meter is designed to measure the pH value directly in aqueous media such as wine or beer. Furthermore, the pH meter can also be used for other media with low conductivity. The waterproof pH tester PCE-PH20 is intended for measuring the pH value quickly and accurately. The pH value can be easily read from the practical display on the pH meter. The waterproof and robust housing (IP 67) means that the pH-value tester can be used even under difficult conditions. Recalibration always guarantees optimal accuracy and is very easy to use with the optionally available calibration kits (automatic calibration function without calibration screws - only to be carried out using the keyboard).

This text is machine translated.
