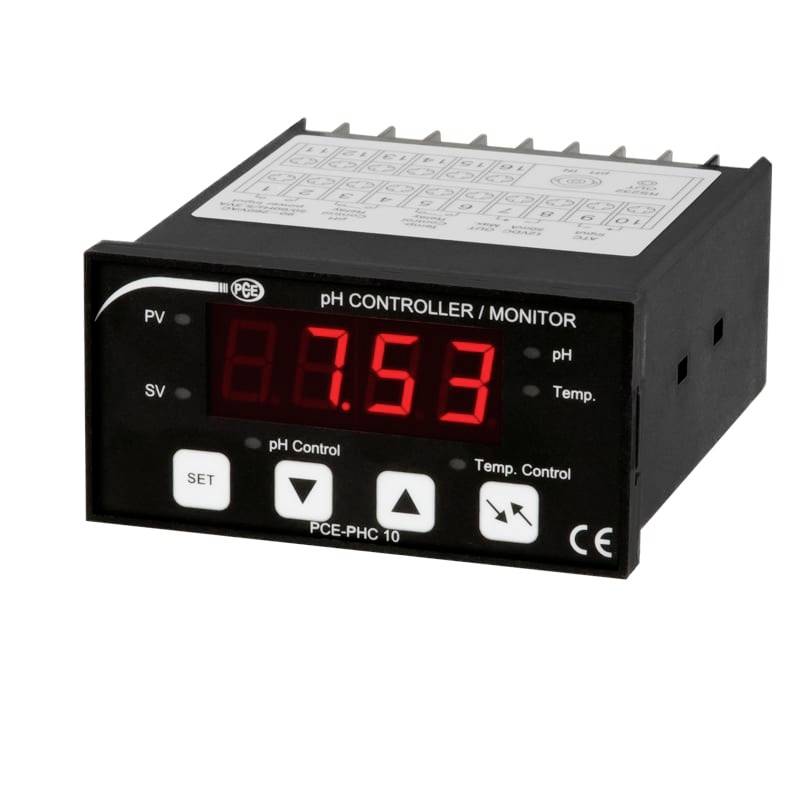

Digital pH controller/monitor showing 7.53 on a red LED display, with set and arrow buttons for pH and temperature control.

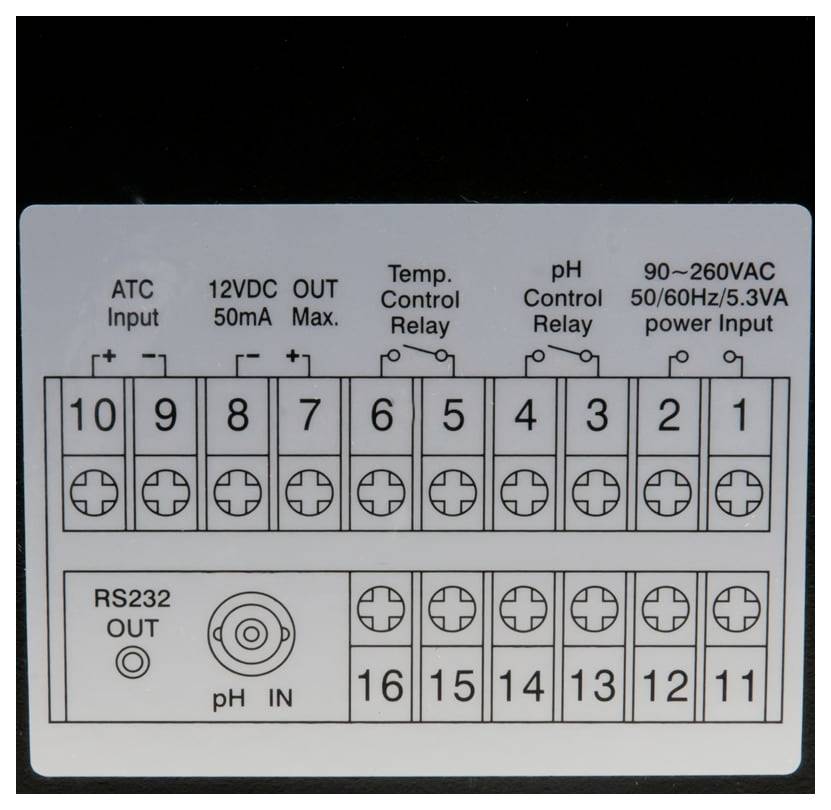

Labelled terminal block diagram for an ATC/controller: ATC input, 12VDC 50mA out, temp control relay, pH control relay, 90-260VAC power input, RS232 out, and pH in.

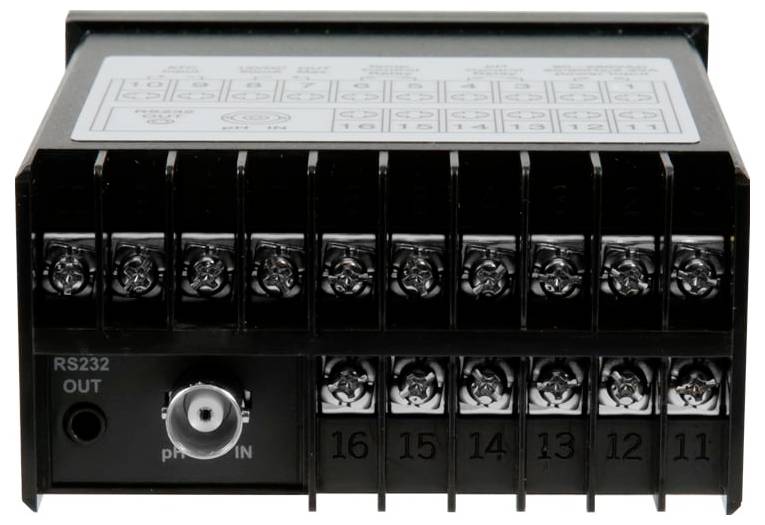

Black electronic terminal block interface module with labeled screw terminals, RS232 OUT jack, and phone IN connector on the front.

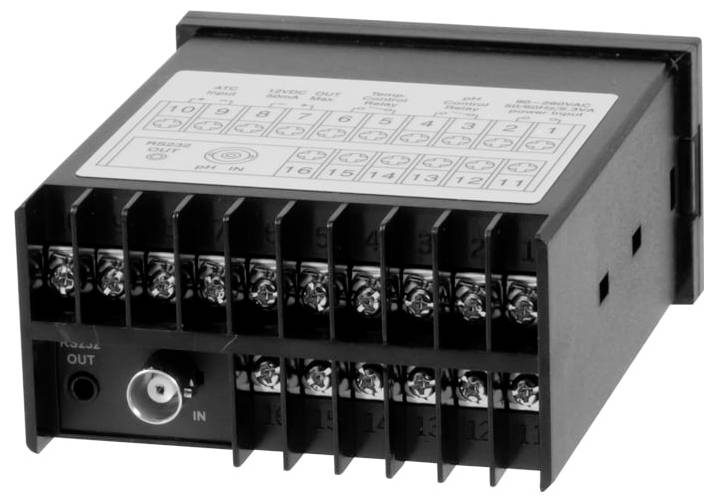

Black electronic control module with labeled terminal screws and input/output ports on the front panel.

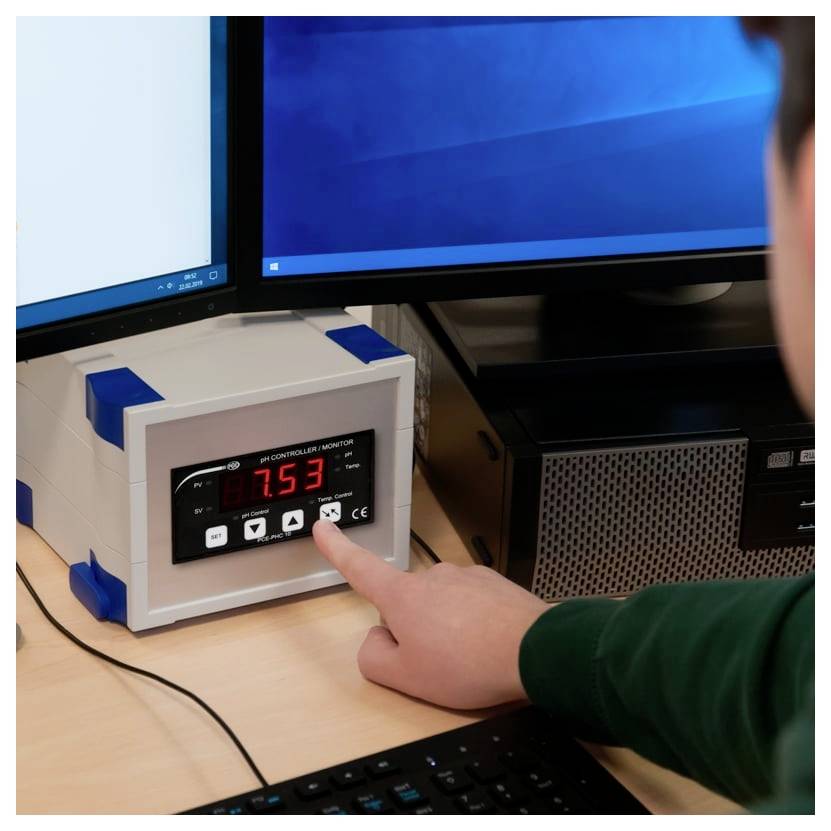

Person presses a button on a digital temperature controller showing 7.53 beside two computer monitors.

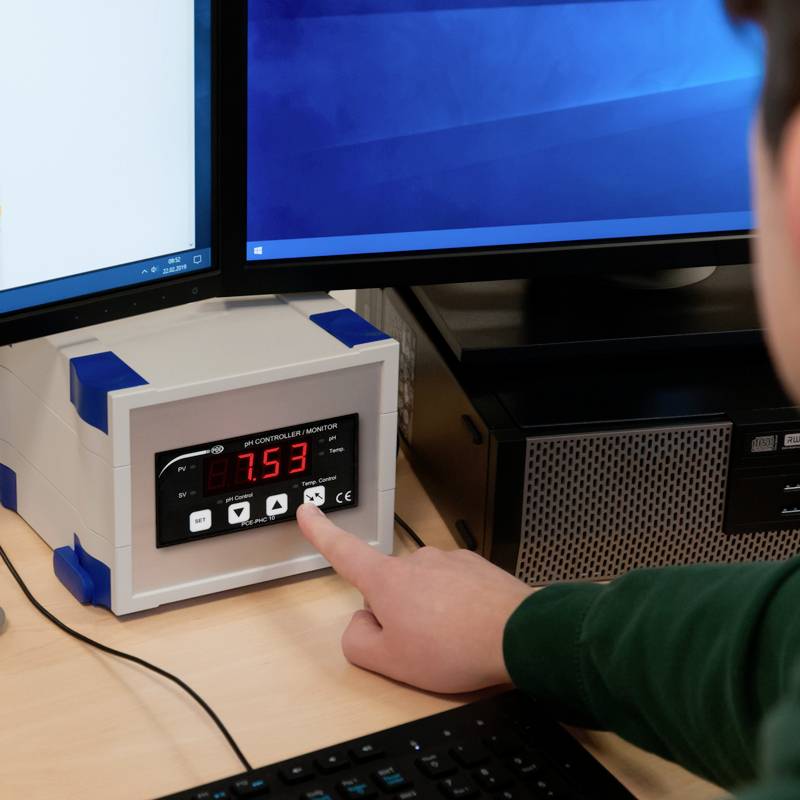

A hand points to a pH monitor displaying '7.53'. Monitors in the background. The image depicts a laboratory environment.

1/6

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Process controller PCE-PHC 10

Compact dimensions
Large LED display
2 control relays for pH and temperature
Connection via BNC and screw contacts
For water treatment, electroplating...
3-point calibration

Technical specifications

Measuring variable pH Measurement range 0 ... 14 pH Resolution 0.01 pH Accuracy ±(0.02 pH + 2 digits) Temperature measurement Measurement range 0 ... 65 °C Resolution 0.1 °C Accuracy: ±0.8 °C PH input impedance 1012 Ohm Temperature compensation Manual: -30 ... 100 °C Automatic: 0 ... 65 °C 3-point calibration pH 7, pH4 , pH10 Connection pH Electrode BNC Sampling rate approx. 1 second Display 4 Digit LED Display 14 mm digit height NORMALLY OPEN RELAY 250 V AC / 0.5 A 24 V DC / 0.5 A VOLTAGE OUTPUT 12 V / 0.05 A DC Serial RS232 interface Operating conditions 0 ... 50 °C max. 80 % r.h. Power supply 90 ... 260 V AC / 50/60 Hz Power consumption approx. 4.7 VA at 110 V AC approx. 5.3 VA at 220 V AC Weight approx. 384 g Dimensions 96 x 48 x 100 mm Front panel cut 92 x 41 mm

Product type: pH meter

: Manufacturer's standards (no certificate)

Documents & Downloads

Datasheet

Datasheet 2452581 PCE Instruments PCE-PHC 10 pH meter

User & Safety Instructions

User & Safety Instructions 2452581 PCE Instruments PCE-PHC 10 pH meter

Description

Process controller 2-point pH controller / measures pH and regulates the pH value / 3-point calibration / for fish farming, electroplating or water treatment the process controller measures and regulates the pH value of various substances and is able to influence the pH value. The process controller is a classic 2-point controller, depending on the application, the controller can be used to influence the liquid in the direction alkaline or acidic. The limit values for the 2-point control are programd via the buttons of the pH-controller, which are located on the front. Also on the front is the LED display, on which the current measured value can be read at any time. This facilitates rapid and precise control of water values, especially in the industrial process. A pH electrode is connected to the process controller via a BNC connector. A temperature probe can be connected to the process controller via the screw connections for automatic temperature compensation. The process controller is used in electroplating, the control of fresh and waste water or in wastewater neutralization. Due to the compact dimensions, the process controller fits in every control panel.
