Name: PCE Instruments PCE-PHC 50 pH meter pH
Brand: PCE Instruments
SKU: 3812958

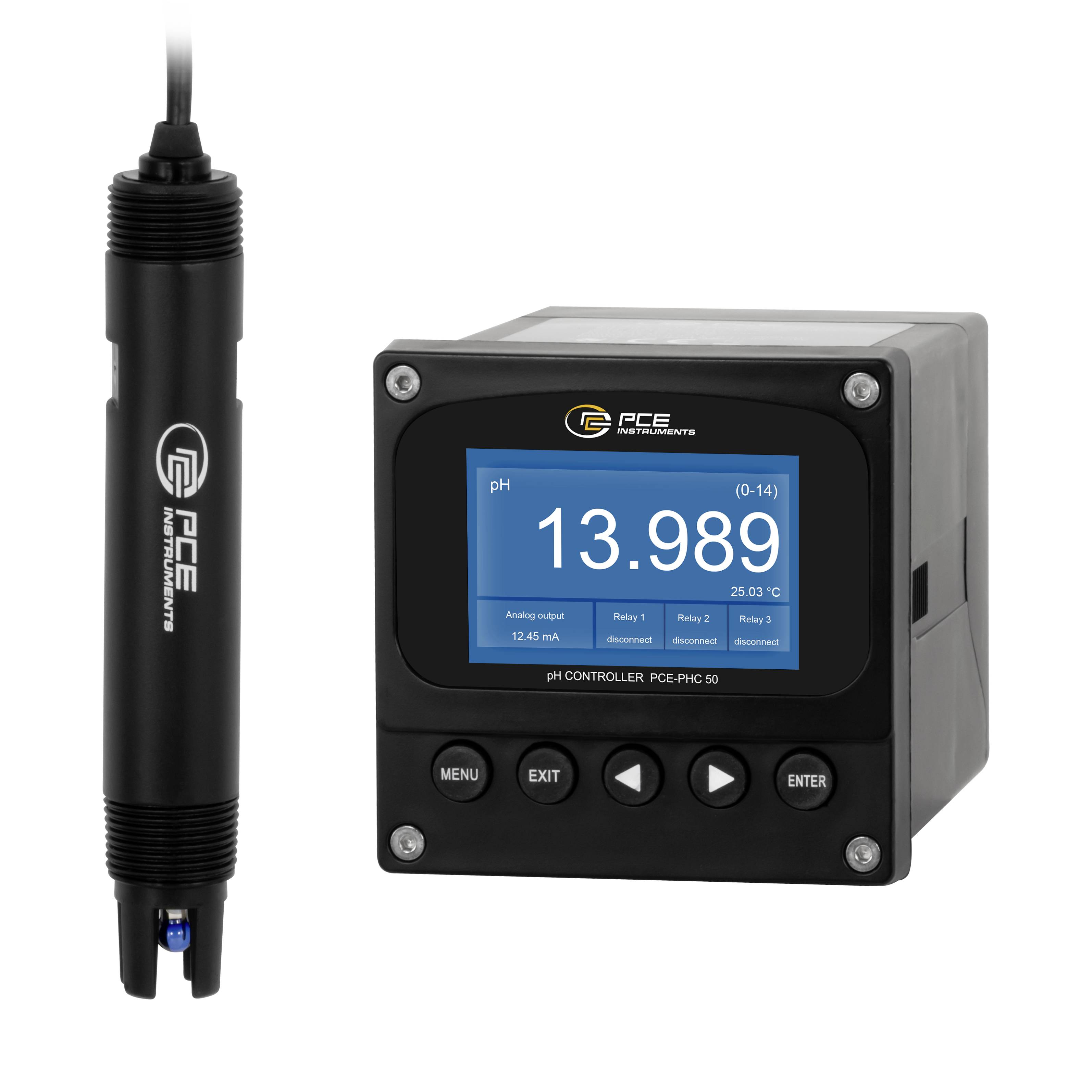

PCE pH controller with probe display showing pH 13.989 and temperature 25.03 °C, plus menu, exit, arrow, and enter buttons.

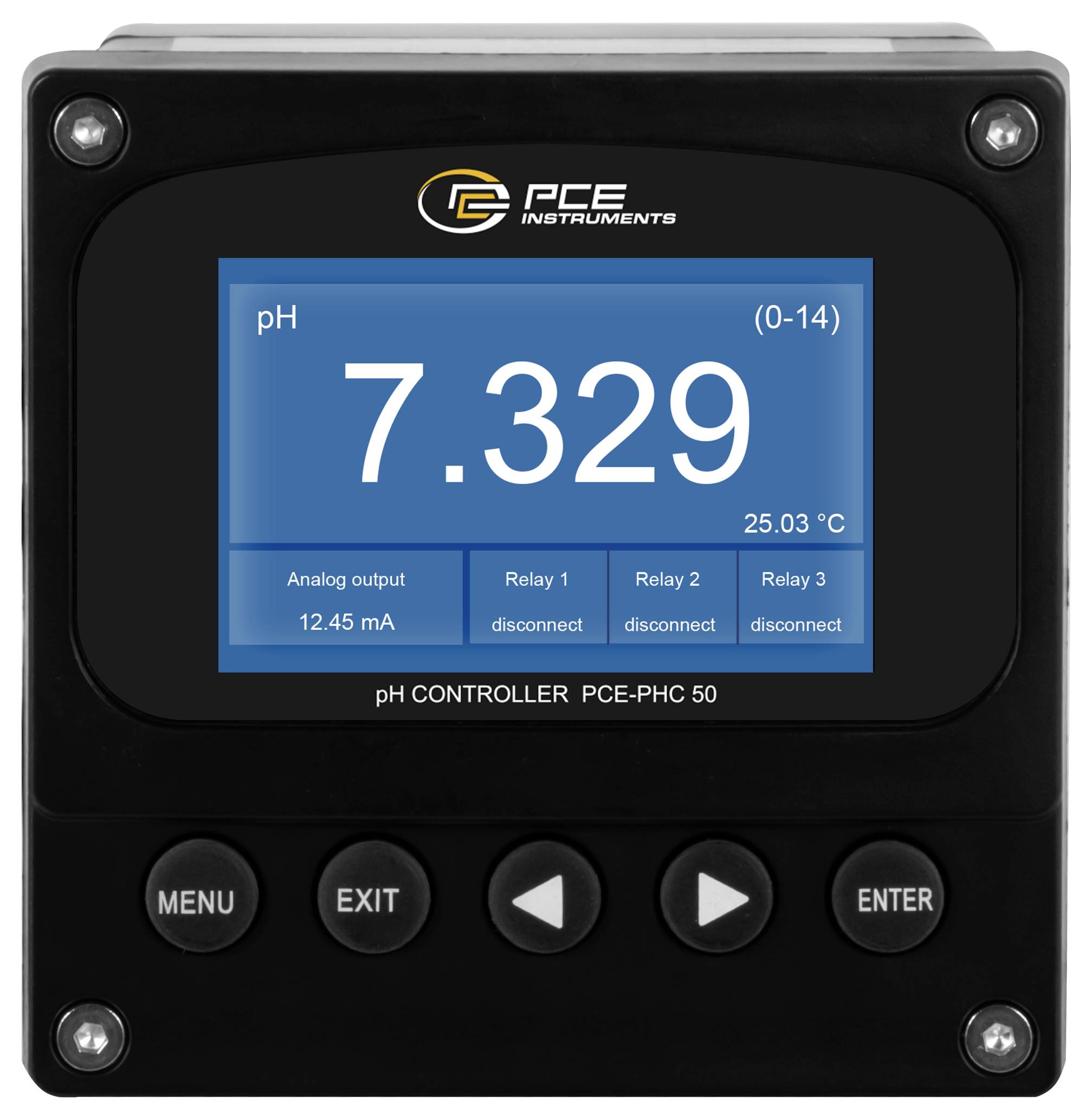

Digital pH controller display showing pH 7.329 and 25.03 °C, with analog output 12.45 mA and relays 1-3 disconnected.

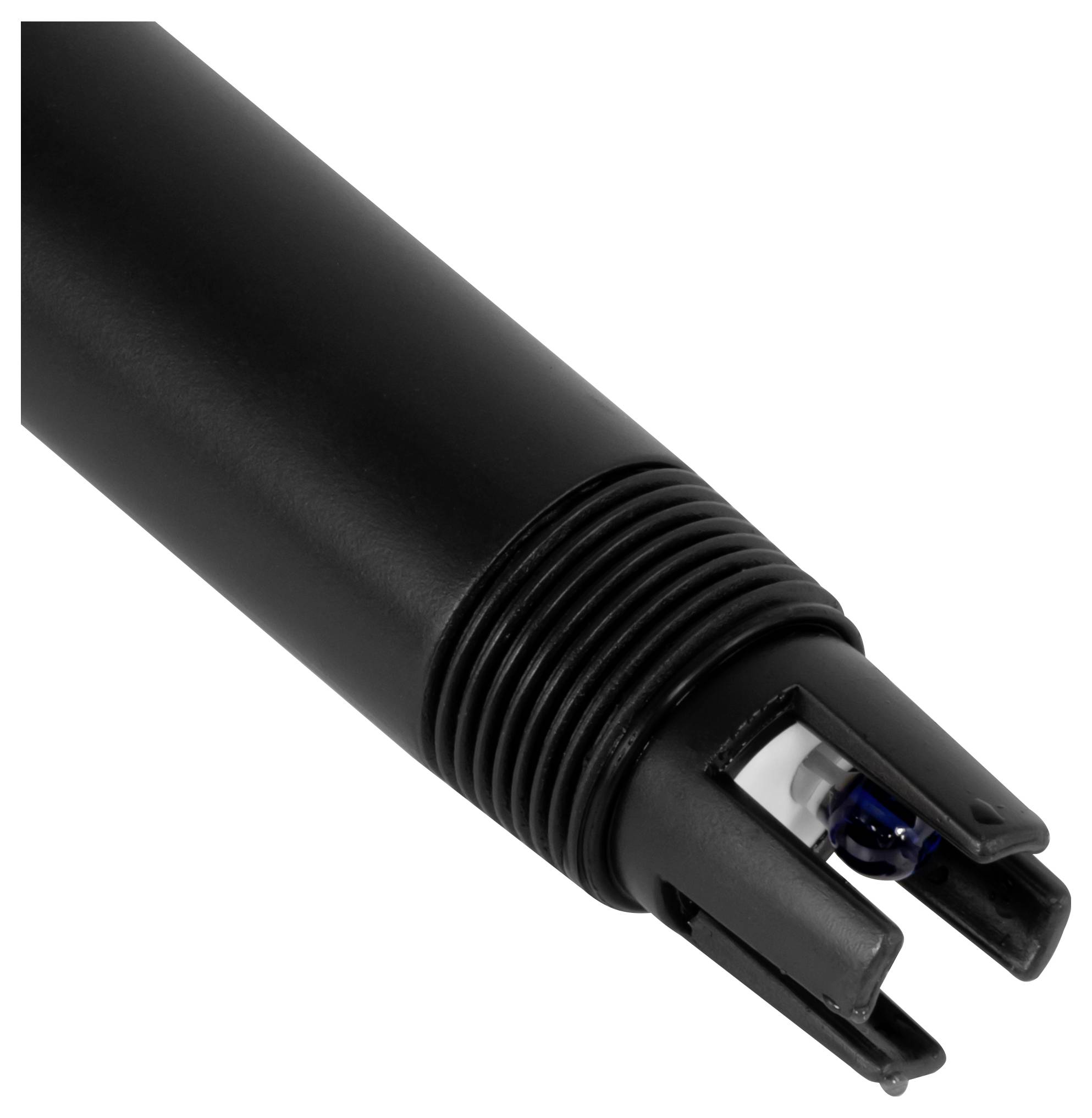

Black handheld probe with threaded grip and open forked tip, showing a blue sensor/LED inside.

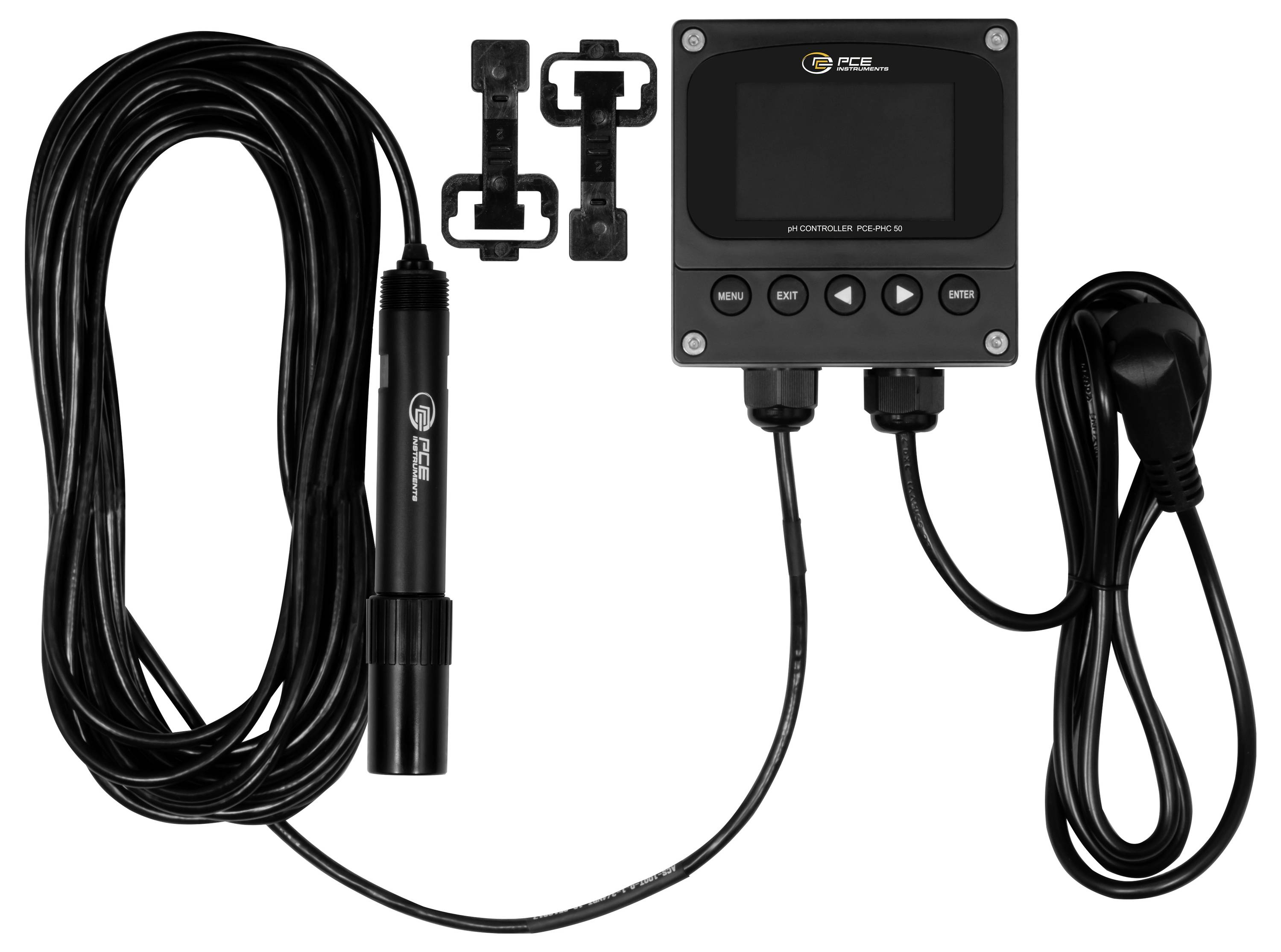

Electronic controller display with attached cables, a probe, connectors, and a power cord, shown as a product kit on a white background.

1/4

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

PROFESSIONAL CALIBRATED TO EQUIPMENT. PCE-PHC 50

PH regulator with integrated temperature sensor
3 inch TFT color display with 800 x 480 pixels
2 x 4 ... 20 mA analogue outputs
3 relay outputs (SPDT, max. 5 A)
RS485 interface (Modbus RTU)
Automatic temperature compensation.
Storage of measuring and calibration data
Protection class IP68 (sensor), IP55 (controller)

Technical specifications

PH
Measuring range 0 ... 14 pH
Resolution 0.001 pH
Accuracy ± 0.1 pH
Electrode
Measuring range 0 ... 14 pH
Temperature range 0 ... 60 °C
Material: Glass diaphragm
Shaft length 20 mm
Shaft diameter: 27 mm
Min Immersion depth 20 mm
Cable length 9.5 m
Dimensions length 160mm, diameter 27 mm
Temperature sensor
Measuring range 0 ... 60 °C
Resolution 0.01 °C
General technical data menu language English (GB), English (US)
Protection class (device) IP55
Power supply 85 ... 265 V AC
Connector type Euro plug
Operating conditions -10 ... 60 °C , 10 ... 90 % r.F.
Storage conditions -20 ... 70 °C , 10 ... 90 % r.F.
Dimensions ( L x W x D) 98 x 98 x 120 mm
Weighs 445 g.

Product type: pH meter

Reading type: pH

Accuracy: 1 °C

Display: LCD

: Manufacturer's standards (no certificate)

Resolution: 0.01 °C

Power supply (details): 85 - 265 V AC

Dim: (L x W x H) 98 x 120 x 98 mm

Weight: 445 g

Temperature reading range: 0 up to 60 °C

Temperature reading range (max.): 60 °C

Temperature reading range (min.): 0 °C

pH reading range: 0 - 14 pH

pH reading range (max.): 14 pH

pH reading range (min.): 0 pH

Width: 120 mm

Height: 98 mm

Length: 98 mm

Interfaces: RS485 socket

Documents & Downloads

Datasheet

Datasheet 3812958 PCE Instruments PCE-PHC 50 pH meter pH

User & Safety Instructions

User & Safety Instructions 3812958 PCE Instruments PCE-PHC 50 pH meter pH

Description

The pH-control is an industrial measuring system for continuous monitoring and control of the pH-value in liquids. With its robust construction and the integrated temperature compensation the pH-regulator ensures precise and stable measurement results even under demanding conditions. The measurement is made by a high-quality glass electrode which, in combination with a reference electrode, precisely determines the pH value. The pH-control has a broad measurement range from pH 0 to 14 and a high resolution of pH 0.01. The accuracy is ±0.1 pH, allowing even the smallest changes to be detected reliably.

The system is equipped with a 3 inch TFT color display, which clearly shows all the relevant measurements, status displays and settings. The device is operated via an intuitive keypad with menu navigation. The pH-control offers different operating modes, including measurement, calibration and storage functions. Calibration can be performed on a one- or two-point basis to achieve optimum measurement results. The integrated real-time temperature compensation ensures accurate values even at changing temperatures.

For integration into industrial control systems, two 4 ... 20 mA analogue outputs, three relay outputs (SPDT, 250 V AC/30 V DC, max. 5 A) as well as an RS485 interface with Modbus RTU protocol are available. The pH regulator enables the storage of measuring and calibration data that can be called up via the display. The housing of the regulator is protected according to IP55, the sensor according to IP68, whereby a use in harsh environments is possible.

Typical applications for the pH-regulator are the water quality monitoring in waste water treatment, process control in industry, drinking water monitoring as well as measurement in surface and ground water.

This text is machine translated.
