Buy PCE Instruments PCE-PHD 1 Conductivity tester Salinity , Temperature, pH, TDS, Conductivity, ORP, O2 saturation, Analysi

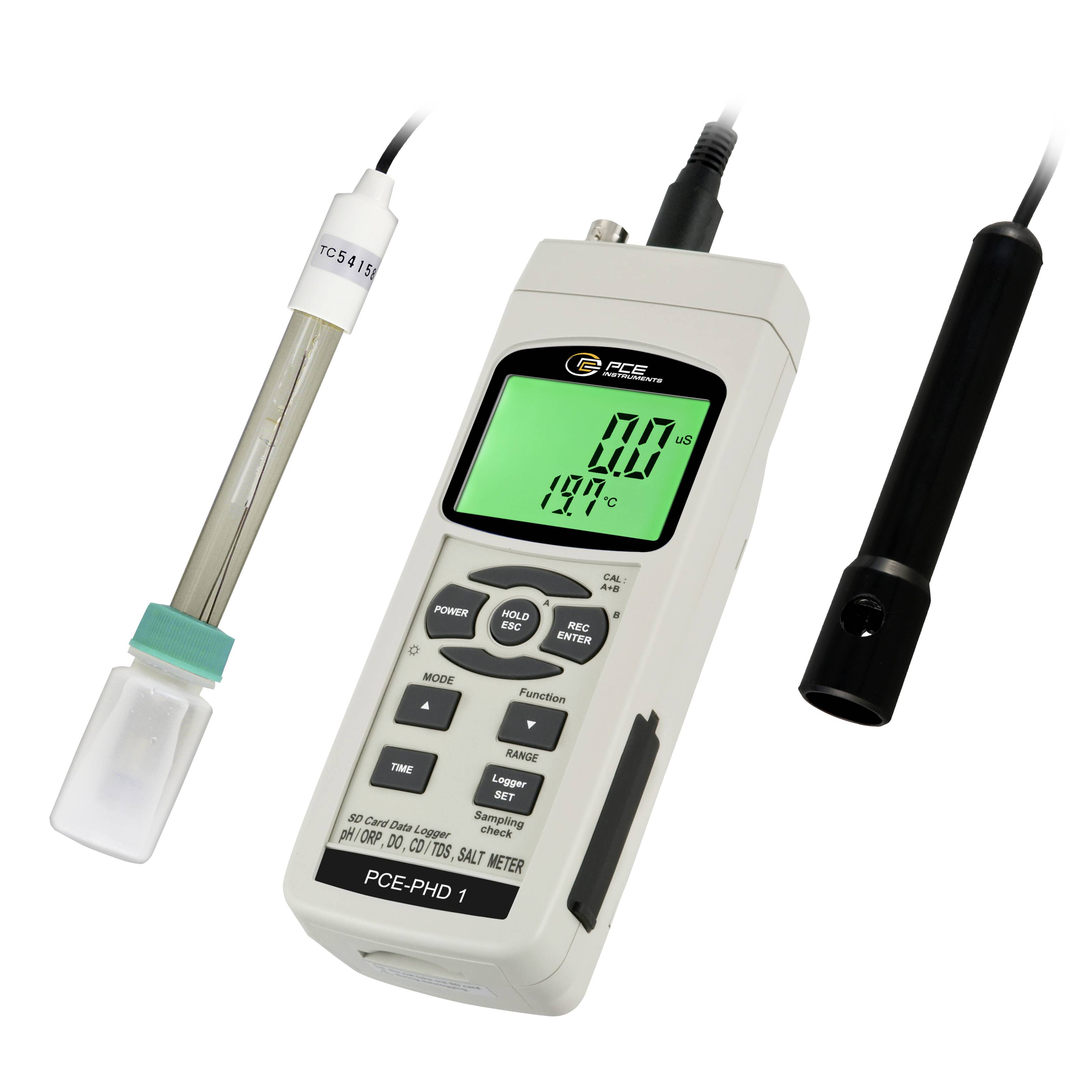

Portable handheld pH meter with LCD display and probe, shown with sensor attachments for measuring liquid acidity, conductivity, and temperature.

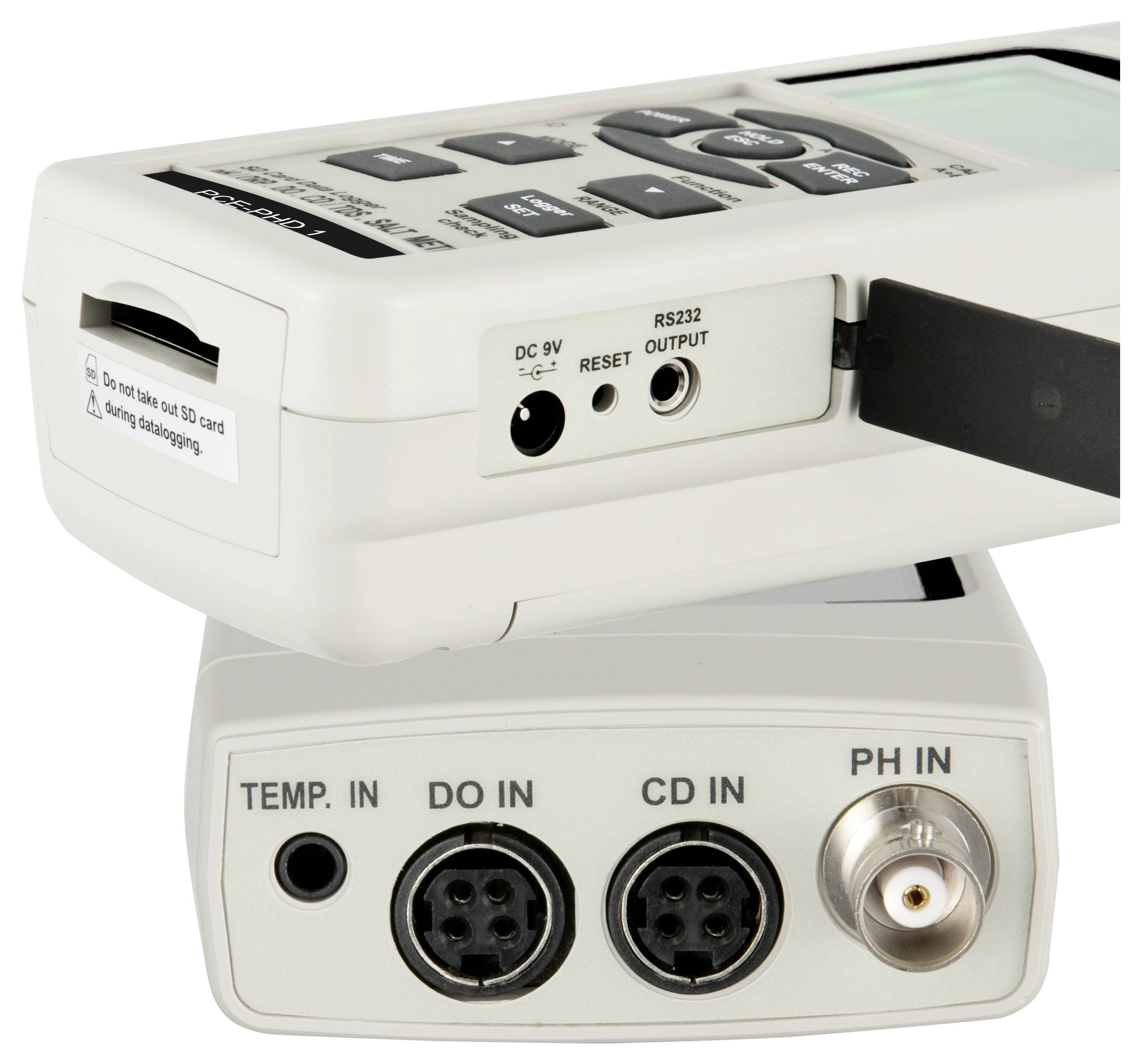

Close-up of a handheld diagnostic device showing input and output ports labeled TEMP. IN, DO IN, CD IN, PH IN, DC 9V, RESET, and RS232 OUTPUT.

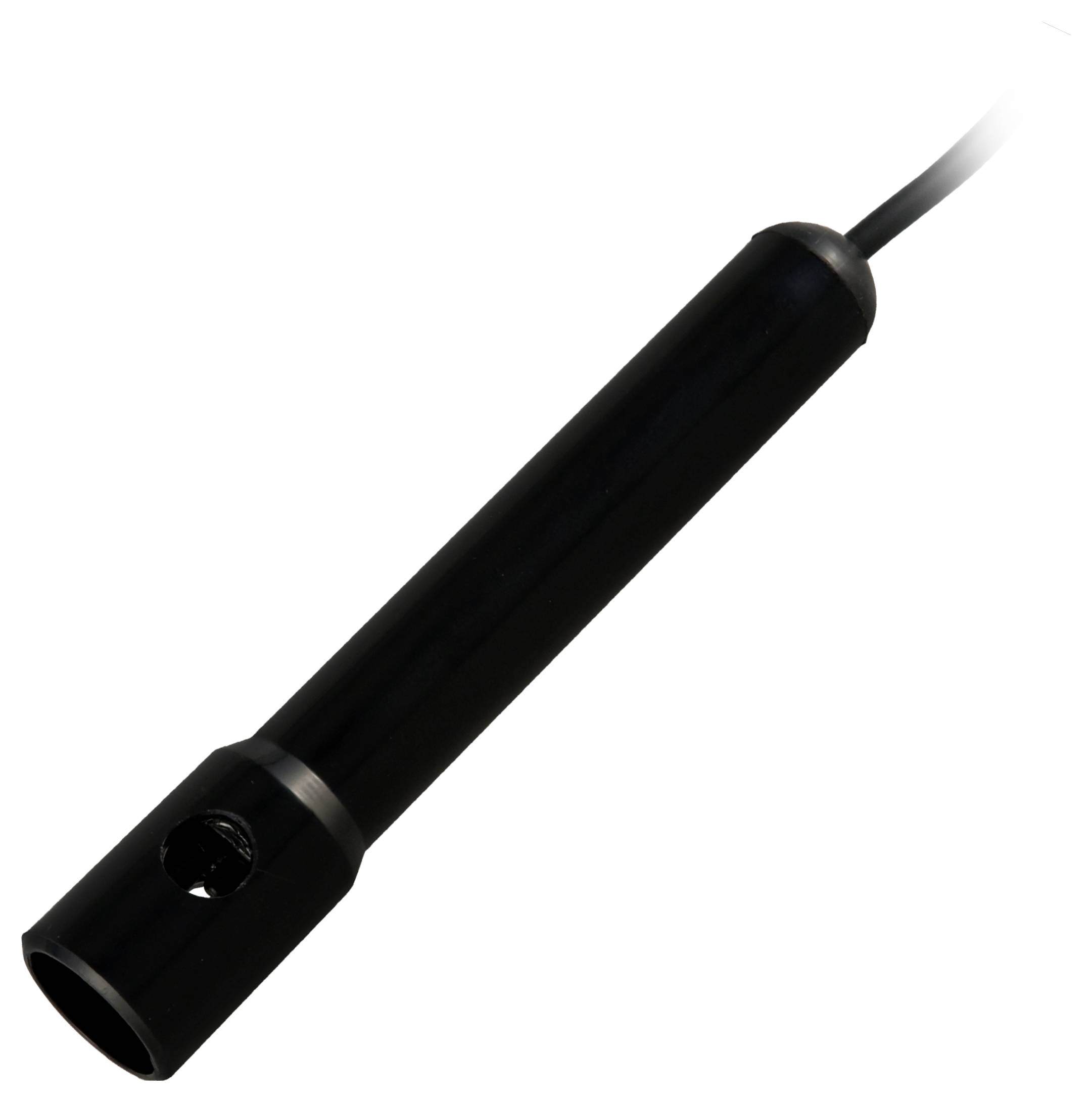

Black cylindrical probe or sensor with cable attached, shown on a white background.

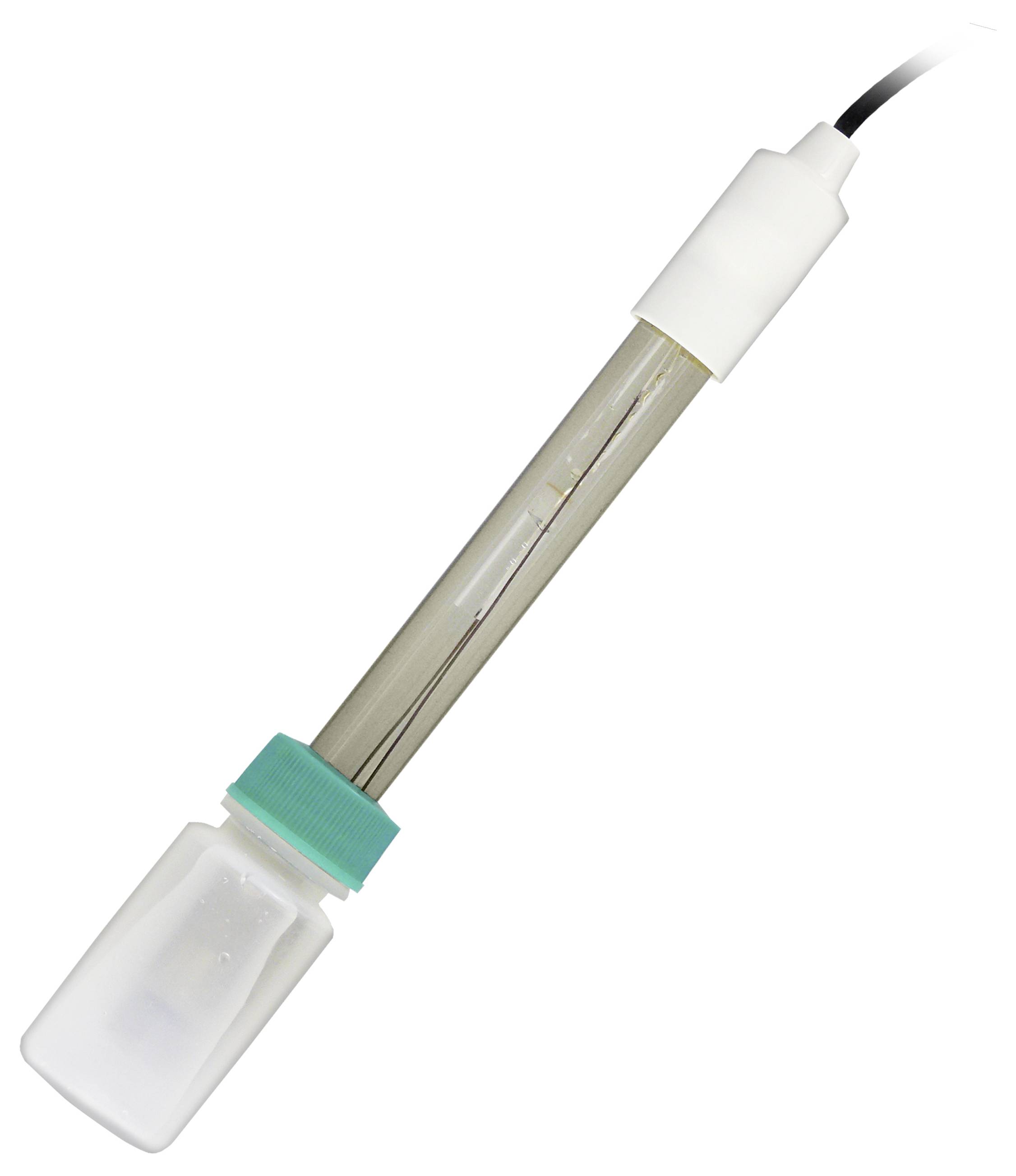

Glass pH electrode sensor with cable and protective cap on a white background.

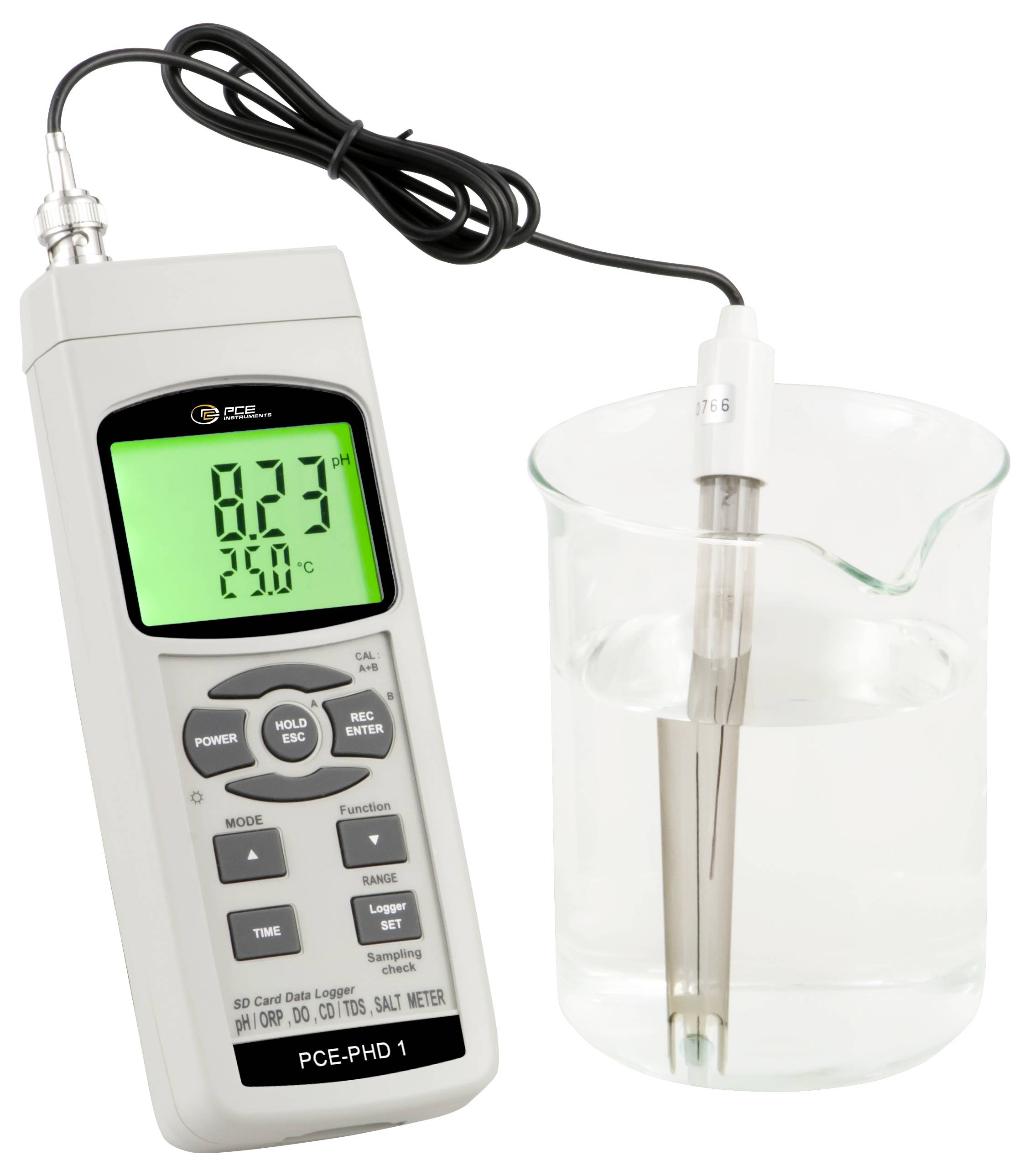

Handheld pH meter with probe in a beaker of water, displaying a pH reading on the screen.

1/5

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

PH meter PCE-PHD 1

Optimum price/performance ratio
Real-time data logger
SD card memory (1 ... 16GB GB)
The saved data is saved directly as an Excel file on the SD card (no software is required for evaluation)
RS-232 interface

Technical specifications

PH measurement Measuring range 0.00 ... 14.00 PH resolution 0.01 PH accuracy ± 0.02 pH +2 digits Calibration 3-point calibration (pH4, pH7 and pH10) Temperature compensation automatically with additional temperature sensor (0 ... 60 °C) or manually from 0 ... 100 °C Redox measurement Measuring range 1999 ... 0 ... 1999 mV Resolution 1 mV Accuracy ± 0.5 % +2 digits Conductivity measurement Reading range 0 ... 200.0 μS/cm 0.2 ... 2.000 MS/cm 2 ... 20.00 MS/cm 20 ... 200.0 MS/cm Resolution 0.1 μS/cm 0.001 MS/cm 0.01 MS/cm 0.1 MS/cm Accuracy ± 2 % of the measured value + 1 digit Calibration at 1413 μS/cm Temperature compensation automatically from 0 ... 60 °C TDS measurement Reading range 0 ... 132 ppm 132 ... 1320 ppm 1320 ... 13200 ppm 13200 ... 132000 ppm Resolution 0.1 ppm 1 ppm 10 ppm 100 ppm Accuracy ± 2 % of the measured value + 1 digit temperature compensation automatically from 0 ... 60 °C Salt content measurement Measurement range 0 ... 12% (weight percent) Resolution 0.01 %. Accuracy ± 0.5 % of the measuring range Temperature compensation automatically from 0 ... 60 °C Oxygen measurement (optional) Reading range 0 ... 20 mg/l (in water) 0 ... 100% (in air) 0 ... 50 °C Resolution 0.1 mg/l 0.1 % 0.1 °C. Accuracy ± 0.4 mg/l ± 0.7 % ± 0.8 °C. Calibration in the air Temperature compensation automatically from 0 ... 50 °C Electrode can be used in the pH range pH 4 ... pH 10 Temperature measurement Measurement range 0 ... 60 °C Resolution 0.1 °C Accuracy: ±0.8 °C General Measurement rate adjustable from 1 second to 8 hours 59 min. 59 sec. Display LC-Display 52 x 38 mm Data memory flexible via SD card memory 1 ... 16 GB (2 GB SD card included) Interface RS-232 Software available as an accessory Power supply 6 x 1.5 V AA batteries / 9 VAC adapter (optional) Ambient conditions 0 ... +50 °C /< 85 % r.h. Dimensions 177 x 68 x 45 mm Weight 490 g.

Product type: Conductivity tester

Reading type: Salinity
Temperature
pH
TDS
Conductivity
ORP
O2 saturation
Analysis

Display: LCD

: Manufacturer's standards (no certificate)

Automatic temperature compensation: Yes (optional)

Dim: (L x W x H) 68 x 45 x 177 mm

Weight: 490 g

Conductivity reading range: 0 - 200 µS/cm

Conductivity reading range (max.): 200 µS/cm

Conductivity reading range (min): 0 µS/cm

TDS reading range: 0 - 132 ppm

TDS reading range (max.): 132 ppm

TDS reading range (min.): 0 ppm

Temperature reading range: 0 up to 60 °C

Temperature reading range (max.): 60 °C

Temperature reading range (min.): 0 °C

pH reading range: 0 - 14 pH

pH reading range (max.): 14 pH

pH reading range (min.): 0 pH

Width: 45 mm

Height: 177 mm

Length: 68 mm

Documents & Downloads

Datasheet

Datasheet 2452582 PCE Instruments PCE-PHD 1 Conductivity tester Salinity , Temperature, pH, TDS, Conductivity, ORP, O2 saturation, Analysi

User & Safety Instructions

User & Safety Instructions 2452582 PCE Instruments PCE-PHD 1 Conductivity tester Salinity , Temperature, pH, TDS, Conductivity, ORP, O2 saturation, Analysi

Description

PH, redox, conductivity, salt, oxygen and temperature measuring device / SD card memory (1 ... 16 GB), stored data are stored as an Excel file / large, easy to read display / RS-232 interface and optional software for direct transfer to PC the pH meter PCE-PHD 1 is a real multi-talent for checking the water quality. The portable pH-meter is used to control the water parameters pH-value, redox, conductivity, salt content, oxygen and is also very suitable for temperature measurement. Combination device for pH value, conductivity, oxygen and temperature. Combination device for pH value, conductivity, oxygen and temperature. A 3-point calibration as well as automatic temperature compensation guarantee a high accuracy even with very fluctuating measuring temperatures. The data logger is supplied with pH and conductivity probe. Various probes are available as accessories. All values can be directly transferred to the SD card (1 ... 16 GB) can be saved (Excel file) or transferred directly from the data logger to a PC via the RS-232 interface. For this purpose, we offer optional software and the suitable RS-232 interface cable as an accessory.

This text is machine translated.
