PCE Instruments PCE-PHD 1-PH-ICA pH meter Calibrated to (ISO standards) pH, Temperature
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
PCE instruments pH-meter PCE-PHD 1-PH-ICA
- Real-Time data logger
- SD card memory (1 ... 16 GB
- The saved data is saved directly to the SD card as an Excel file
- No software is required for the analysis
- RS-232 interface for online data transfer
- Measures pH and temperature
- High accuracy
- Low battery display
- Large LC display
- Adjustable measurement rate
- easy to operate
- Robust housing
- manual or automatic Temperature compensation

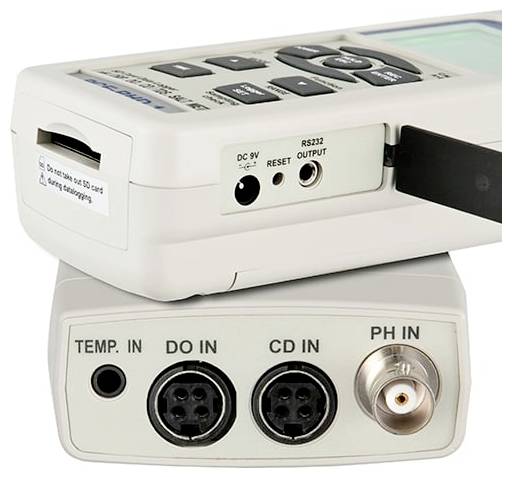

- BNC plug connection
- Suitable for laboratory and on-site measurement
- Incl. ISO calibration certificate
Technical specifications
- PH
- Measuring range 0 ... 14 pH
- Resolution 0.01 pH
- Accuracy ±0.02 pH +2 digits

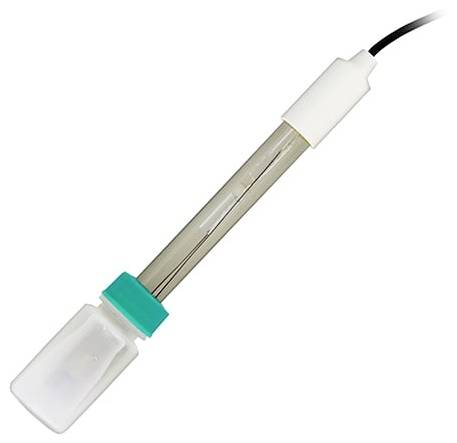

- Electrode
- Designation PE-03
- Measuring range 1 ... 13 pH
- Epoxy resin shank material
- Shaft length 160 mm
- Shaft diameter: 12.3 mm
- Cable length 1 m
- Electrode
- Designation TP-07
- Measuring range 0 ... 60 °C
- Shaft length 110 mm
- Shaft diameter: 4 mm
- Cable length 1 m
- Connection: 3.5 mm jack plug (2-pin)
- General Technical Data
- Temperature compensation automatically with additional temperature sensor 0 ... 60 °C, or manually from 0 ... 100 °C
- Display type LCD
- Display size 2.54 inches
- Storage medium: SD-card,
- Storage capacity: 16 GB
- Storage capacity (additional information) possible from 1 GB to 16 GB SD card
- Storage intervals of 1 s.
- Storage intervals of up to 9 min.
- Interface RS232
- Number of calibration points 3
- Calibration at pH4, pH7, pH10 using calibration solutions
- Menu language English (US), English (GB)
- Protection class (device) IP20
- Battery 6 x 1.5 V AA battery , alkaline-manganese
- Capacity: 3000 mAh
- Operating conditions 0 ... 50 °C , 0 ... 85 % r.F.
- Storage conditions 0 ... 50 °C , 0 ... 85 % r.F.
- Dimensions ( L x W x H ) 177 x 68 x 45 mm
- Weight 490 g.
- Product type
pH meter
- Reading type
pH
Temperature
- Accuracy
0.01 pH
- Display
LCD
Digital
ISO standards
- Resolution
0.01 pH
- Power supply (details)
1.5 V
- Dim
(L x W x H) 177 x 68 x 45 mm
- Weight
490 g
- pH reading range
0 - 14 pH
- pH reading range (max.)
14 pH
- pH reading range (min.)
0 pH
- Width
68 mm
- Height
45 mm
- Length
177 mm
- Plastic free packaging
Plastic-free packaging
Documents & Downloads
Datasheet
Datasheet 3812694 PCE Instruments PCE-PHD 1-PH-ICA pH meter Calibrated to (ISO standards) pH, Temperature
User & Safety Instructions
User & Safety Instructions 3812694 PCE Instruments PCE-PHD 1-PH-ICA pH meter Calibrated to (ISO standards) pH, Temperature
Description
The pH meter is for checking water quality. The portable pH meter is very well suited for controlling the water parameter pH-value. A 3-point calibration as well as automatic Temperature compensation guarantees high accuracy even at very fluctuating measuring temperatures. The pH meter is delivered including pH electrodes for higher temperatures.
Various probes are available as accessories. All values can be directly added to the SD card (1 ... 16 GB) are stored (Excel file) or transferred directly to a PC via the RS-232 interface. For this we offer optional software and the suitable RS-232 interface cable as an accessory.
This text is machine translated.
Various probes are available as accessories. All values can be directly added to the SD card (1 ... 16 GB) are stored (Excel file) or transferred directly to a PC via the RS-232 interface. For this we offer optional software and the suitable RS-232 interface cable as an accessory.
This text is machine translated.
Scope of delivery

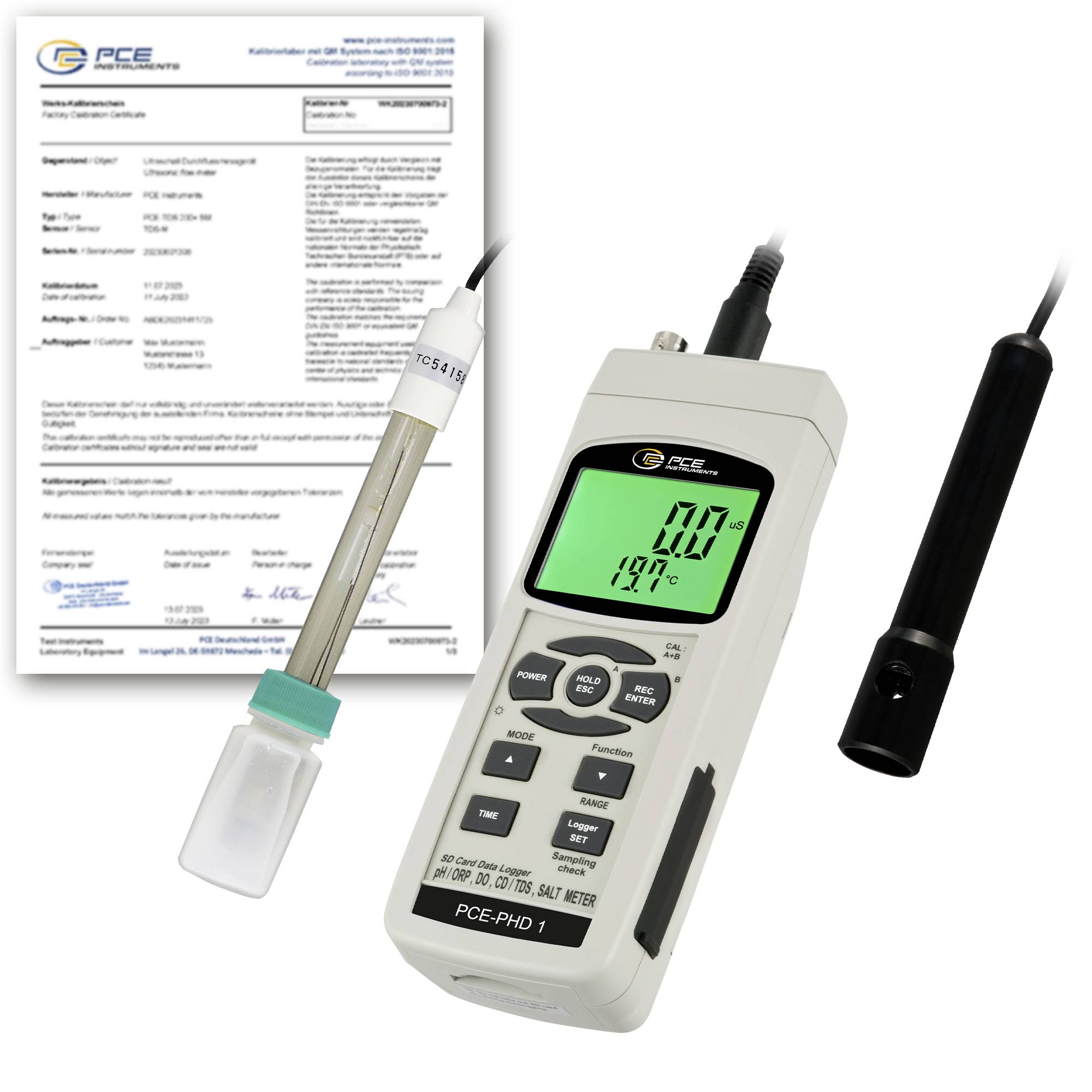

- 1 x pH meter PCE-PHD 1-PH-ICA
- 1 x pH electrode for higher temperatures
- 1x temperature probe for pH meter
- 1 x SD memory card 2 GB
- 6 x 1.5 V AA batteries
- 1x user manual
- 1 x ISO calibration certificate
