Highlights & Details

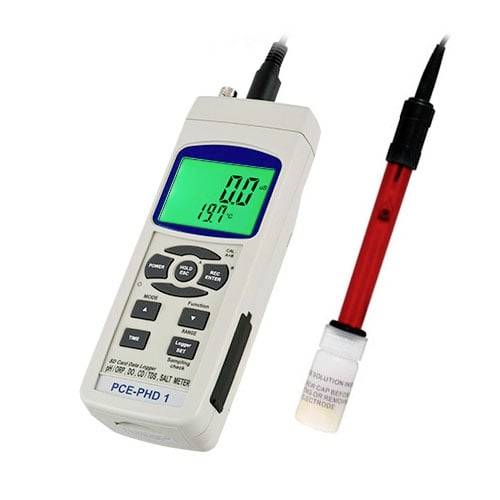

Redox meter PCE-PHD 1 with ORP-14

Real-time data loggerSD card memory (1 ... 16GB)The saved data is saved directly as an Excel file on the SD card (no software is required for evaluation) RS-232 interface for online data transfer High accuracy Low battery indicatorLarge LC displayAdjustable measurement rateeasy to useRobust housingAutomatic calibrationManual or automatic temperature compensationBNC connectorSuitable for laboratory and on-site measurement

Technical specifications

Redox measurementMeasuring range: 1999 ... 0 ... 1999 mVResolution 1 mVAccuracy ± 0.5 % +2 digitsGeneralMeasurement rate: Adjustable from 1 second to 8 h 59 min 59 sec.Display: LC-display 52 x 38 mmData storage: Flexible via SD card memory 1 ... 16 GB (2 GB SD card included)Software: Available as an accessoryAmbient conditions: 0 ... +50 °C / < 85 % r.h.

Product type: Multi tester

Reading type: ORP

Display: LCD

: Manufacturer's standards (no certificate)

Automatic temperature compensation: Yes

Power supply (details): 6 x 1.5 V AA batteries / 9 V mains adapter (optional)

Dim: (L x W x H) 177 x 45 x 68 mm

Weight: 490 g

Width: 45 mm

Height: 68 mm

Length: 177 mm

Interfaces: RS232

Documents & Downloads

Datasheet

Datasheet 2620722 PCE Instruments PCE-PHD 1-R Multi tester ORP

User & Safety Instructions

User & Safety Instructions 2620722 PCE Instruments PCE-PHD 1-R Multi tester ORP

Description

Redox meter PCE-PHD 1-R / SD-card memory (1 ... 16 GB), saved data are stored as an Excel file / large, easy to read display / RS-232 interface and optional software for direct transfer to the PC The redox meter PCE-PHD 1-R is a real multi-talent for checking the water quality. The portable Redox measuring device is very suitable for controlling the water parameter Redox. Temperature compensation guarantees high accuracy even at very fluctuating measuring temperatures. Various probes are available as accessories. All values can be directly transferred to the SD card (1 ... 16 GB) can be saved (Excel file) or transferred directly from the data logger to a PC via the RS-232 interface. For this purpose, we offer optional software and the suitable RS-232 interface cable as an accessory.
