PCE Instruments PCE-PHM 12-ICA pH meter Calibrated to (ISO standards) Temperature, pH
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

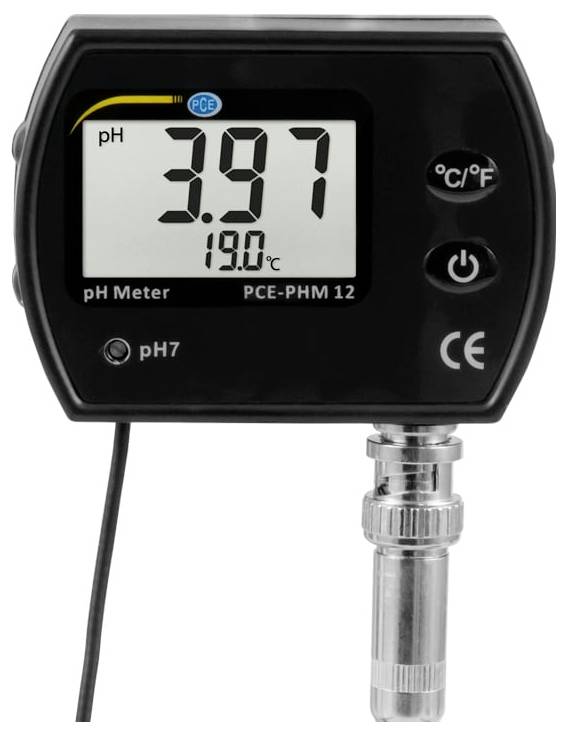

PCE instruments pH-meter with temperature display PCE-PHM 12-ICA
- Temperature compensation up to 50 °C.
- Universal mounting bracket
- Removable pH electrode
- Easy to use
- Switchable temperature unit
- Battery and mains operation possible
- Incl. ISO calibration certificate
Technical specifications
- PH
- Measuring range 0 ... 14 pH
- Resolution 0.01 pH
- Accuracy ± 0.1 pH
- Temperature
- Measuring range 0 ... 55 °C
- Resolution 0.1 °C
- Accuracy +/1 °C
- Electrode
- BNC connection
- General Technical Data
- Temperature compensation 0 ... 50 °C
- Display type LCD
- Number of calibration points 1
- Manual calibration with solution pH 7
- Menu language English (US), English (GB)
- Protection class (device) IP41
- Power supply 230 ... 240 V AC | 50 Hz, 19 mA
- Connector type for device Euro plug
- Battery/Battery 4 x 1.5 V LR44 , Alkaline-manganese
- Capacity 140 mAh
- Operating conditions 0 ... 50 °C , 0 ... 95 % r.F.
- Storage conditions 0 ... 50 °C , 0 ... 95 % r.F.
- Dimensions ( L x W x H ) 75 x 55 x 25 mm
- Weight 75 g
- Product type
pH meter
- Reading type
Temperature
pH
- Accuracy
0.1 pH
- Display
LCD
Digital
ISO standards
- Automatic temperature compensation
Yes
- Operating temperature
0 °C
- Resolution
0.01 pH
- Power supply (details)
230 - 240 V AC
- Dim
(L x W x H) 75 x 55 x 25 mm
- Weight
75 g
- Temperature reading range
0 up to 55 °C
- Temperature reading range (max.)
55 °C
- Temperature reading range (min.)
0 °C
- pH reading range
0 - 14 pH
- pH reading range (max.)
14 pH
- pH reading range (min.)
0 pH
- Width
55 mm
- Height
25 mm
- Length
75 mm
- Plastic free packaging
Plastic-free packaging
Documents & Downloads
Datasheet
Datasheet 3812695 PCE Instruments PCE-PHM 12-ICA pH meter Calibrated to (ISO standards) Temperature, pH
User & Safety Instructions
User & Safety Instructions 3812695 PCE Instruments PCE-PHM 12-ICA pH meter Calibrated to (ISO standards) Temperature, pH
Description

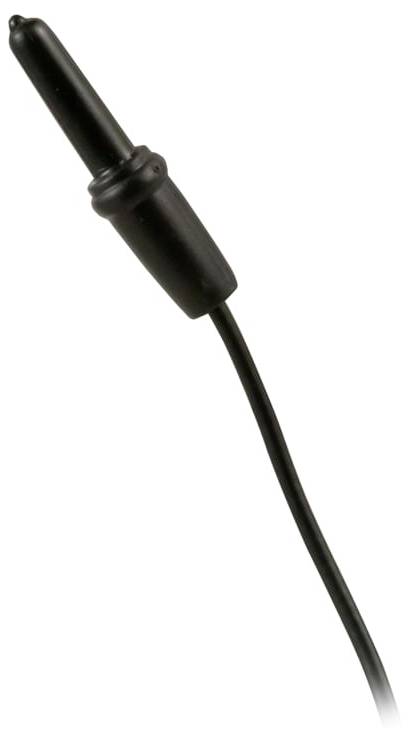

The pH-meter aquarium with temperature display was developed especially for measuring pH values in aquariums. With the accompanying universal bracket the aquarium can be fixed to any aquarium using the temperature display. The fixed built-in temperature probe at the aquarium pH meter is used not only to display the temperature but also to temperature compensation. This guarantees a precise measurement value in the case of the aquarium pH-meter even at a temperature change. Depending on your preference, you can also make an adjustment at the pH-meter aquarium with a pH 7 reference solution.
There are two options for voltage supply in the aquarium pH meter with temperature display. For one, it is possible to operate the aquarium ph-meter with the supplied mains adapter. On the other hand, it is possible to operate the pH-meter with four batteries. Thus the Aquarium pH-meter with temperature display is suitable for fixed installation and also for mobile use.
This text is machine translated.
There are two options for voltage supply in the aquarium pH meter with temperature display. For one, it is possible to operate the aquarium ph-meter with the supplied mains adapter. On the other hand, it is possible to operate the pH-meter with four batteries. Thus the Aquarium pH-meter with temperature display is suitable for fixed installation and also for mobile use.
This text is machine translated.

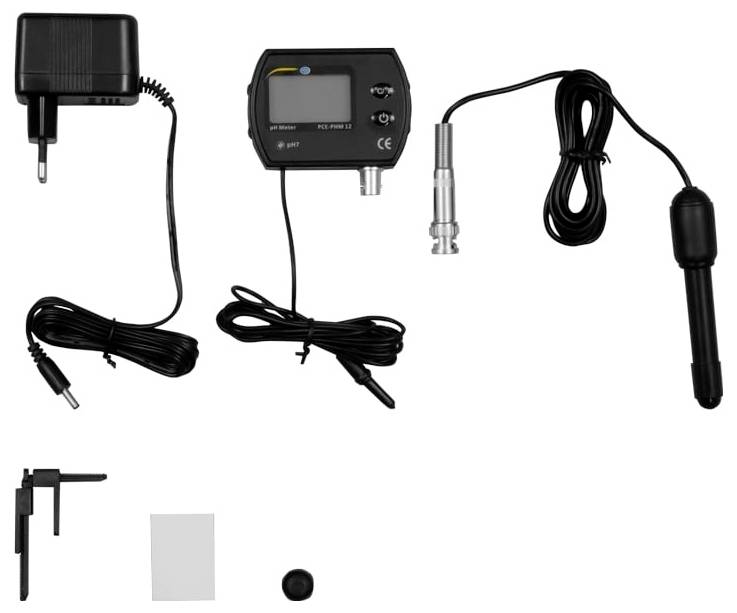

Scope of delivery
- 1 x pH meter with temperature display PCE-PHM 12-ICA

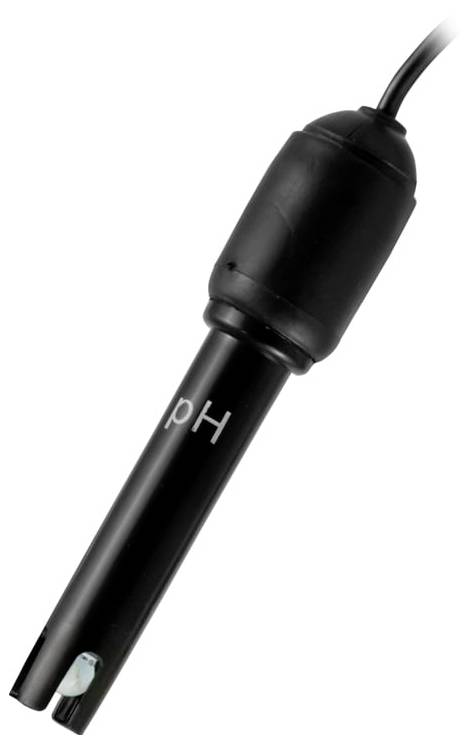

- 1 x pH electrode
- 1 x Screwdriver
- 1 x suction Cup
- 1 x hook & loop fasteners
- 1 x universal mounting bracket
- 1 x 6 V DC mains adaptor, 100mA
- 4 x 1.5 V LR44 AG13 batteries
- 1x user manual

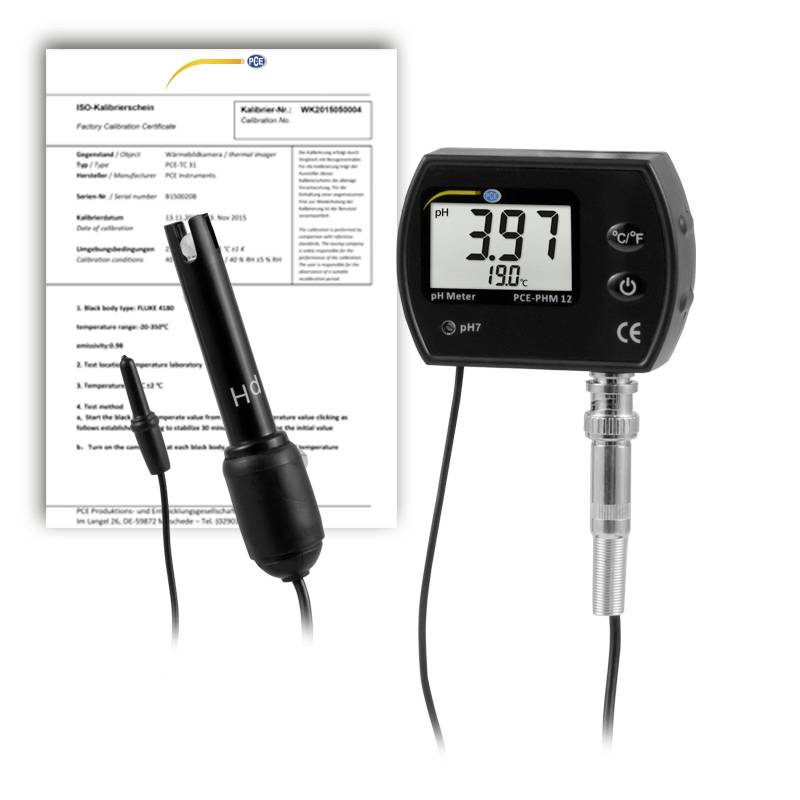

- 1 x ISO calibration certificate
