PCE Instruments PCE-PHM 12 pH meter Temperature, pH
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

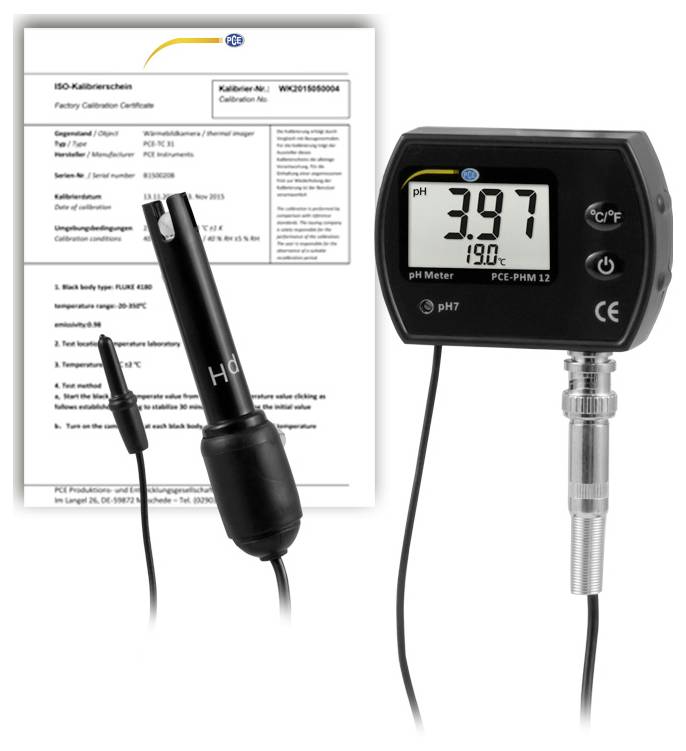

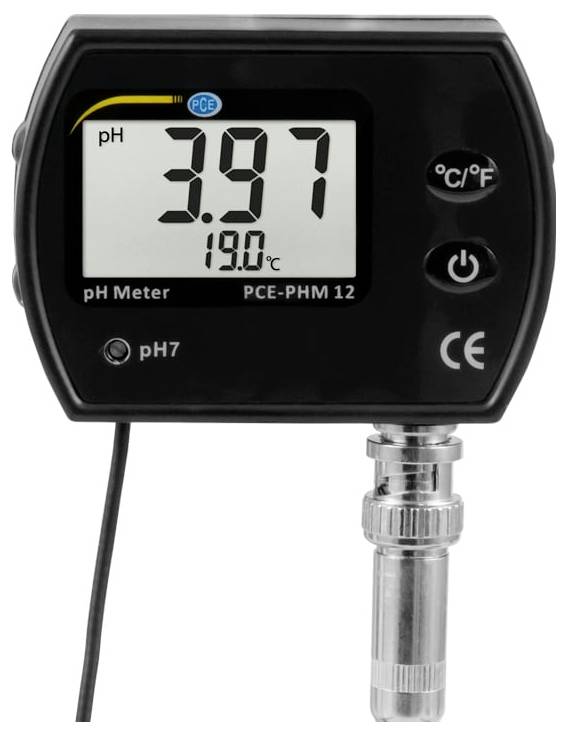

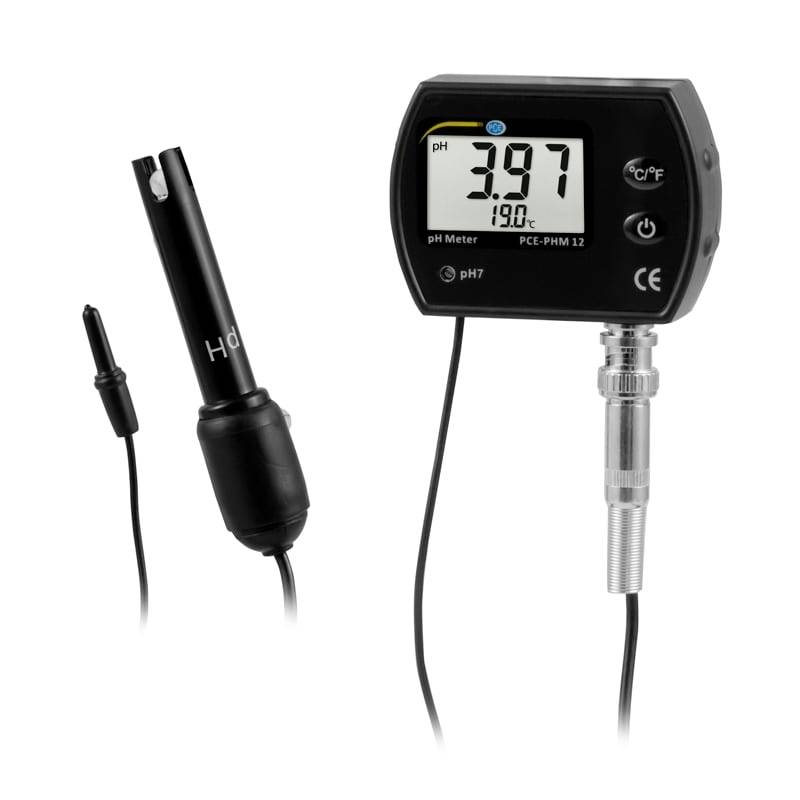

PH tester PCE-PHM 12
- Temperature compensation up to 50 °C.
- Universal mounting bracket
- Detachable pH-electrode
- Easy to use
- Switchable temperature unit
- Battery and mains operation possible
Technical specifications
- Function pH Measurement range 0.00 ... 14.00 pH Resolution 0.01 pH Accuracy ± 0.1 pH Temperature function Measurement range 0 ... 55 °C Resolution 0.1 °C Accuracy: ±1 °C Power supply 6 VDC (batteries or power supply unit) Battery 4 x 1.5 V LR44 AG13 Power supply unit Primary: 230 ... 240 VAC, 50 Hz, 19 mA Secondary 6 VDC, 100 mA Environmental conditions 0 ... 50 °C,< 95% r.h. Dimensions 75 x 55 x 25 mm Weight 75 g
- Product type
pH meter
- Reading type
Temperature
pH
- Display
LCD
Manufacturer's standards (no certificate)
- Automatic temperature compensation
Yes (hardware)
- Dim
(L x W x H) 55 x 75 x 75 mm
- Weight
75 g
- Temperature reading range
0 up to 55 °C
- Temperature reading range (max.)
55 °C
- Temperature reading range (min.)
0 °C
- pH reading range
0 - 14 pH
- pH reading range (max.)
14 pH
- pH reading range (min.)
0 pH
- Width
75 mm
- Height
75 mm
- Length
55 mm
Documents & Downloads
Datasheet
Datasheet 2452583 PCE Instruments PCE-PHM 12 pH meter Temperature, pH
User & Safety Instructions
User & Safety Instructions 2452583 PCE Instruments PCE-PHM 12 pH meter Temperature, pH
Description
Aquarium pH tester PCE-PHM 12 Aquarium pH meter with temperature compensation up to 50 °C / removable pH electrode universal mounting device / temperature unit switchable / easy to use / for fixed installation and mobile use / one-point adjustment The aquarium pH meter PCE-PHM 12 has been specially developed for pH measurement in aquariums. With the supplied universal holder, the aquarium can be attached pH-meter to any aquarium. The integrated temperature probe at the pH meter aquarium is not only used for temperature display but also for temperature compensation. This guarantees a precise measurement value for the aquarium pH-meter even with a temperature variation. Depending on your taste, you can also adjust the pH-meter with a pH 7 reference solution. The pH meter aquarium has two power supply options. On the one hand, it is possible to operate the aquarium ph-meter with the supplied power supply. On the other hand, it is possible to operate the aquarium pH-meter with four batteries. Thus, the aquarium pH-meter is suitable for fixed installation and also for mobile use.
This text is machine translated.
This text is machine translated.

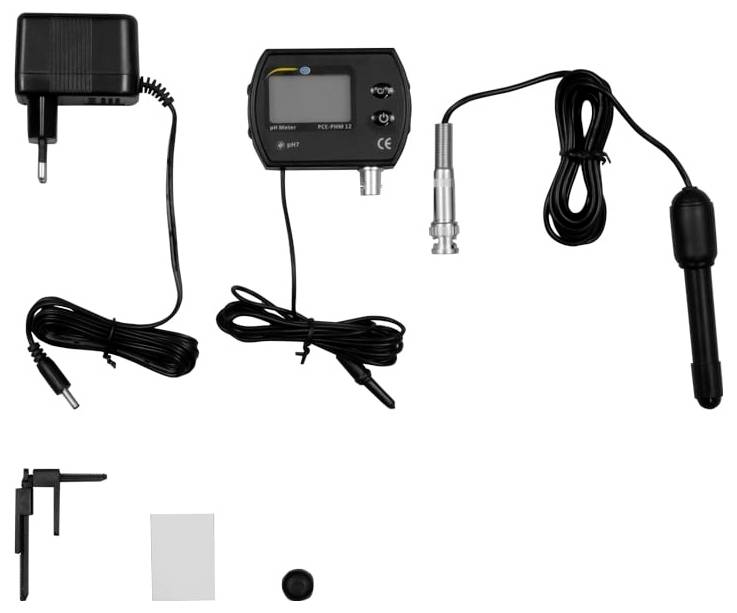

Scope of delivery
- 1 x pH tester PCE-PHM 12

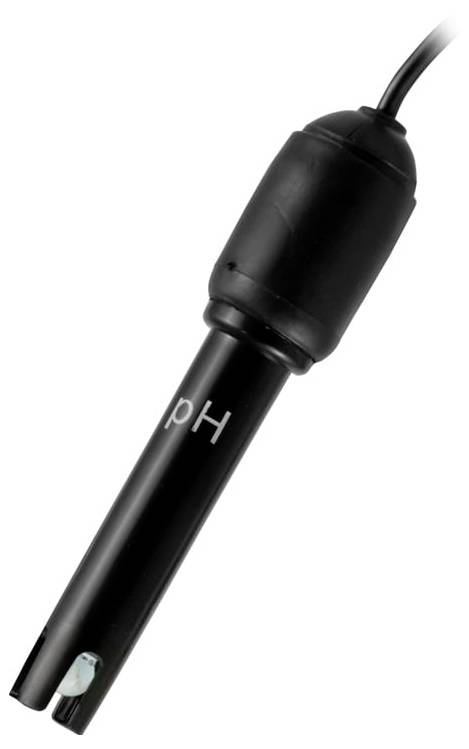

- 1 x pH electrode
- 1 x screwdriver
- 1 x suction cup
- 1 x hook-and-loop fastener
- 1 x universal mounting bracket
- 1 x power supply 6 VDC 100mA
- 4 x 1.5 V LR44 AG13 batteries
- 1x user manual
