PCE Instruments PCE-PI1 Rotating EMF tester
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

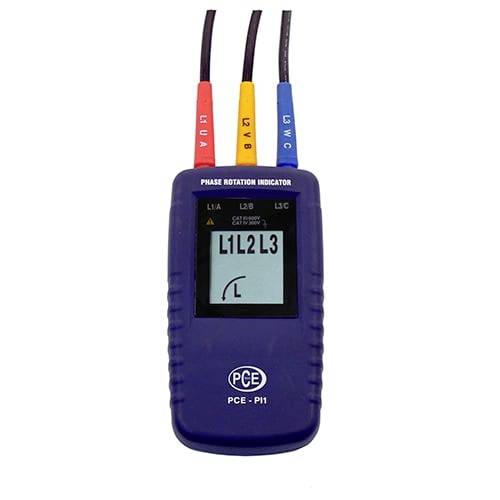

Rotating field tester PCE-PI1
- Easy to use
- No batteries required
- Robust alligator clips for easy connection
- 3-phase measurements of 40 ... 690 V AC
- SAFETY: IEC-61010, CAT III 600 V.
- IP-40 protection rating
- Large LCD display
Technical specifications
- Measuring ranges 40 ... 690 VAC Frequency range 15 ... 400 Hz Power consumption 1 mA Test current per phase 1 mA Ambient conditions 0 ... 40 °C). Housing protection type IP 40 Test leads with robust 3 x 130 cm alligator clips Dimensions 130 x 69 x 32 mm Weight 130 g Protection class / standardization IEC 61010 / EN61010 IEC 61557-7 / EN 61557-7
- Product type
Rotating EMF tester
Manufacturer's standards (no certificate)
- Type
PCE-PI1
Documents & Downloads
Datasheet
Datasheet 2452586 PCE Instruments PCE-PI1 Rotating EMF tester
User & Safety Instructions
User & Safety Instructions 2452586 PCE Instruments PCE-PI1 Rotating EMF tester
Description

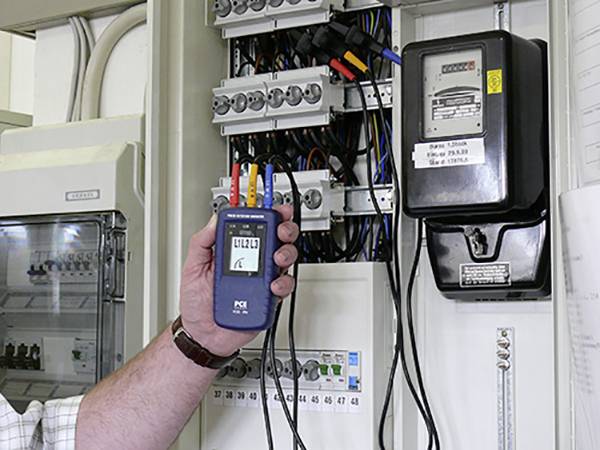

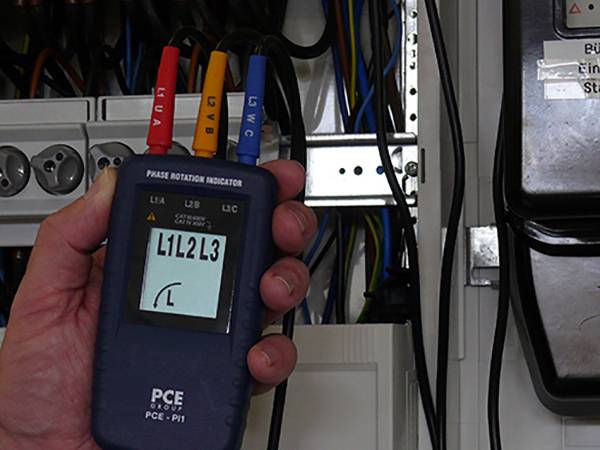

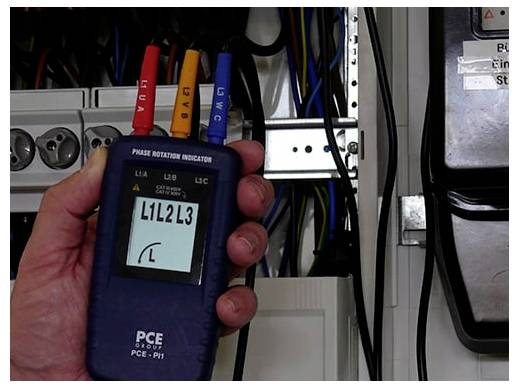

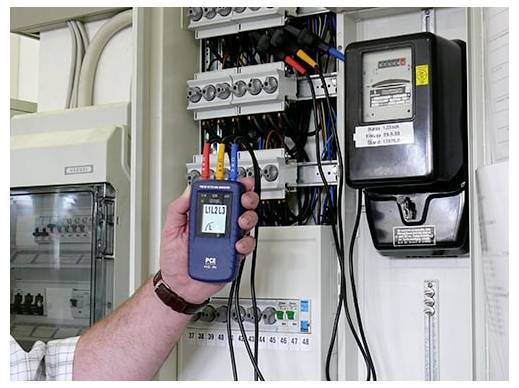

Rotating field tester PCE-PI1 Low-cost and easy to handle rotating field tester of this rotating field tester PCE-PI1 has a robust housing with a large LCD display so that you can easily and conveniently determine the phase and motor rotation direction. Furthermore, any problems of individual phases are shown on the display of the rotating field tester. The rotating field tester complies with cat III 600 V, IEC-61010 safety standards. The rotating field tester is ideal for determining the phase rotation direction in all areas, in which three-phase power supplies are used for the supply of motors, drives and electrical systems. The rotary field tester has a voltage range of up to 690 VAC. With the rotating field tester you prevent destruction of motors and systems, which can occur due to an incorrect direction of rotation.
This text is machine translated.
This text is machine translated.
Scope of delivery
- 1 x PCE-PI1 rotary field tester

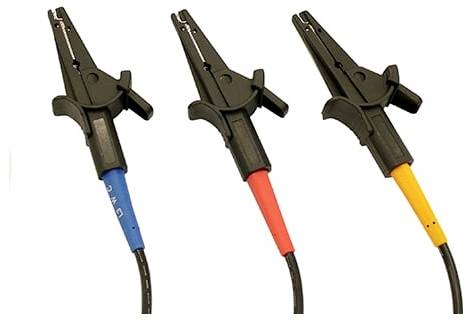

- 3 x test leads with alligator clips
- 1x user manual
