PCE Instruments PCE-PIC 120 Endoscope Probe diameter: 60 mm Probe length: 120 m

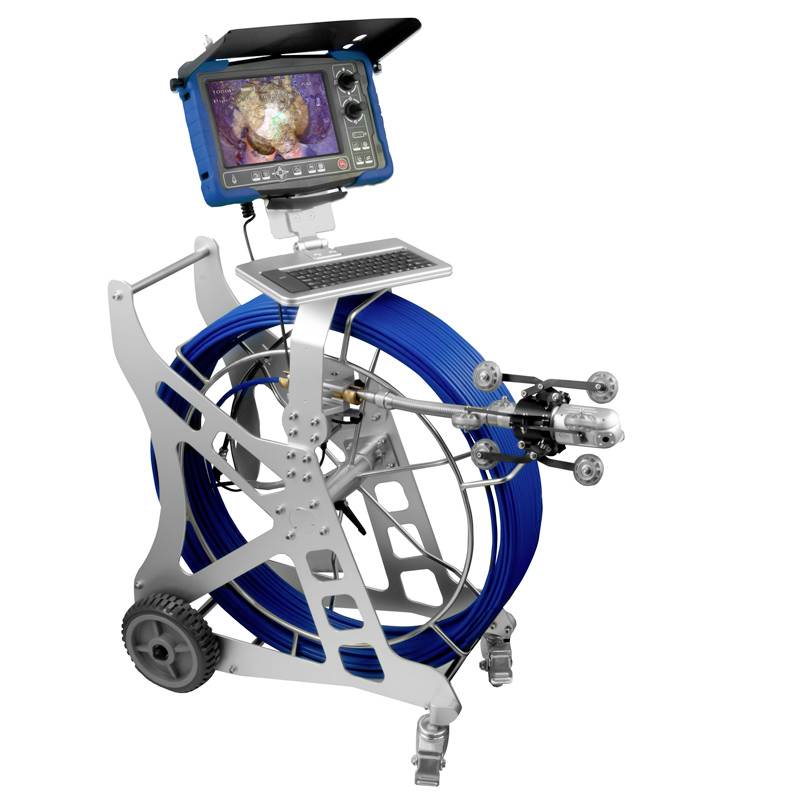

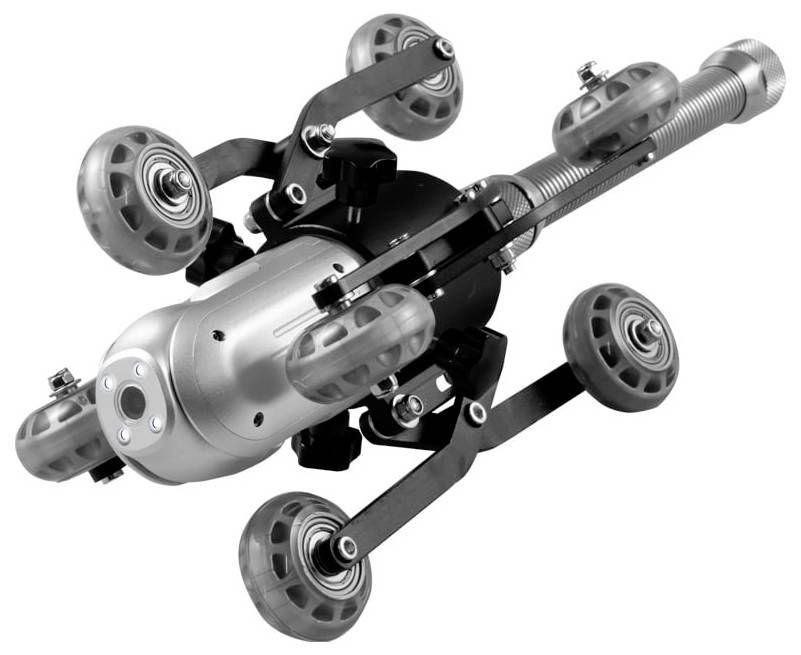

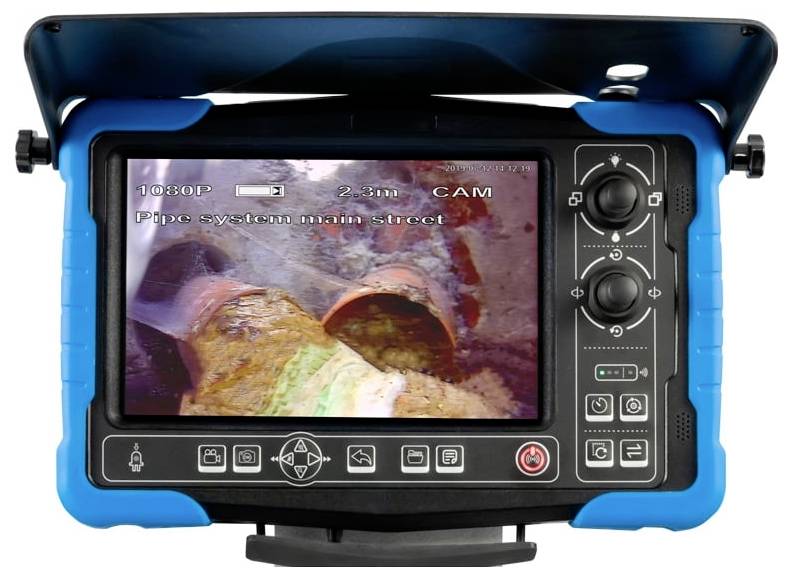

Boroscope PCE-PIC 120 tube camera with 120 m / IP68 camera head with PAN/TILT / motor focus / meter counting / keyboard input possible / USB and HDMI / SD memory the pipe camera PCE-PIC 60/120 is used to examine channels and pipes. Depending on the model, the tube camera has a 60 m or 120 m fiber optic cable. A motorized movable camera head is mounted at the end of the pipe camera. This camera head can be moved 360° horizontally and 180° vertically. Furthermore, the camera has a motorized focus, which enables the depth of field of vision to be realized between 20 and 100 cm. 4 ultra-bright LEDs are attached to the head of the pipe camera, which illuminate the pipes and channels perfectly. The tube camera has an electronic meter count, which makes it easier to precisely locate damaged areas or blockages in pipes. For documentation purposes, pictures and videos can be recorded and saved with the duct camera. For a better view of the picture, the tube camera can be connected to an external monitor via HDMI cable. The tube camera takes pictures in 1080p, so no detail is lost. The USB keyboard can be used to add exam comments to the recording. The tube camera is delivered on a robust, aluminum-made trolley. In addition, the delivery includes a trolley and a roll guide for the camera, which are used to mount the camera head. This allows pipes and ducts to be driven between 80 and 1200 mm.

This text is machine translated.
