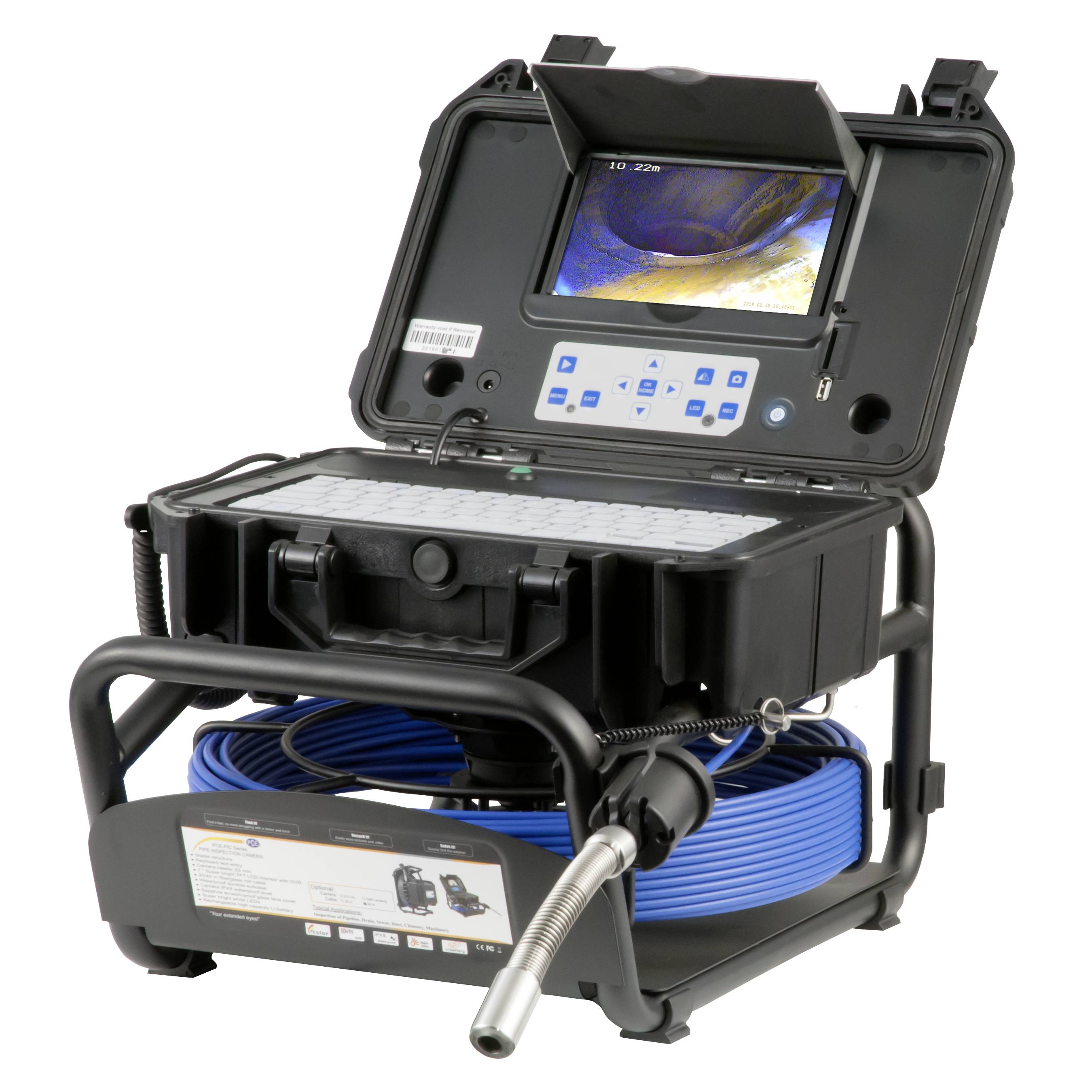

Portable drain inspection camera system with built-in monitor, control panel, coiled cable, and flexible probe on a wheeled case.<br>

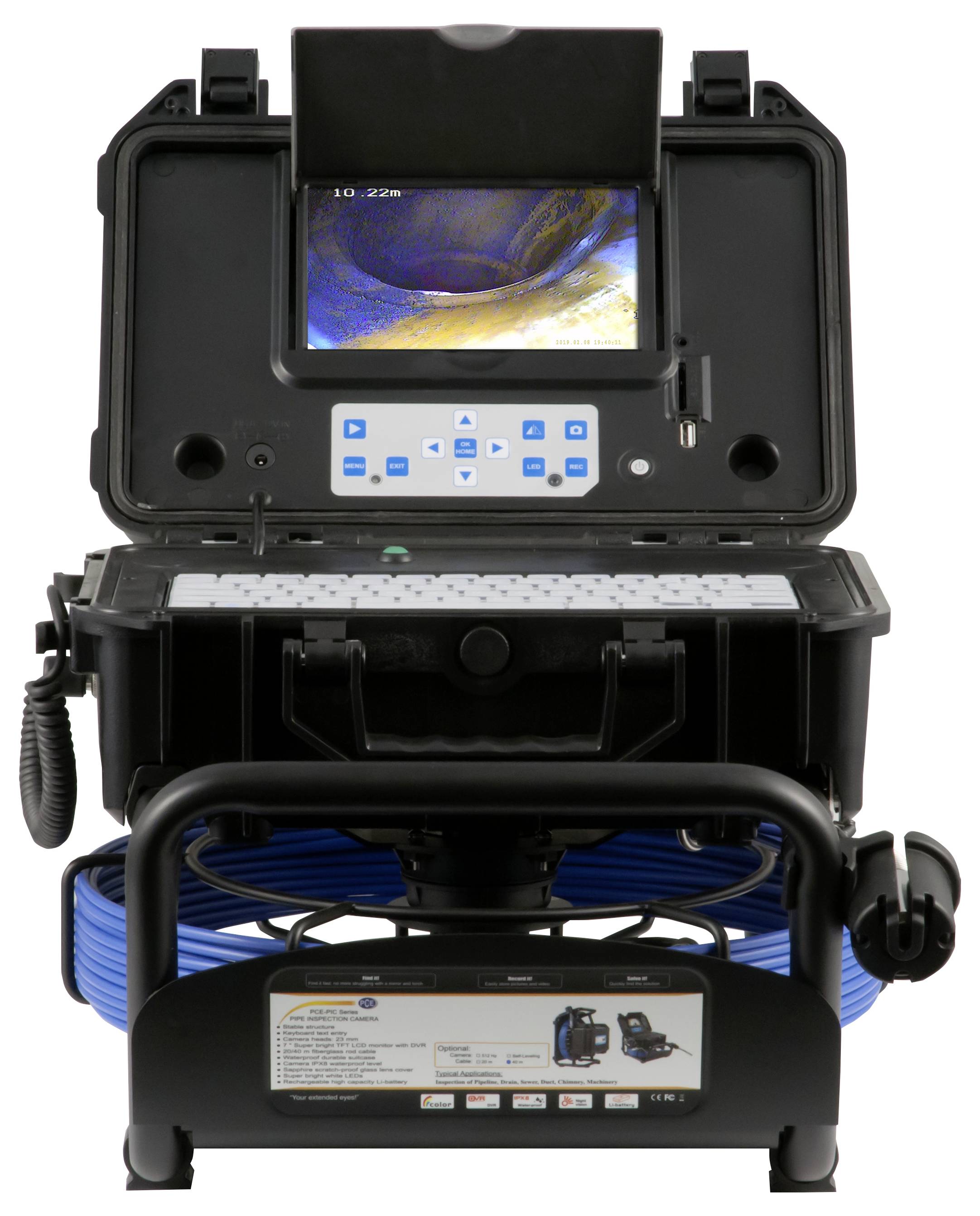

Portable inspection camera system in a rugged case, with a small display, control panel, coiled cable, and wheeled base for pipe or drain viewing.

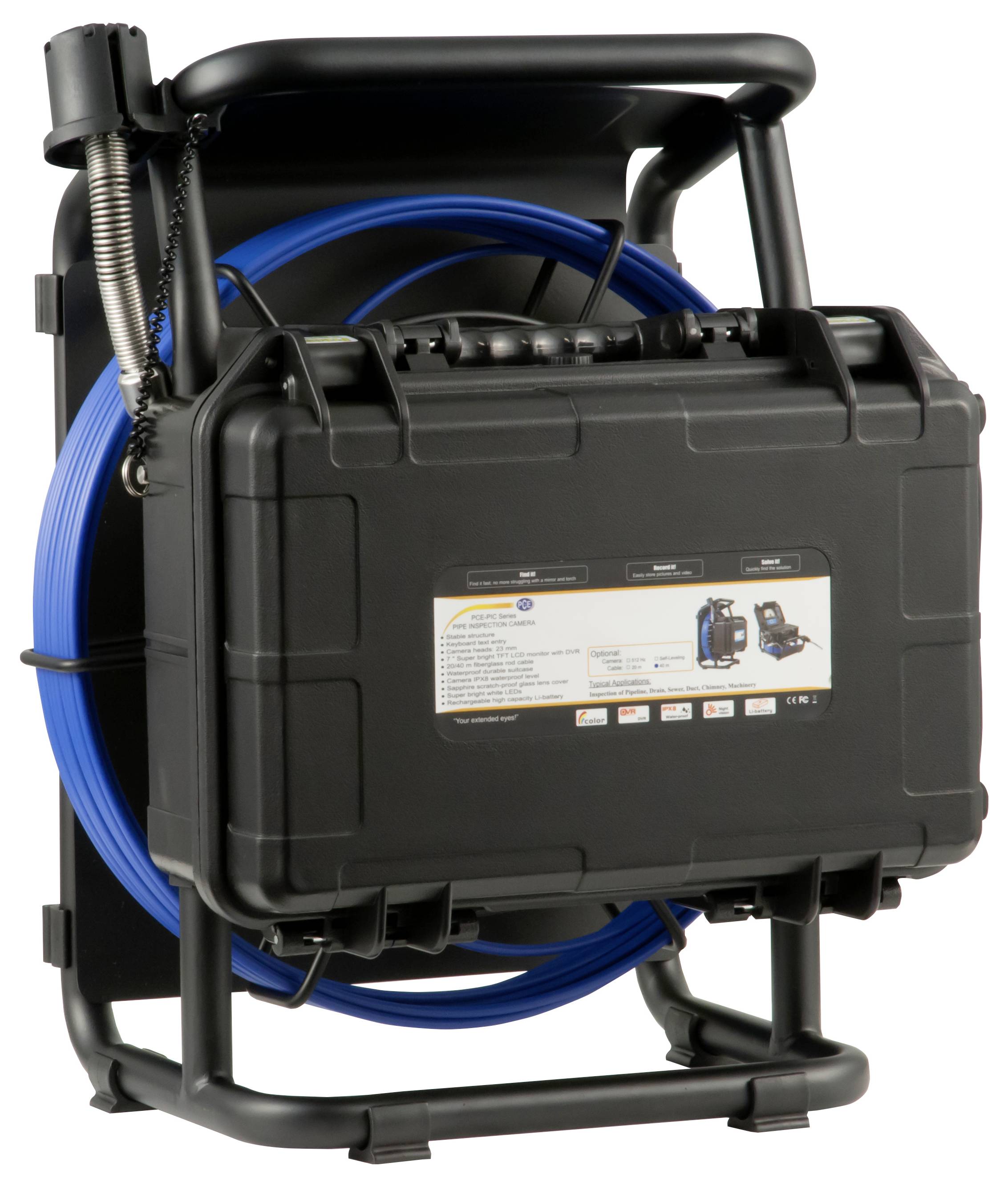

Portable inspection camera system in a hard case with coiled blue cable and handle, shown closed on a white background.

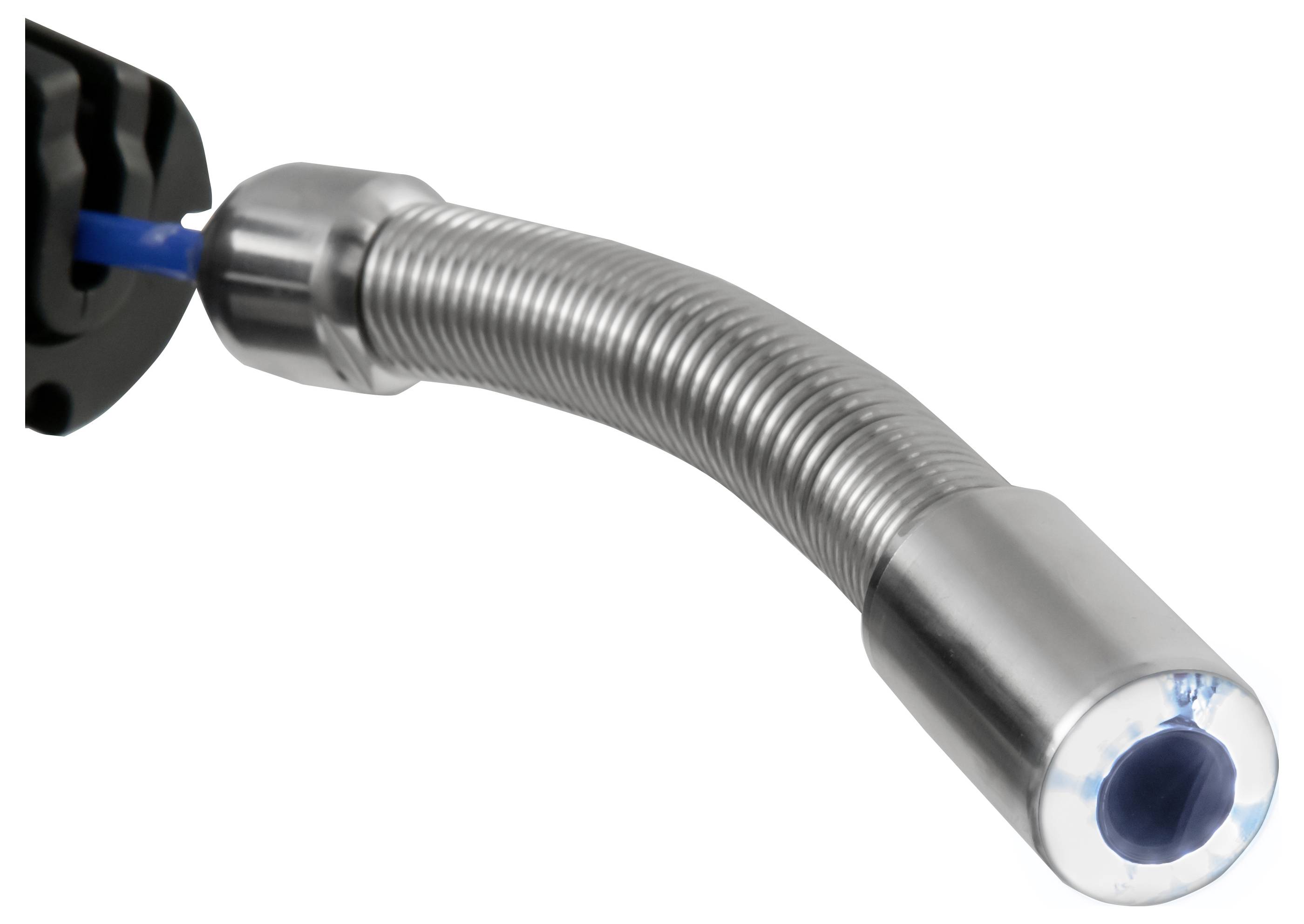

Close-up of a flexible stainless-steel hose with ribbed tubing and metal fittings, shown against a white background.

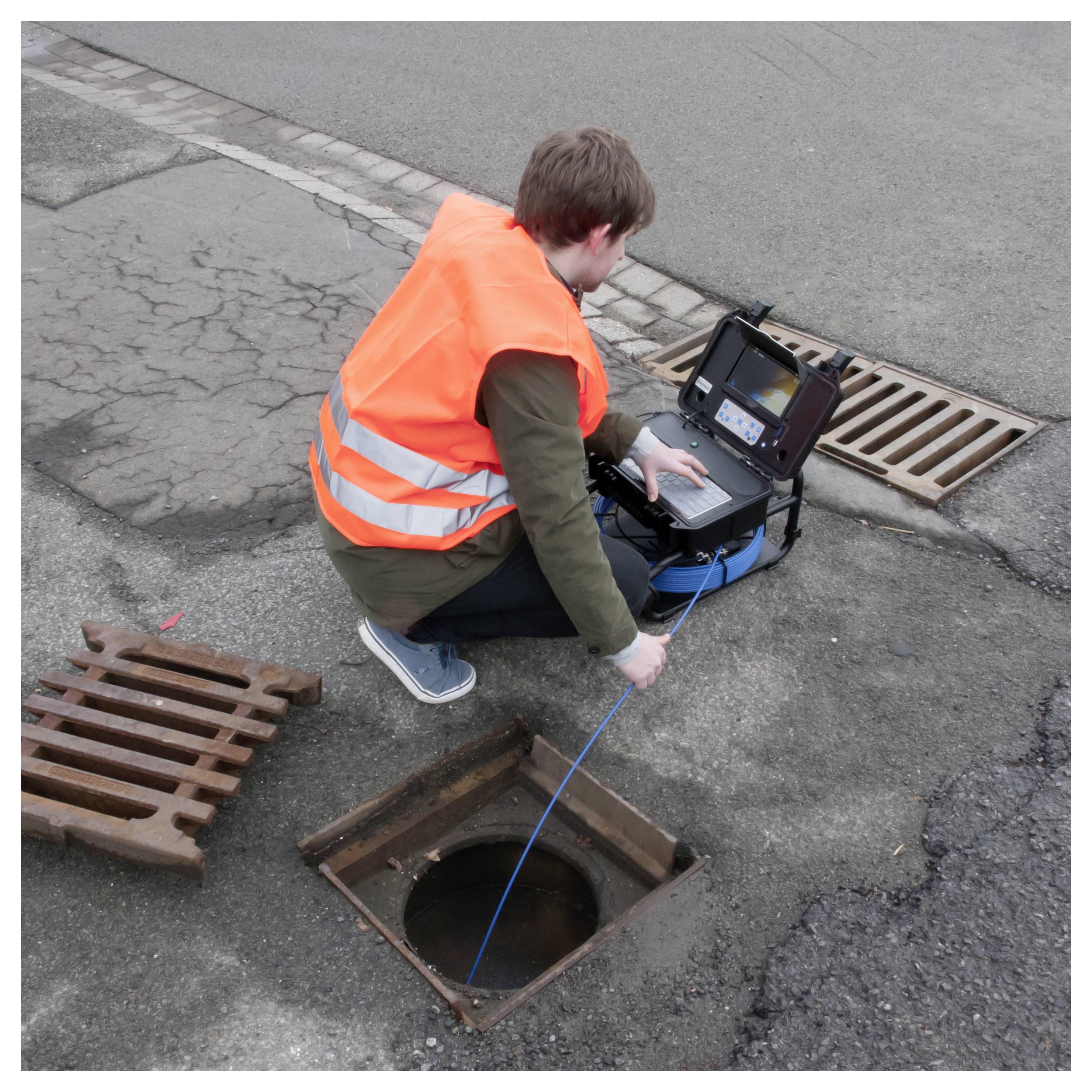

Worker in orange safety vest using a cable inspection device to examine an open street manhole.

1/5

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Boroscope PCE-PIC 40

40 m connecting cable
Electronic meter counting
23 mm camera head
Keyboard for entering comments
Endoscope cable braked
12x LED lighting
Battery and mains operation
waterproof up to 20 m.
IP66 carrying case
90° radius of curvature at min. Ø 45 mm

Technical specifications

Cable diameter / head diameter 23 mm Cable length PCE-PIC 40:40 m. Field of view 20 ... 100 cm Field of view 120° Lighting 12 x LED (dimmable) White balance automatic Image sensor 1/3 " Sony CCD 720 x 576 pixels Display 7 " LC display Interface USB 2.0 Storage capacity Video, photo and sound Image storage SD card up to 32 GB Video output format PAL 720 x 576 pixels NTSC 720 x 488 pixelsMenu navigation Multilingual: German, English, French, Spanish, Italian, Portuguese, Japanese, Chinese, Russian Length measurement 0 ... 40 m Data input possible by keyboard Operating conditions -10 ... 50 °C / 30 ... 90 % r.F. Storage conditions -20 ... 60 °C / 30 ... 90 % r.F. Voltage supply Power supply 110V ... 240V AC / 12V / 1.2 A DC Li-ion battery 7.4 V / 5400 mAh Protection class Display: IP66 Camera head: Waterproof up to 20 m. Dimensions Complete 55 x 43.5 x 34.5 cm Camera head 23 x 45 mm (total length 150 mm) Weight approx. 13 kg

Product type: Borescope

Type: PCE-PIC 40

Documents & Downloads

Datasheet

Datasheet 2452589 PCE Instruments PCE-PIC 40 Borescope

User & Safety Instructions

User & Safety Instructions 2452589 PCE Instruments PCE-PIC 40 Borescope

Description

Boroscope PCE-PIC 40 channel camera with 40 m connecting cable / waterproof up to 20 m / meter counting / keyboard input possible for comments / SD memory The channel camera of the PCE-PIC series is an ideal tool for every service technician who needs to visually inspect pipes and channels. The channel camera has a 23 mm camera head that is attached to a fiber optic connecting cable. The channel camera is ideal for pipes and channels DN40 ... 150 mm. The camera of the channel camera is waterproof up to 20 m. The channel camera has an electronic meter count to facilitate the search for damaged spots on channels and pipes. Recorded images and videos can be stored on an SD memory card via the channel camera. For better documentation, comments can be added to the pictures and videos using the keyboard. The channel camera is supplied in a waterproof case. The case of the channel camera is mounted directly on the cable reel. This means that the channel camera takes up very little space during transport. The PCE-PIC channel camera is equipped with a rechargeable battery that enables mobile working. The rechargeable battery of the channel camera is charged via a mains adapter or the car charger.
