Name: PCE Instruments PCE-PMC 10 3-phase network quality tester 3-phase Data logger, TRMS and oscilloscope trigger, Graphic di
Brand: PCE Instruments
SKU: 3812959

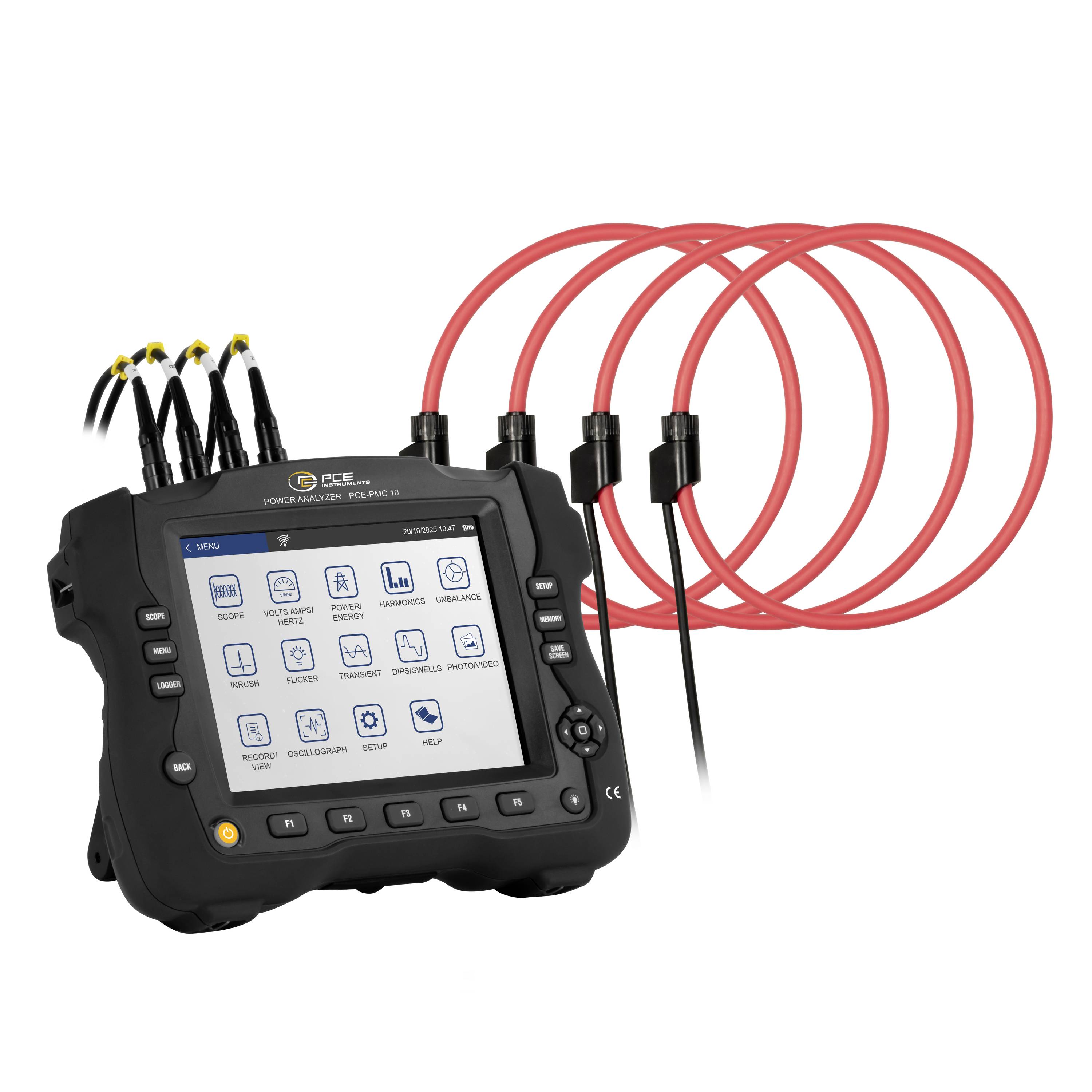

Handheld diagnostic tablet with screen showing menu icons, connected to multiple red and black cables for vehicle testing.

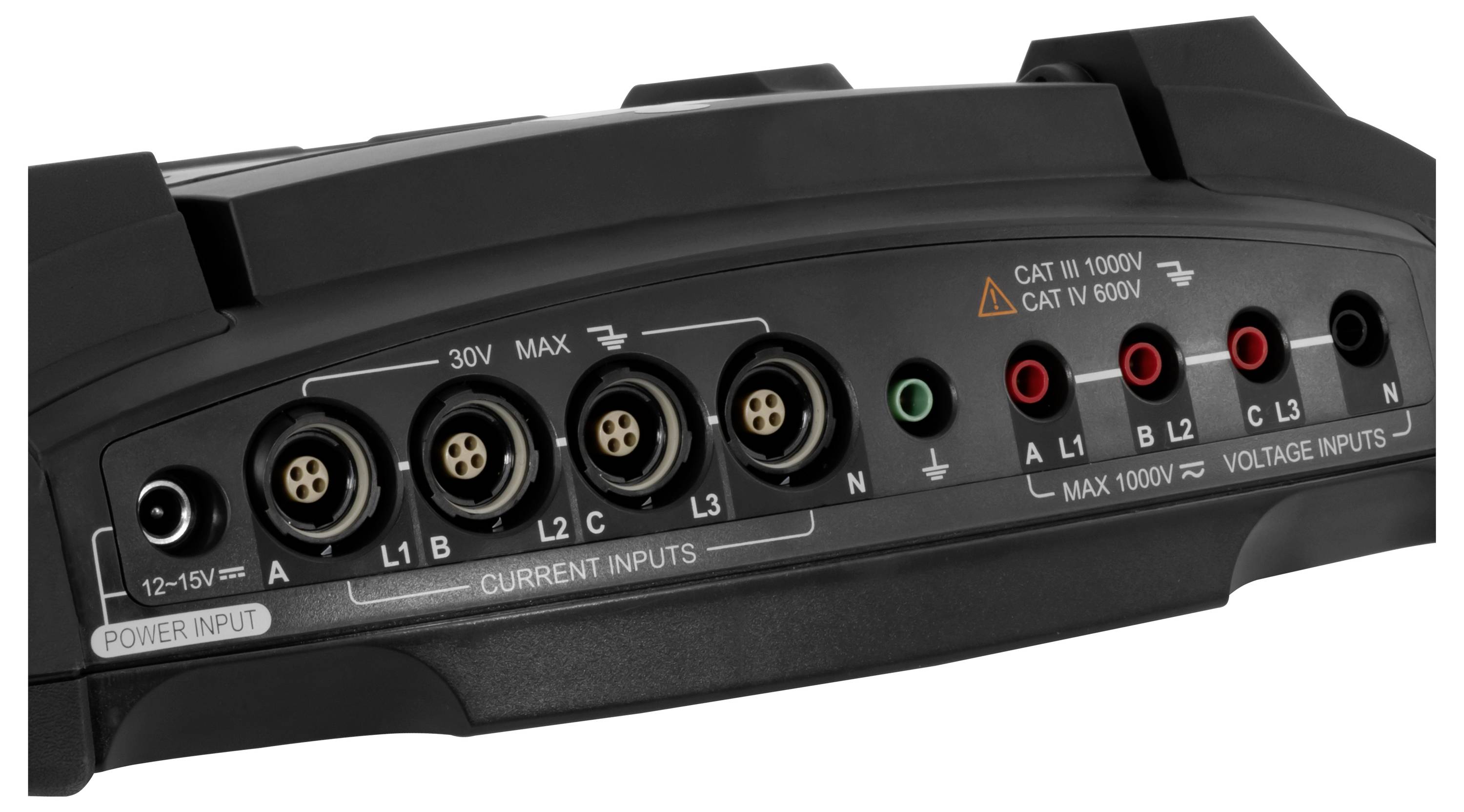

Back panel of a power and voltage measuring device with labeled input ports: 12–15V power input, current inputs A, B, L1, L2, L3, N, and voltage inputs A, L1, B, L2, C, L3, N.

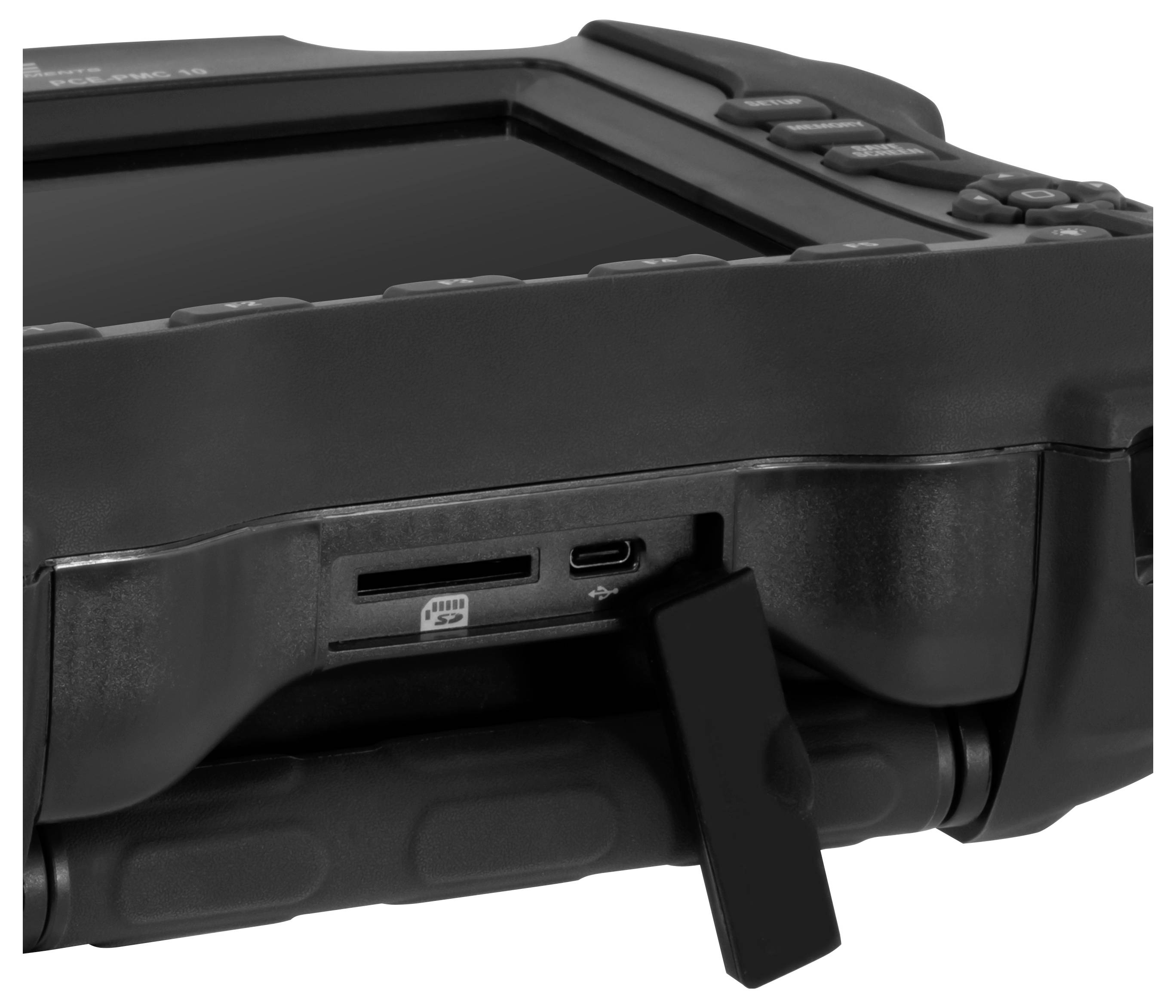

Close-up of a rugged handheld device showing a microSD card slot, USB-C port, and a protective latch on the side.<br>

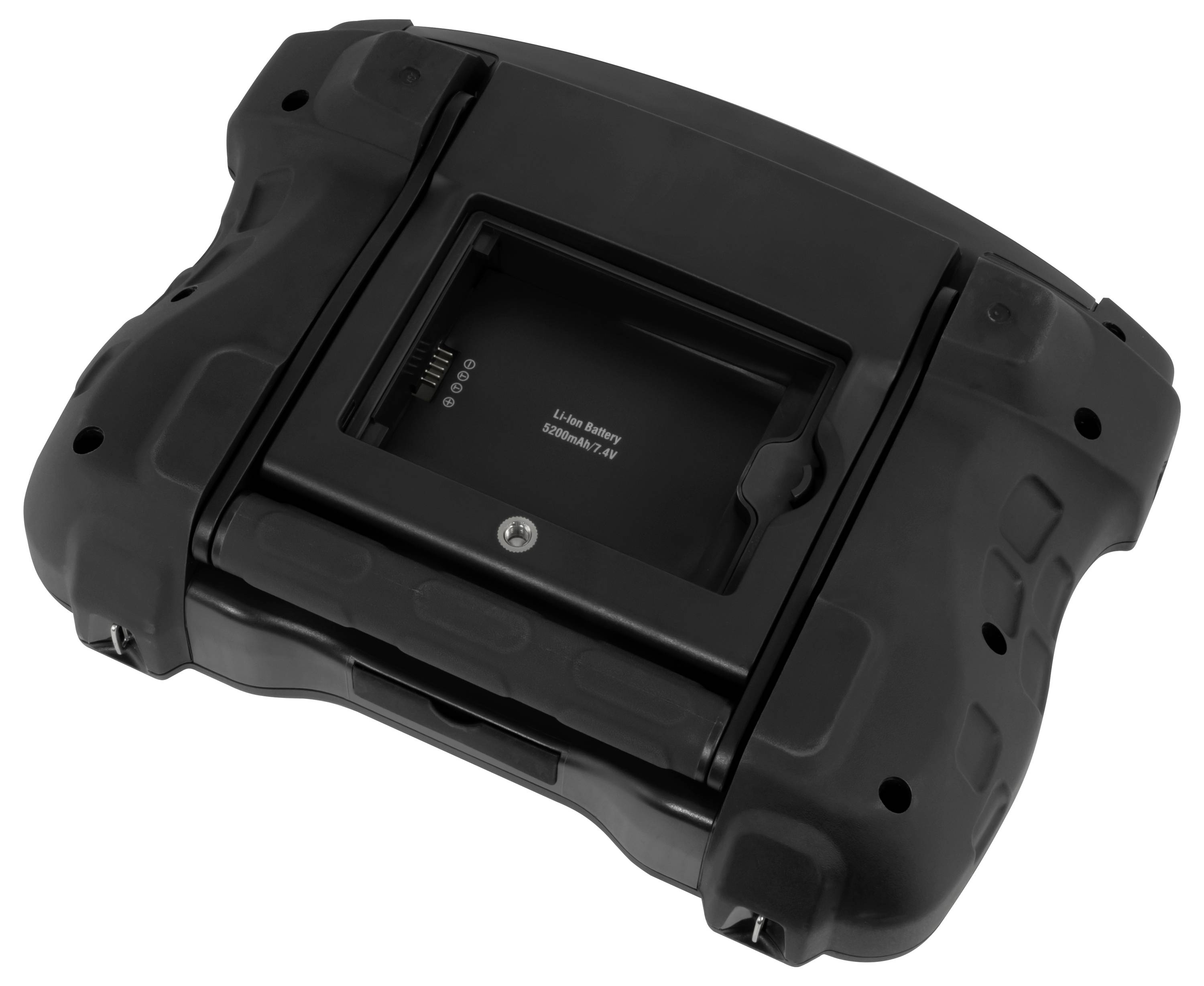

Black rugged battery pack with recessed display and contact terminals, shown isolated on a white background.

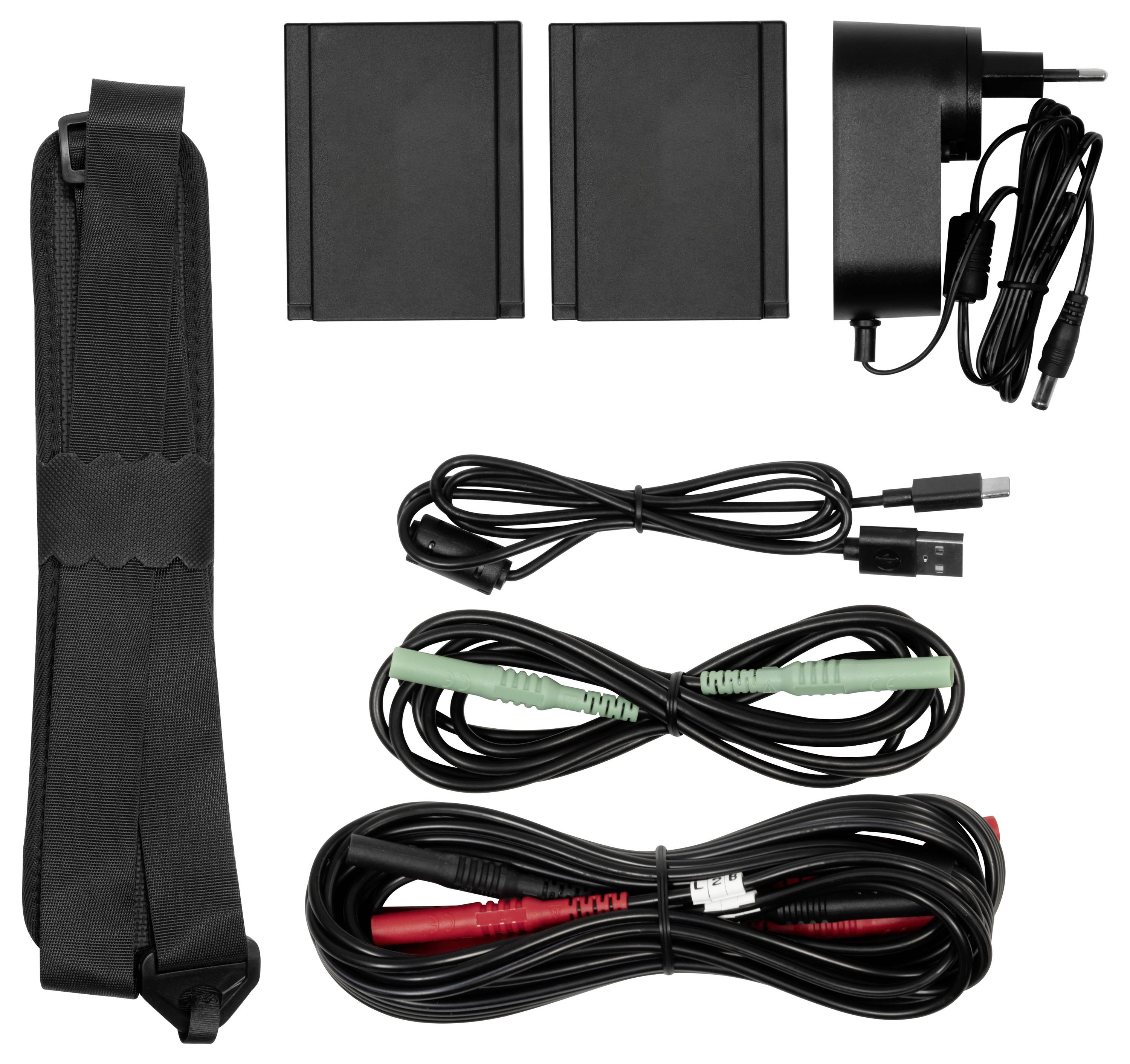

Electronics accessory kit with carrying strap, power adapter, two battery packs, USB cable, and two test lead cables on a white background.

1/5

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

PROFESSIONAL CALIBRATED TO EQUIPMENT. PCE-PMC 10

Measurement of all three phases and the neutral conductor
Measurement of efficiency of inverters
Mains signal monitoring
IEC 61000-4-30 class a
Wi-Fi
Logger-function and memory
Oscilloscope mode
Switch-on current
7.8-inch touch display
PC Software

Technical specifications

DC voltage
Measuring range 1 ... 1000 V
Resolution 0.1 V
Accuracy ±0.5 % from MW.
Direct current DC
Measuring range 0.5 ... 6000 A
Resolution: 0.1 A
Accuracy ±5% ±5 counts
Alternating voltage AC
Measuring range 1 ... 1000 V
Resolution 0.1 V
Accuracy ±0.5 % from MW.
Frequency range 42.5 ... 69 Hz
Alternating current (AC)
Measuring range 0.5 ... 6000 A
Resolution: 0.1 A
Accuracy ±0.5 % from MW.
Phase angle
Measuring range -360 ... 0 °
Resolution 1 °
Accuracy 1 °
Switch-on current
Measuring range 0.5 ... 6000 A
Resolution: 0.1 A
Accuracy 0.5% from MW.
Power factor
Measuring range 0 ... 1
Resolution 0.001
Accuracy ±0.1 %
Flicker
Measuring range 0 ... 20
Resolution 0.01
Accuracy ± 5 %
Unbalance
Measured parameter voltage
Measuring range 0 ... 20 %
Resolution 0.1%
Accuracy ±0.1 %
Unbalance
Measured parameter current
Measuring range 0 ... 20 %
Resolution 0.1%
Accuracy ±1 %
Frequency
Measuring range 42.5 ... 460 Hz
Resolution 0.001 Hz
Accuracy ±0.01 Hz
Harmonic measurement (harmonic)
Measuring range 1 ... 50 (product codes)
Current range 0 ... 100 %.
Voltage range 0 ... 100 %.
General Technical Data
Display Type Touch Display
Display size 7.8 inches
Storage medium: SD-card,
Storage capacity: 64 GB
Storage intervals of 1 s.
Storage intervals of up to 60 min.
Interface USB-C, WiFi
Standard(s) IEC 61000-4-30, IEC 61000-4-15, IEC 61000-4-7
Maximum cable diameter 150 mm
Safety standard CAT III 1000V, CAT IV 600 V.
Menu language English (GB), English (US), Chinese
Protection class (device) IP42
Power supply 12 ... 15 V DC (mains adaptor included)
Connector type Euro plug
Battery/battery 2 x 7.4 V internal , lithium-ion battery
Capacity 5200 mAh
Operating conditions -10 ... 40 °C , 10 ... 95 % r.F.
Storage conditions -20 ... 60 °C , 10 ... 95 % r.F.
Dimensions ( L x W x H ) 280 x 75 x 215 mm
Weighs 1834 g.

Product type: 3-phase network quality tester

Reading category: CAT III 1000 V
CAT IV 600 V

: Manufacturer's standards (no certificate)

Power supply (details): 12 - 15 V DC

Dim: (L x W x H) 280 x 75 x 215 mm

Weight: 1834 g

Measurement type: 3-phase

Features: Data logger
TRMS and oscilloscope trigger
Graphic display

Width: 75 mm

Height: 215 mm

Length: 280 mm

Interfaces: USB-C
Wi-Fi

Documents & Downloads

Datasheet

Datasheet 3812959 PCE Instruments PCE-PMC 10 3-phase network quality tester 3-phase Data logger, TRMS and oscilloscope trigger, Graphic di

User & Safety Instructions

User & Safety Instructions 3812959 PCE Instruments PCE-PMC 10 3-phase network quality tester 3-phase Data logger, TRMS and oscilloscope trigger, Graphic di

Description

The state-of-the-art power meter enables accurate and comprehensive measurements in the field of current, voltage, frequency, power, energy flicker and harmonics. It has been specially developed to provide reliable data both in industrial applications and in the analysis of photovoltaic or inverter systems.

Through the simultaneous monitoring of all three phases as well as the neutral conductor a complete picture of the electrical system arises. The efficiency measurement of inverters allows for a detailed analysis of the energy conversion, while the network signal monitoring continuously detects deviations and faults. This power measurement device is therefore an indispensable tool for professional energy analyzes.

Thanks to modern communication interfaces such as Wifi, the power measuring device can be easily integrated into existing systems and enables the wireless evaluation of measurement data. The integrated logger function and memory secure all relevant data for future analysis.

An integrated oscilloscope function permits the visual display of signal processes, including switch-on currents, and thus supports the analysis of transient phenomena. The 7.8-inch touch-display provides for an intuitive use and a clear display of all the measured values, diagrams and analysis functions. The power meter meets the requirements of IEC 61000-4-30 Class A and thus ensures a standard analysis of power supply quality parameters.

This power measurement device combines precision, versatility and modern ease of use and is suitable for Ideal for power analyzes, error diagnostics and efficiency tests in complex electrical systems.
