Name: PCE Instruments PCE-PP 20-ICA Parcel scales PCE-PP 20-ICA Calibrated to (ISO standards) Weight range 20 kg Readability 1
Brand: PCE Instruments
SKU: 3812705

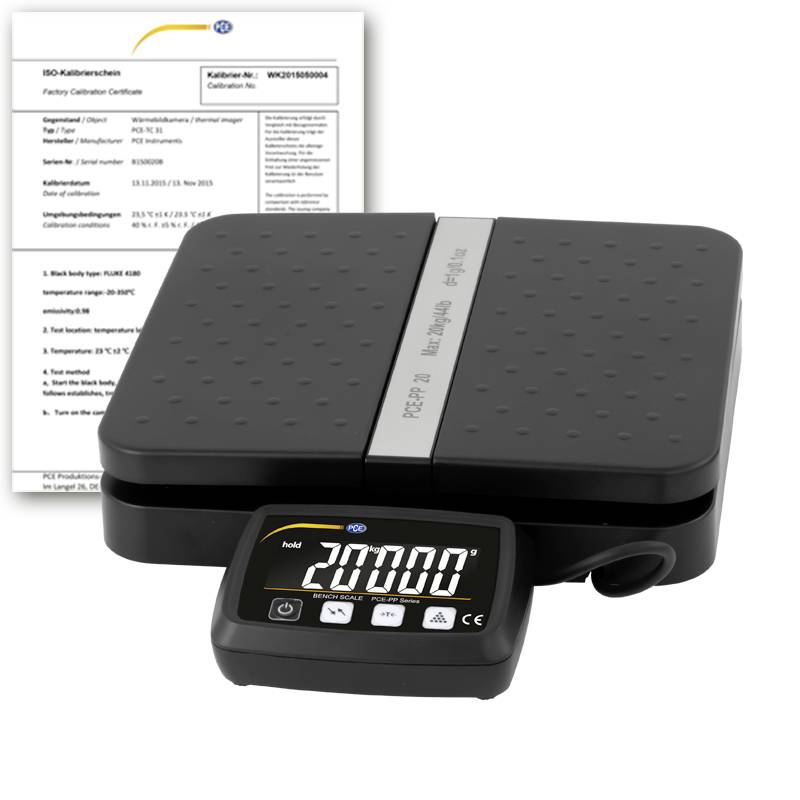

Black precision scale with a digital display showing 20000 and a calibration certificate in the background.<br>

Black wireless charger with a main charging base and a smaller detachable pad connected by a coiled cable.

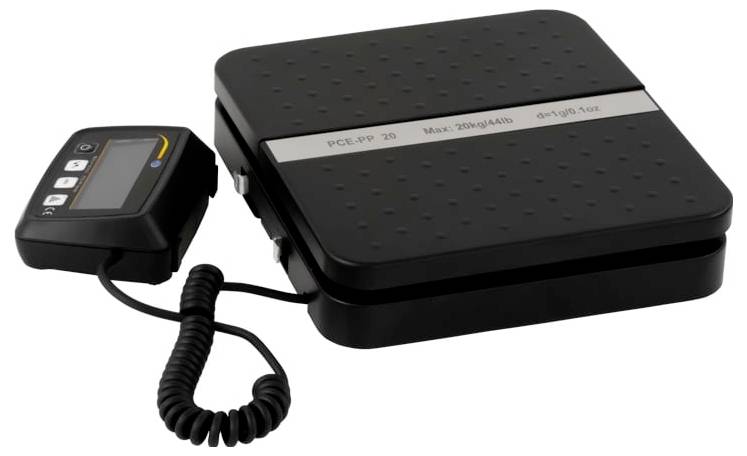

Black electronic control unit with a wired handheld controller and coiled cable, shown on a plain white background.<br>

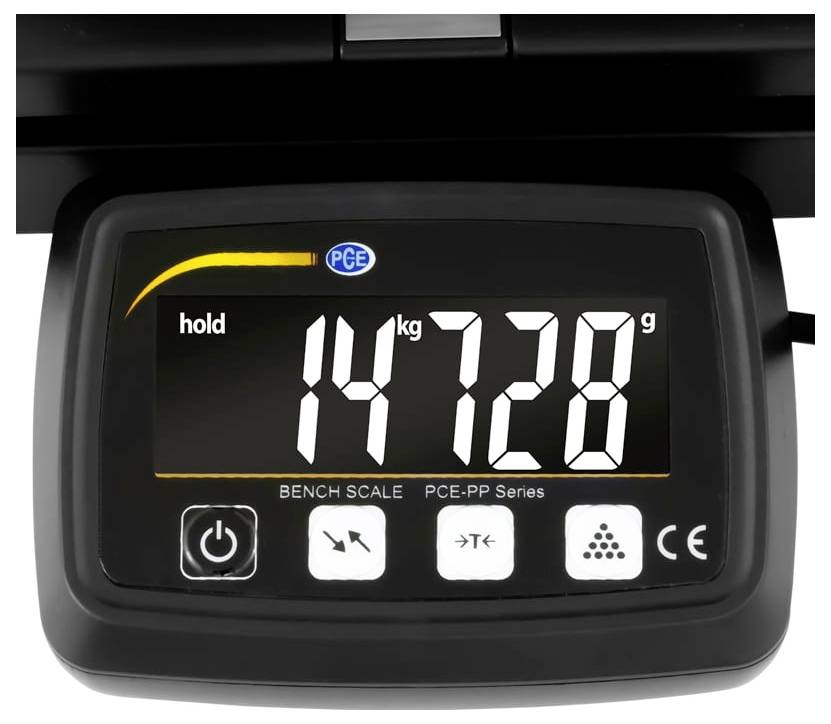

Digital bench scale display shows 'hold' and weight reading 14.728 kg on a PCE-PP Series scale.

Portable scanner/printer on a desk with a digital temperature display reading 59.0 attached by a coiled cable.

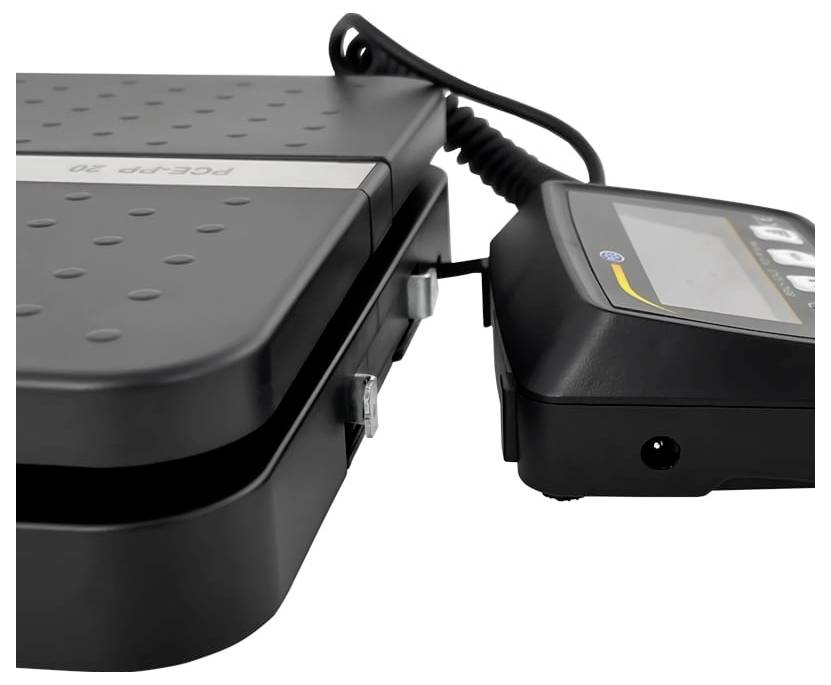

Black electronic device connected by a cable to a small handheld control unit with a screen and buttons.

1/6

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

PCE instruments package scales PCE-PP 20-ICA

Removable display
Foldable weighing platform
Resolution 1 g
Various units
Piece-counting function
Battery and mains operation
Incl. ISO calibration certificate

Technical specifications

Weighing range
Measuring range [Max] 20 kg
Resolution [d] 1 g
Accuracy +/-0.1 % FS
General Technical Data
Spiral cable type
Cable length 1.1 m.
Measurement functions (additional information) Piece counting function
Units(s) kg, g, lb, oz, g/kg, Ib/oz
Display type LCD
Automatically switches off approx. 5 min.
Overload protection Measuring range violation: ""O-Ld""
Platform dimensions 198 x 180 x 120 mm (open),display 92 x 68 x 30 mm
Protection class (device) IP20
Power supply 100 ... 240 V AC 50/60 Hz
Connector type for device Euro plug
Battery 3 x 1.5 V AAA battery , alkaline-manganese
Capacity 1200 mAh
Operating conditions 5 ... 35 °C , 0 ... 90 % r.F.
Storage conditions 5 ... 35 °C , 0 ... 90 % r.F.
Dimensions ( L x W x H ) 198 x 180 x 44 mm
Weighs 794 g.

Weight range: 20 kg

Product type: Parcel scales

Readability: 1 g

Display: Digital

Power supply (LOV): mains-powered
battery-powered

: ISO standards

Power supply (details): 1.5 V

Dim: (L x W x H) 198 x 180 x 30 mm

Weight: 810 g

Weight resolution: 1 g

Type: Removable display
Foldable weighing platform
Resolution 1 g
Various units
Piece-counting function
Battery and mains mode
Incl. ISO calibration certificate

Cable length: 1.1 m

Calibration service: Incl. ISO calibration certificate

Width: 180 mm

Height: 30 mm

Length: 198 mm

Reproducibility: 1 g

Type: PCE-PP 20-ICA

Plastic free packaging: Plastic-free packaging

Documents & Downloads

Datasheet

Datasheet 3812705 PCE Instruments PCE-PP 20-ICA Parcel scales PCE-PP 20-ICA Calibrated to (ISO standards) Weight range 20 kg Readability 1

User & Safety Instructions

User & Safety Instructions 3812705 PCE Instruments PCE-PP 20-ICA Parcel scales PCE-PP 20-ICA Calibrated to (ISO standards) Weight range 20 kg Readability 1

Description

The parcel scales has a resolution of 1 g and an accuracy of ±0.1 % from MB. A very precise measuring agent for the determination of weights. Display units include lb/oz, kg/g, kg, g, lb, oz available in the Parcel Scales. The illuminated LC-display of the package scale is dimensioned in such a way that the measured value can be read well even under very bright ambient conditions. In addition, the display of the packet scale can be taken off and can be positioned freely because of the spiral cable.

The package scale can use the piece counting function to determine the number of objects such as screws. To do this, a reference measurement is first performed on the package scale. The piece counting function is then started by pressing a button. As an extension of the piece counting function, the weighing area of the parcel scales can be folded out sideways. For example, stacked letters or similar can be weighed with the parcel scales without dropping them from the weighing surface.

The parcel scales are powered by a 6 V DC power supply. In addition, the parcel scales can also be operated with three AAA 1.5 V batteries. This means that the parcel scales can be used as a stationary or mobile solution. The automatic switch-off function means that the parcel scales switches off automatically within 5 minutes of inactivity. Optionally, PCE Instruments offers an ISO calibration certificate for the package scale.

This text is machine translated.
