PCE Instruments PCE-PP 50 Parcel scales PCE-PP 50 Weight range 50 kg Readability 1 g mains-powered, battery-powered Blac
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Digital scale PCE-PP 50
- Removable display Foldable weighing platform Resolution 1 g Various units Piece-counting function Battery and mains mode
Technical specifications
- Measuring range 0 ... 50 kg Resolution 1 g Accuracy ±0.1 % from MB. Other specifications Units lb / oz, kg / g Measuring range exceeding "O-Ld" Low battery voltage "LO" Automatic shut-off after 5 minutes of inactivity Power supply 3 x 1.5 V AAA batteries Power supply Primary: 100 ... 240 V AC / 50, 60 Hz Secondary: 6 V DC, 1 A. Environmental conditions 5 ... 35 °C, <90 % r. F., not condensing Platform dimensions 198 x 180 x 44 / (120 (folded)) mm Dimensions Display 92 x 68 x 30 mm Display cable Spiral cable with a length of 1100 mm Weight 810 g
- Weight range
50 kg
- Product type
Parcel scales
- Readability
1 g
- Display
Digital
- Power supply (LOV)
mains-powered
battery-powered
Manufacturer's standards (no certificate)
- Factory colour
Black
- Dim
(L x W x H) 198 x 180 x 44 mm (folded in/out)
- Weight
810 kg
- Dimensions folded
198 x 180 x 44 mm
- Weight resolution
1 g
- Dim. (add. text)
folded in/out
- Width
180 mm
- Height
44 mm
- Length
198 mm
- Type
PCE-PP 50
- Features
Counting
Calibratable
- Top plate (width)
198 mm
- Top plate (length)
180 mm
Documents & Downloads
Datasheet
Datasheet 2813623 PCE Instruments PCE-PP 50 Parcel scales PCE-PP 50 Weight range 50 kg Readability 1 g mains-powered, battery-powered Blac
User & Safety Instructions
User & Safety Instructions 2813623 PCE Instruments PCE-PP 50 Parcel scales PCE-PP 50 Weight range 50 kg Readability 1 g mains-powered, battery-powered Blac
Description

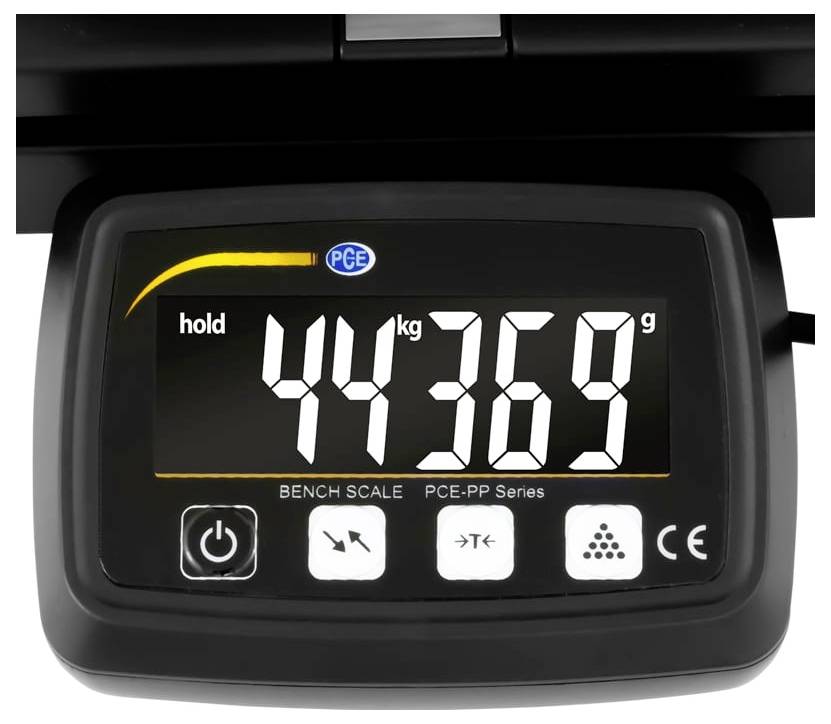

The digital scale is due to the resolution of 1 g and an accuracy of ±0.1 % of measurement range. A very precise measuring agent for the determination of weights. Display units include lb / oz, kg / g, kg, g, lb, Oz are available with digital scales. The illuminated LCD display of the digital scale is dimensioned in such a way that the measured value can be read easily even in very bright ambient conditions. In addition, the display of the digital scale can be removed and positioned freely because of the spiral cable. The piece-counting function allows the digital scale to determine the number of objects, such as screws. To do this, a reference measurement is first performed on the digital scale. The piece counting function is then started by pressing a button. As an extension of the piece counting function, the weighing area of the digital scale can be folded out sideways. For example, stacked letters or similar can be weighed with the digital scale without dropping them from the weighing surface. The digital scales are powered by a 6 V DC power supply. In addition, the digital scales can be operated with three 1.5 V batteries. This means that the digital scales can be used as stationary or mobile applications. The automatic switch-off function ensures that the digital scale switches off automatically within 5 minutes of inactivity. Optionally, PCE Instruments offers an ISO calibration certificate for the digital scale.
This text is machine translated.
This text is machine translated.
Features
- Digital scale with a resolution of 1 gPiece-counting functionVarious unitsEasy-to-read liquid crystal displayAutomatic shut-off after 5 minutes of inactivityMains or battery operationOptionally with ISO calibration certificate

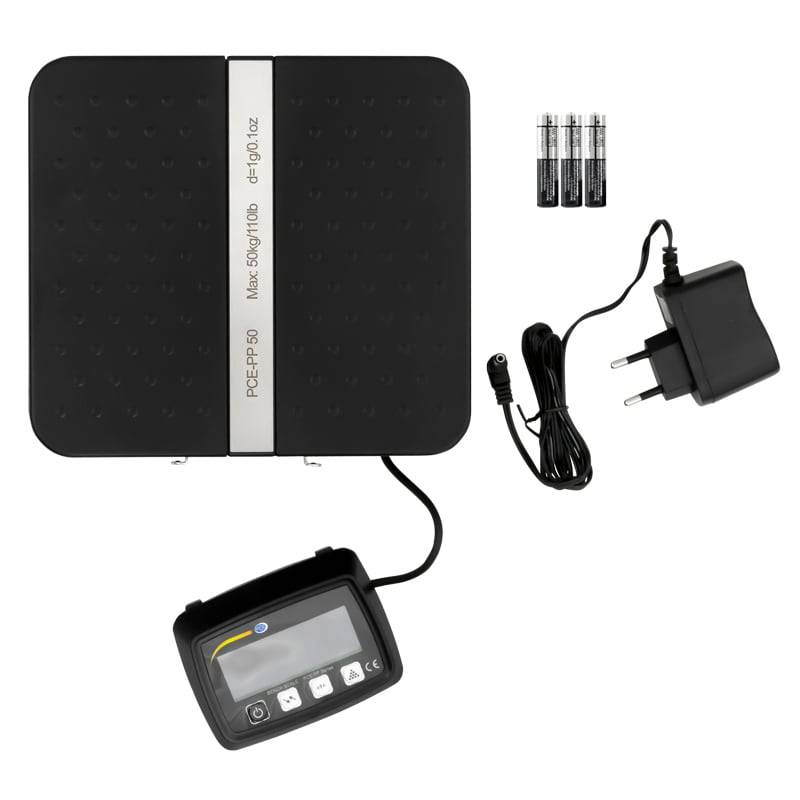

Scope of delivery
- 1 x digital scales PCE-PP 50 3 x 1.5 V AAA battery 1 x power supply 1x user manual
Hints
MULTIPURPOSE bench scale PCE-PP 50, e.g. as weighing platform, counting scale, mailing scales, digital scales, metering scales, Spirit levels, household scale, industrial scale, inventory scale, parcel scales, Platform scales, scale counter
