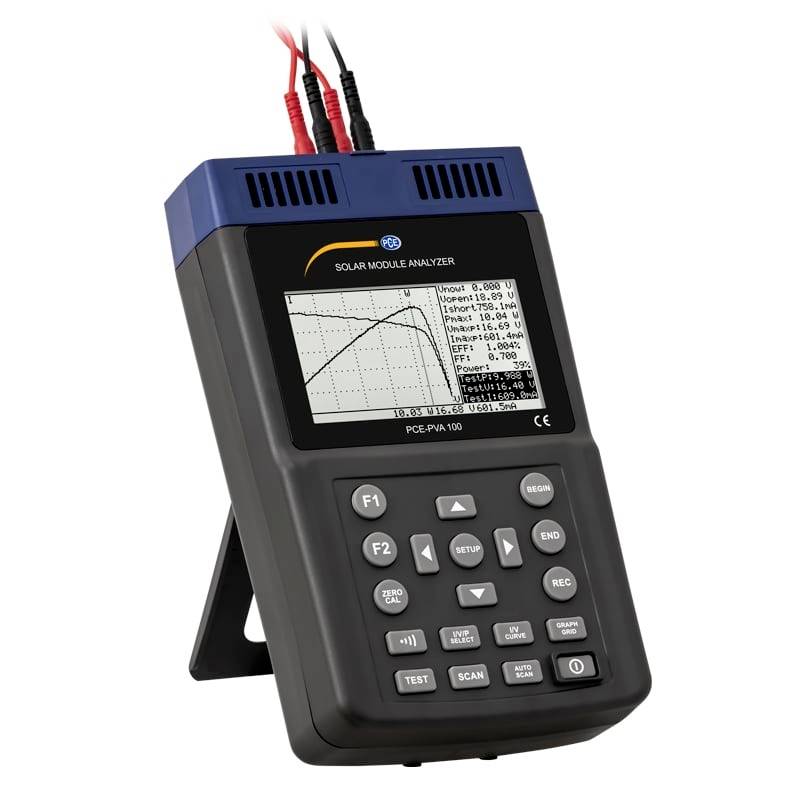

PCE Instruments PCE-PVA 100 PV meter 10 - 1000 W/m²

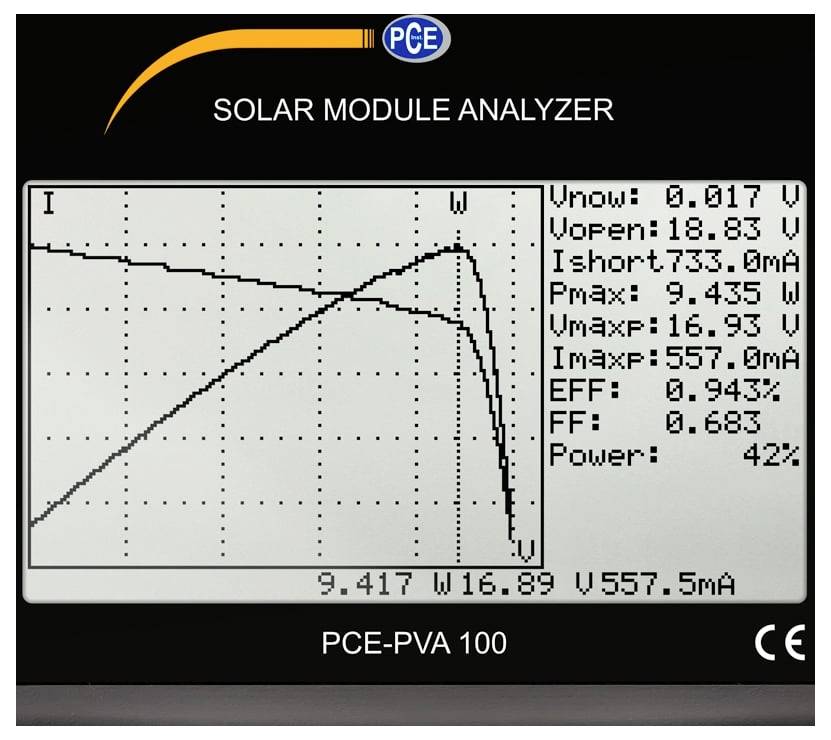

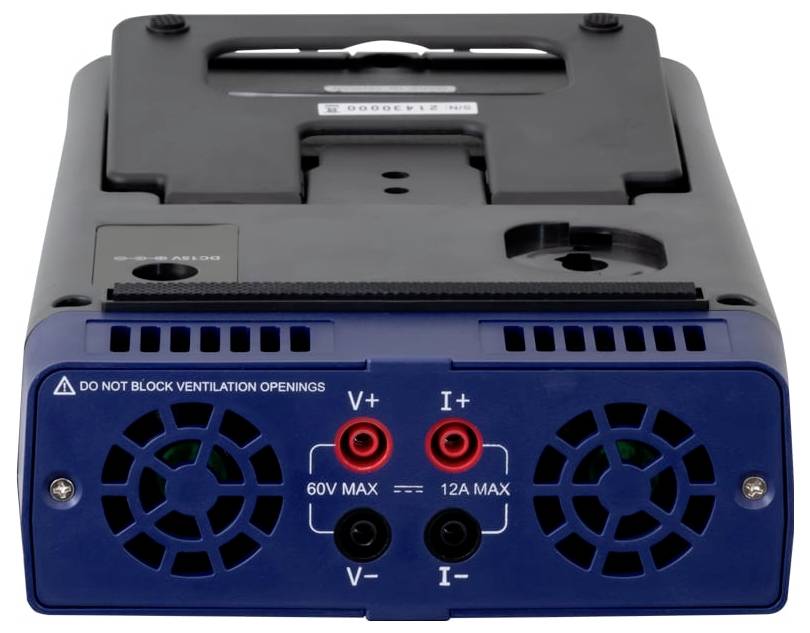

Solar module tester with a measurement range of 0 - 12 A DC, USB interface, data storage for 100 measured characteristics, 4.8" LC display, battery operation for approx. 400 measurements, optionally with ISO calibration certificate. The solar module tester is a useful tool for examining solar cells for their characteristics. With a direct voltage range of 0 - 60 V and a direct current range of 0 - 12 A, the solar module tester covers a large number of solar modules. The determined characteristics are stored directly on the solar module tester. Up to 100 measurements can be stored on the data memory of the solar module tester. The stored measured values can then be read out on a PC with the corresponding software and processed further. In addition, it is possible to operate the solar module tester completely via the software. The solar module tester has two different measuring functions for determining the characteristics of a solar module. In automatic mode, the characteristic curve with automatic parameters is created by the solar module tester. This gives the operator a first impression of the condition of the solar panel. In manual mode, the solar module tester can set the current start value and the current end value. If the area of the solar module and the power of the incoming radiation are stored in W/m², the solar module tester can calculate the efficiency and the filling factor of the cell. Another measuring function for the solar module tester is the one point measurement. A specific current can be controlled and checked by the solar module tester. The LC display on the solar module tester is 4.8" in size. This allows the characteristic curve and all measured values to be read at the same time. In order to better analyze the characteristic curve, each individual measuring point can be approached at the solar module tester. For a different view of the X and Y axis, you can switch between current, voltage and power by pressing a button on the solar module tester. Due to its many different functions, the solar module tester is the ideal measuring device for examining the effectiveness of solar modules. The solar module tester is therefore used on photovoltaic systems and research equipment for the further development of solar modules. Optionally, the solar module tester can be equipped with an ISO calibration certificate.
