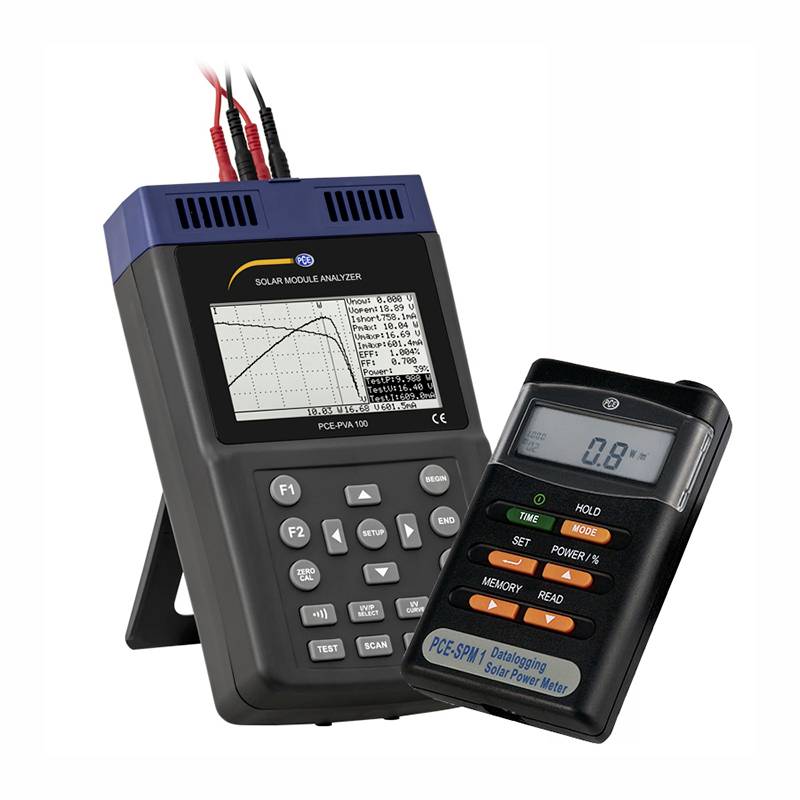

PCE Instruments PCE-PVA 100-SPM 1-KIT PV tester set 0 - 2000 W/m²

PPCE-PVA 100 photovoltaic meter with a measurement range of 0 ... 12 A DC / USB interface / data memory for 100 measured characteristics / 4.8" LC display / battery operation for approx. 400 measurements / optionally with ISO calibration certificate The photovoltaic meter is a useful tool for examining solar cells for their characteristics. With a direct voltage range of 0 … 60 V and a direct current range of 0 … 12 A, the photovoltaic meter covers a large number of solar modules. The determined characteristics are stored directly on the solar module tester. Up to 100 measurements can be stored on the data memory of the photovoltaic meter. The stored measured values can then be read out on a PC with the corresponding software and processed further. In addition, it is possible to operate the photovoltaic meter completely via the software. Two different measuring functions are available for determining the characteristic curves of a solar module in the photovoltaic measuring device. In automatic mode, the characteristic curve with automatic parameters is created by the photovoltaic meter. This gives the operator a first impression of the condition of the solar panel. In manual mode, the current start value and the current end value can be set for the photovoltaic meter. If the area of the solar module and the output of the incoming radiation are stored in W/m², the photovoltaic meter can calculate the efficiency and the filling factor of the cell. Another measuring function for the photovoltaic measuring device is the one point measurement. A specific current can be controlled and checked by the photovoltaic meter. The LC display on the photovoltaic meter is 4.8". This allows the characteristic curve and all measured values to be read at the same time. In order to better analyze the characteristic curve, each individual measuring point can be approached with the photovoltaic measuring device. For a different view of the X and Y axis, you can switch between current, voltage and power by pressing a button on the photovoltaic meter. Due to its many different functions, the solar module tester is the ideal measuring device for examining the effectiveness of solar modules. The solar module tester is therefore used on photovoltaic systems and research equipment for the further development of solar modules. Optionally, the photovoltaic meter can be equipped with an ISO calibration certificate. Solar measuring device PCE-SPM 1 with integrated sensor, determines the energy yield on solar systems / also serves to find optimal solar locations for new systems The solar measuring device for solar energy is the optimal hand - testing device for solar engineers, architects and hobby solar engineers. With this solar measuring device you can determine the solar power. This makes it possible to make a statement about the composition and design of a photovoltaic system. The light intensity is measured by a monocrystalline silicon solar cell. The processor integrated in the solar measuring device provides for an automatic correction for maintaining the basic accuracy after the calibration of each device in the solar simulator. The most important parameter P tot (in W/m²) can be read directly on the display. The data contained in the internal memory (32,000 measured values) can be transferred to the serial interface of a PC with the help of the software. This solar measuring device was also designed for outdoor use and has a weather-resistant plastic casing. Its compact dimensions allow a comfortable one-handed operation. 1. Solar - direct measurement on site with the solar measuring device, a direct measurement of the energy can be made at a defined position. These measured values can be used, among other things, to check the efficiency of PV modules or solar ­Thermie systems. 2. Simulation of temperature, power, voltage and current of PV modules Attention: Only possible in combination with the multimeter we offer. 3. The solar measuring device is internally equipped with a data logger for long-term measurements over longer periods of time. Solar radiation The solar measuring device detects the full solar radiation, i.e. both the direct radiation and the difuse solar radiation of the atmosphere. The largest portion of the solar radiation reflected on the surface of the Earth is in the infrared visible strip of the spectrum, as ultraviolet radiation is absorbed by the atmosphere. The sun's radiation varies throughout the year, as the angle of the incident light rays in summer is greater than in winter and the rays fall in the summer more vertically.
