PCE Instruments PCE-PVS 10 Accelerometer
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

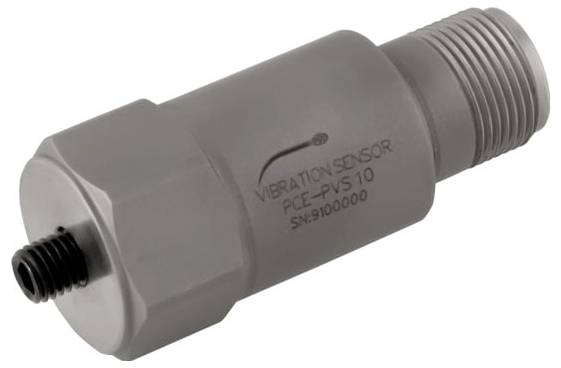

Vibration sensor PCE-PVS 10
- Horizontal or vertical mounting
- Process signal output

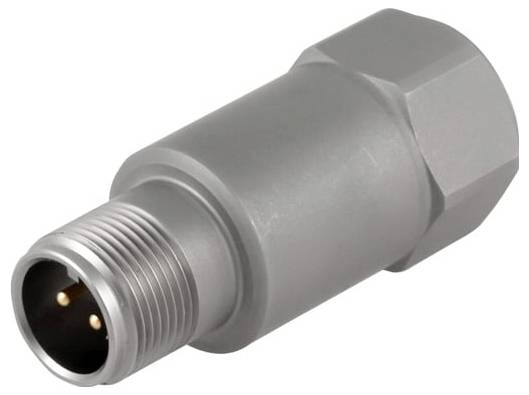

- MIL-C-5015 connection
- M6 Process connection
- Different measuring ranges
- Robust design
Technical specifications
- Measurement range ± 12.7 mm/s. Frequency range 3 ... 1500 Hz Output 2 Leader 4 ... 20 mA Sensitivity < 5% Shock limit ± 1000 g Power supply 12 ... 24 V DC in current loop Insulation against earth > 108 Ohm Output impedance < 100 Ohm Vertical connection type Electrical connections Pin A: + 4 ... 20 mA Pin B: - 4 ... 20 mA Connection type 2 Pin MIL-C-5015 Operating temperature -40 ... 85 °C Dimensions Ø22 X51 Mounting thread M6
- Product type
Accelerometer
- Reading type
Frequency
Acceleration
- Dim
(L x W) 51 mm x 22 mm
- Weight
700 g
- Width
22 mm
- Length
51 mm
- Type
PCE-PVS 10
Documents & Downloads
Datasheet
Datasheet 2452600 PCE Instruments PCE-PVS 10 Accelerometer
User & Safety Instructions
User & Safety Instructions 2452600 PCE Instruments PCE-PVS 10 Accelerometer
Description

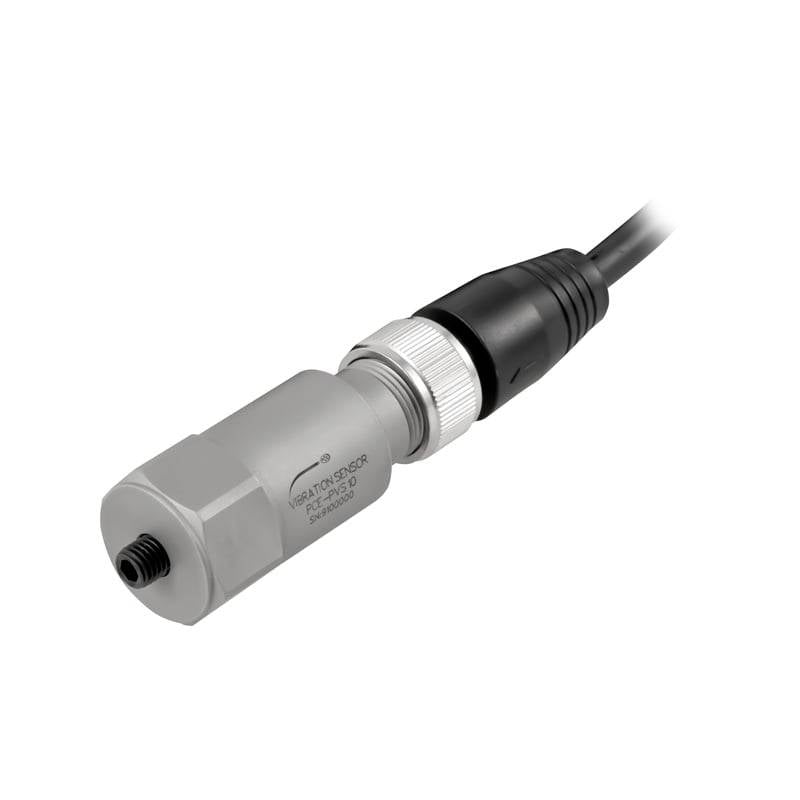

Vibration sensor for monitoring the vibration velocity / 4 ... 20 mA output MIL-C-5015 connection / 3 ... 1500 Hz bandwidth of the vibration sensors has been developed for continuous monitoring of the vibration velocity. The vibration sensor is available in various versions. Depending on the type of vibration sensor, a distinction is made between the design and the measuring range. The vibration sensor measures the vibration velocity in the range of ± 12.7 mm/s or ± 25.4 mm/s in the frequency range between 3 Hz and 1500 kHz. The measured vibration velocity is defined as 4 ... 20 mA process current output. The vibration sensor is connected to a control or process display in a current loop via a MIL-C-5015 connector. Depending on the design, the connection socket is mounted vertically or horizontally on the vibration sensor. The vibration sensor can be operated with a voltage of 12 ... 24 V DC.
This text is machine translated.
This text is machine translated.

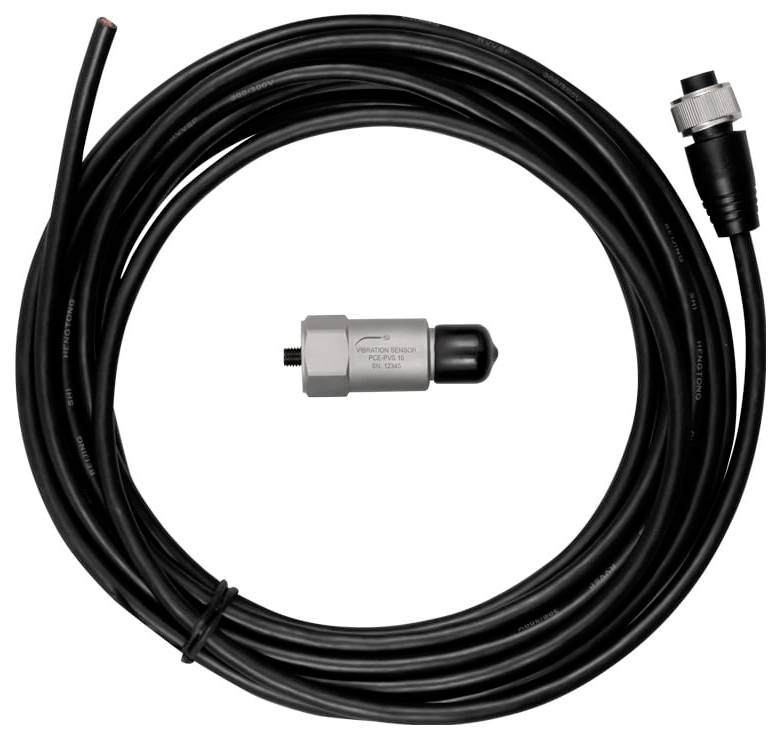

Scope of delivery
- 1 x Vibration sensor PCE-PVS 10
- 1 x MIL-C 5015 plug at 5 m cable
- 1x user manual
