PCE Instruments PCE-PVS 10-DPD-U Accelerometer 0.1 %
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Beschl.aufnehmer PCE-PVS 10-DPD-U + indicator
- Acceleration sensor for monitoring the vibration velocity incl. Installation display 4 ... 20 mA outputMIL-C-5015 connection3 ... 1500 Hz bandwidthUniversal display for different signals4-digitOptional output cardsModular structureIP65 front
Technical specifications
- PCE-PVS accelerometer 10Measuring range ± 12.7 mm/sFrequency range 3 ... 1500 HzOutput 2 conductor 4 ... 20 mASensitivity < 5%Shock limit ± 1000 gPower supply 12 ... 24 V DC in current loopInsulation against earth > 108 OhmOutput impedance < 100 ohmVertical connection typeElectrical connectionsPin A: + 4 ... 20 mAPin B: - 4 ... 20 mAConnection type 2 pin MIL-C-5015Operating temperature -40 ... 85 °CDimensions Ø22 x51M6 mounting threadPanel-mounted meter PCE-DPD-UInput2-, 3-wire PT100, PT500, PT1000, Ni100, Ni200, Ni1000Thermo-elements type K, J, E, N, L, R, S, B, T, CPotentiometer: 500 ... 20 kOhmResistance: 5k ... 50 kOhmProcess signals: 4 ... 20 mA, 0 ... 10 VFrequency: 0 ... 100 HzDC-voltage 60 mV, 200 mV 2 V, 20 V, 200 V, 600VDC current 20 mA, 5 AAC VOLTAGE 2 V, 20 V, 200 V, 600 V.AC current 20 mA, 5 AMeasurement rate 3 / second16-bit resolutionAccuracy 0.1 %Internal resistanceVoltage measurement 1 MΩCurrent measurement 12 ΩScaling 21 pointsDisplay 4-digit 7-segment LED display, three-colorDisplay area -1999 ... 9999Outputs relay, analog, serial with optional output cardsAmbient temperature In operation: 0 °C ... 55 °C Storage: -20 °C ... +70 °CDimensions digital display 96 mm x 48 mm x 91 mmControl panel cut-out 92 mm x 45 mm (to DIN)Supply voltage 18 ... 265 V AC/DCProtection class front IP 65Weight 200 gInstallation Mounting clips with clamping screws, electrical connection via terminal stripHousing Digital display Robust plastic housing
- Basic accuracy
0.1 %
- Product type
Accelerometer
- Reading type
Acceleration
Frequency
DC voltage
AC voltage
Amperage
DC current
AC current
Resistance
Voltage
- Display
LED
- Operating voltage
265 V AC
- Dim
(L x W x H) 48 x 91 x 91 mm
- Weight
1200 g
- Width
91 mm
- Height
91 mm
- Length
48 mm
- Interfaces
Modbus RTU
- Type
PCE-PVS 10-DPD-U
Documents & Downloads
Datasheet
Datasheet 2813625 PCE Instruments PCE-PVS 10-DPD-U Accelerometer 0.1 %
User & Safety Instructions
User & Safety Instructions 2813625 PCE Instruments PCE-PVS 10-DPD-U Accelerometer 0.1 %
Description
Acceleration sensor for monitoring the vibration velocity / 4 ... 20 mA output / MIL-C-5015 connection / 3 ... 1500 Hz bandwidth / included Installation displayThe accelerometer has been developed for continuous monitoring of the vibration velocity. The accelerometer is available in various versions. Depending on the type of accelerometer, a distinction is made between the design and the measuring range. The accelerometer measures the oscillation speed in the range of ± 12.7 mm/s or ± 25.4 mm/s in the frequency range between 3 Hz and 1500 kHz. The measured vibration speed is measured as 4 ... 20 mA process current output. The vibration sensor is connected to a controller or process display in a current loop via a MIL-C-5015 connector. Depending on the design, the connector socket is positioned vertically or horizontally on the accelerometer. The accelerometer can be operated with a voltage of 12 ... 24 V DC.Installation display PCE-DPD-U universal display for different signals / 4-digit / optional output cards / modular design / IP65 front The panel-mounted meter can be configured as AC and DC voltmeter (up to 600 VAC/DC), AC and DC ammeter (up to 5 AAC/DC). The panel-mounted measuring instrument also displays measured values of process signals (mA, VDC), thermocouples, resistive temperature sensors (Pt, Ni, PTC and NTC), resistors, potentiometers and frequency. The panel-mounted meter can be configured via the front keys. The panel-mounted measuring instrument is installed in a control panel cut-out with the standard size 96 x 48 mm (1/8 DIN). The measured value can be scaled with 4 digits (9999 / -1999). Also available are a quick access function to alarm set-values, external control for activating predefined functions, Eco-mode for low consumption, selectable double scale, 5 configurable brightness levels on the panel-mounted meter. A single universal power supply 18 ... 265 V AC / DC makes the panel-mounted measuring instrument an easy to use process measuring device. Optional modules for output and control (relay, analogue output, Modbus RTU) are available to the user of the measuring instrument.
This text is machine translated.
This text is machine translated.
Features
- PCE-PVS accelerometer 10:Horizontal or vertical mountingProcess signal outputMIL-C-5015 connectionM6 Process connectionDifferent measuring rangesRobust constructionPanel-mounted measuring instrument PCE-DPD-U:Front sided IP 65Different units possibleDigital display for the industry processOptional outputs4-digit digital displayMany sensors can be connected
Scope of delivery

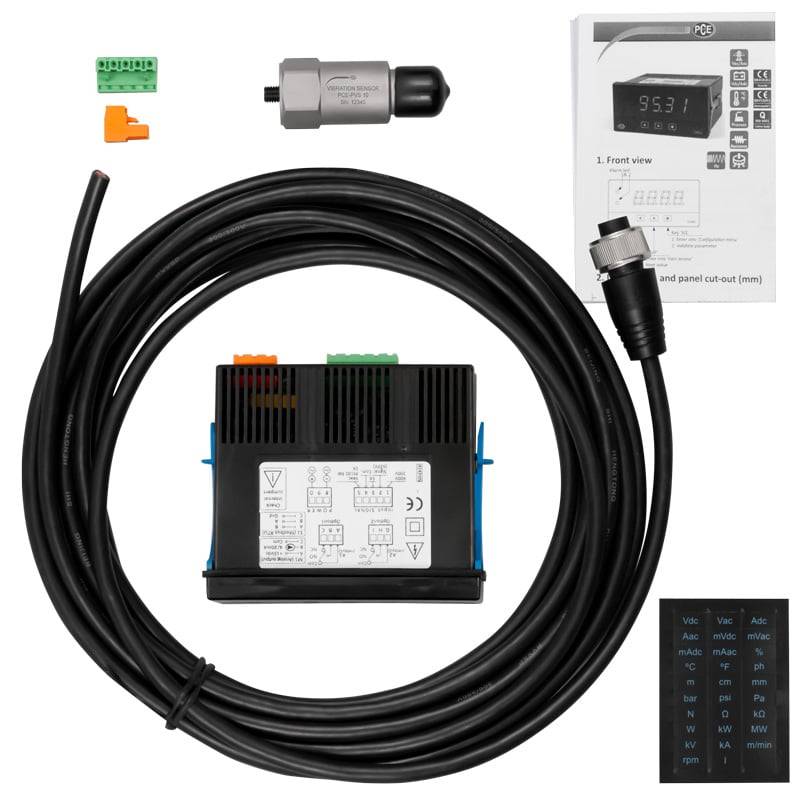

- 1 x acceleration sensor PCE-PVS 10-DPD-U inc. Display1 x MIL-C 5015 connector to 5 m cable 2 x terminals2 x Operating manual
