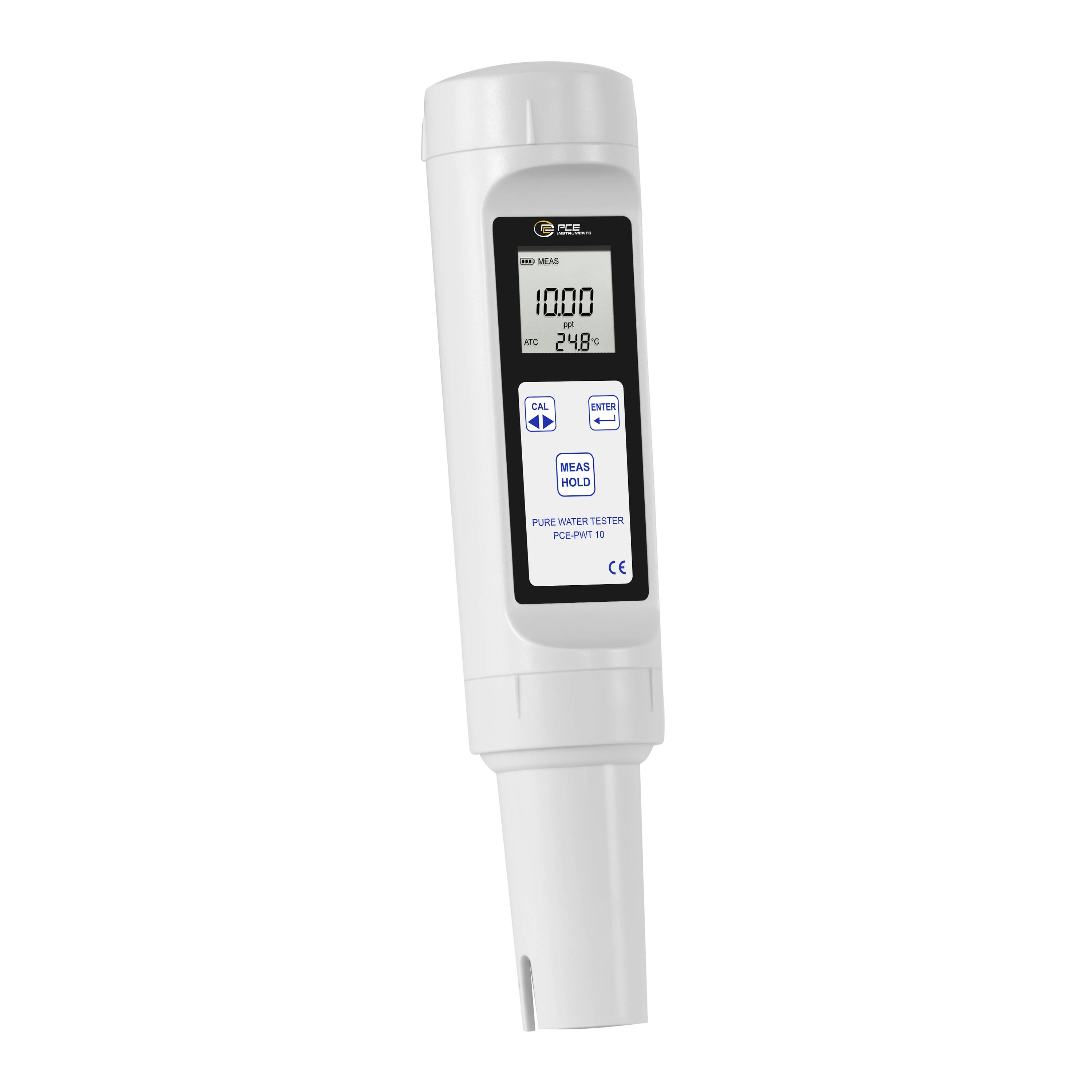

Handheld digital water quality tester with LCD display showing 10.00 and 24.6°C.<br>

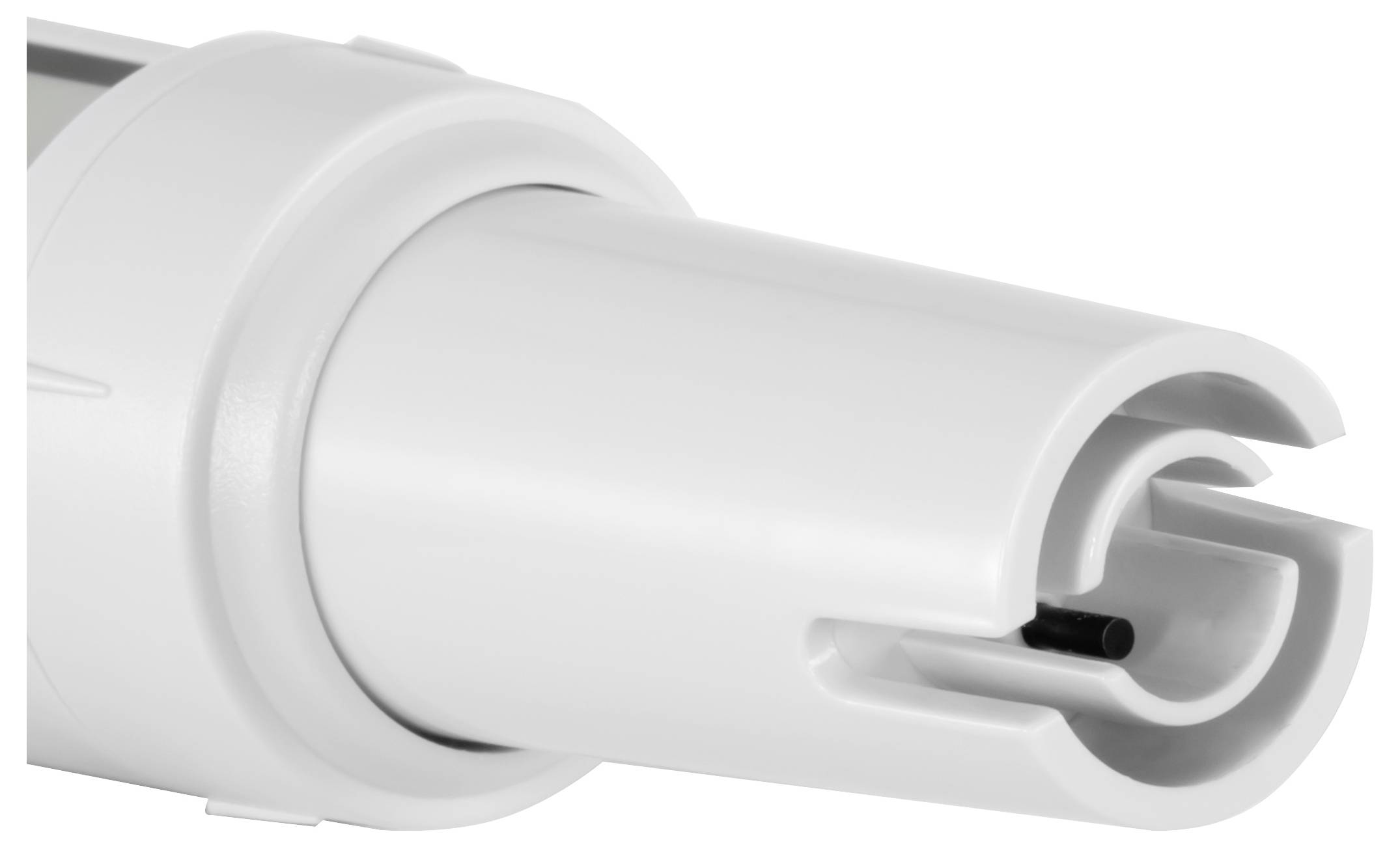

Close-up of a white cylindrical plastic connector or nozzle with a cutout opening and small black internal piece.

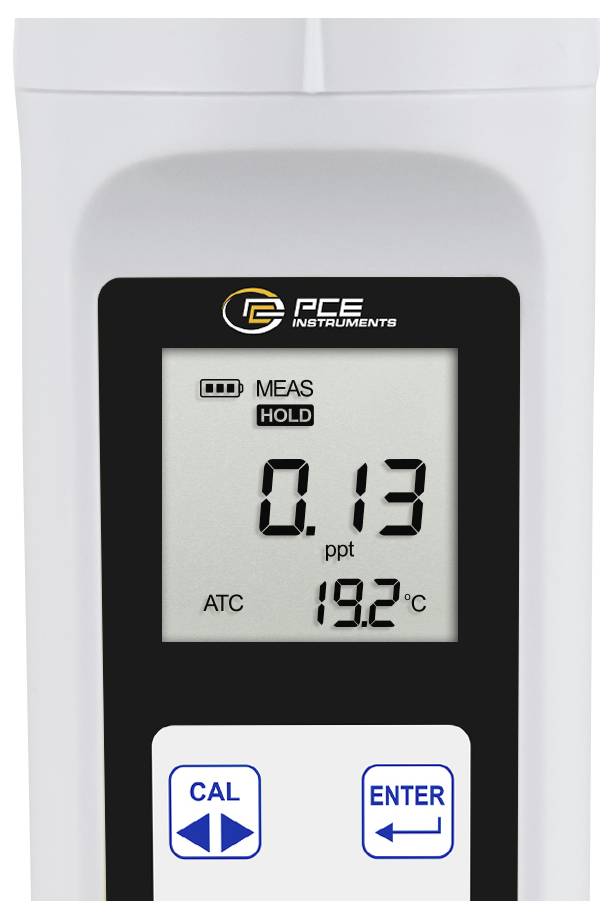

Handheld PCE Instruments meter displaying a reading of 0.13 ppt and ATC 19.2°C, with CAL and ENTER buttons below.

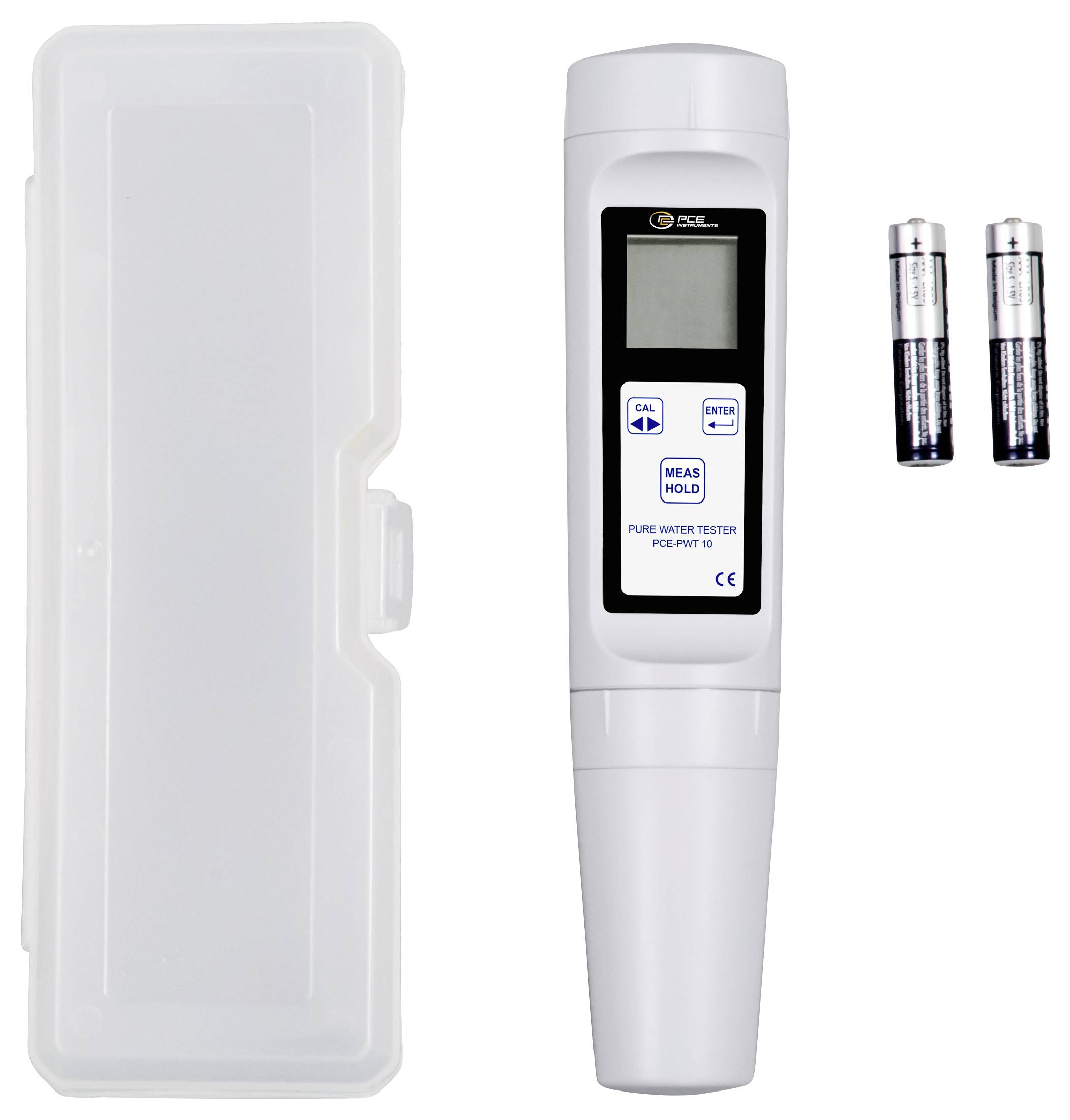

Portable water tester kit with a handheld digital meter, protective case, and two batteries on a white background.

1/4

Datasheet (PDF)

Unavailable

7 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Conductivity tester PCE-PWT 10

Smallest measurement range up to 20 µs/cm
Compact design
Automatic temperature compensation
Salt content measurement
Internal three-point calibration
Exchangeable electrode

Technical specifications

Measurement range - conductibility 0 ... 20 µs/cm 0 ... 200 µs/cm 0 ... 2000 µs/cm 0 ... 20.00 MS/cm Resolution 0.01 / 0.1 / 1 Accuracy ± 1% of MB. Measuring range salt content 0.00 ... 10.00 ppt Resolution 0.01 ppt Accuracy ± 1% of MB. Measurement range temperature 0 ... 60 °C Resolution 0.1 °C Accuracy: ±1 °C Temperature compensation range 0 ... 60 °C Temperature coefficient 2 % / °C. Number of calibration points 1 ... 3 Calibration points 84 µs/cm 1413 µs/cm 12.88 MS/cm Cell constant K=1 Normal medium temperature 25 °C. Hold function by pressing a button Automatic switch-off 8 minutes after the last press of a button Rest reset to factory settings possible Power supply 2 x 1.5 V AAA batteries Operating time approx. 200 hours Dimensions 185 x 40 mm Weight approx. 100 g

Product type: Conductivity tester

Reading type: Salt content

Display: LCD

: Manufacturer's standards (no certificate)

Automatic temperature compensation: Yes

Dim: (L x W) 185 mm x 40 mm

Weight: 100 g

Temperature reading range: 60 °C (max.)

Temperature reading range (max.): 60 °C

Width: 40 mm

Length: 185 mm

Documents & Downloads

Datasheet

Datasheet 2452604 PCE Instruments PCE-PWT 10 Conductivity tester Salt content

User & Safety Instructions

User & Safety Instructions 2452604 PCE Instruments PCE-PWT 10 Conductivity tester Salt content

Description

PCE-PWT 10 Conductivity Tester PPCE-PWT 10 is a good solution for anyone who wants to test the conductivity of ultrapure water. The PCE-PWT 10 conductivity tester can be used for ultra-pure water in the smallest measuring range 20µS/cm/salt content measurement/temperature compensation up to 60 °C. This conductivity tester is a compact device with an integrated temperature sensor for optimum temperature compensation. Among other things, the conductivity tester has a very low measuring range of only 0 ... 20 µs/cm. Furthermore, the tester is able to precisely determine the salt content of liquids. The PCE-PWT 10 ultrapure water tester has automatic temperature compensation in the range of 0 ... 60 °C. The conductivity tester is calibrated using a three-point calibration.
