PCE Instruments PCE-RAM 10 Geiger counter Radiation: Gamma, Alpha, X-ray, Beta Acoustic signal, Incl. data analysis soft
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

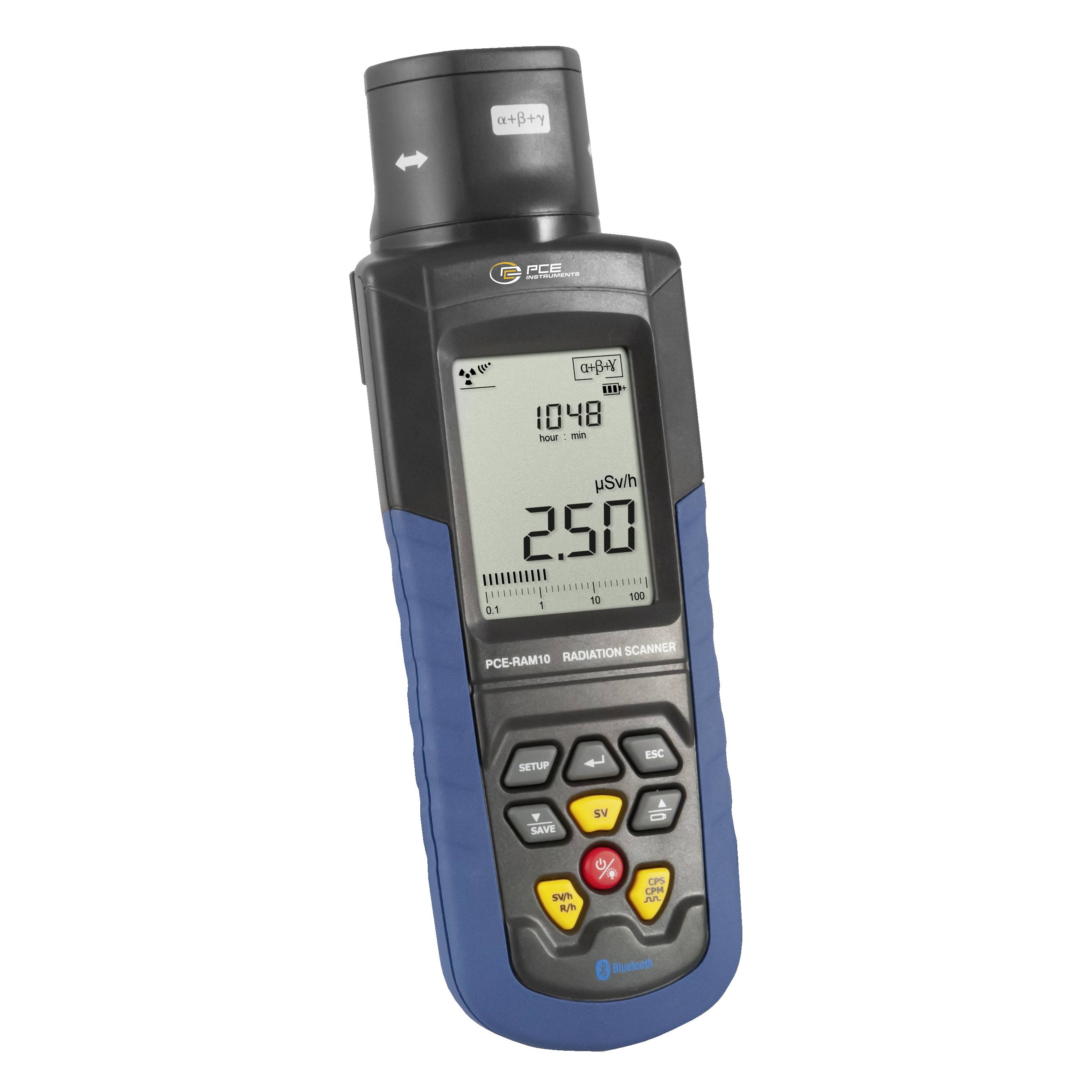

Radiation protection meter PCE-RAM 10
- α, β, γ and X-ray radiation
- High measuring accuracy
- Internal memory for 2000 measured values
- Large LCD display
- Bluetooth interface
- Data evaluation with software
Technical specifications
- Beam types α, β, γ and X-ray radiation Reading range Radiation dose rate: 0.01 ... 1000 µSv/h Pulse dose rate: 0 ... 30,000 cpm, 0 ... 5000 cps Radiation dose accumulation: 0.001 ... µSv ... 9,999 SV Pulse dose accumulation: 0 ... 9,999 Sensitivity 108 pulses or 1000 cpm/MR/hr in Cobalt-60 radiolabular environment with current of 1 µSv/h. Alpha rays: From 4 MeV Beta rays: 0.2 MeV or higher Gamma rays: 0.02 MeV or higher X-rays: From 0.02 MeV Accuracy < 10% (less than 500 µSv/h)< 20% (less than 600 µSv/h) Beam Selection Combination of α, β, γ and X-rays Halogen monitor sensor Bluetooth output port Average time manually or automatically, adjustable between 2 ... 12 seconds Display digital LCD display, with bar graph display Alarm function freely adjustable value, acoustic alarm Normal radiation value of natural environment less than 0 ... 0.2 µSv/h Internal memory automatic memory for < 2000 measured values Software data transfer in real-time, analysis and recording Operating temperature 0 ... +50 °C Power supply 4 x 1.5 V AA batteries Dimensions 200 x 70 x 45 mm Weighs 206 g.
- Product type
Geiger counter
- Radiation
Gamma
Alpha
X-ray
Beta
- Power supply (LOV)
battery-powered
- Dim
(L x W x H) 70 x 45 x 200 mm
- Features
Acoustic signal
Incl. data analysis softweare
Data logger
Visual signal
- Weight
206 g
- Width
45 mm
- Height
200 mm
- Length
70 mm
- X-radiation
0.02 MeV
- Interfaces
Bluetooth®
Documents & Downloads
Datasheet
Datasheet 2452605 PCE Instruments PCE-RAM 10 Geiger counter Radiation: Gamma, Alpha, X-ray, Beta Acoustic signal, Incl. data analysis soft
User & Safety Instructions
User & Safety Instructions 2452605 PCE Instruments PCE-RAM 10 Geiger counter Radiation: Gamma, Alpha, X-ray, Beta Acoustic signal, Incl. data analysis soft
Description
Radiation protection meter for detection of α-, β-, γ- and X-ray radiation / high accuracy / internal memory / large LCD display / data transfer to PC / Bluetooth interface The radiation protection meter PCE-RAM 10 measures α-, β-, γ- and X-ray radiation and impresses through a high measuring accuracy and the handy design. Via the Bluetooth interface integrated in the radiation protection meter, the measured values can be sent in real time to a PC and evaluated with the software included in the delivery. The radiation protection meter is equipped with an internal memory for up to 2000 measured values, the storage can be done both automatically and manually. The radiation protection meter has a large, high-resolution LCD display, with background lighting, Bargrpah display and many indicators. The PCE-RAM 10 radiation protection meter is used in the pharmaceutical industry, in laboratories, in power plants, in quarries, in rescue services, In metal processing plants, in oil storage, with environmental protection and much more.
This text is machine translated.
This text is machine translated.
Scope of delivery
- 1 x radiation protection meter PCE-RAM 10
- 1 x software

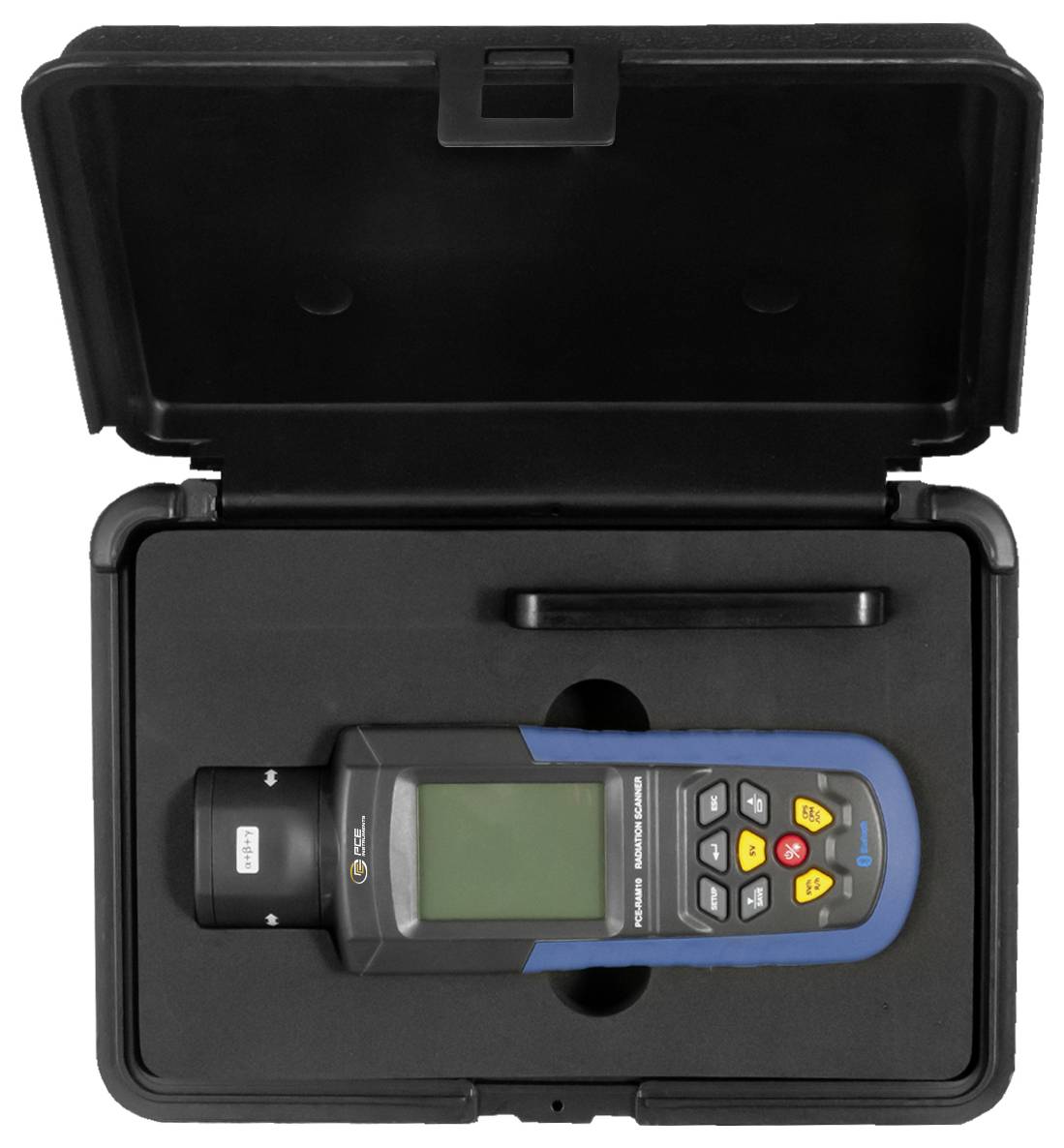

- 1 x carrying case
- 1x user manual
