PCE Instruments PCE-RCM 18 Oxygen detector 0 - 30 % Calibrated to Manufacturer's standards (no certificate)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
PROFESSIONAL CALIBRATED TO EQUIPMENT. PCE-RCM 18
- Oxygen, temperature and humidity sensor
- Automatic view change
- Integrated data logger
- Stores 65534 readings
- Storage interval: 10 ... 600 s
- Recording time adjustable up to 1080 min.
- Alarm indicator lights
Technical specifications
- Humidity relative
- Measuring range 0 ... 100 %.
- Resolution 1%
- Accuracy 5 % r.h.
- Oxygen
- Measuring range 0 ... 30 %
- Resolution 0.1%
- Accuracy ±0.3 % from MW.
- Temperature
- Measuring range -9 ... +55 °C
- Resolution 1 °C
- Accuracy: ±0.5 °C
- General Technical Data
- Display type LC-color display with illumination
- Display size 3.5 inches
- Storage medium Internal memory
- Storage capacity of 65534 records
- Storage intervals of 10 s.
- Storage intervals of up to 600 s.
- Interface Micro-USB
- Oxygen sensor service life: Approx. 2-3 years
- Operating time 8 h
- Automatic shutdown of ... to 0 ... 18 h
- Menu language English (US), English (GB), Russian, Chinese, Japanese, Korean
- Protection class (device) IP20
- Power supply 5 V, 1 A
- Battery/battery 1 x 3.7 V internal , lithium-ion battery
- Capacity: 3000 mAh
- Operating conditions -9 ... 55 °C , 0 ... 90 % r.F.
- Dimensions ( L x W x H ) 100 x 60 x 76 mm
- Weighs 203 g.
- Product type
Oxygen detector
- Unit of measurement
Oxygen
- Reading range
0 - 30 %
- Dim
(L x W x H) 100 x 60 x 76 mm
- Accuracy
0.3 %
- Weight
203 g
- Reading range (max.)
30 %
- Reading range (min.)
0 %
- Width
60 mm
- Height
76 mm
- Length
100 mm
IP20
Manufacturer's standards (no certificate)
Documents & Downloads
Datasheet
Datasheet 3812963 PCE Instruments PCE-RCM 18 Oxygen detector 0 - 30 % Calibrated to Manufacturer's standards (no certificate)
User & Safety Instructions
User & Safety Instructions 3812963 PCE Instruments PCE-RCM 18 Oxygen detector 0 - 30 % Calibrated to Manufacturer's standards (no certificate)
Description
The air quality detector for oxygen is suitable for continuous monitoring of oxygen content, temperature and relative humidity in indoors. Typical applications include offices, laboratories, technical rooms, storage areas, schools, Greenhouses as well as all environments where reliable control of the room air is required.

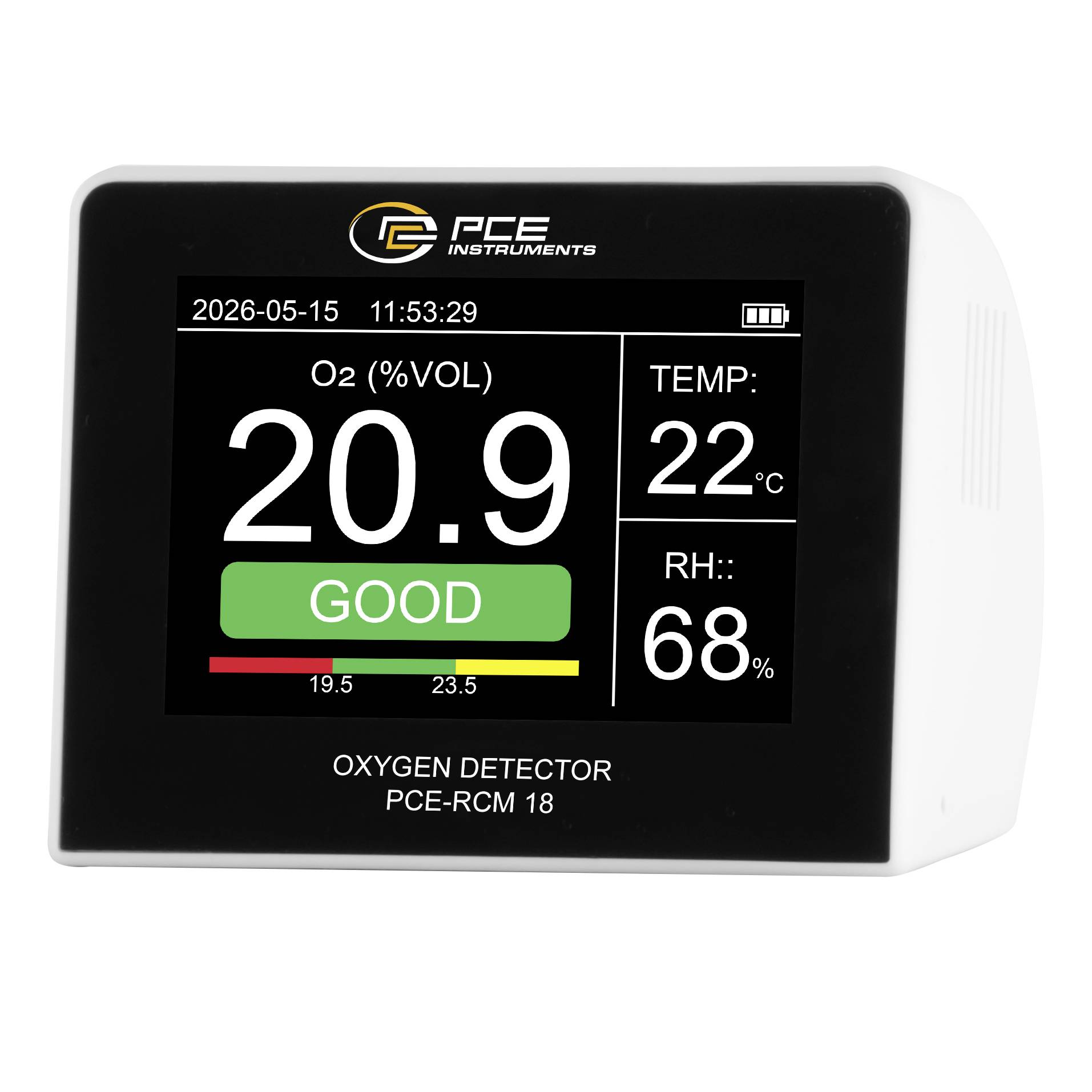

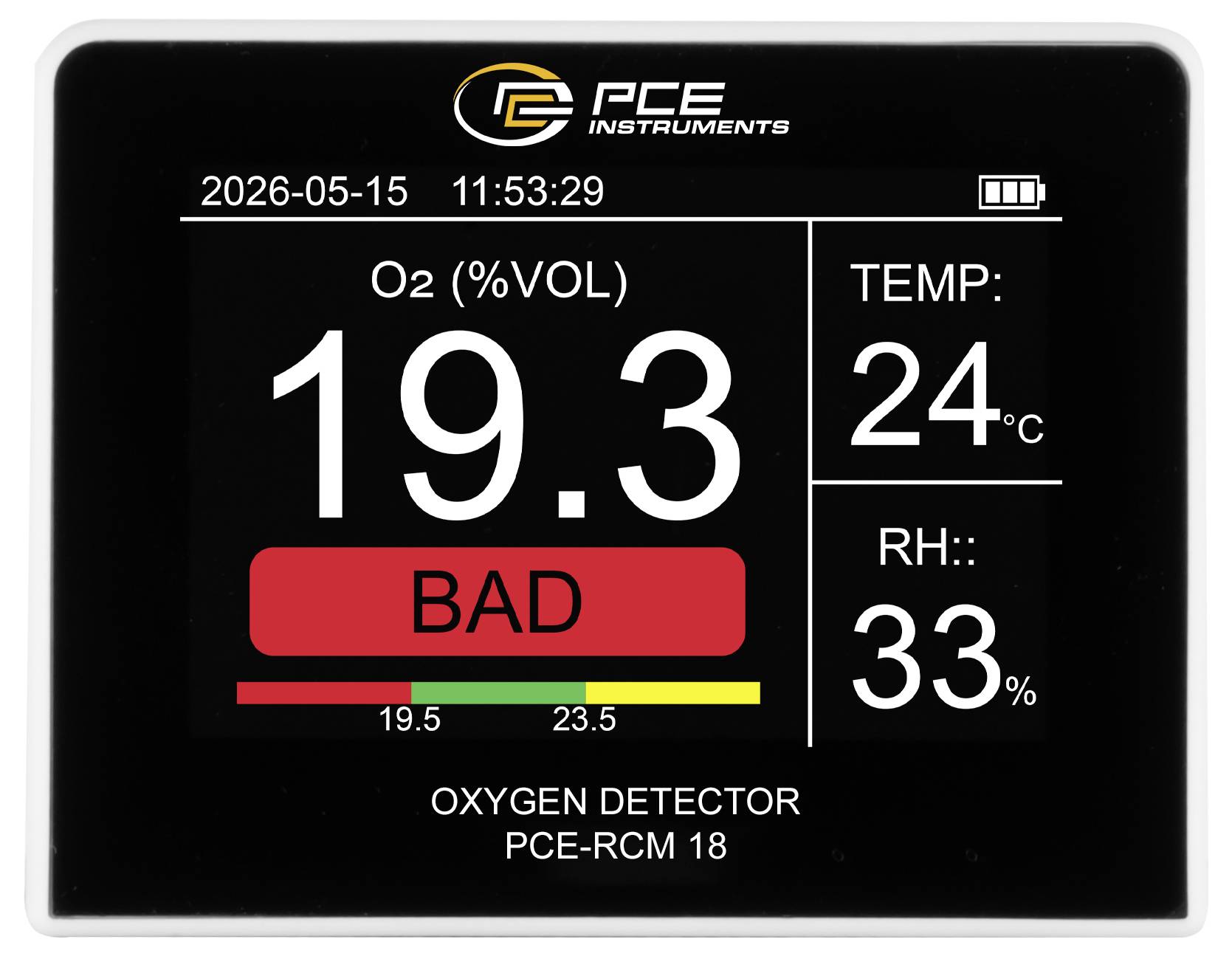

The device measures the oxygen content in the range of 0 ... 30 % with a resolution of 0.1 %, the temperature of -9 ... +55 °C with a resolution of 1 °C as well as the relative humidity of 0 ... 100% with a resolution of 0.1%. A 3.5-inch LCD color display provides clear and easy-to-read display of the measurements. The air quality detector for oxygen offers multiple views such as real-time values, trend display and progression display as well as automatic switching of the displays. The device has an integrated alarm function with visual signal light display and predefined thresholds for a quick evaluation of the air quality.
The air quality detector for oxygen also shows the date and time directly on the display. For long-term measurements, the air quality detector for oxygen has an integrated data logger with a large memory, adjustable interval and rechargeable lithium battery for flexible use. The saved measurement data can be viewed directly on the device; reading or transmitting the memory to external systems is not yet possible. On the whole, the air quality detector for oxygen combines precise measurement technology, clear presentation and extensive recording functions in a compact device.
This text is machine translated.
The device measures the oxygen content in the range of 0 ... 30 % with a resolution of 0.1 %, the temperature of -9 ... +55 °C with a resolution of 1 °C as well as the relative humidity of 0 ... 100% with a resolution of 0.1%. A 3.5-inch LCD color display provides clear and easy-to-read display of the measurements. The air quality detector for oxygen offers multiple views such as real-time values, trend display and progression display as well as automatic switching of the displays. The device has an integrated alarm function with visual signal light display and predefined thresholds for a quick evaluation of the air quality.
The air quality detector for oxygen also shows the date and time directly on the display. For long-term measurements, the air quality detector for oxygen has an integrated data logger with a large memory, adjustable interval and rechargeable lithium battery for flexible use. The saved measurement data can be viewed directly on the device; reading or transmitting the memory to external systems is not yet possible. On the whole, the air quality detector for oxygen combines precise measurement technology, clear presentation and extensive recording functions in a compact device.
This text is machine translated.
Scope of delivery
- 1 x Air quality detector for oxygen PCE-RCM 18
- 1 x micro USB cable
- 1x user manual
