Buy PCE Instruments PCE-RM 100 PCE-RM 100 Gloss meter

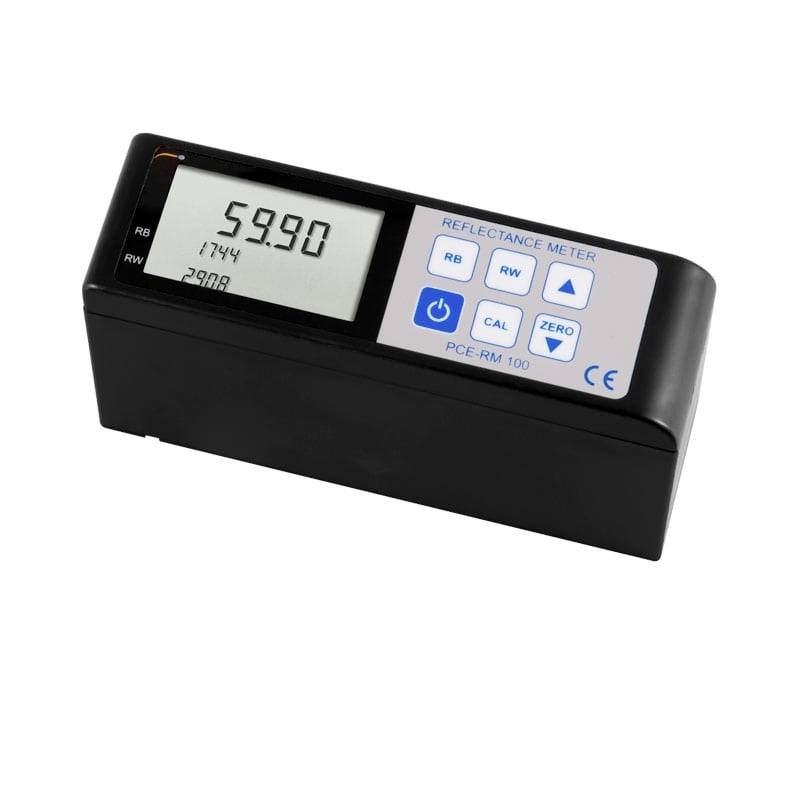

Black reflectance meter with digital display reading 59.90 and control buttons labeled RB, RW, CAL, and ZERO.<br>

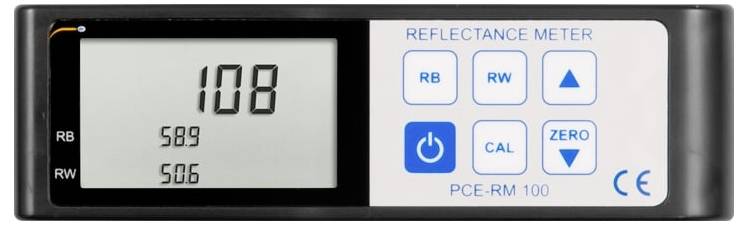

Digital reflectance meter display showing a reading of 108, with RB and RW values of 589 and 506, and control buttons on the right.

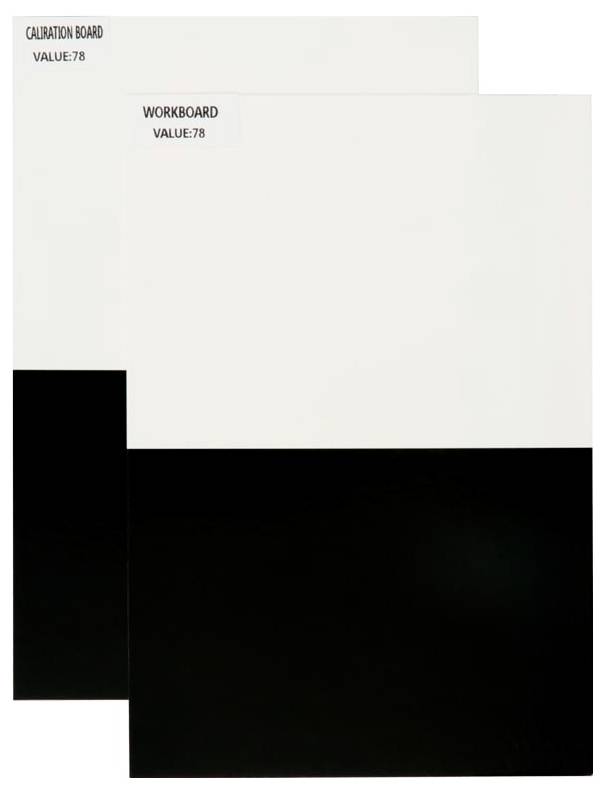

Overlapping calibration and workboard panels labeled 'VALUE:78', with large black blocks covering the lower half of each panel.

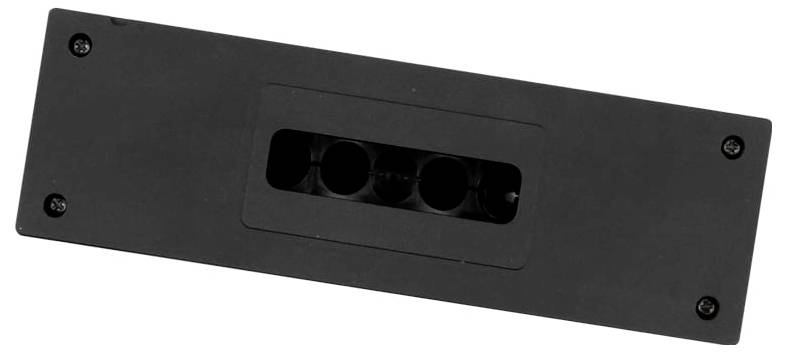

Black rectangular wall plate with a recessed central cutout for multiple cables or connectors, shown on a white background

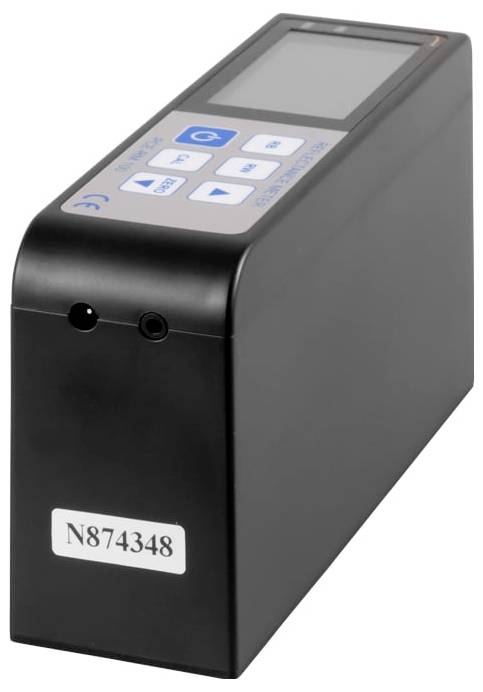

Black handheld electronic meter with a small screen and control buttons, labeled N874348 on the front.

1/5

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Gloss meter PCE-RM 100

Measurement of surface reflection
Large LC display
Operation via accumulators
Interface and software
simple operation
Reflection degree measurement up to 100

Technical specifications

Measurement range 0 ... 100 Measuring accuracy ± 1 Resolution 0.1 Repeat accuracy ± 0.3 Measuring area 7 x 14 mm (elliptical) Interface USB Power supply 3.7 V Li-ion battery Operating conditions 0 ... 40 °C /< 85 % r.h. Dimensions 141 x 45 x 79 mm Weight approx. 310 g

Product type: Gloss meter

: Manufacturer's standards (no certificate)

Documents & Downloads

Datasheet

Datasheet 2452612 PCE Instruments PCE-RM 100 PCE-RM 100 Gloss meter

User & Safety Instructions

User & Safety Instructions 2452612 PCE Instruments PCE-RM 100 PCE-RM 100 Gloss meter

Description

Gloss measuring device PCE-RM 100 Reflectometer for determining the reflection of surfaces / easy handling / incl. calibration standard the reflectometer is used to measure the reflection properties of surfaces. The PCE-RM 100 reflectometer is used in furniture construction, workplace control, lighting planning, etc. The reflectometer measures the degree of reflection of the surface in which a light is emitted onto the surface. Then the reflection of the light is compared with an absolute black and an absolute white and the degree of reflection is mathematically determined. The reflectometer measures the surface reflection according to the currently valid international standards ISO3906-1980, ISO3905, ISO2814. Surface reflection is an important measure to see if, for example, a furniture surface is too reflected and so unpleasant for the human eye. The color and texture of the surface are decisive for the reflection. The PCE-RM 100 reflectometer can measure this reflection directly during the development of furniture decors and the engineer can make a statement of the quality.

This text is machine translated.
