PCE Instruments PCE-RRM 250 Vacuum pump PG connector, Single-stage 220 V AC
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
PROFESSIONAL CALIBRATED TO EQUIPMENT. PCE-RRM 250
- Incoming pressure up to 38.5 bar
- Discharge pressure up to 55 bar
- For refrigerant (e.g. R12, R134a, R22, R401B, R402A
- Overload protection 8 A
- Motor power 0.75 PS
- Compressor: Oil-free, air-cooled
- Connections: 1/4 inch SAE
- Speed 1,450 RPM
Technical specifications
- Pressure
- Measuring range 0 ... 38.5 bar
- Resolution: 0.5 bar
- Pressure
- Measuring range 0 ... 558 psi/
- Resolution 5 psi
- Liquid extraction rate
- Category 3 1.6 kg/min.
- Category 4 1.8 kg/min.
- Category 5 2.2 kg/min.
- Push/pull suction rate
- Category 3 4.6 kg/min.
- Category 4 5.6 kg/min.
- Category 5 6.3 kg/min.
- Steam suction rate
- Category 3 0.2 kg/min.
- Category 4 0.25 kg/min.
- Category 5 0.25 kg/min.
- General Technical Data
- Connections 1/4 inch SAE
- Current consumption meter 4 A
- Refrigerant R12, R134a, R401C, R406A, R500, R22, R401A, R401B, R402B, R407C. R407D, R408A, R409A, R502, R509, R402A, R404A, R407A, R407B, R410A, R507, R411A, R411B, R412A
- Motor power 0.75 PS
- Compressor oil-free, air-cooled, piston
- Flow rate 2.2 kg/m.
- Overload protection 8 A
- Excess pressure 38.5 bar
- Speed 1450 RPM
- Protection class (device) IP30
- Power supply 110 ... 220 V AC | 50/60 Hz
- Socket type Safety plug
- Weight 12900 g.
- Operating conditions 0 ... 40 °C , 20 ... 85 % r.F.
- Storage conditions 0 ... 40 °C , 20 ... 85 % r.F.
- Dimensions ( L x W x H ) 400 x 250 x 360 mm
- Product type
Vacuum pump
- Features
PG connector
Single-stage
- Type
Oil-free and air-cooled compressor
- Operating voltage
220 V AC
- Operating time (OT)
Non-stop
- Power consumption (P1)
735 W
- Length
400 mm
- Width
250 mm
- Height
360 mm
- Dim
(L x W x H) 400 x 250 x 360 mm
- Weight
12.9 kg
IP30
Documents & Downloads
Datasheet
Datasheet 3324701 PCE Instruments PCE-RRM 250 Vacuum pump PG connector, Single-stage 220 V AC
User & Safety Instructions
User & Safety Instructions 3324701 PCE Instruments PCE-RRM 250 Vacuum pump PG connector, Single-stage 220 V AC
Description

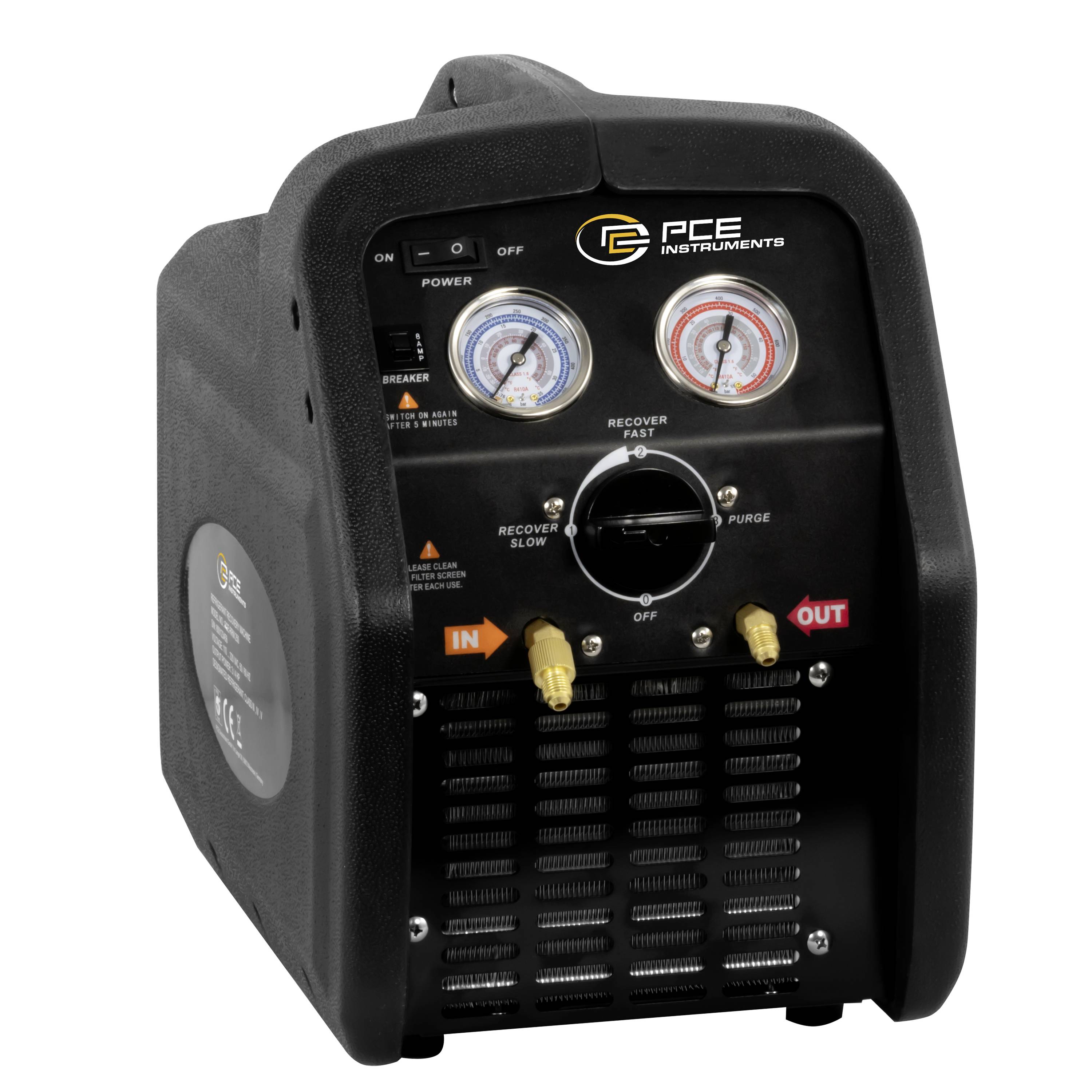

With an input pressure of up to 38.5 bar, the refrigerant recovery device is a reliable solution for a wide range of applications in air conditioning maintenance, refrigeration, automotive, industrial processes and environmental engineering. The filter dryer is suitable for a wide range of refrigerants such as R134A, R22, R12, R410A, R404A, R502, etc. suitable.

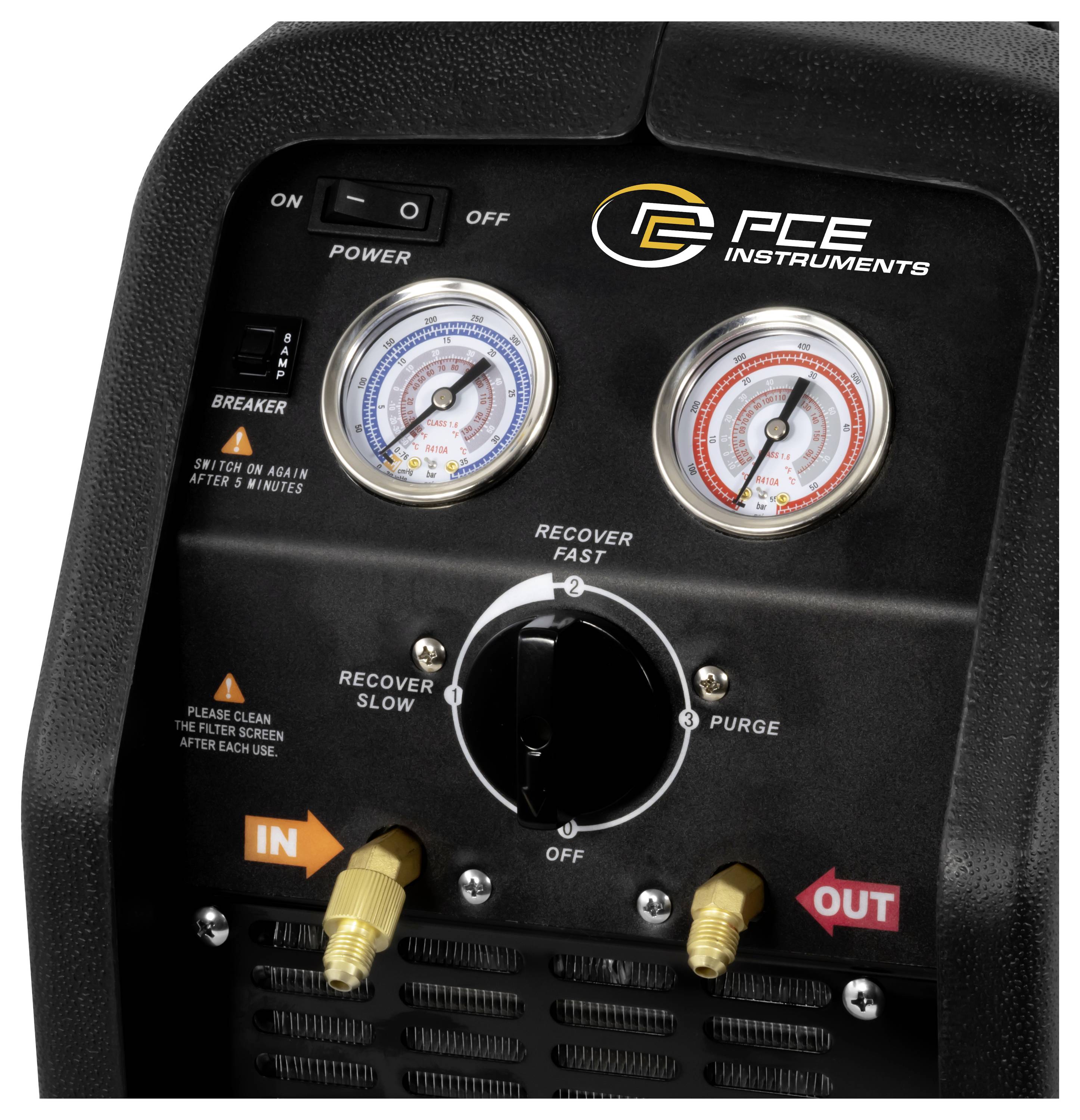

Equipped with an integrated overload protection switch, our recovery device for refrigerants with ¾ PS brush motor offers reliable protection against damage caused by too high a current flow. With a flow rate of up to 2.2 kg/min for liquid refrigerant, it ensures efficient and rapid recovery. A precise pressure gauge allows the accurate monitoring of the pressure. When the pressure reaches or exceeds 38.5 bar, recovery is automatically stopped to ensure the safety and integrity of the system. Our unit is equipped with a filter dryer that removes particles and impurities from the refrigerant and absorbs moisture to protect the refrigerant recovery device from corrosion and wear damage.
A clean refrigerant increases the life and performance of the cooling system. The Purge function activates the self-cleaning of the freon refrigerant recovery device, which safely directs the excess refrigerant into the recovery tank and at the same time reduces the risk of machine damage due to expansion. The refrigerant recovery device is compact and light (approx. 13 kg), but still extremely robust and durable. Ideal is suitable for use in various cold applications and is easy to transport and handle.
This text is machine translated.
Equipped with an integrated overload protection switch, our recovery device for refrigerants with ¾ PS brush motor offers reliable protection against damage caused by too high a current flow. With a flow rate of up to 2.2 kg/min for liquid refrigerant, it ensures efficient and rapid recovery. A precise pressure gauge allows the accurate monitoring of the pressure. When the pressure reaches or exceeds 38.5 bar, recovery is automatically stopped to ensure the safety and integrity of the system. Our unit is equipped with a filter dryer that removes particles and impurities from the refrigerant and absorbs moisture to protect the refrigerant recovery device from corrosion and wear damage.
A clean refrigerant increases the life and performance of the cooling system. The Purge function activates the self-cleaning of the freon refrigerant recovery device, which safely directs the excess refrigerant into the recovery tank and at the same time reduces the risk of machine damage due to expansion. The refrigerant recovery device is compact and light (approx. 13 kg), but still extremely robust and durable. Ideal is suitable for use in various cold applications and is easy to transport and handle.
This text is machine translated.
Features
- For refrigerants (e.g. R12, R134a, R22, R401B, R402A)
- Overload protection 8 A
- Compressor: Oil-free, air-cooled

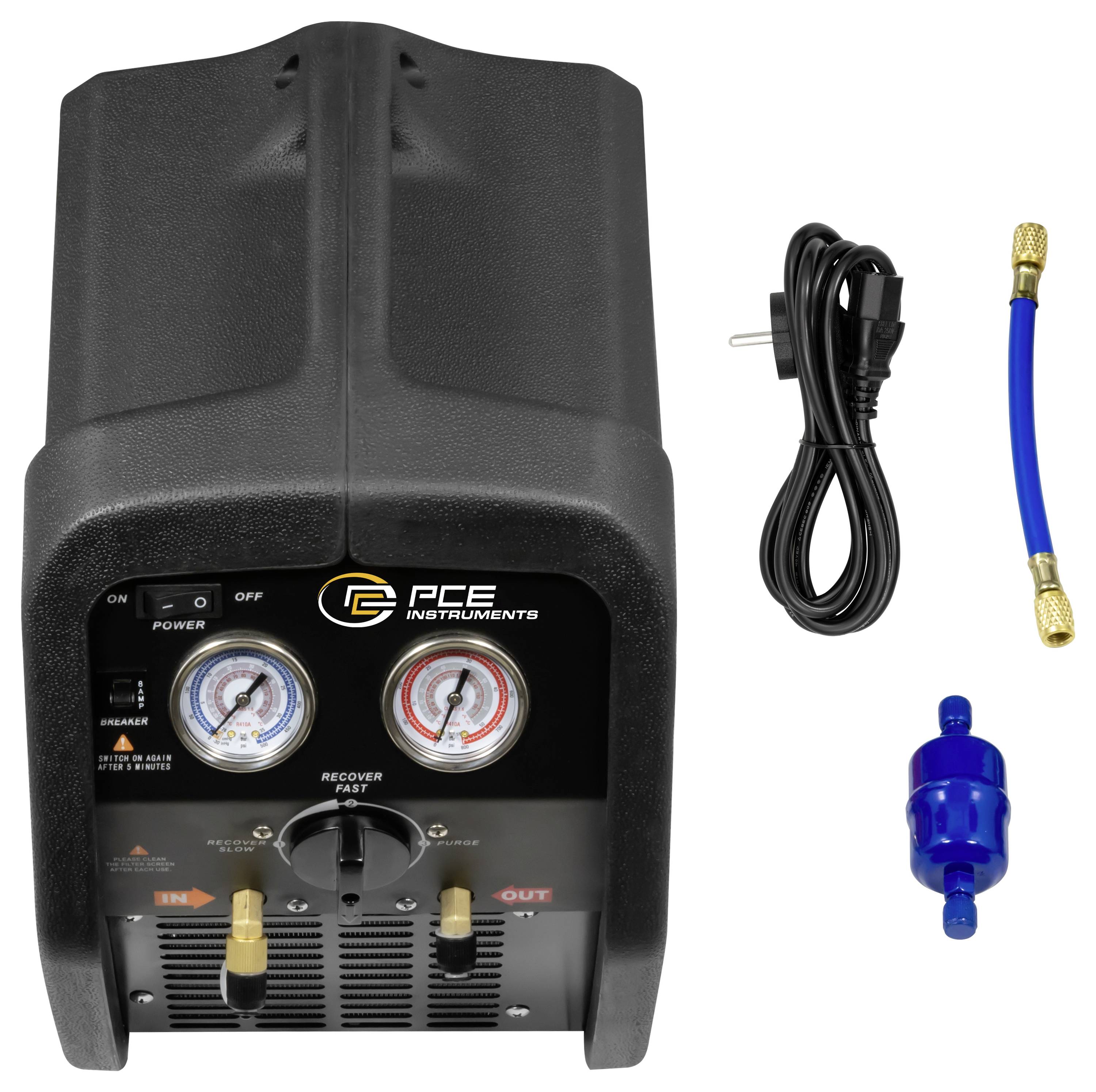

Scope of delivery
- 1 x recovery device for refrigerant PCE-RRM 250
- 1 x Refrigerant filter
- 1 x filter connection hose
- 1 x cold-device cables
- 1x user manual
