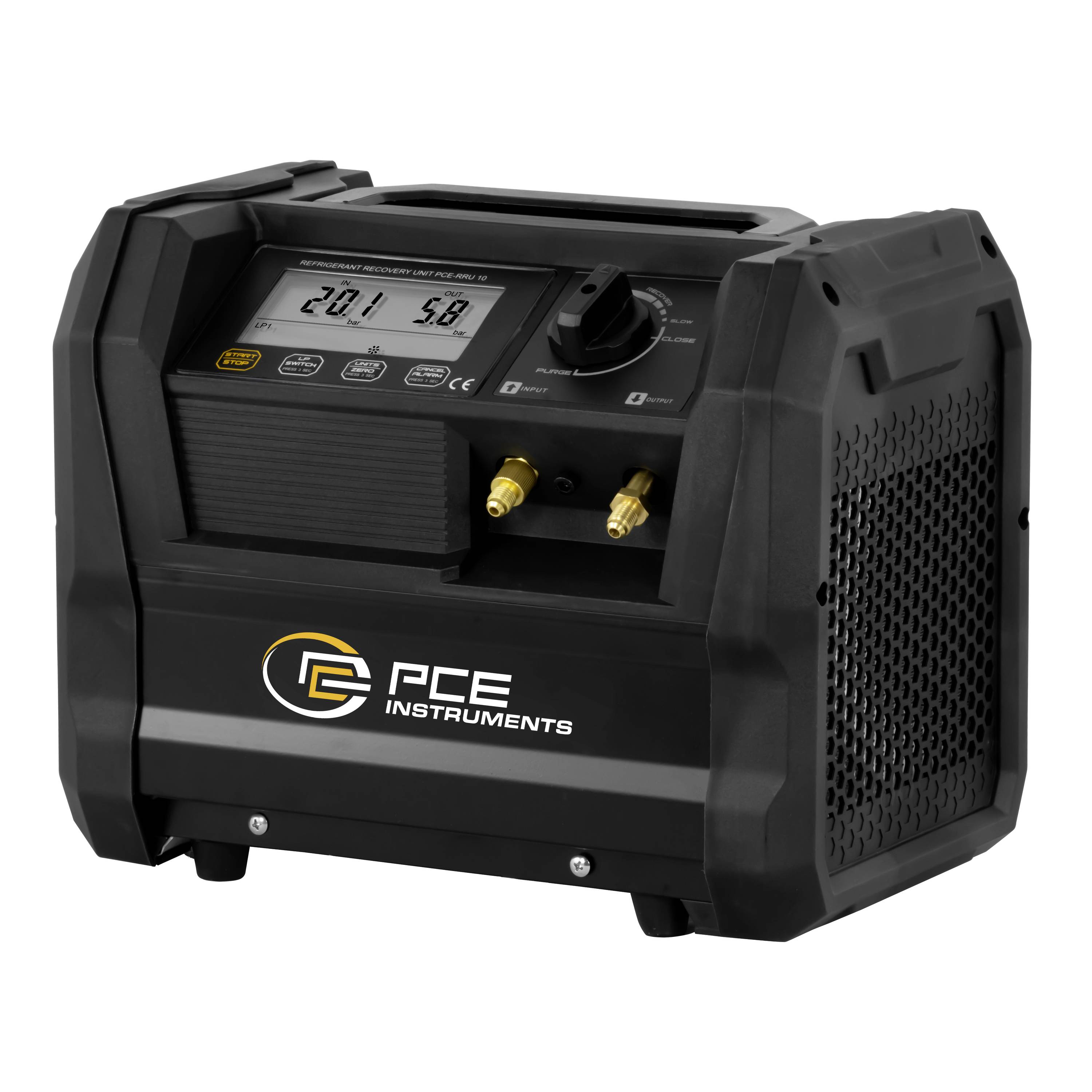

Black PCE Instruments portable machine with digital display, control dial, and two brass hose connectors on a white background.<br>

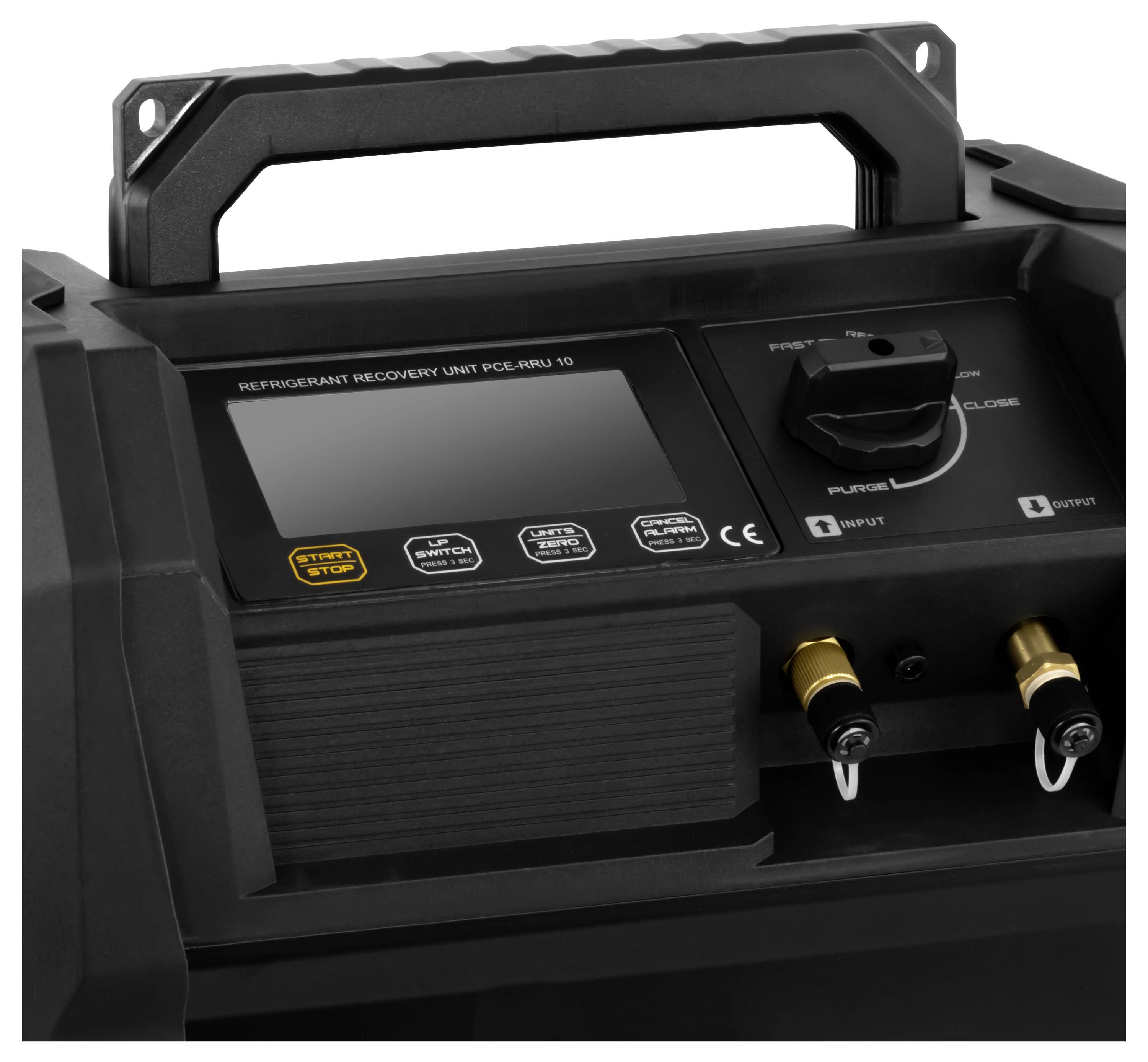

Black refrigerant recovery unit with carrying handle, control knob, start/stop buttons, and hose connectors on the front panel.

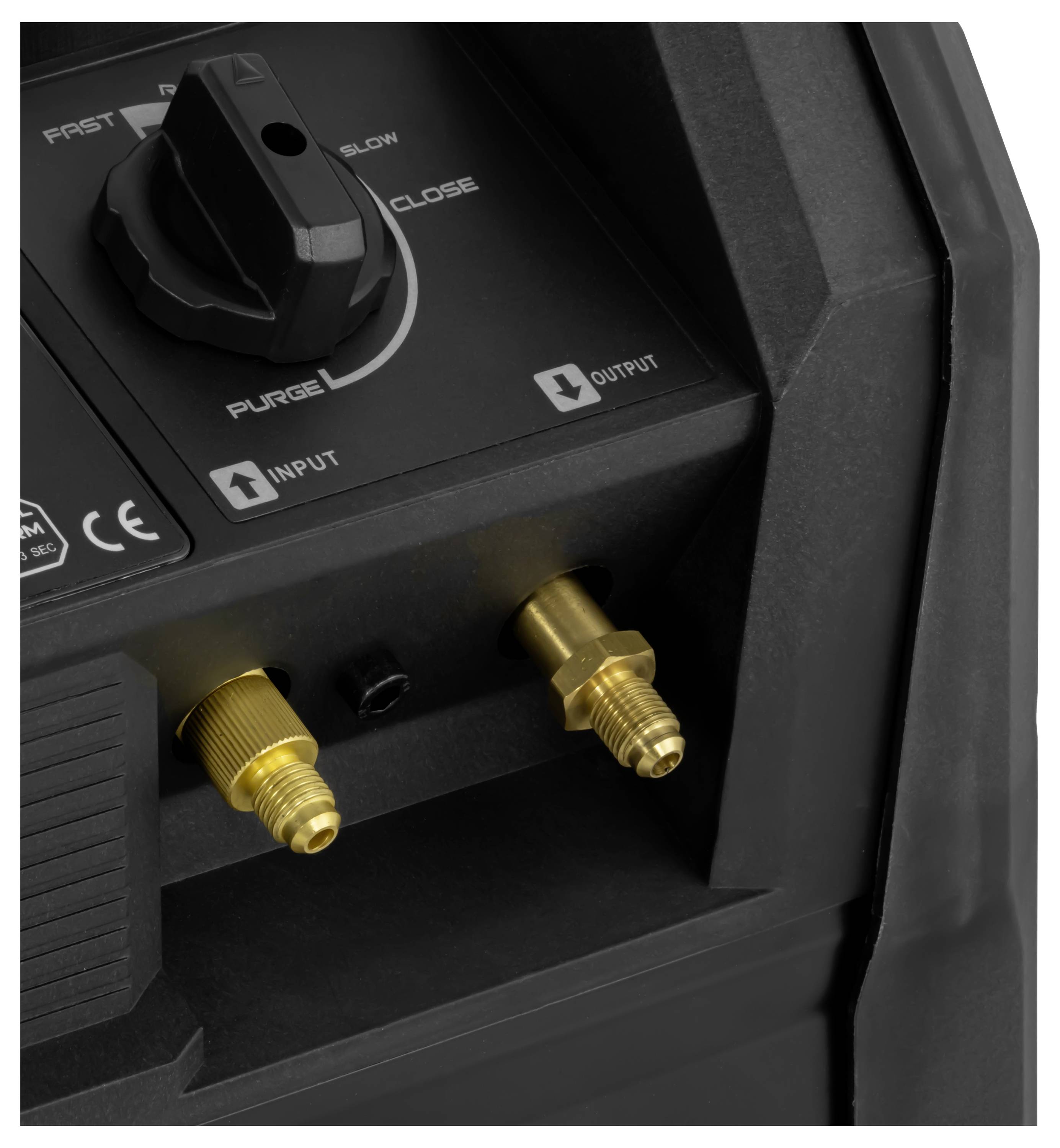

Close-up of a black machine panel with a rotary switch labeled 'FAST', 'SLOW', 'CLOSE', and 'PURGE', plus 'INPUT' and 'OUTPUT' brass hose connectors.

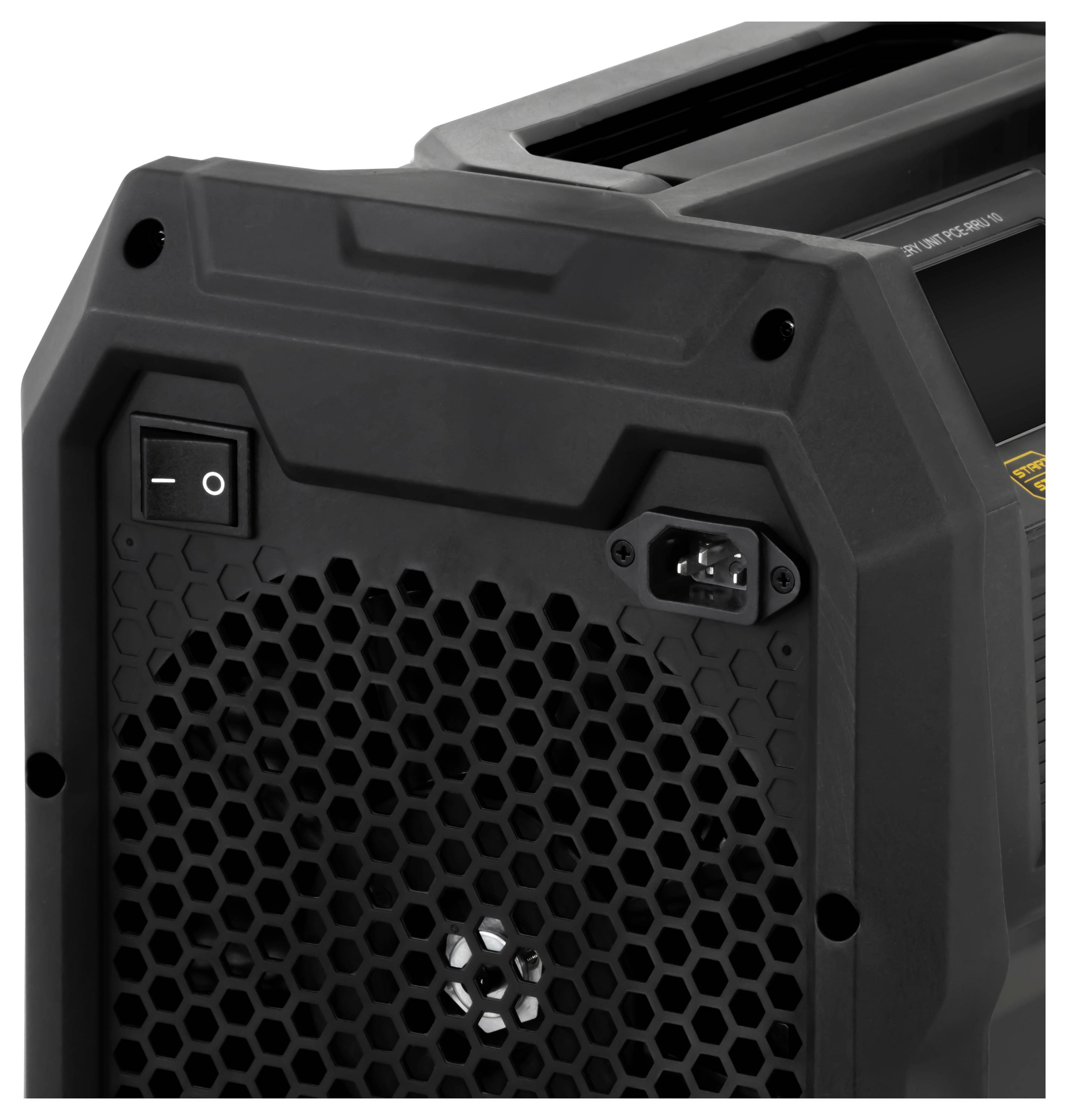

Close-up of a black rugged portable device showing a power switch, honeycomb grille, and AC power inlet on the rear panel.

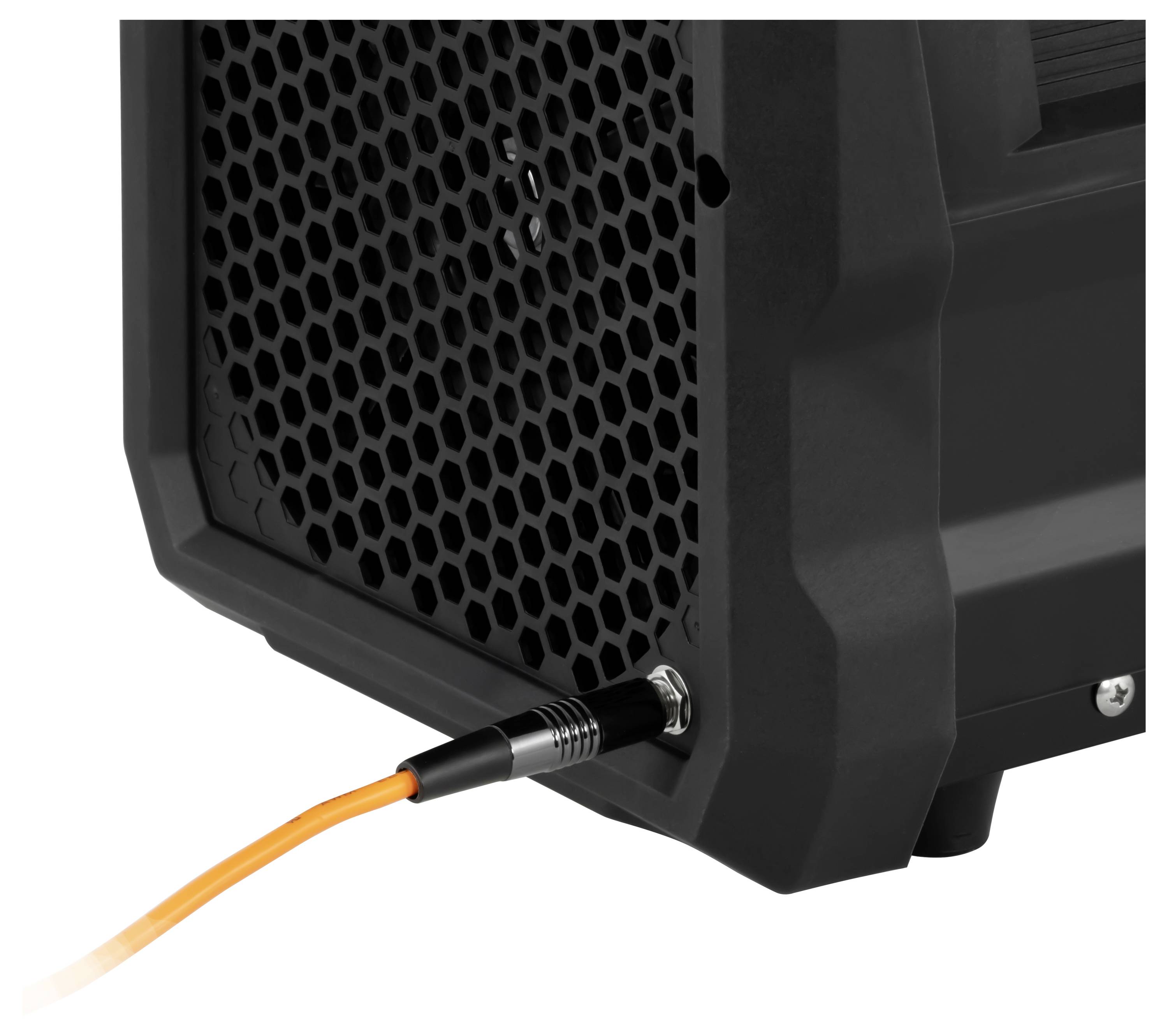

Orange fiber optic cable plugged into a black device’s rear port beside a honeycomb vent.

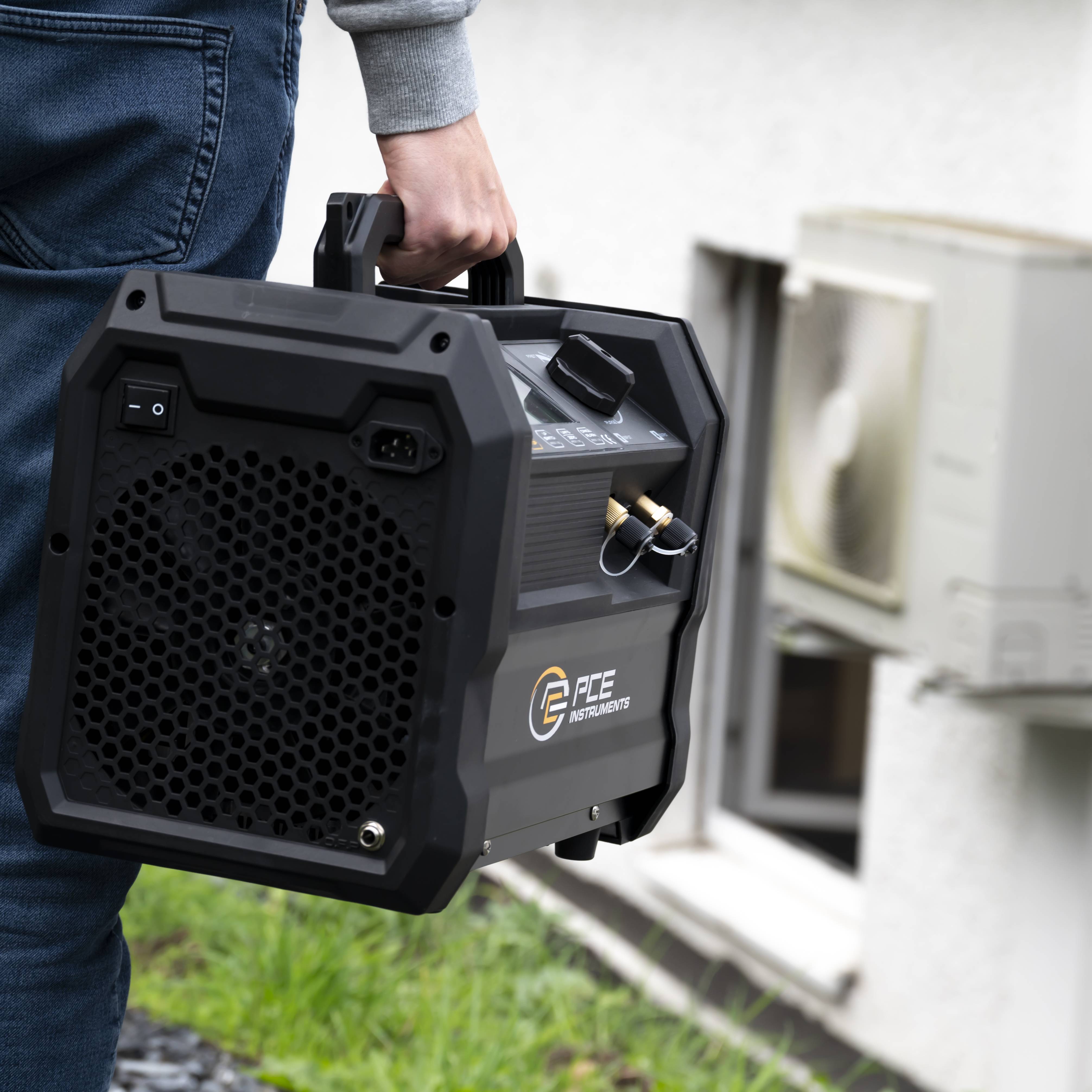

PCE Instruments PCE-RRU 10 Vacuum pump PG connector, Single-stage 240 V AC-5

PCE Instruments PCE-RRU 10 Vacuum pump PG connector, Single-stage 240 V AC-6

1/7

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

PROFESSIONAL CALIBRATED TO EQUIPMENT. PCE-RRU 10

Recovery device for A1, A2L and A2 refrigerants
Self-cleaning function (automatic)
Oil-free 2-piston compressor
Large LCD display for printing with backlighting
Pressure up to 38.5 bar with pressure protection
Brushless 1 HP motor
Extraction rate up to 9.5 kg/min (R410A)
Easy operation with one control dial
transportable

Technical specifications

Pressure
Measuring range 0 bar ... 38.5 bar
Resolution: 0.1 bar
Liquid extraction rate
R134a 2.6 kg / min
R22 2.9 kg/min.
R410A 3.9 kg/min.
Push/pull suction rate
R134a 7.5 kg / min
R22 8.5 kg/min.
R410A 9.5 kg/min.
Units bar, MPa, kPa, psi, kgf
Connection type 1/4" SAE
Display type LCD with lighting
Refrigerant R401C, R22, R401B, R134a, R407D, R509, R407B, R410A, R507, R407C, R408A, R12, R32, R409A, R402A, R500, R404A, R402B, R401A, R406A, R1234YF, R502, R407A
Motor power 1 PS
max. power consumption 6 A
Oil-free compressor, air-cooled
Menu language English
Protection class: IP20
Power supply: Schuko plug (110 V – 240 V AC | 50/60 Hz)
Weight 10.75 kg.
Device weight supplied with 11.45 kg
Device weight with delivery scope and packaging 12.75 kg
Dimensions (L x W x H) 38 x 25 x 30 cm
Operating conditions 0 ... +40 °C, +10 ... +90 % r.F.
Storage conditions 0 ... +40 °C, +10 ... +90 % r.F.

Product type: Vacuum pump

Features: PG connector
Single-stage

Type: Oil-free 2-piston compressor

Operating voltage: 240 V AC

Max. size of solids: 1 mm

Operating time (OT): Non-stop

Max. cable length: 1 m

Power (P2): 735 W

Power consumption (P1): 1440 W

Length: 38 cm

Width: 25 cm

Height: 30 cm

Dim: (L x W x H) 38 x 25 x 30 cm

Weight: 10.75 kg

: IP20

Documents & Downloads

Datasheet

Datasheet 3324702 PCE Instruments PCE-RRU 10 Vacuum pump PG connector, Single-stage 240 V AC

User & Safety Instructions

User & Safety Instructions 3324702 PCE Instruments PCE-RRU 10 Vacuum pump PG connector, Single-stage 240 V AC

Description

The refrigerant recovery device Ideal is suitable for all refrigeration engineers and technicians for the extraction of refrigerants. It can be used for A1, A2L and A2 refrigerants. The compact refrigerant recovery device is easy to transport and easy to use thanks to a handle. Using the rotary knob the suction speed can be adjusted. In addition, the suction device has a "purge" function which cleans the system, i.e. it discharges the remaining refrigerant in the device. The strong oil-free 2-piston compressor can build up a pressure of up to 38.5 bar and, depending on the refrigerant, can reach suction speeds of up to 9.5 kg/min.

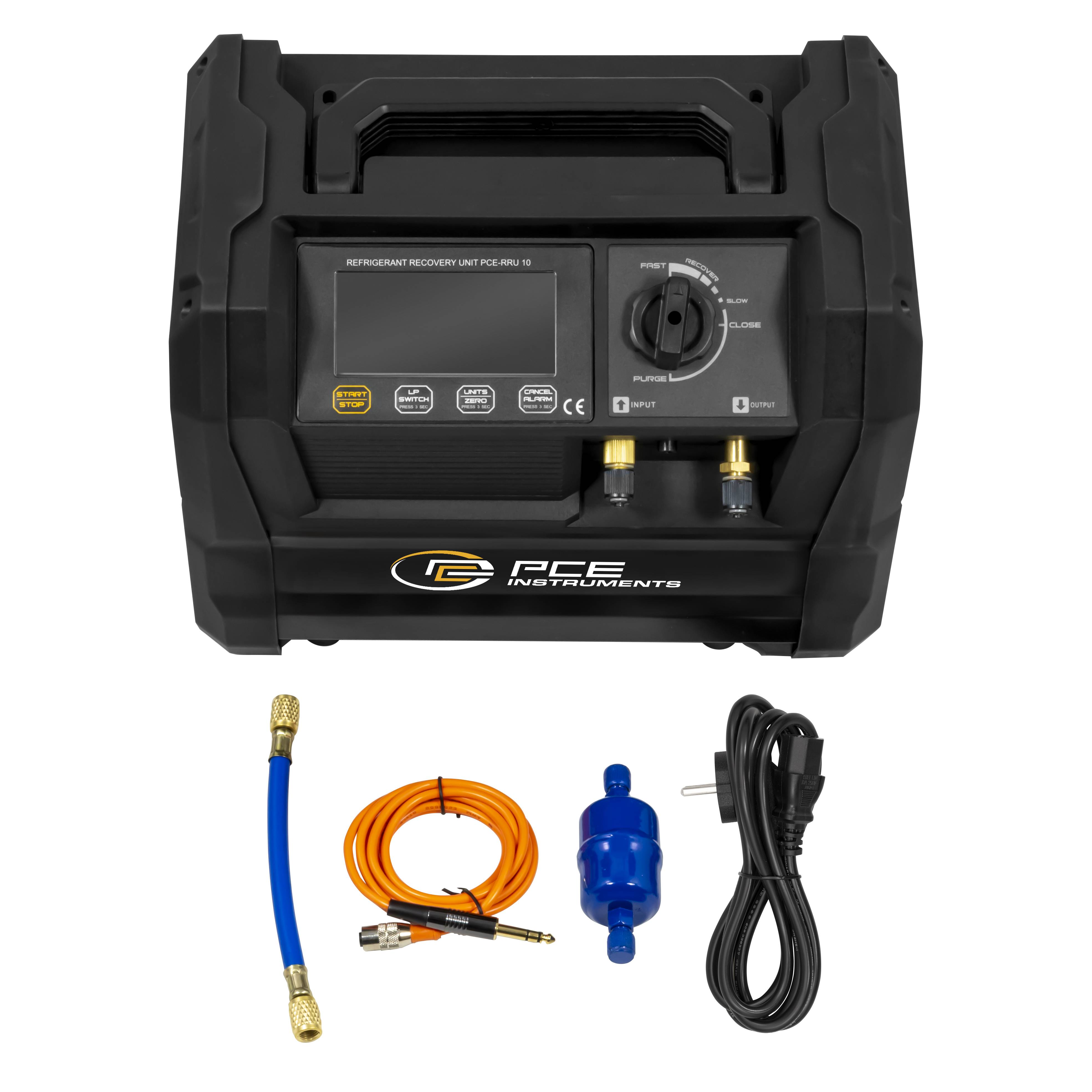

The refrigerant recovery unit has an intake and an outlet gauge so that pressure changes can be observed at any time. In addition, recovery will automatically shut down if the internal pressure is higher than 38.5 bar to ensure safe operation. The refrigerant recovery device comes with a refrigerant filter, a short filter connection hose, an OFP cable and a carrying strap.

The refrigerant recovery device is required when commissioning or servicing heat pumps, air conditioning systems or similar systems filled with refrigerant. Regular inspection and maintenance extends the service life of the equipment and increases energy efficiency.
