Buy PCE Instruments PCE-RS 2000 Platform scales PCE-RS 2000 Weight range 2000 kg via PSU, mains-powered Steel

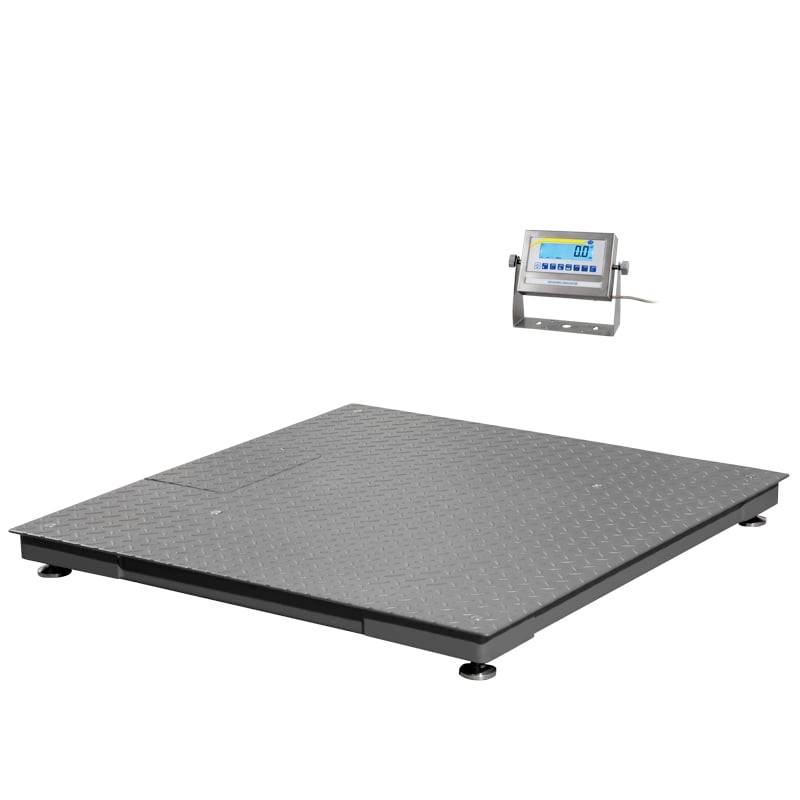

Industrial floor scale platform with a digital display indicator mounted above it<br>

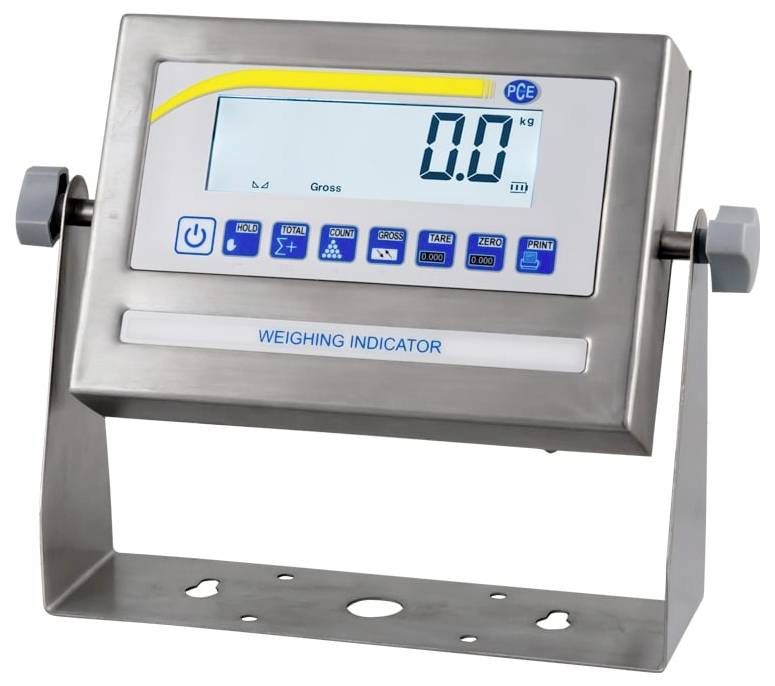

Digital weighing indicator display showing '0.0 kg' with control buttons and metal mounting bracket.

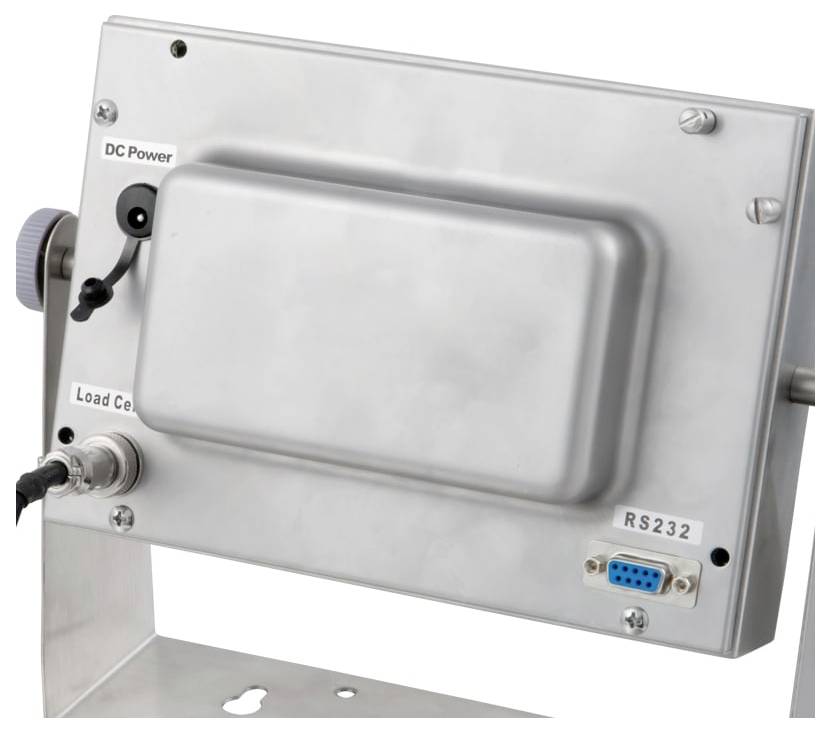

Close-up of a metal electronic device enclosure with labeled 'DC Power' and 'RS232' ports, mounted on a stand.

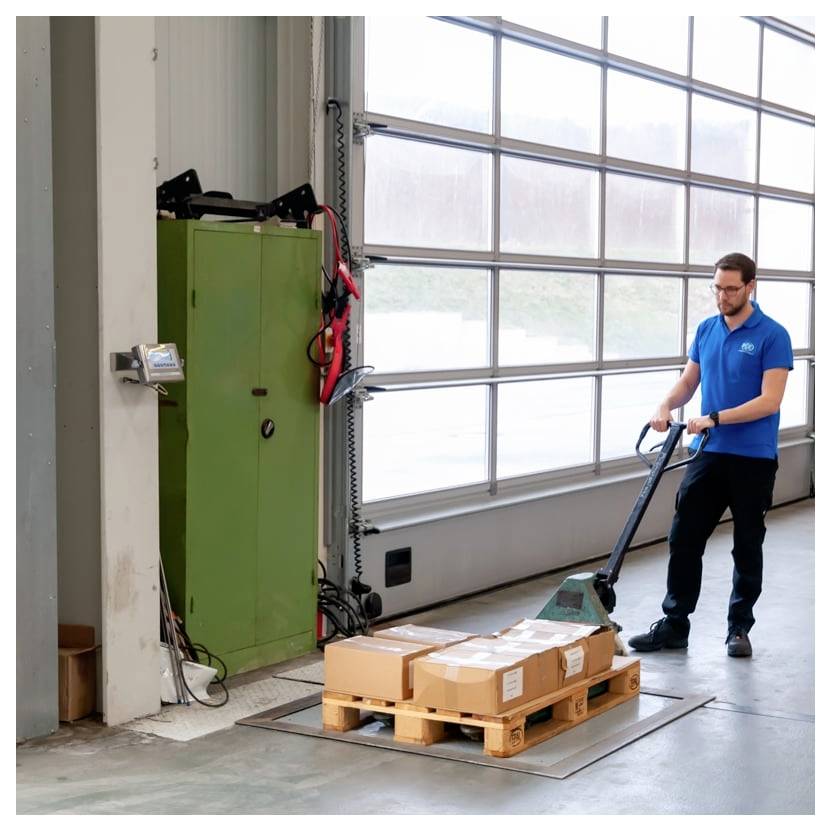

Worker in blue shirt using a pallet jack to move a pallet of boxed packages inside a warehouse or loading area.<br>

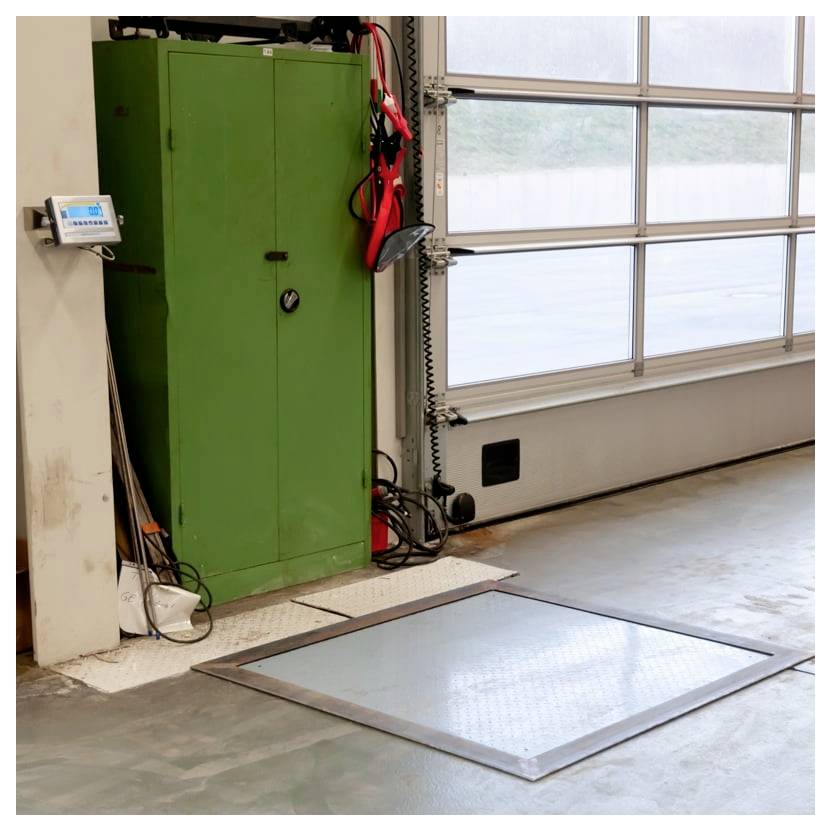

Industrial garage interior with a large green cabinet, wall-mounted control panel, hanging tools, and a floor access hatch near the garage door.

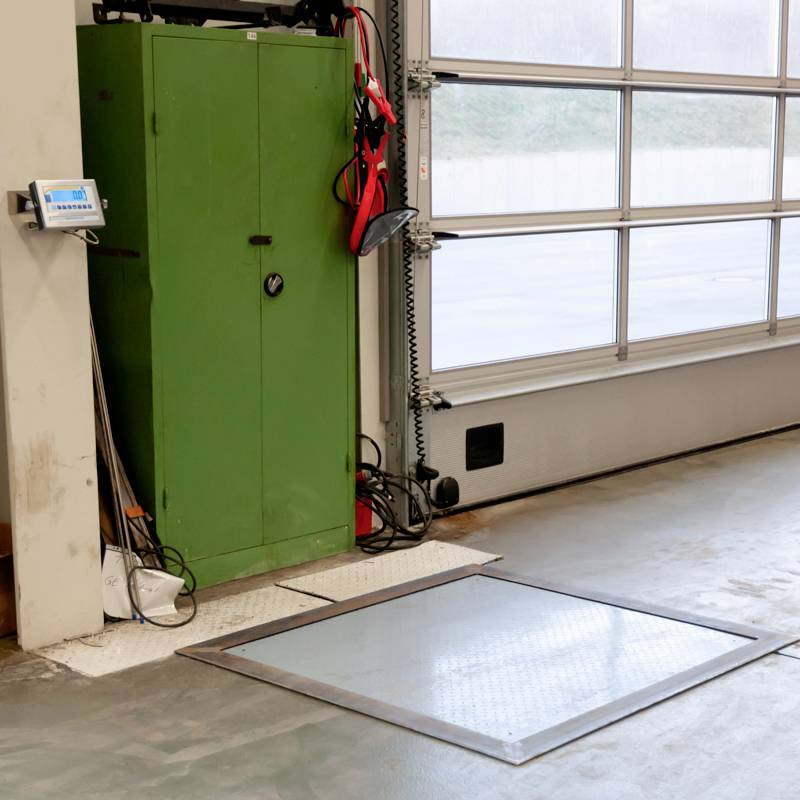

A light-filled room with a green cupboard, scales on the floor and a control monitor on the wall; equipment for weight measurement.

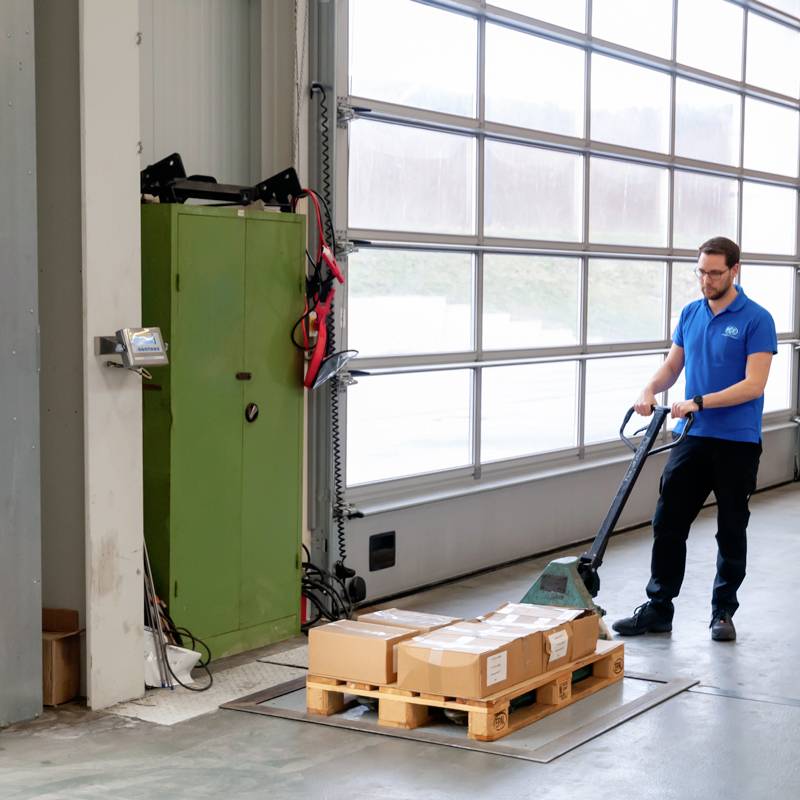

A member of staff is transporting a pallet using a manual pallet truck in a warehouse with large windows.

1/7

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Weighing bridge PCE-RS 2000

Weighing range: 2000 kg
Resolution 0.5 kg
Bidirectional RS-232 interface
Display device made of stainless steel IP 54
LCD display with 25 mm digit height
Cable to the display approx. 5 m (plug connection)
Totalizing function
Piece-counting function
CONTROL WEIGHING FUNCTION MIN / OK / MAX.

Technical specifications

Weighing range 2,000 kg Resolution 0.5 kg Measurement uncertainty ± 2 kg Targeting range over the entire weighing range Display LCD, digit height 25 mm, backlit Interfaces 1x bidirectional RS-232 interface Calibration of single/multi-point adjustment possible Operating temperature -10 ... +40 °C / max. 85 % r.h. Power supply 9 V / 1000 mA power supply Dimensions weighing bridge 1200 x 1200 x 100 mm Weight approx. 85 kg

Weight range: 2000 kg

Product type: Platform scales

Display: Digital

Power supply (LOV): via PSU
mains-powered

: Manufacturer's standards (no certificate)

Factory colour: Steel

Dim: (L x W x H) 1200 x 1200 x 100 mm

Weight: 99900 g

Weight resolution: 0.5 kg

Calibratable: Yes

Weighing plate: Steel

Width: 1200 mm

Height: 100 mm

Length: 1200 mm

Type: PCE-RS 2000

Features: Calibratable
Counting

Top plate (width): 1200 mm

Top plate (length): 1200 mm

Documents & Downloads

Datasheet

Datasheet 2452613 PCE Instruments PCE-RS 2000 Platform scales PCE-RS 2000 Weight range 2000 kg via PSU, mains-powered Steel

User & Safety Instructions

User & Safety Instructions 2452613 PCE Instruments PCE-RS 2000 Platform scales PCE-RS 2000 Weight range 2000 kg via PSU, mains-powered Steel

Description

Weighing bridge steel, painted / platform size 1200 x 1200 mm / up to 2,000 kg / table or panel mounting The weighing bridge is intended for stationary use. Due to its robust design, this weighing bridge is particularly suitable for weighing large objects. The weighing bridge is made of painted steel. The measured values can be read very well on the external display of the weighing bridge (approx. 5 m cable). Weighing bridge functions are a totalizing function, a piece counting function and a control weighing function. The weighing bridge is supplied with a bidirectional RS-232 interface and can transfer the measured values to Excel with an optional PC software. The weighing bridge display unit can be placed on a table or on an optional stand.

This text is machine translated.
