SIGNAL CONVERTER PCE-RS232-TTL
- RS232 TTL signal converter for parallel and crossed connectionsHigh baud rate20 mA current consumption9 V power supply via an adapter For parallel and crossover connections Transmission rate up to 115,200 BaudLow power consumptionReady for use after power supply is applied3.5 mm jack and SUB D 9 interfaceFor adjustment of the signal level
Technical specifications
- Power supply 9 V DC via power supplyMax. current consumption: 20 mAMax. Transmission speed 115,200 BaudInterface RS232 SUB D 9 (male)Interface TTL 3.5 mm jack, 3 pinAmbient conditions -10 … +60 °C, <90 % RH non-condensingDimensions W x H x D 100 x 35 x 100 mmWeighs about 147 g
- Dim
(L x W x H) 100 x 35 x 100 mm
- Width
35 mm
- Height
100 mm
- Length
100 mm
- Connection
D-SUB-9
- Current consumption
20 mA
- Max. ambient temperature
60 °C
- Min. ambient temperature
-10 °C
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2813627 PCE Instruments PCE-RS232-TTL SIGNAL CONVERTER PCE-RS232-TTL
Description

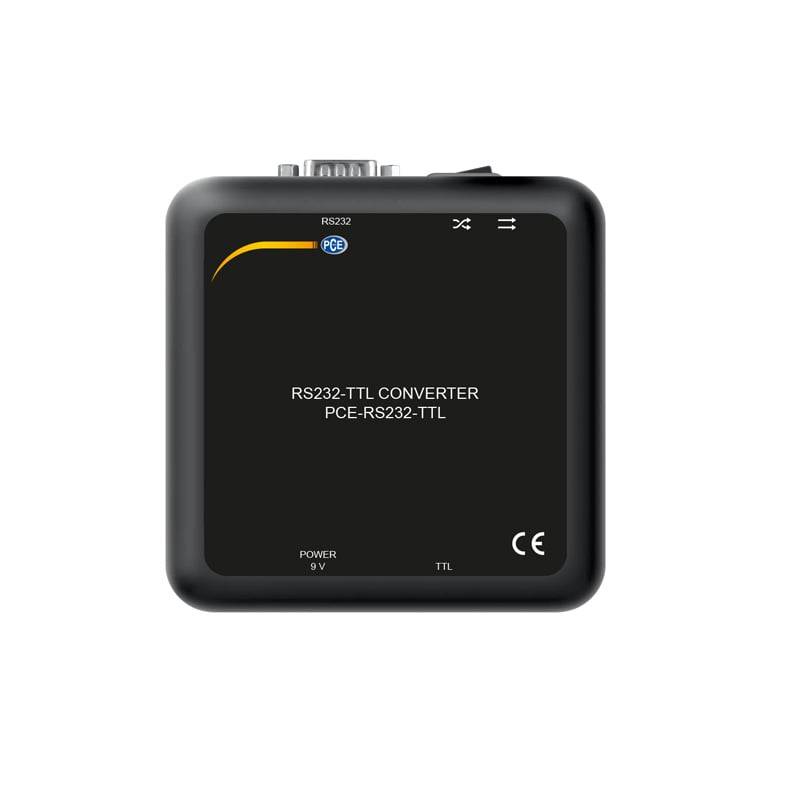

The RS232 TTL signal converter is a device-independent solution for converting an RS232 signal into a TTL signal. Also a TTL signal can be converted into an RS 232 signal with the RS232 TTL signal converter. If, for example, the data output of a scale communicating via RS232 is to be evaluated with the help of a microprocessor with the RS232 TTL signal converter, then the RS232 TTL signal converter can be interposed between the transmitter and the receiver.When converting the signals a transfer speed of up to 115,200 Baud is possible with the RS232 TTL signal converter. The baud rate itself does not have to be set with the RS232 TTL signal converter. This is set by the RS232 TTL signal converter itself. Along with the conversion of a parallel running signal, the signal can also be converted to a crossed signal via the RS232 TTL signal converter by means of the switch position. As such, the RS232 TTL signal converter can be used universally and quickly.
This text is machine translated.
This text is machine translated.
Features
- For parallel and crossover connections Transmission rate up to 115,200 Baud3.5 mm jack and SUB D 9 interface
Scope of delivery
- 1 x RS232 TTL signal converter PCE-RS232-TTL9 V power supply1x user manual
