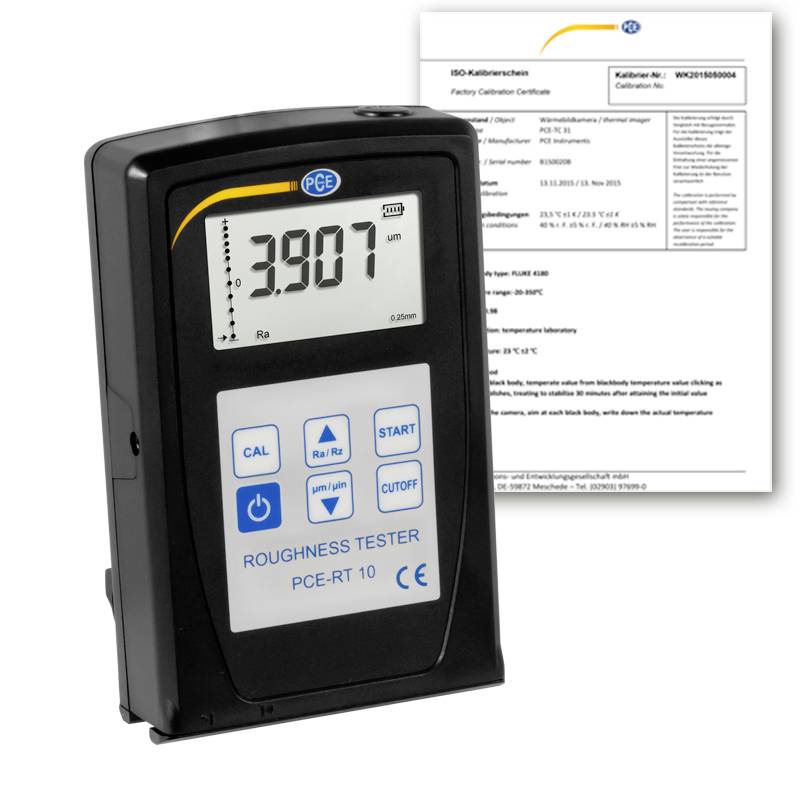

PCE Instruments PCE-RT 10-ICA Surface roughness tester Calibrated to (ISO standards) 0.05 - 50 µm
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
PCE instruments roughness tester PCE-RT 10-ICA
- Ra and Rz measurement
- Induction principle
- Backlit LCD display
- With limit frequency function
- Easy to use
- RS232C Interface

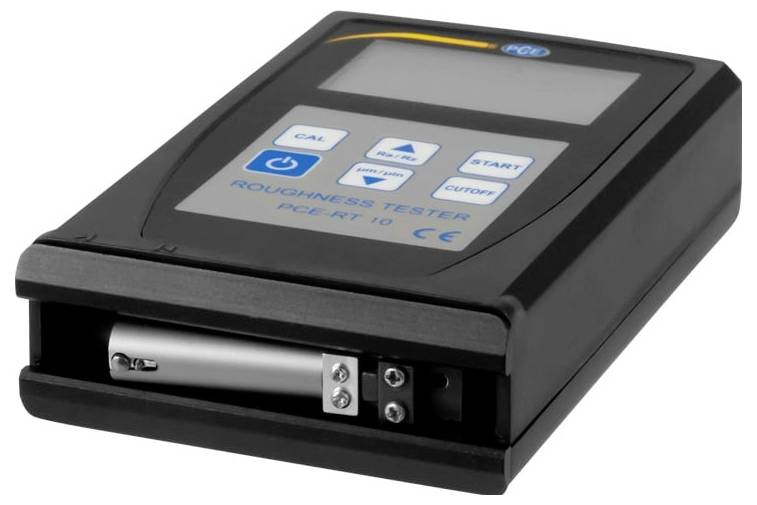

- Diamond sensor
- Automatic power off
- Incl. ISO calibration certificate
Technical specifications
- Roughness
- Rough value Ra
- Measuring range 0.05 ... 10 µm
- Resolution 0.01 µm
- Accuracy ±-15 %
- Roughness
- Rough Value Rz
- Measuring range 0.1 ... 50 µm
- Resolution 0.1 µm
- Accuracy ±-15 %
- General Technical Data
- Measurement functions Ra, Rz
- Unit(s) µm
- Display type LCD with lighting
- Interface RS232
- Standard(s) GB/T6062, ISO4287, DIN4768, JIS B, ANSI46.1
- Diamond sensor
- Reproducibility 10%
- Cut-off length 0.25 mm, 0.8 mm, 2.5 mm
- Button - radius of probe: 10 µm,- Measuring force of probe: 16 mN(1.6gf),- Probe angle: 90º,- Vertical radius of guide head: 48 mm
- Maximum travel distance 12.5 mm
- Menu language English (US), English (GB)
- Protection class (device) IP20
- Power supply batteries
- Battery 4 x 1.5 V AA battery , alkaline-manganese
- Capacity: 3000 mAh
- Operating conditions 0 ... 50 °C , 0 ... 80 % r.F.
- Storage conditions 0 ... 50 °C , 0 ... 80 % r.F.
- Dimensions ( L x W x H ) 128 x 80 x 30 mm
- Weight 280 g
- Product type
Surface roughness tester
- Reading range
0.05 - 50 µm
- Display type
Digital (LCD)
- Dim
(L x W x H) 128 x 80 x 30 mm
- Weight
280 g
- Operating voltage
1.5 V
- Content
1 pc(s)
- Calibration service
Incl. ISO calibration certificate
- Width
80 mm
- Height
30 mm
- Length
128 mm
- Interfaces
RS232
ISO standards
- Plastic free packaging
Plastic-free packaging
Documents & Downloads
Datasheet
Datasheet 3812711 PCE Instruments PCE-RT 10-ICA Surface roughness tester Calibrated to (ISO standards) 0.05 - 50 µm
User & Safety Instructions
User & Safety Instructions 3812711 PCE Instruments PCE-RT 10-ICA Surface roughness tester Calibrated to (ISO standards) 0.05 - 50 µm
Description

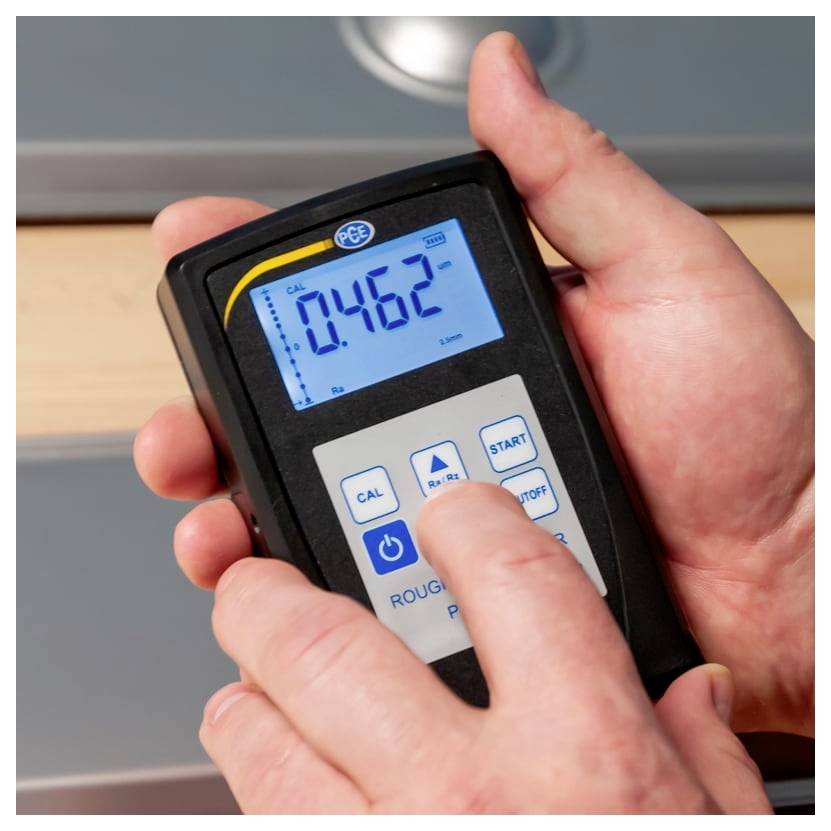

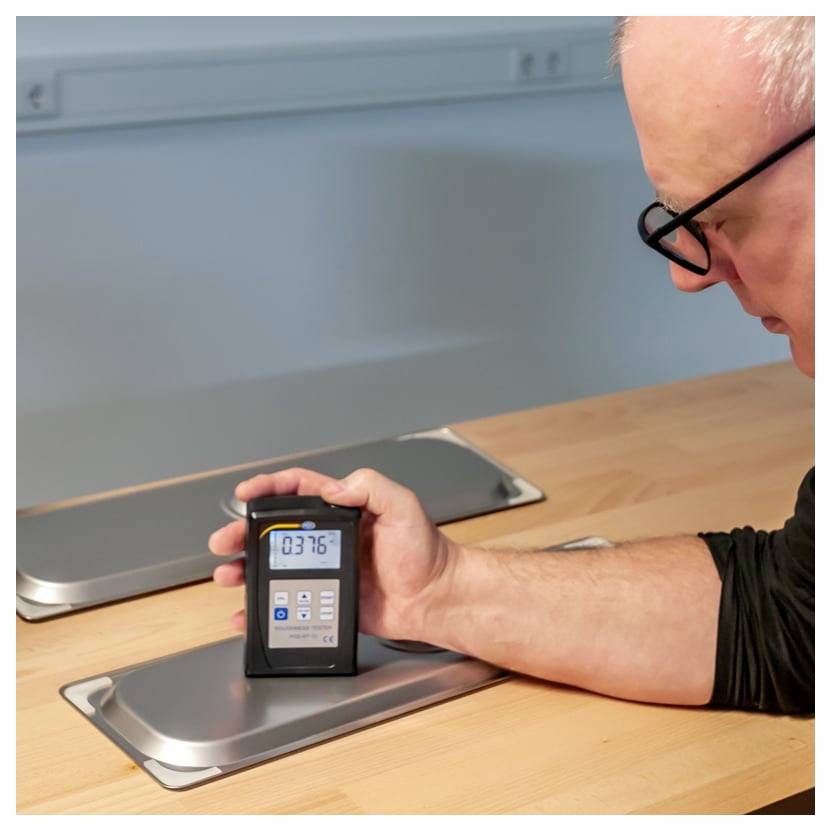

The roughness tester is small, light and easy to use. With the integrated diamond sensor, the roughness measuring device measures the mean roughness Ra as well as the average roughness Rz. To do so, the roughness tester is placed on the surface to be measured and the integrated diamond sensor moves evenly over it to read the surface.
The measured values are determined on the basis of the displacement of the sensor during the measurement, which is measured via induction. The measurement results are displayed on the large LCD by the roughness tester. The noise level meter can be connected to a PC via the integrated RS232C interface. An appropriate interface cable with PC software is available as an accessory. This roughness tester complies with the requirements for rough measurement of standard ISO, DIN, ANSI and JIS standards.
This text is machine translated.
The measured values are determined on the basis of the displacement of the sensor during the measurement, which is measured via induction. The measurement results are displayed on the large LCD by the roughness tester. The noise level meter can be connected to a PC via the integrated RS232C interface. An appropriate interface cable with PC software is available as an accessory. This roughness tester complies with the requirements for rough measurement of standard ISO, DIN, ANSI and JIS standards.
This text is machine translated.

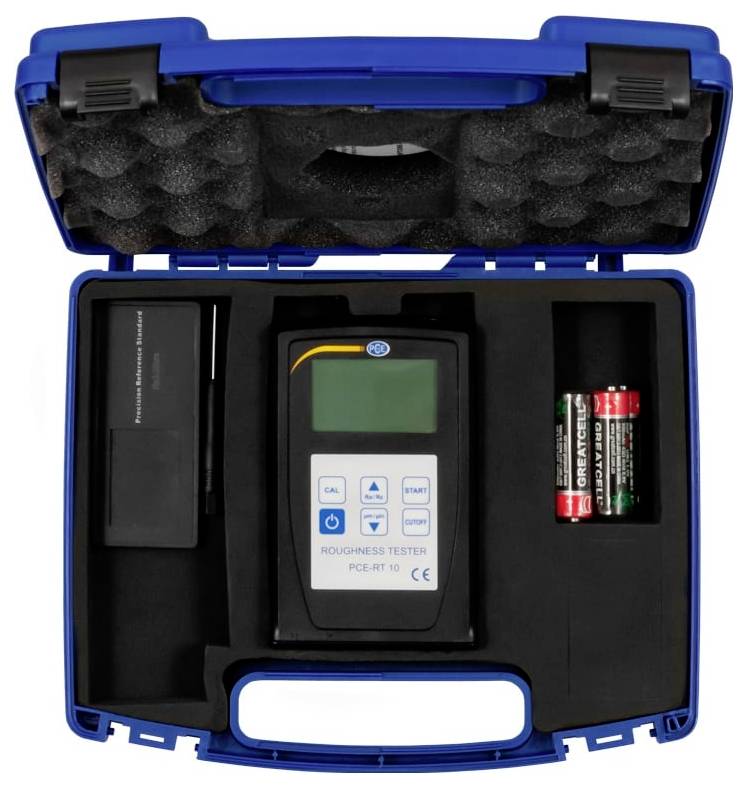

Scope of delivery
- 1 x roughness tester PCE-RT 10-ICA
- 1 x calibration plate
- 1 x Screwdriver
- 1x user manual
- 1 x ISO calibration certificate
