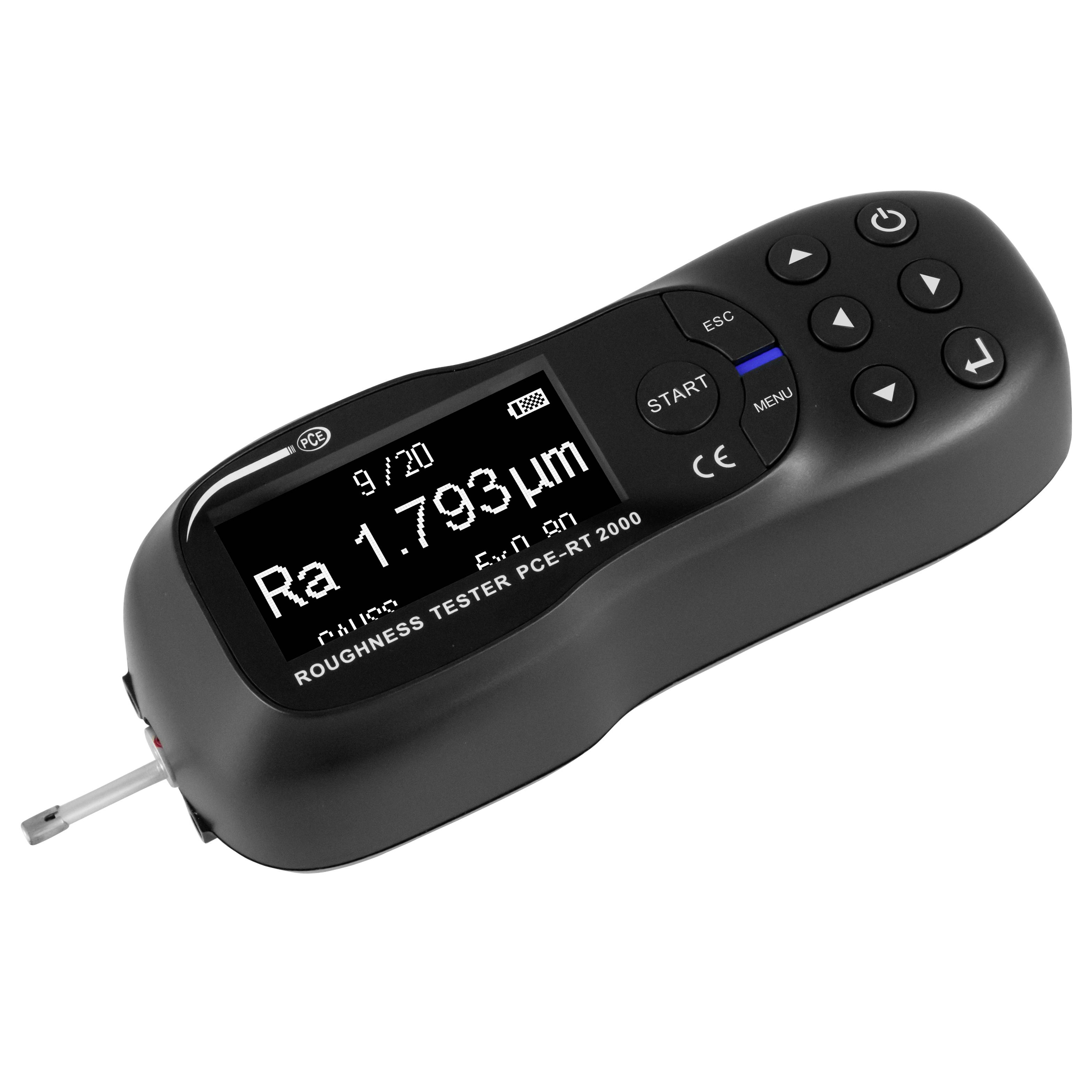

Handheld surface roughness tester showing Ra 1.793 μm on its display, with control buttons and a probe extended from the end.

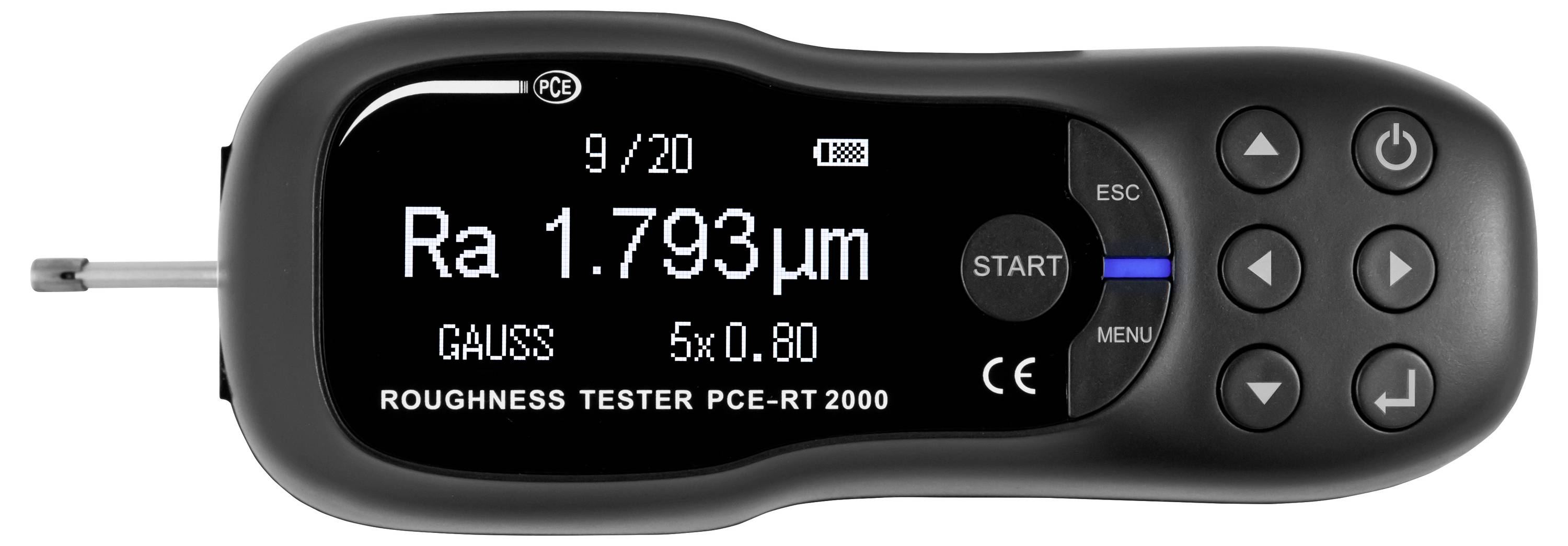

Handheld roughness tester displaying Ra 1.793 µm, with Gaussian filter and 5x0.80 settings on its screen.

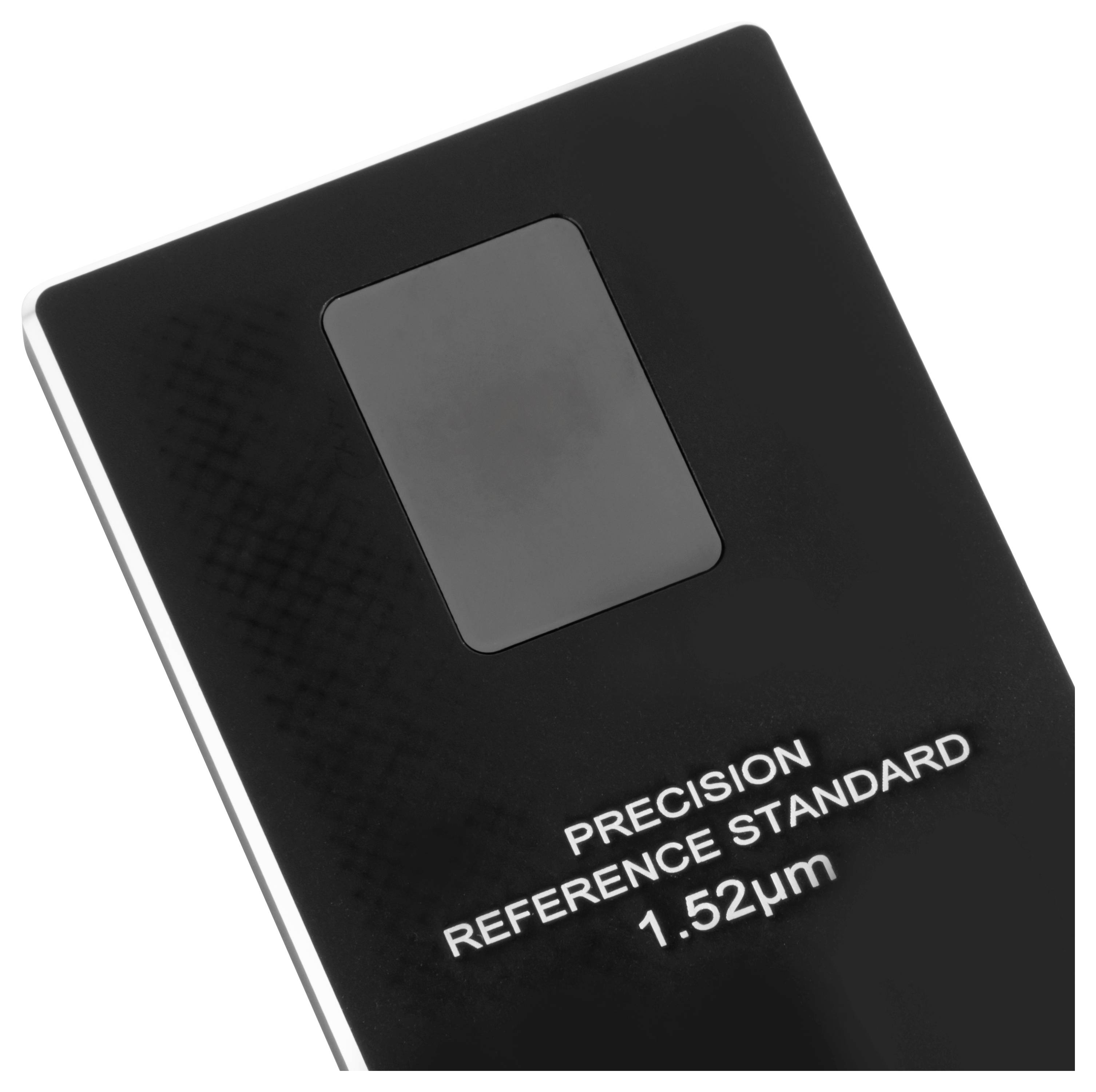

Black precision reference standard plate labeled '1.52µm' with a gray square inset, used for calibration or measurement.<br>

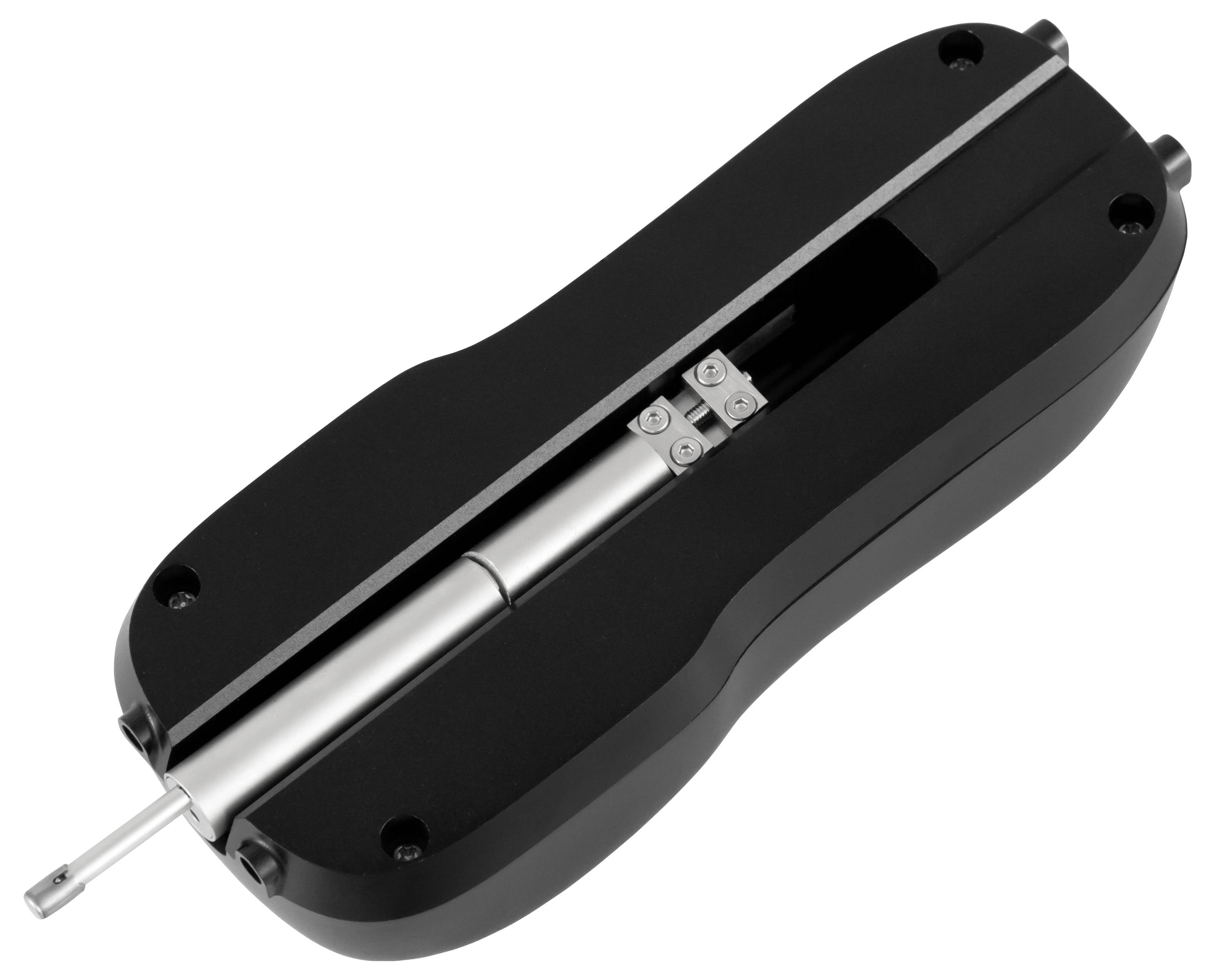

Black handheld electric screwdriver or drill driver viewed from above on a white background, with the metal bit exposed in the center.<br>

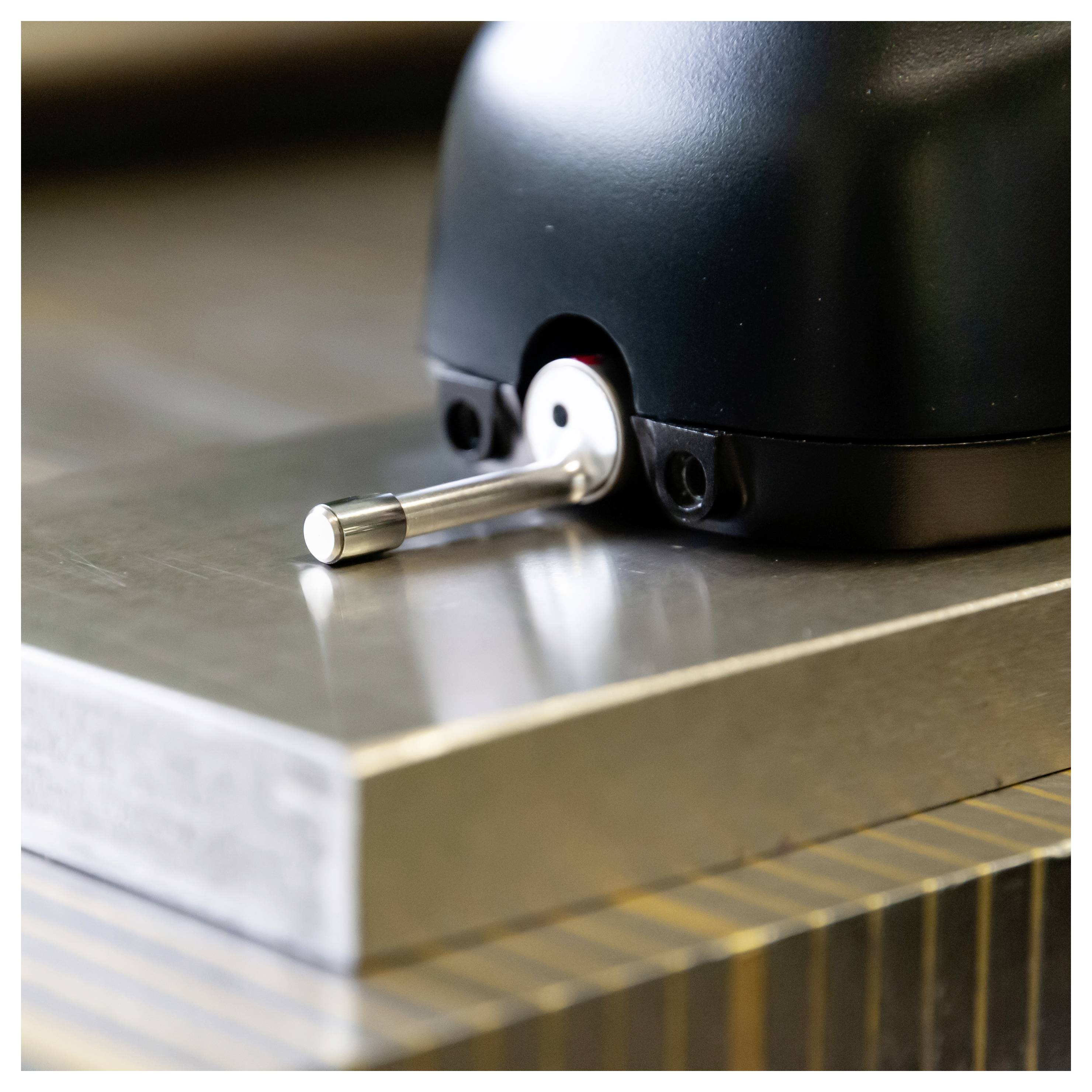

Close-up of a black machine or device on a metal surface, showing a small silver lever protruding from its base.

1/5

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Surface Tester PCE-RT 2000

OLED Display
Measures Ra, Rq, RSM, RSK, Rz, RT, RP, RV, RC
Numerical and graphical display of measured values
Micro USB interface
3 different threshold wavelengths
PC software
Statistical functions
Operation via accumulators

Technical specifications

Measurement parameters RA, Rq, RSM, RSK, Rz, RT, RP, RV, RC Measurement ranges: RA, Rq, RC: 0.005 µm ... 16 µm RZ, RT, RP, RV: 0.02 µm ... 200 µm RSM: 5 µm ... 1000 µm RSK: -1 ... 1 Radius probe tip 5 µm Material probe tip diamond, 90 ° angled Max. Recommended force for static 4 MN (0.4 gf) measurement Inductive measuring principle Radius of longitudinal guide strip 45 mm STANDARDS ANSIB46.1/ASMEB46.1 (DIN EN ISO 4287) Maximum travel distance 15 mm Cut-off wavelength 0.135 mm/s for limit shaft length 0.25 mm 0.5 mm/s for limit shaft length 0.8 mm 1 mm/s for limit shaft length 2.5 mm Reversing speed 1 mm/s Measuring accuracy ± 10 % Repeat accuracy 6 % OLED display Units μm / μinch (switchable) Micro USB interface Power supply rechargeable Li-ion battery

Product type: Thickness gauge

: Manufacturer's standards (no certificate)

Content: 1 pc(s)

Documents & Downloads

Datasheet

Datasheet 2452616 PCE Instruments PCE-RT 2000 Thickness gauge

User & Safety Instructions

User & Safety Instructions 2452616 PCE Instruments PCE-RT 2000 Thickness gauge

Description

Portable surface tester for quick measurement of roughness / large OLED display / measurement of Ra, Rq, RSM, RSK, Rz, RT, RP, RV, RC / numerical and graphical display The roughness meter is used for accurate measurement of surface roughness. The roughness meter can be used on all surfaces. The roughness is accurately measured with the roughness measuring device via the piezo probe. The Roughness Meter measures Ra, Rq, RSM, RSK, Rz, RT, RP, RV, RC and is thus a universally applicable roughness measuring device in quality assurance. The roughness measurement device is simply placed on the surface for measurement. During the measuring process, a probe is pulled over the surface and the roughness measuring device shows the measured value on the large, OLED display. In addition to the numerical measurement display, the measurement profile can be graphically visualized. The roughness meter is operated with a rechargeable battery. The charger from the roughness meter is included in the delivery. The roughness measuring device has an automatic switch-off function for protecting the battery. The roughness measurement device has a Micro USB socket. The measuring device can be charged via this connection. Furthermore, the measurement data can be transferred from the roughness measuring device to the software. This makes it possible to create a complete documentation of the measurement. RZ = averaged roughness depth The averaged roughness depth Rz is the arithmetic mean of the largest single roughness depths of several adjacent individual measuring distances. RA = arithmetic mean value Ra is the generally accepted and internationally applied roughness parameter. It is the arithmetic mean of the absolute values of the profile deviations within the reference distance. The measured numerical value Ra is always less than the Rz value determined on the same roughness profile. RT = maximum roughness depth RT is the distance between the highest and lowest point of the measuring distance. RQ = square mean Rq is the square mean of all ordinate values within the single measurement distance. Rq is the RMS (root mean square).
