PCE Instruments PCE-RT 2200 Surface roughness tester
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

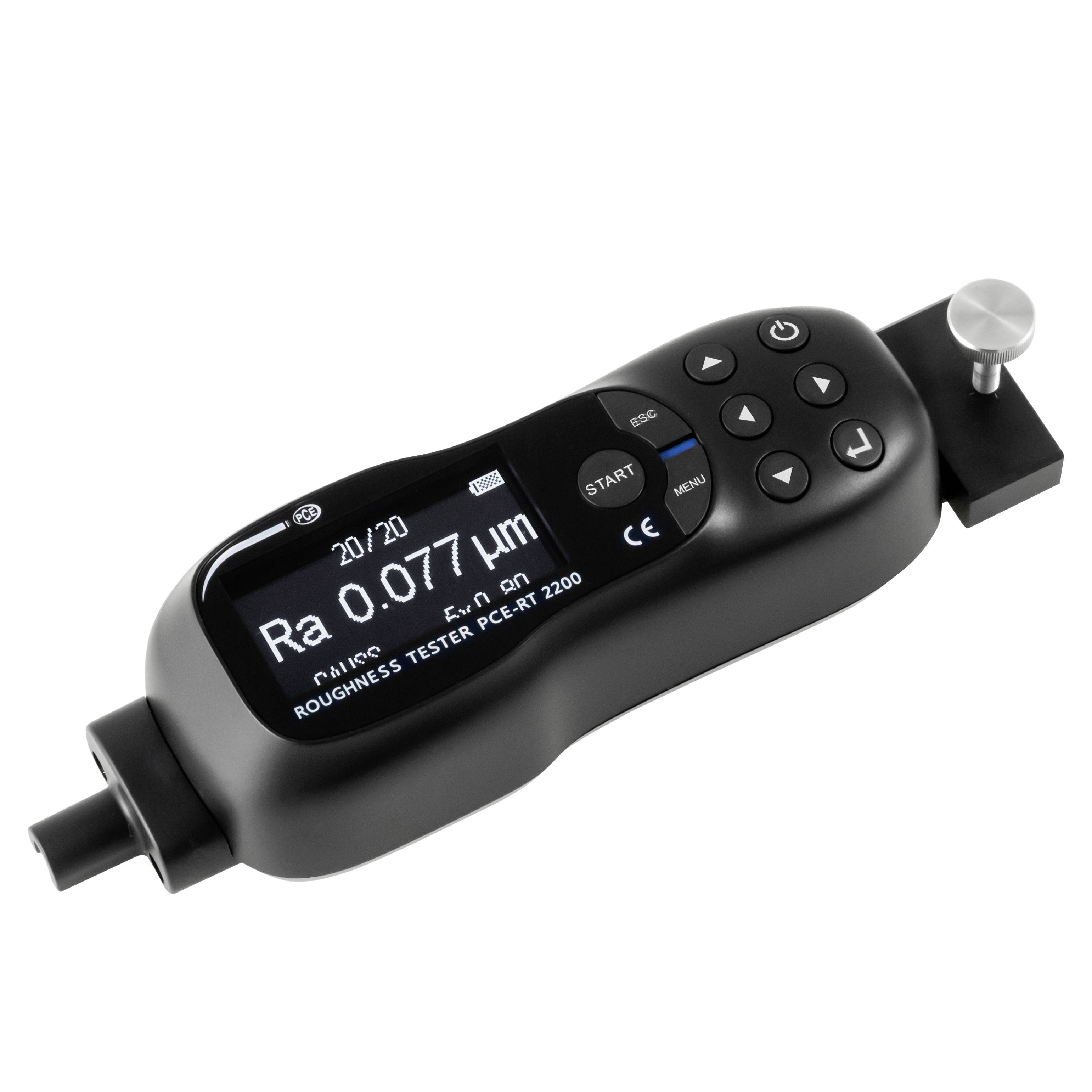

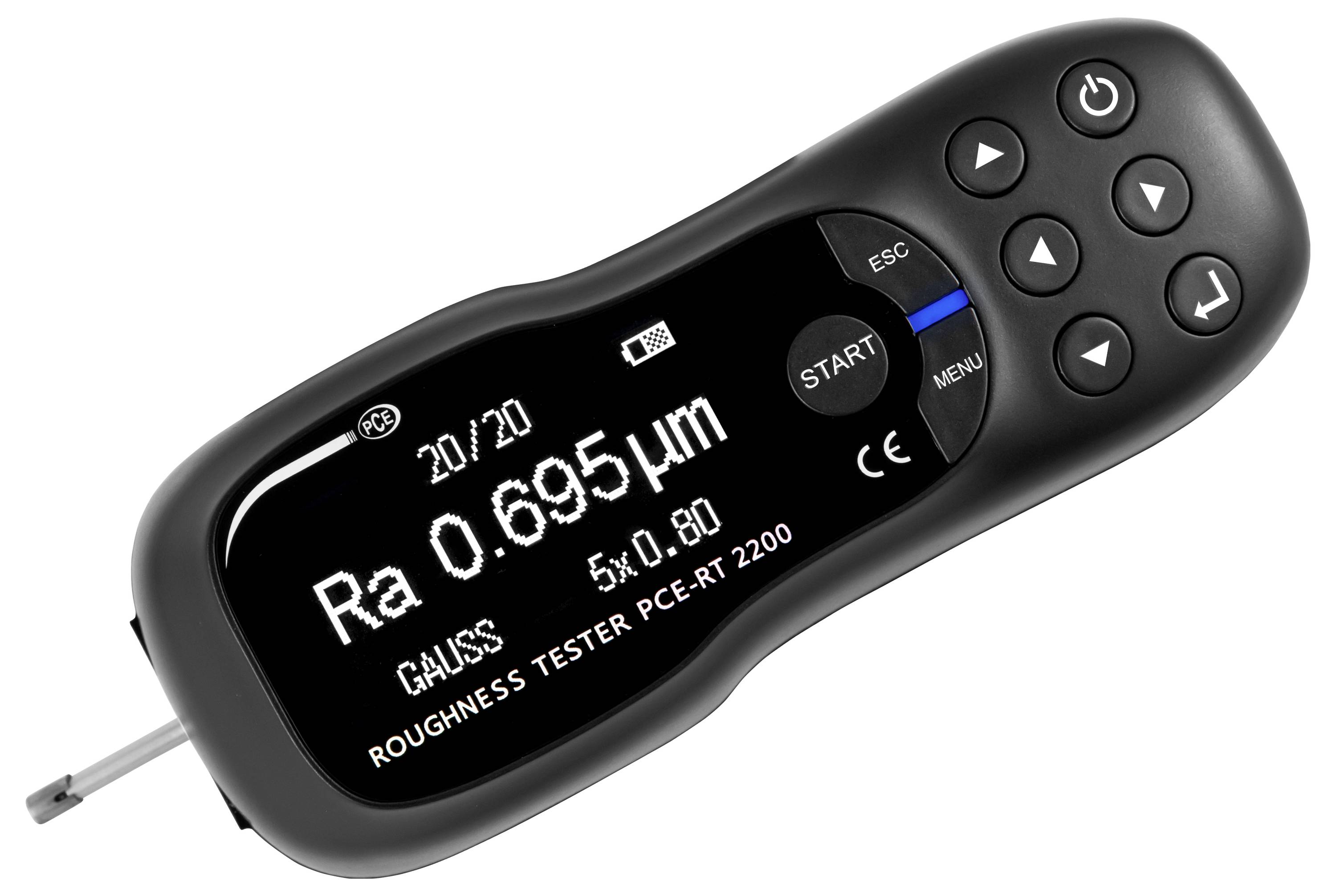

Roughness measuring device PCE-RT 2200
- Selection of 21 parameters
- Large graphical OLED display
- Fast and accurate measurement
- 3 different threshold wavelengths

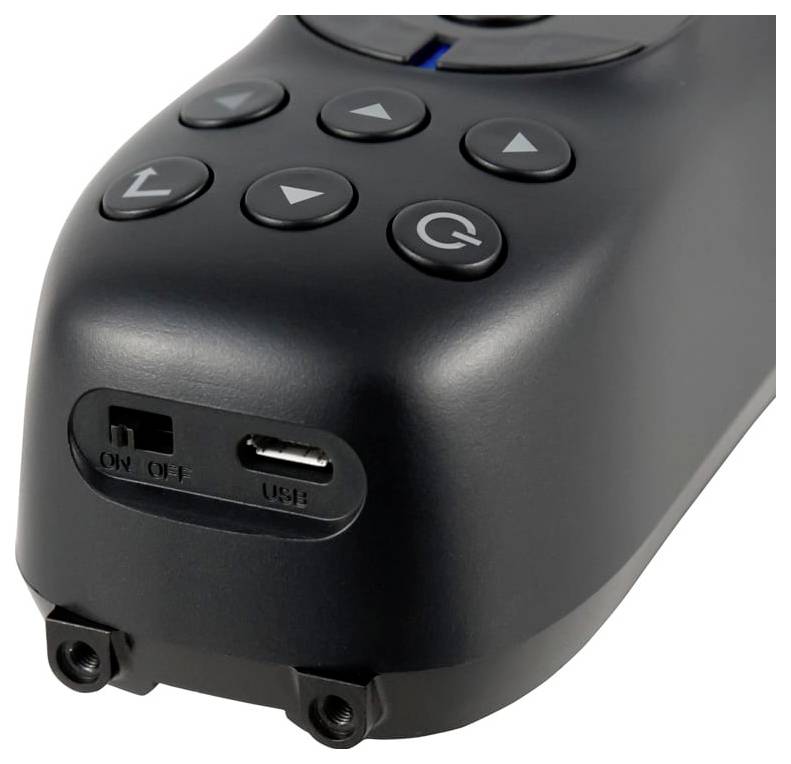

- Micro-USB interface for PC connection
- Storage of 20 measurement sequences
Technical specifications

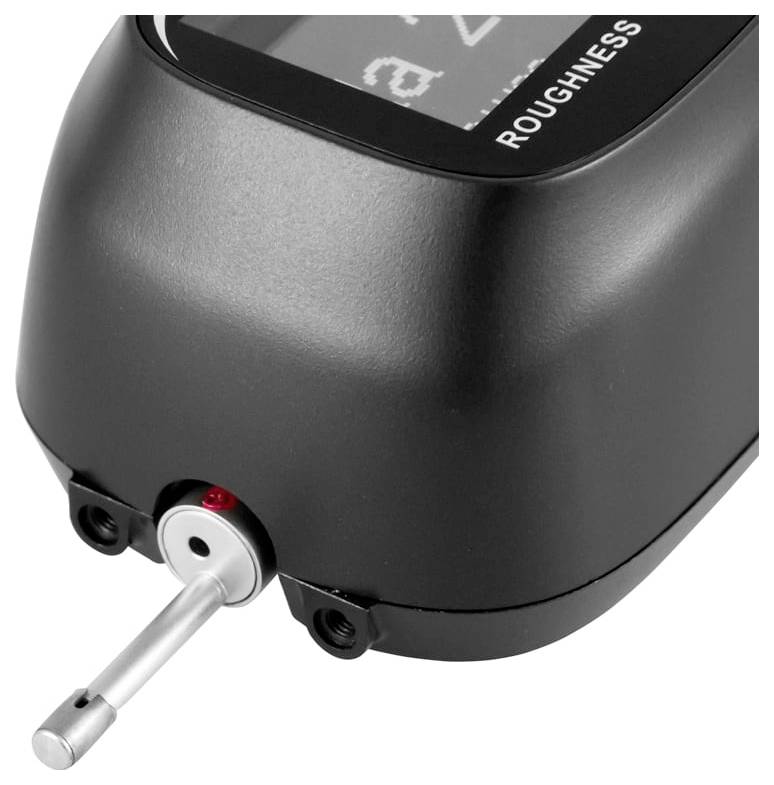

- Parameter RA, Rq, RSM, RSK, Rz, RT, RP, RV, RC, Rmax, Ry(JIS),RZ(JIS), RP(ASME), RPM(ASME), RV(ASME), R3z, R3zmax, Rz1max, RMR(c), RDC, RMR Reading range RA, Rq, RC: 0.005 ... 16 µm RSM: 5 ... 1000 µm RSK: -1 ... 1 RZ, RT, RP, RV, Rmax, Ry(JIS), Rz(JIS), RP(ASME),Rpm(ASME), RV(ASME), R3z, R3zmax, Rz1max, RDC: 0.02 ... 200 µm RMR(c), RMR: 0 ... 100 %. Radius probe tip 5 µm Material probe tip diamond, 90 ° angled Max. Recommended force 4 MN (0.4 gf) For static measurement Inductive measuring principle Radius of longitudinal guide strip 45 mm STANDARDS ANSIB46.1/ASMEB46.1 (DIN EN ISO 4287) Maximum travel distance 15 mm Cut-off wavelength 0.25 mm / 0.8 mm / 2.5 mm Scanning speed 0.135 mm/s for limit shaft length 0.25 mm 0.5 mm/s for limit shaft length 0.8 mm 1 mm/s for limit shaft length 2.5 mm Reversing speed 1 mm/s Memory 20 measurement sequences with all parameters Measuring accuracy ± 10 % Repeat accuracy 6 % OLED display Units μm / μinch (switchable) Micro USB interface Power supply rechargeable Li-ion battery
- Product type
Surface roughness tester
- Display type
Digital (OLED)
- Dim
(L x W x H) 150 x 60 x 43 mm
- Weight
370 g
- Features
+ data logger
- Content
1 pc(s)
- Width
60 mm
- Height
43 mm
- Length
150 mm
- Interfaces
Micro USB
Manufacturer's standards (no certificate)
Documents & Downloads
Datasheet
Datasheet 2452617 PCE Instruments PCE-RT 2200 Surface roughness tester
User & Safety Instructions
User & Safety Instructions 2452617 PCE Instruments PCE-RT 2200 Surface roughness tester
Description
Roughness measuring device with large graphical OLED display / rechargeable battery Storage of up to 20 measurement processes / extensive number of parameters / Micro-USB interface for charging the battery and reading out the memory The portable and easy to handle roughness measuring device with its large OLED display is especially for the fast and accurate measurement in Suitable for the workshop or in the laboratory. This roughness meter uses a DSP chip for control and data processing with a high speed and low power consumption. In addition, the roughness meter offers a wide range of measurement parameters: RA, Rq, RSM, RSK, Rz, RT, RP, RV, RC, Rmax, Ry(JIS), Rz(JIS), RP(ASME), RPM(ASME), RV(ASME), R3z, R3zmax, Rz1max, RMR(c), RDC, RMR. The measurements are automatically stored in the internal memory of the roughness measuring device. The stored data can then be transferred to a PC via the micro-USB interface on the roughness measuring device and analyzed via the software. It is also possible to display the data after a measurement on the OLED display of the roughness meter. Even the wave path can be shown on the display of the roughness measuring device. It is often the case that the contact surface of the test object for a roughness measuring device is too small to position the roughness measuring device appropriately for a measurement. For such cases, a positioning adapter is included with this roughness measuring device. Thus, the roughness measuring device also enables the measurement on small samples.
This text is machine translated.
This text is machine translated.
Scope of delivery
- 1 x roughness measuring device PCE-RT 2200

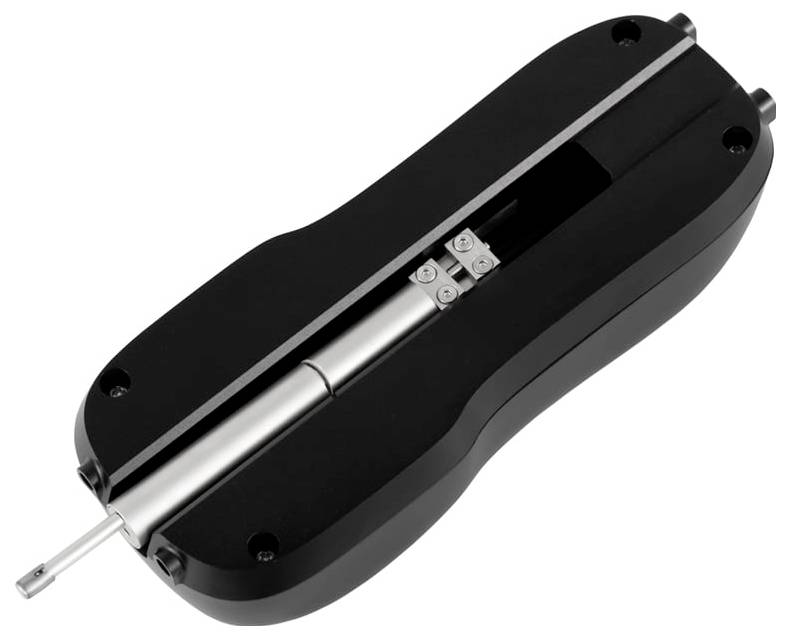

- 1 x micro-sensor
- 1 x protective cap for button
- 1 x positioning device
- 1 x calibration plate
- 1 x roughness standard
- 1x USB cable
- 1 x charging adapter
- 1 x carrying case
- 1x user manual
