PCE Instruments PCE-RT 2300-ICA Surface roughness tester Calibrated to (ISO standards)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
PCE instruments roughness tester PCE-RT 2300-ICA
- Touchscreen
- Measurement of all roughness values
- Battery and mains mode
- Different filters can be set
- Diamond test head
- Removable motor slide
- Incl. ISO calibration certificate
Technical specifications
- Roughness
- Rough value Ra, Rq, Rz, RT, Rp, RV, Rc, Rmax, R3z, RM Ry
- Measuring range -160 ... +160 µm
- Resolution 0.04 µm
- Accuracy ±-10 %
- Roughness
- Rough value Ra, Rq
- Measuring range 0.005 ... 32 µm
- Resolution 0.001 µm
- Accuracy ±-10 %
- Roughness
- Rz, RT, Rp, R3z, RM, Ry
- Measuring range 0.02 ... 320 µm
- Resolution 0.01 µm
- Accuracy ±-10 %
- Roughness
- Rough value SK, TP
- Measuring range 0 ... 100 %.
- Accuracy ±-10 %
- Roughness
- Rough value S, Sm
- Measuring range 0.02 ... 1000 µm
- Accuracy ±-10 %
- General Technical Data
- Repeatability +/-7 %
- Measurement functions Ra, Rq, RSM, RSK, Rz, Rp, Rp, Rv, Rc
- Measurement functions (additional information) R3z, R3y, Rz(JIS), Ry, Rs, Rku, Rmax, RMR, RPC, RK RPK, RVK, MR1, MR2
- Unit(s) µin, µm

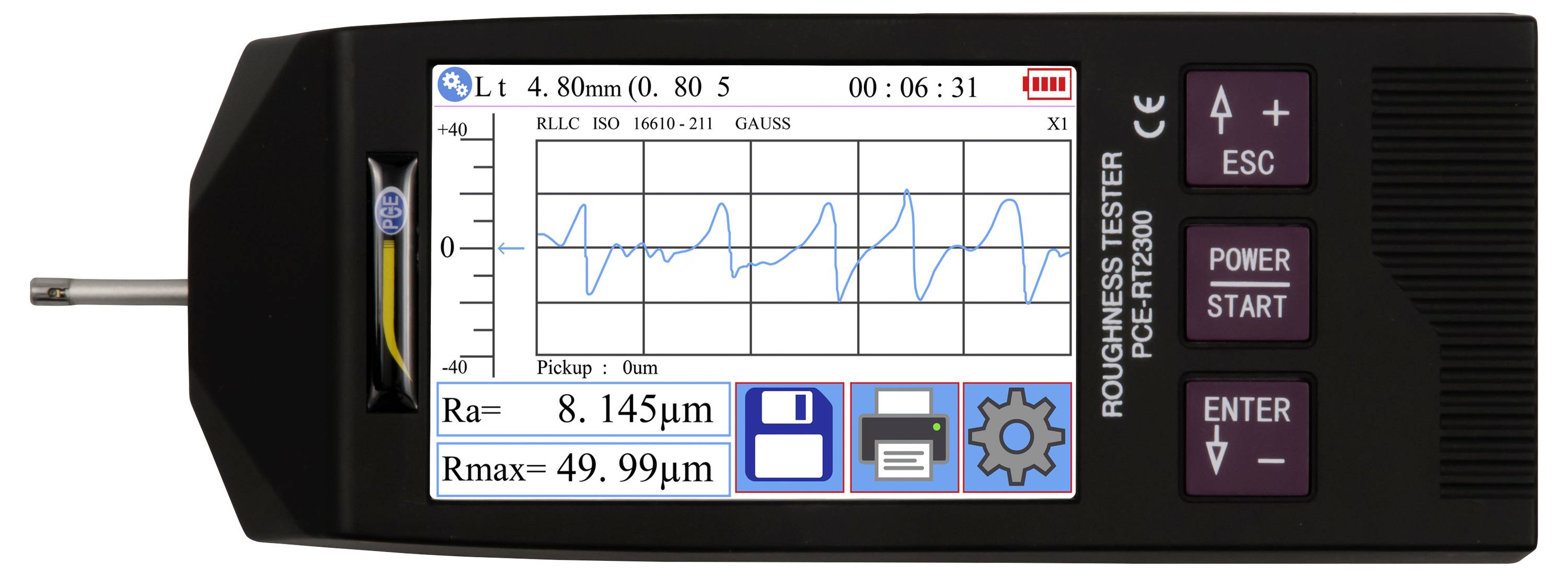

- Display type LC Touch Display
- Display size 3.5 inches
- Interface Micro-USB
- Standard(s) ISO4287, ANSIB46.1, DIN4768
- Diamond sensor
- Operating time 50 h
- Button - radius feeler tip - 5 µm,- material feeler tip - diamond, 90 ° angled,- contact pressure sensor: Less than 4 MN,- pulse rate:,0.135 mm/s at: 0.25 mm,0.5 mm/s at: 0.8 mm,1 mm/s at: 2.5 mm
- Dimensions of motor unit 115 x 23 x 27 mm
- Maximum travel distance 17.5 mm
- Menu language English (US), Chinese, English (GB)
- Protection class (device) IP30
- Power supply USB power supply 5 V / 800 mA
- Connector type for device Euro plug
- Battery/battery 1 x 3.7 V internal , lithium-ion battery
- Capacity: 3000 mAh
- Operating conditions -20 ... 40 °C , 0 ... 90 % r.F.
- Storage conditions -40 ... 60 °C , 0 ... 90 % r.F.
- Dimensions ( L x W x H ) 158 x 55 x 52 mm
- Weight 500 g.
- Product type
Surface roughness tester
- Display type
LCD Touch
- Dim
(L x W x H) 158 x 55 x 52 mm
- Weight
500 g
- Operating voltage
3.7 V
- Content
1 pc(s)
- Calibration service

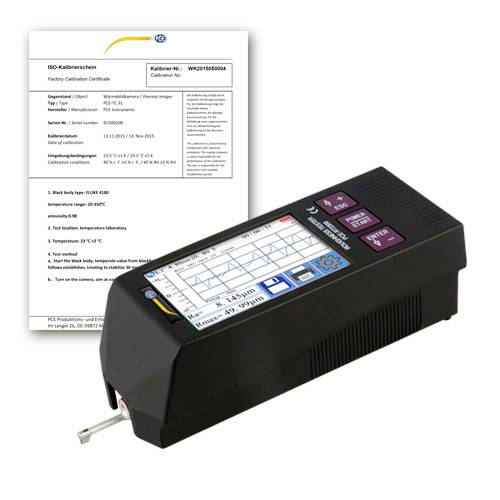

Incl. ISO calibration certificate
- Width
55 mm
- Height
52 mm
- Length
158 mm
- Interfaces
Micro USB
ISO standards
- Plastic free packaging
Plastic-free packaging
Documents & Downloads
Datasheet
Datasheet 3812716 PCE Instruments PCE-RT 2300-ICA Surface roughness tester Calibrated to (ISO standards)
User & Safety Instructions
User & Safety Instructions 3812716 PCE Instruments PCE-RT 2300-ICA Surface roughness tester Calibrated to (ISO standards)
Description

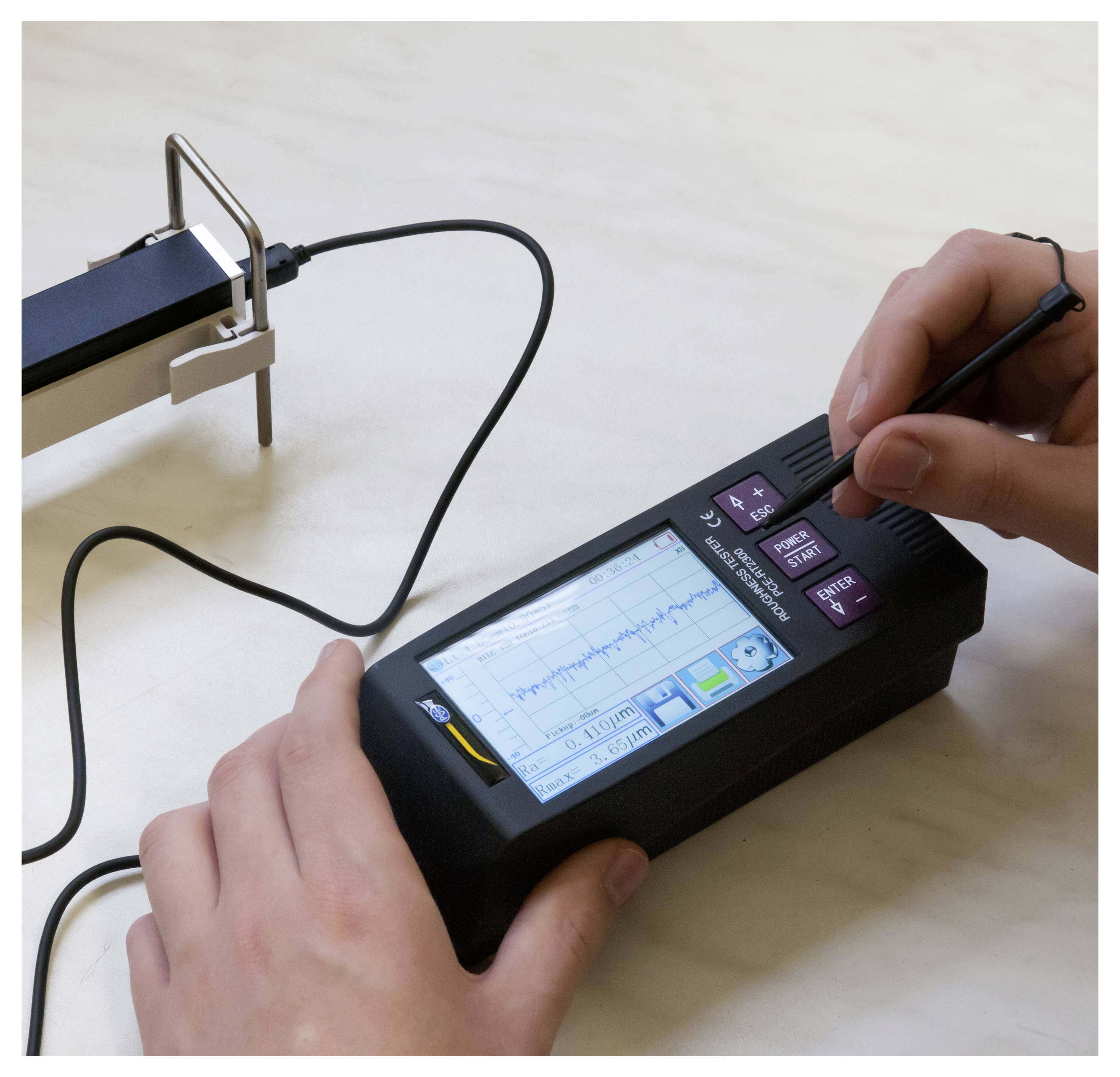

The roughness tester is used to measure the roughness of surfaces. The roughness tester has a removable motor slide. This feature enables surface roughness to be determined with the roughness tester even on small or narrow profiles. The measuring values are displayed on a large LC display by the roughness tester. This display also serves to operate the roughness tester. The roughness tester is powered by an internal rechargeable battery. This rechargeable battery can be supplied with power via a conventional USB power supply unit.

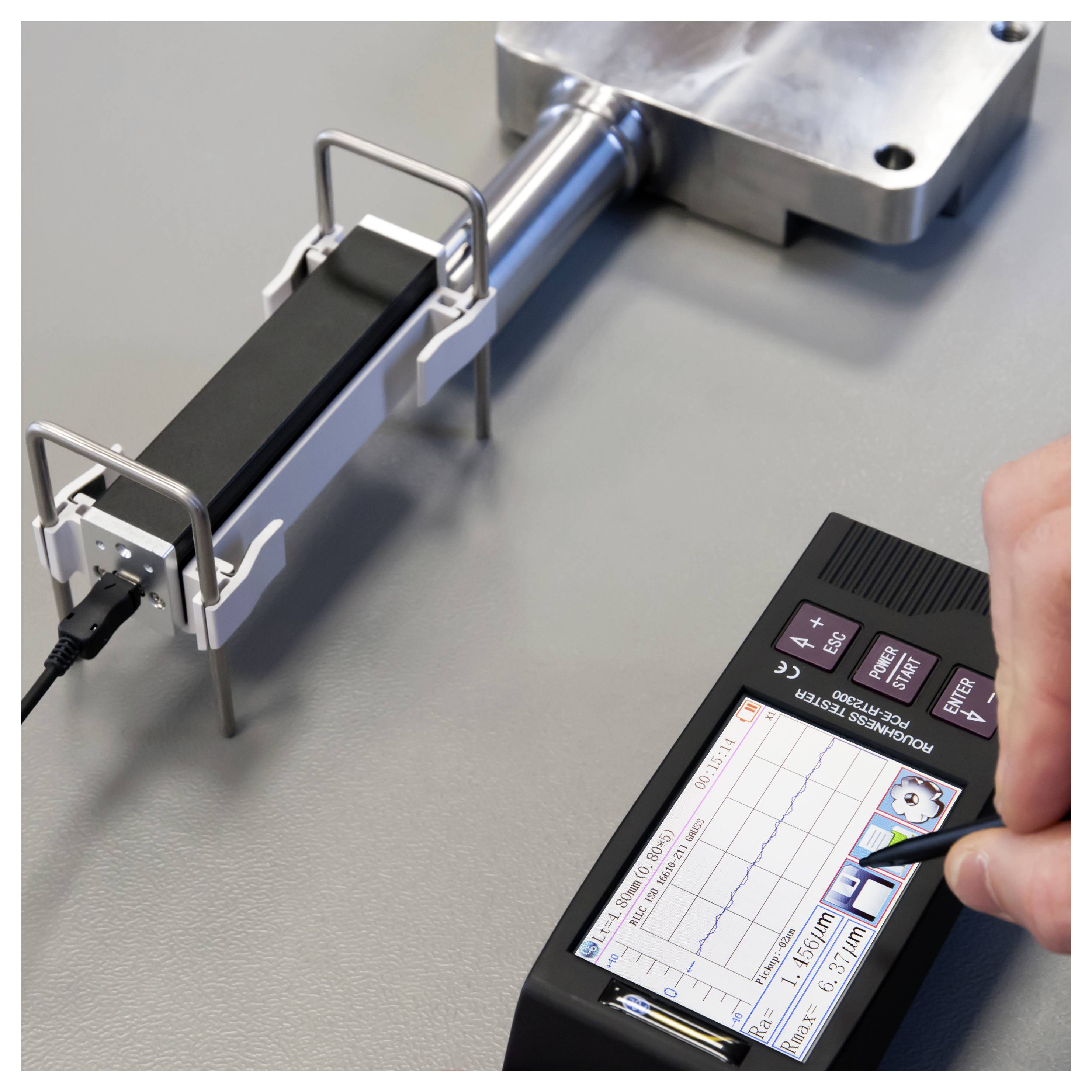

The detachable motor carriage is connected to the main unit of the roughness meter by a cable. The diamond button is installed in the motor slide. With a maximum force of 4 MN, this pushes onto the surface from which the roughness is to be measured. The roughness measuring device measures according to the valid ISO, ANSI and JIS standards for roughness measuring devices.
About the roughness tester
Rz = average roughness
The average roughness Rz is the arithmetic mean of the largest single roughing depths of several adjacent individual measuring lines.
Ra = arithmetic mean value
Ra is the generally accepted and internationally applied roughness parameter. It is the arithmetic mean of the absolute values of the profile deviations within the reference distance. The measured number value Ra is always less than the Rz value determined on the same roughness profile.
RT = maximum roughing depth
The maximum roughness RT is the distance between the highest and lowest point of the measuring distance.
Rq = Square Center Rough Value
Rq is the square mean value of all ordinate values within the individual measuring distance. Rq is the name RMS (Root Mean Square).
This text is machine translated.
The detachable motor carriage is connected to the main unit of the roughness meter by a cable. The diamond button is installed in the motor slide. With a maximum force of 4 MN, this pushes onto the surface from which the roughness is to be measured. The roughness measuring device measures according to the valid ISO, ANSI and JIS standards for roughness measuring devices.
About the roughness tester
Rz = average roughness
The average roughness Rz is the arithmetic mean of the largest single roughing depths of several adjacent individual measuring lines.
Ra = arithmetic mean value
Ra is the generally accepted and internationally applied roughness parameter. It is the arithmetic mean of the absolute values of the profile deviations within the reference distance. The measured number value Ra is always less than the Rz value determined on the same roughness profile.
RT = maximum roughing depth
The maximum roughness RT is the distance between the highest and lowest point of the measuring distance.
Rq = Square Center Rough Value
Rq is the square mean value of all ordinate values within the individual measuring distance. Rq is the name RMS (Root Mean Square).
This text is machine translated.
Scope of delivery
- 1 x roughness tester PCE-RT 2300-ICA
- 1 x Microswitches

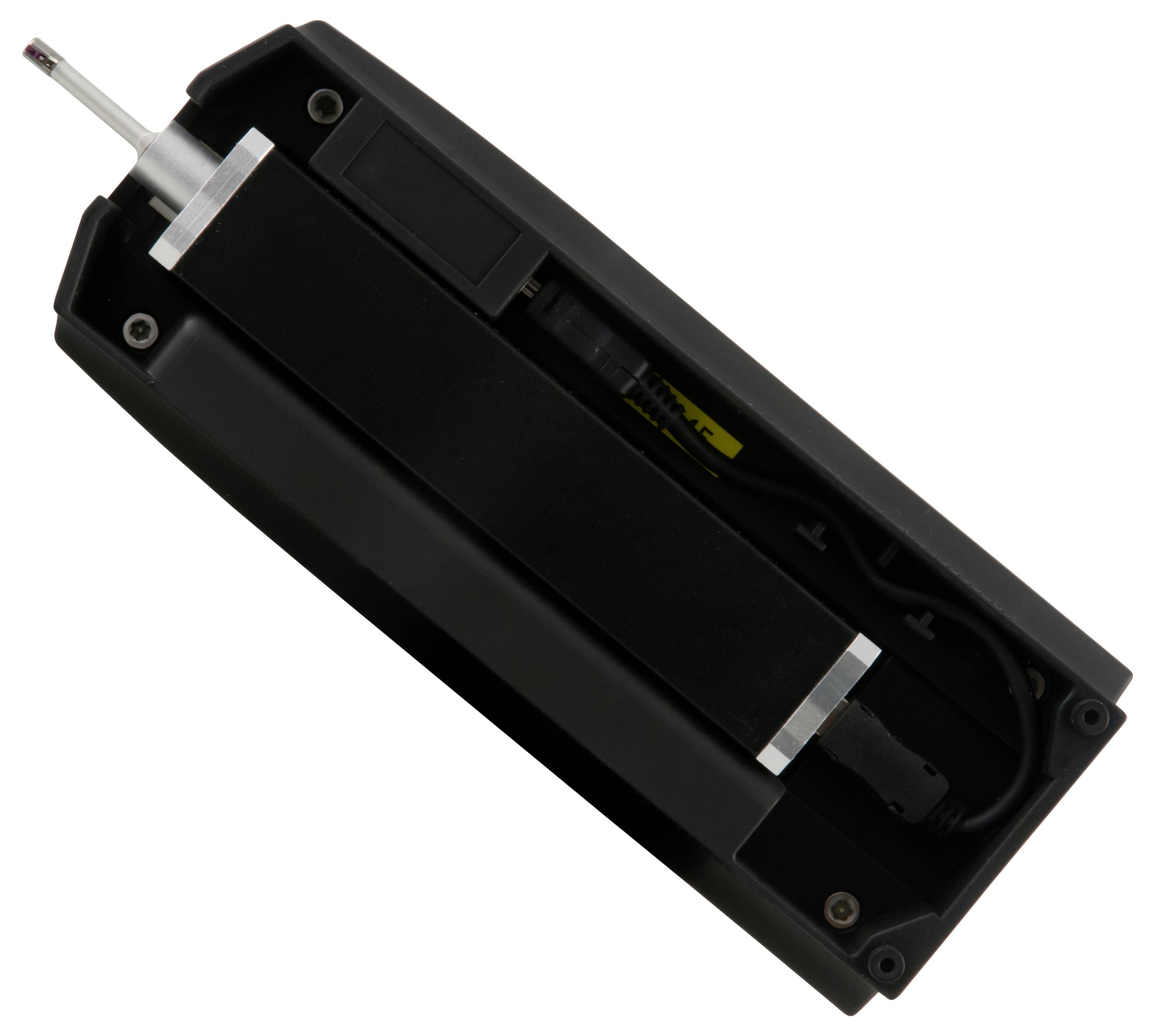

- 1 x removable motor unit
- 1 x stand for motor unit
- 2 x connection cables for motor unit
- 1x charger
- 1 x interface cables
- 1 x transport case
- 1x user manual

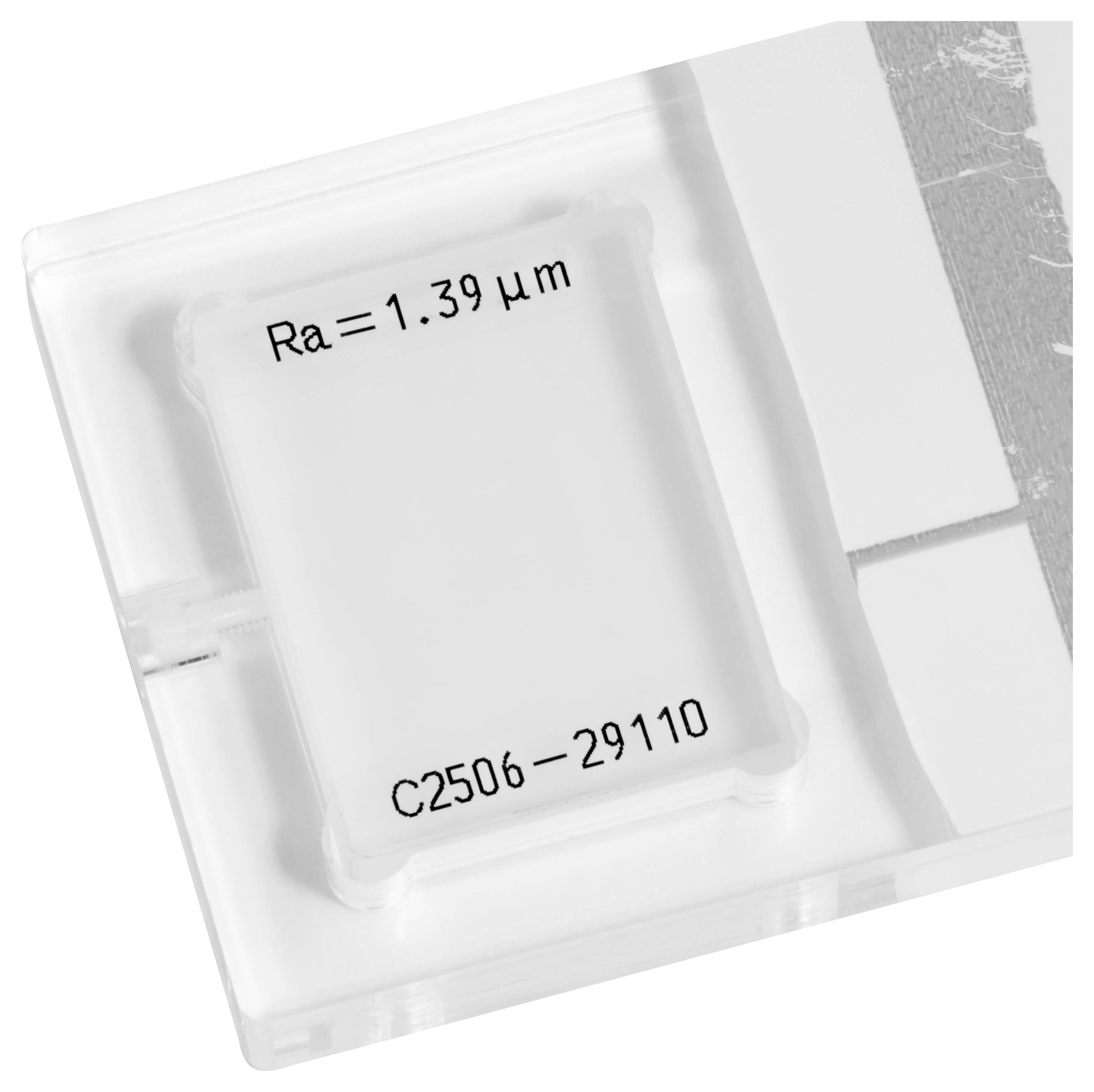

- 1 x ISO calibration certificate
