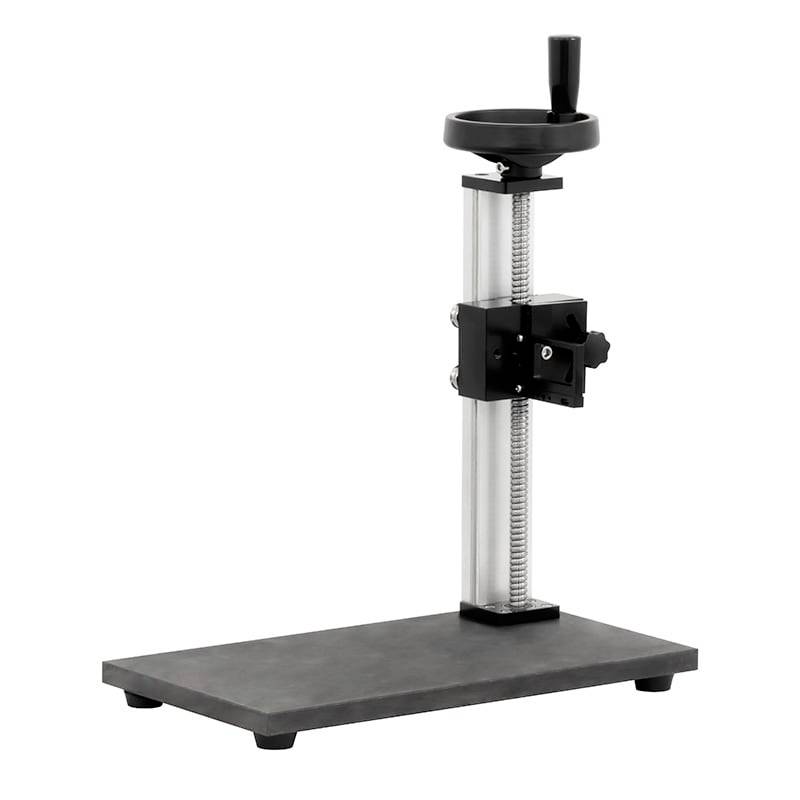

Black manual height-adjustable clamp stand with a rectangular base and crank handle, shown on a white background.

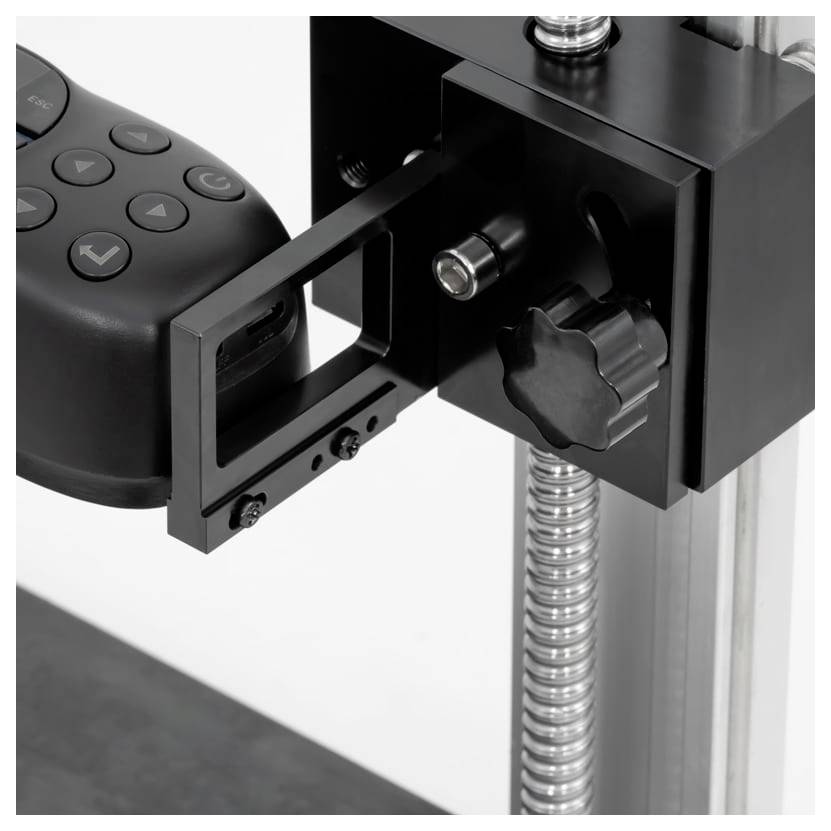

Close-up of a handheld controller attached to a metal bracket and adjustment knob on a machine frame with a vertical threaded rod.<br>

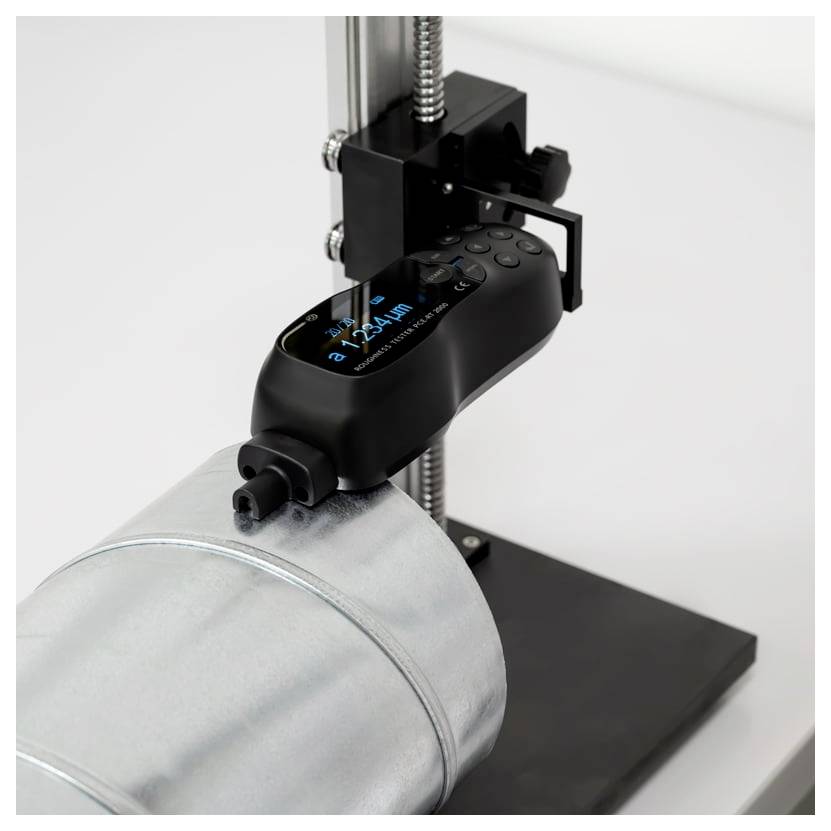

Mechanical test rig pressing a handheld controller against a padded metal cylinder, likely measuring force or durability.

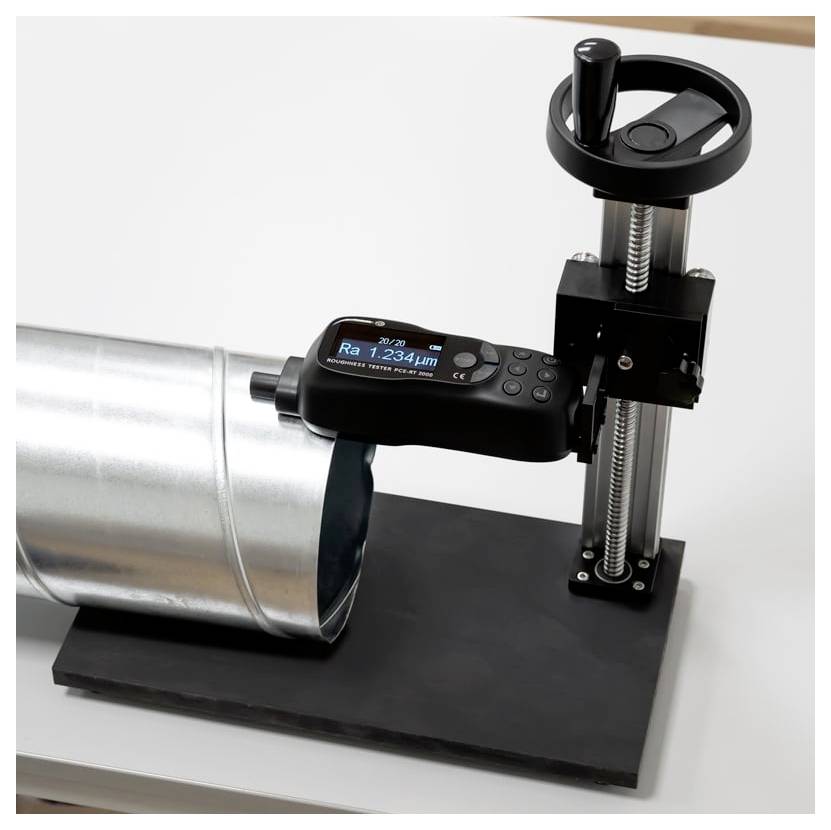

Digital surface roughness gauge measuring the interior of a metal pipe on a stand<br>

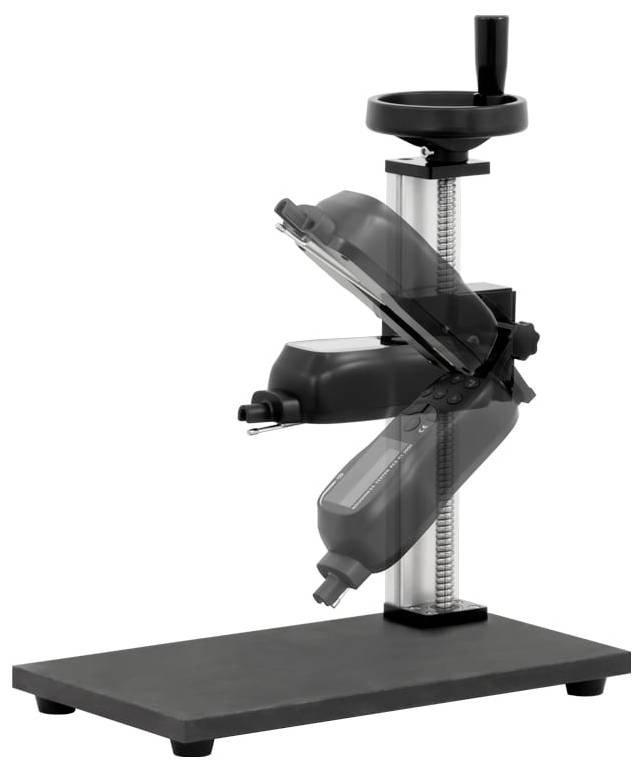

Black tabletop spiral slicer/cutter with vertical screw stand, adjustable clamp, and angled blade holder on a flat base.

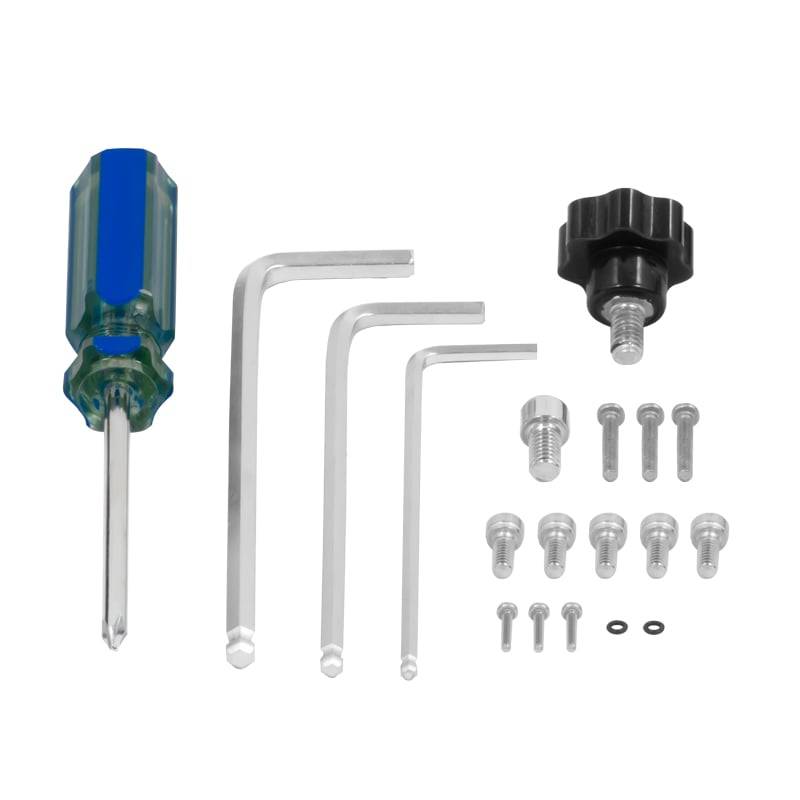

PCE Instruments PCE-RT2000-Teststand Material test stand for roughness tester-5

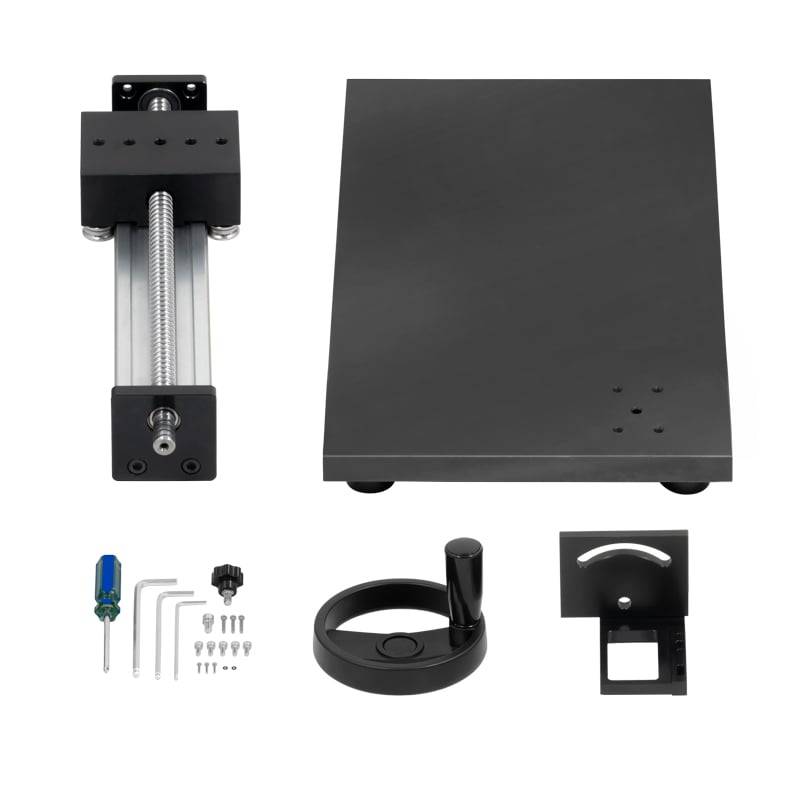

PCE Instruments PCE-RT2000-Teststand Material test stand for roughness tester-6

1/7

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Material test stand for roughness tester

Material test stand for roughness for use with roughness measuring devicesSuitable for the roughness tester PCE-RT 1200, PCE-RT 2000 and PCE-RT 2200Can be used with various rough gauges and test tipsManual spindle drive with crank handleLarge traverse path permitted Many different height positionsRecommended for all measurements with groove or curvature sensorsSupplied without roughness tester

Documents & Downloads

Datasheet

Datasheet 2813626 PCE Instruments PCE-RT2000-Teststand Material test stand for roughness tester

User & Safety Instructions

User & Safety Instructions 2813626 PCE Instruments PCE-RT2000-Teststand Material test stand for roughness tester

Description

A material test stand for roughness is intended to facilitate the performance of roughness measurements. For the measurement of roughness, it is important that both the roughness measuring device and the surface to be tested are positioned horizontally. Test stand for roughness during the quality check of gears.The probe tip then moves the surface of the workpiece in a straight line. A roughness material test stand can be used to position the measuring instrument or its sensor in such a way as to ensure the required position for a correct measurement. In particular, in the case of low roughness and the measurement of curved components or in grooves with special test tips, it is recommended to use a material test stand for roughness. The height positioning of the measuring device is precisely adapted to the respective test part for roughness using a spindle with hand crank. Thanks to the large travel path, many different component sizes can be tested in a laboratory work table or workbench without additional devices. The test stand for roughness is suitable for mounting different roughness meters.Attention: A roughness measuring instrument is not included in the scope of delivery in this test stand for roughness!

This text is machine translated.
