PCE Instruments PCE-RVI 1-ICA Viscometer Calibrated to (ISO standards)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
PCE instruments viscosity measuring device PCE-RVI 1-ICA
- Measuring range viscosity: 100 ... 100,000 mPa
- s
- Accuracy: ±5% (for newton liquid)
- Rotation speeds 6, 12, 30, 60 rpm
- Incl. ISO calibration certificate
Technical specifications
- Viscosity
- Measuring range 100 ... 100000 mPa
- s
- Accuracy +/--5% (for newton liquid)
- General Technical Data
- Display type without display
- Spindle No. 1 - 4
- Speed adjustable 6, 12, 30, 60 /min.
- Protection class (device) IP20
- Power supply 220 V AC | 50 ... 60 Hz
- Connector type for device Euro plug
- Operating conditions 5 ... 35 °C , 0 ... 80 % r.F.
- Storage conditions 5 ... 35 °C , 0 ... 80 % r.F.
- Dimensions ( L x W x H ) 300 x 300 x 450 mm
- Weight 1500 g
- Product type
Viscometer
- Accuracy
5 %
ISO standards
- Operating temperature
5 - 35 °C
- Power supply (details)
220 V AC
- Dim
(L x W x H) 300 x 300 x 450 mm
- Weight
1500 g
- Temperature reading range
5 up to 35 °C
- Temperature reading range (max.)
35 °C
- Temperature reading range (min.)
5 °C
- Width
300 mm
- Height
450 mm
- Length
300 mm
- Plastic free packaging
Plastic-free packaging
Documents & Downloads
Datasheet
Datasheet 3812718 PCE Instruments PCE-RVI 1-ICA Viscometer Calibrated to (ISO standards)
User & Safety Instructions
User & Safety Instructions 3812718 PCE Instruments PCE-RVI 1-ICA Viscometer Calibrated to (ISO standards)
Description
The analogue, rotating viscosity measuring device gives the practitioner on site a fast result of viscosity in the production control. This viscosity measuring device is robust, simple to use and is also mobile in use. An analogue pointer shows the value viscosity. The electronic drive ensures even rotation and thus repeatable measurement values.
This analogue viscosity meter is understood to be a control tool in production (e.g. in different production stages) or, for example, in the input control of raw materials and additives and for checking the viscosity of coatings, paints, pastes ... in the further processing. As an analogue viscosity measuring device it is the optimum alternative to high-price digital devices, in order to discover trends or to measure them in a comparative way. - Ideal for on-site check -.
This text is machine translated.
This analogue viscosity meter is understood to be a control tool in production (e.g. in different production stages) or, for example, in the input control of raw materials and additives and for checking the viscosity of coatings, paints, pastes ... in the further processing. As an analogue viscosity measuring device it is the optimum alternative to high-price digital devices, in order to discover trends or to measure them in a comparative way. - Ideal for on-site check -.
This text is machine translated.

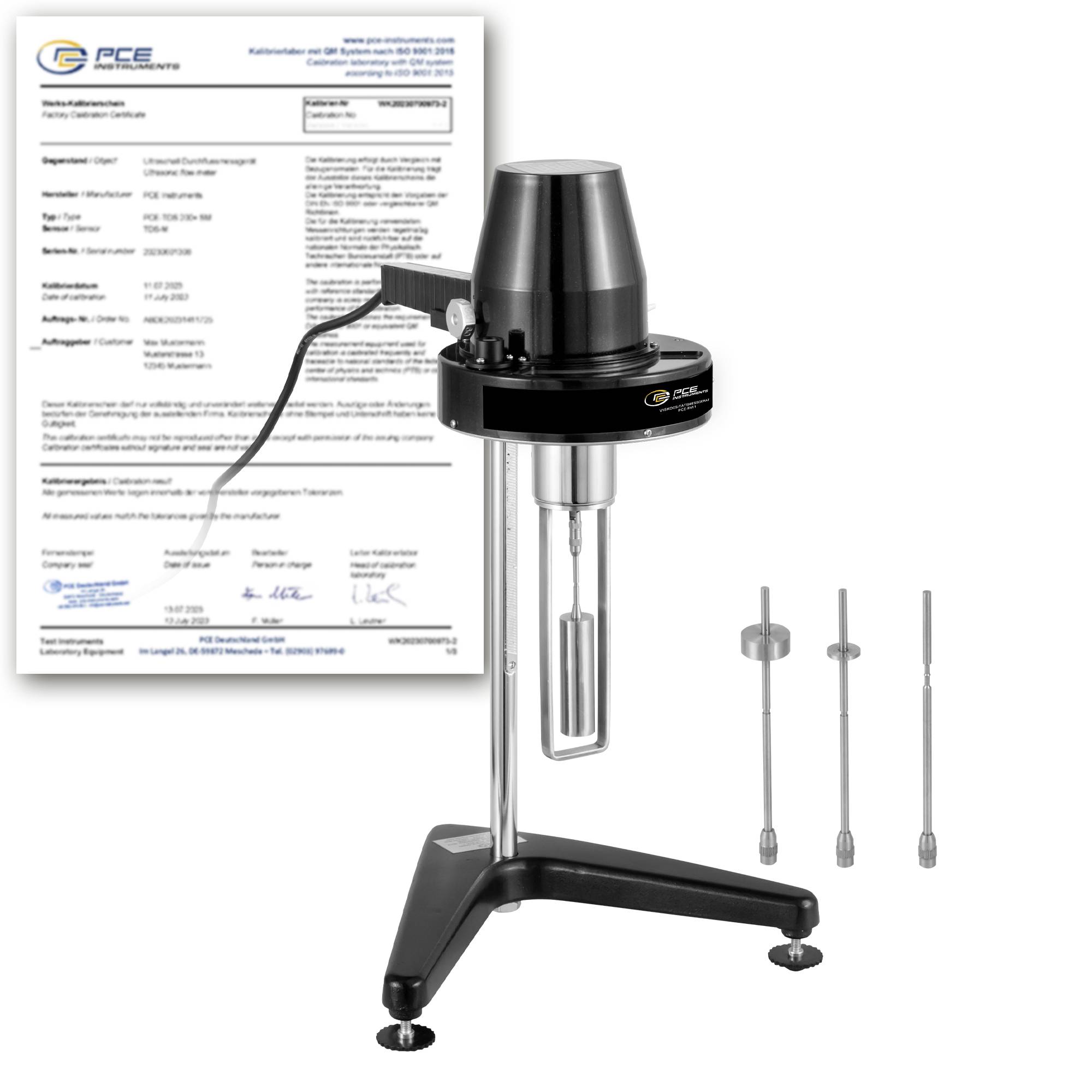

Scope of delivery
- 1 x viscosity measuring device PCE-RVI 1-ICA
- 4 x spindle
- 1 x power cable
- 1 x Stand
- 1x user manual
- 1 x ISO calibration certificate
