PCE Instruments PCE-RVI 10-ICA Viscometer Calibrated to (ISO standards) Temperature
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
PCE instruments Viscometer with touch-screen PCE-RVI 10-ICA
- Measuring range viscosity: 1 ... 2,000,000 mPa
- s
- Accuracy: ±1% v. MB.(for newton liquid)
- Rotation speeds 0.3, 0.6, 1.5, 3, 6, 12, 30, 60 rpm

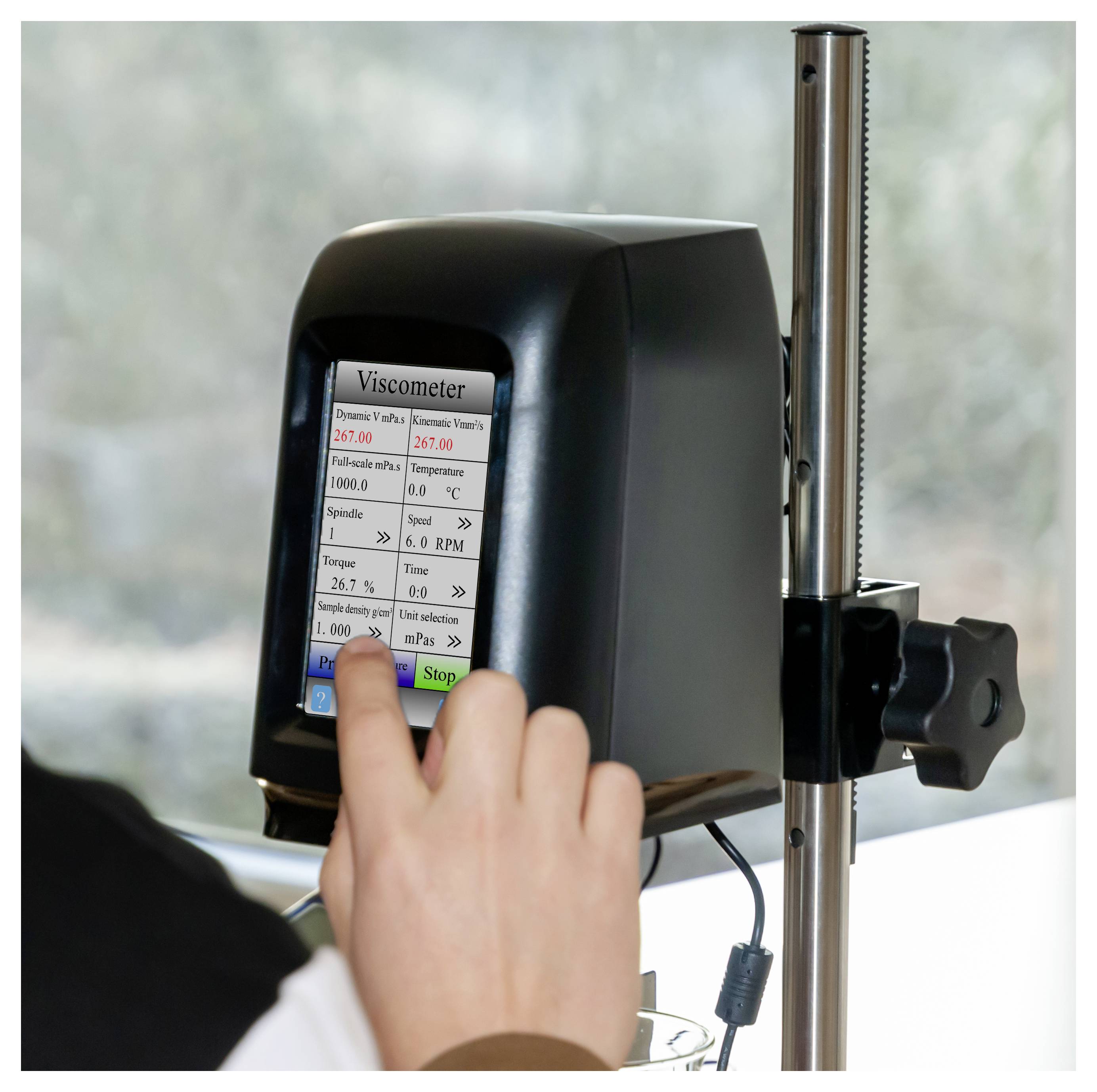

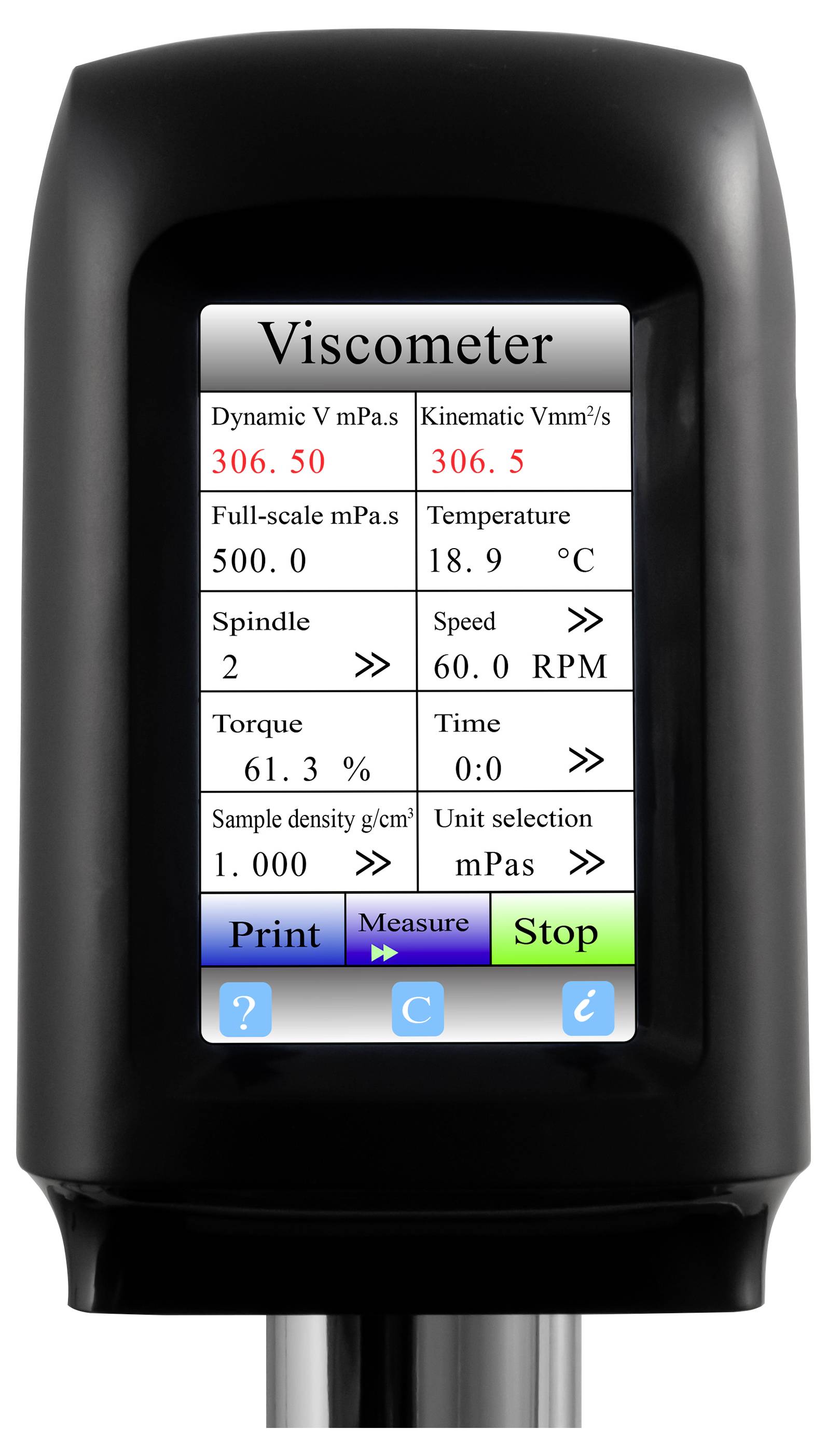

- 5" touchscreen with simple interface
- Immersion temperature sensor up to 100 °C.

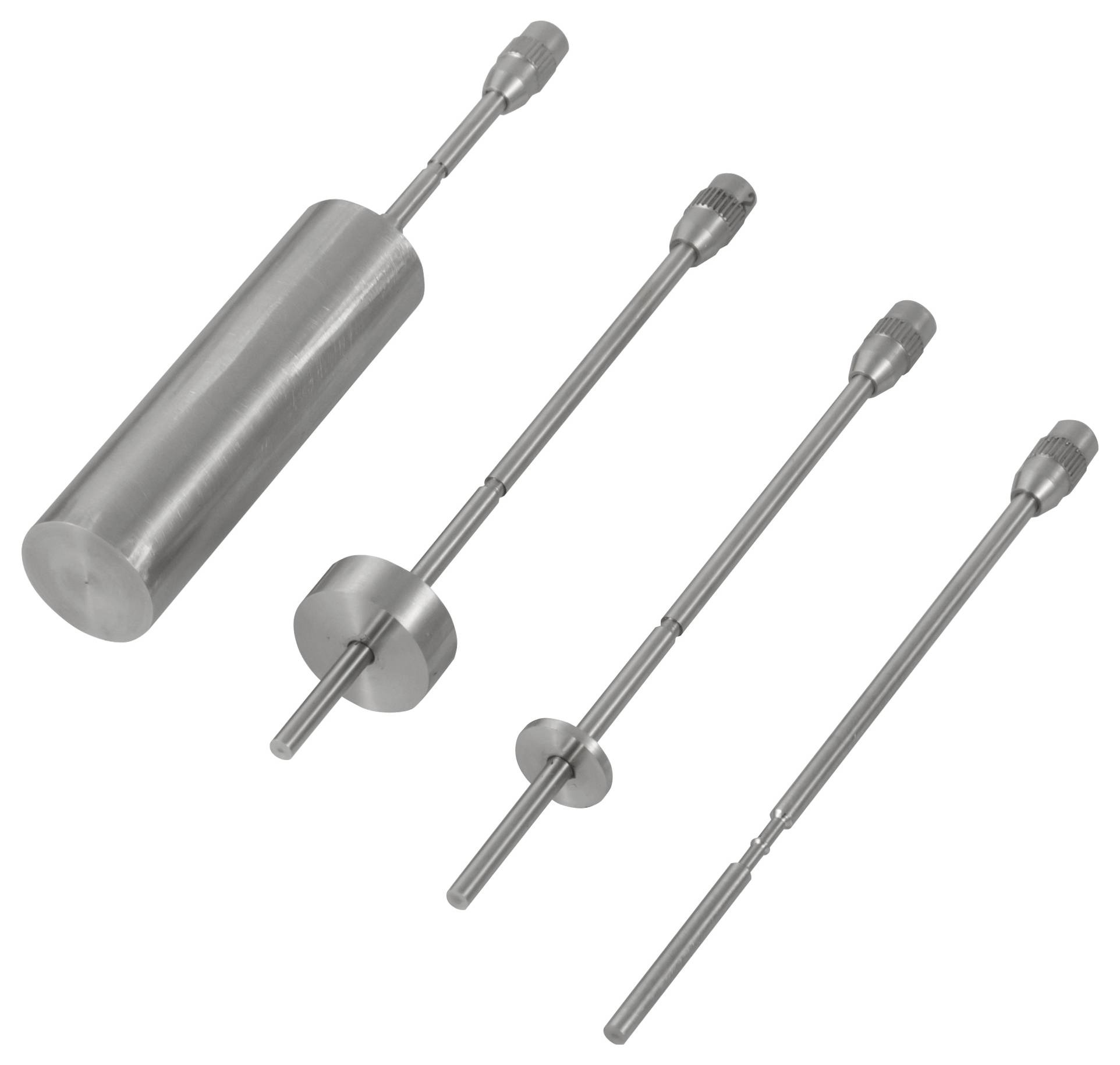

- Spindle set consisting of L1, L2, L3, L4
- approx. 25 cm height adjustable
- In-built level for leveling

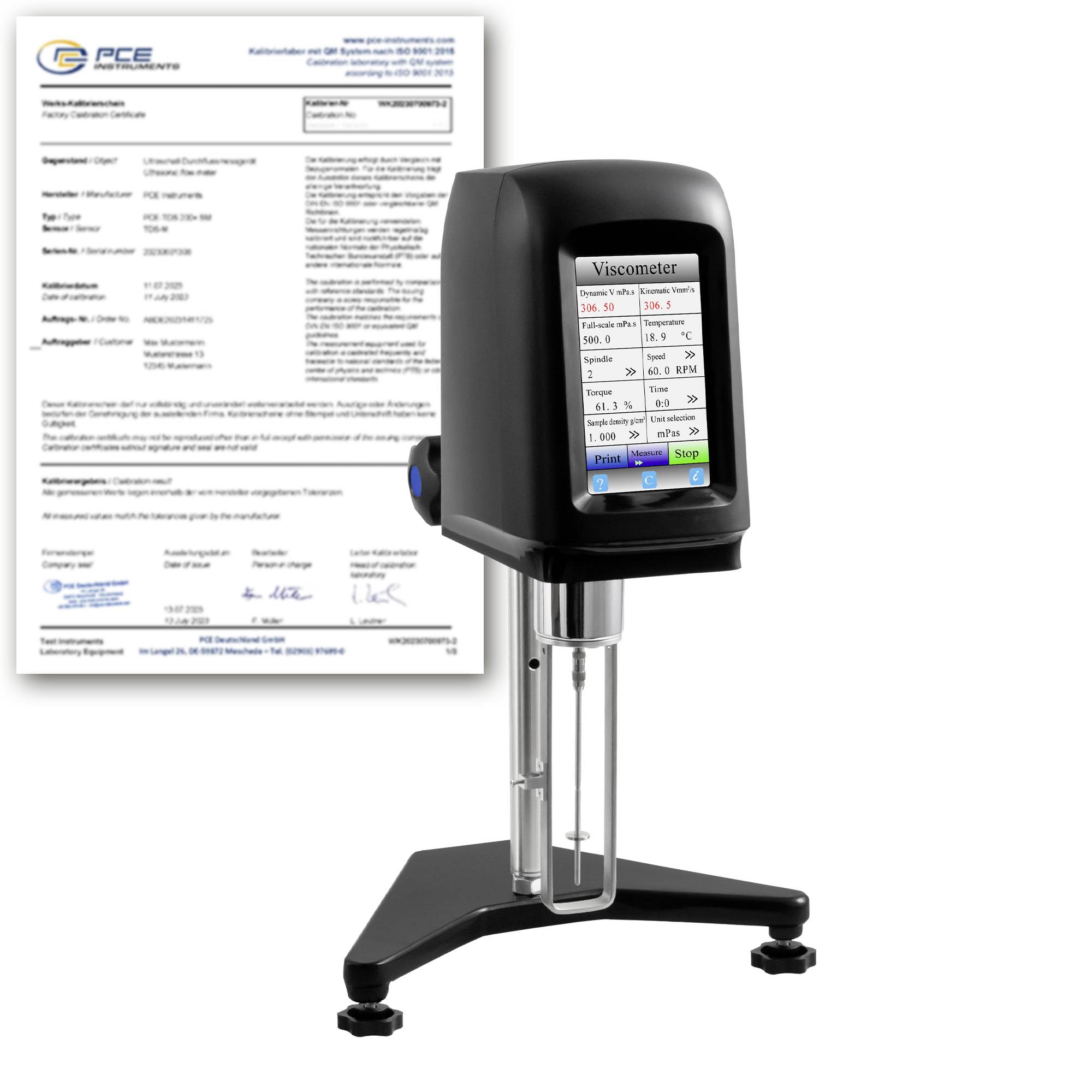

- Incl. ISO calibration certificate
Technical specifications
- Viscosity
- Measuring range 1 ... 2000000 mPa
- s
- Resolution: 0.01 mPa
- s
- Accuracy +/-1.0 % of measurement range
- Temperature
- Measuring range 0 ... 100 °C
- Resolution 0.1 °C
- Accuracy: ±0.1 °C
- General Technical Data
- Repeatability +/-0.2 % of the set measuring range
- Unit(s) Pa
- S, MPa
- S, DPA
- S, P, CP
- Display type LC Touch Display
- Display size 5 inches
- Interface RS232
- Sensor resistance temperature sensor
- Speed adjustable 0.3, 0.6, 1.5, 3, 6, 12, 30, 60 RPM
- Menu language English (US), English (GB)
- Protection class (device) IP21
- Power supply 100 ... 240 V AC | 50 / 60 Hz,
- Connector type for device Euro plug
- Operating conditions 10 ... 40 °C , 10 ... 80 % r.F.
- Storage conditions 0 ... 50 °C , 10 ... 80 % r.F.
- Dimensions ( L x W x H ) 430 x 320 x 275 mm
- Weight 5400 g.
- Product type
Viscometer
- Reading type
Temperature
- Accuracy
0.01 mPa·s, 0.1 °C
- Display
Touchscreen
ISO standards
- Operating temperature
+10 - +40 °C
- Resolution
0.1 °C
- Power supply (details)
100-240 V / AC
- Dim
(L x W x H) 430 x 320 x 275 mm
- Weight
5400 g
- Temperature reading range
10 up to 40 °C
- Temperature reading range (max.)
40 °C
- Temperature reading range (min.)
10 °C
- Width
320 mm
- Height
275 mm
- Length
430 mm
- Interfaces
RS232
- Plastic free packaging
Plastic-free packaging
Documents & Downloads
Datasheet
Datasheet 3812717 PCE Instruments PCE-RVI 10-ICA Viscometer Calibrated to (ISO standards) Temperature
User & Safety Instructions
User & Safety Instructions 3812717 PCE Instruments PCE-RVI 10-ICA Viscometer Calibrated to (ISO standards) Temperature
Description
The touch-screen viscometer measures any liquid by means of the mechanical resistance of any liquid that acts in the opposite direction of the rotation of a spindle. This results in a torque that is detected by the viscometer with touch screen and converted to a viscosity value. With an accuracy of ±1.0 %, the Viscometer with touch screen is a very precise measuring instrument despite the high measuring range of 1 … 2,000,000 mPa*s. With the immersion resistance sensor on the Viscometer, the temperatures of the liquids to be tested can be measured between 0 and 100 °C.

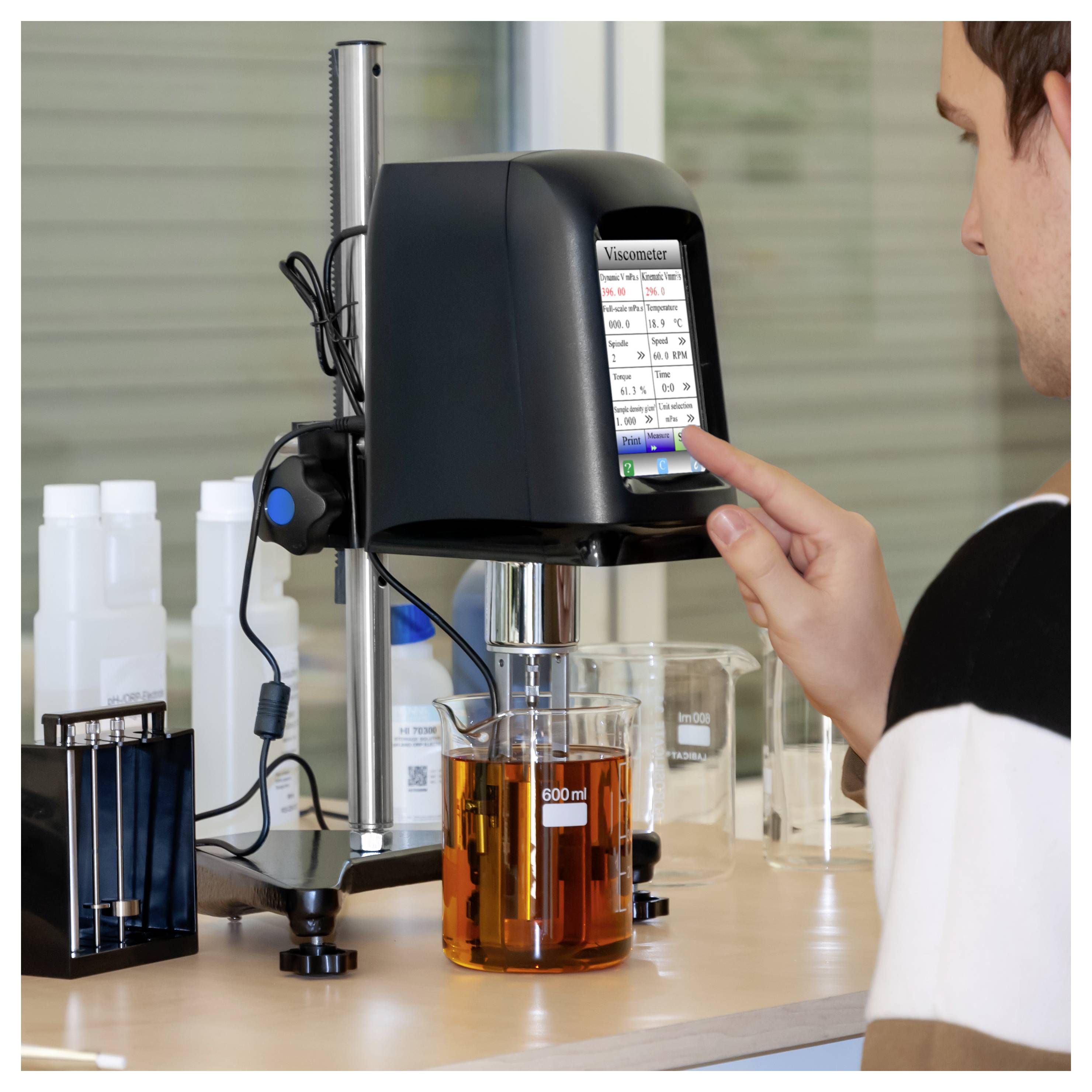

This Viscometer with touch-screen is used, for example, in the quality control of engine oils. Engine oils change their viscosity according to temperature. This is where the rotary viscometer is used. Thanks to the timer function, the viscometer can work independently over the period set by the operator. Meanwhile, the measured data are transferred from the viscometer via the RS232 interface to a PC. A software for the viscometer with touch screen can then display the temperature course and also the viscosity progression graphically and in tabular form. A printer can also be connected directly to the viscometer with touch-screen, in order to print the respective measurement value.
The Viscometer with touch-screen can be adapted to different environments. The viscometer can therefore be leveled over the height-adjustable feet so that the measuring spindle is always vertically positioned in the Medium to be measured. There is a spirit level on the head of the viscometer for this purpose. The viscometer can also be adjusted to a height of approx. 25 cm in order to position the spindle appropriately.
This text is machine translated.
This Viscometer with touch-screen is used, for example, in the quality control of engine oils. Engine oils change their viscosity according to temperature. This is where the rotary viscometer is used. Thanks to the timer function, the viscometer can work independently over the period set by the operator. Meanwhile, the measured data are transferred from the viscometer via the RS232 interface to a PC. A software for the viscometer with touch screen can then display the temperature course and also the viscosity progression graphically and in tabular form. A printer can also be connected directly to the viscometer with touch-screen, in order to print the respective measurement value.
The Viscometer with touch-screen can be adapted to different environments. The viscometer can therefore be leveled over the height-adjustable feet so that the measuring spindle is always vertically positioned in the Medium to be measured. There is a spirit level on the head of the viscometer for this purpose. The viscometer can also be adjusted to a height of approx. 25 cm in order to position the spindle appropriately.
This text is machine translated.

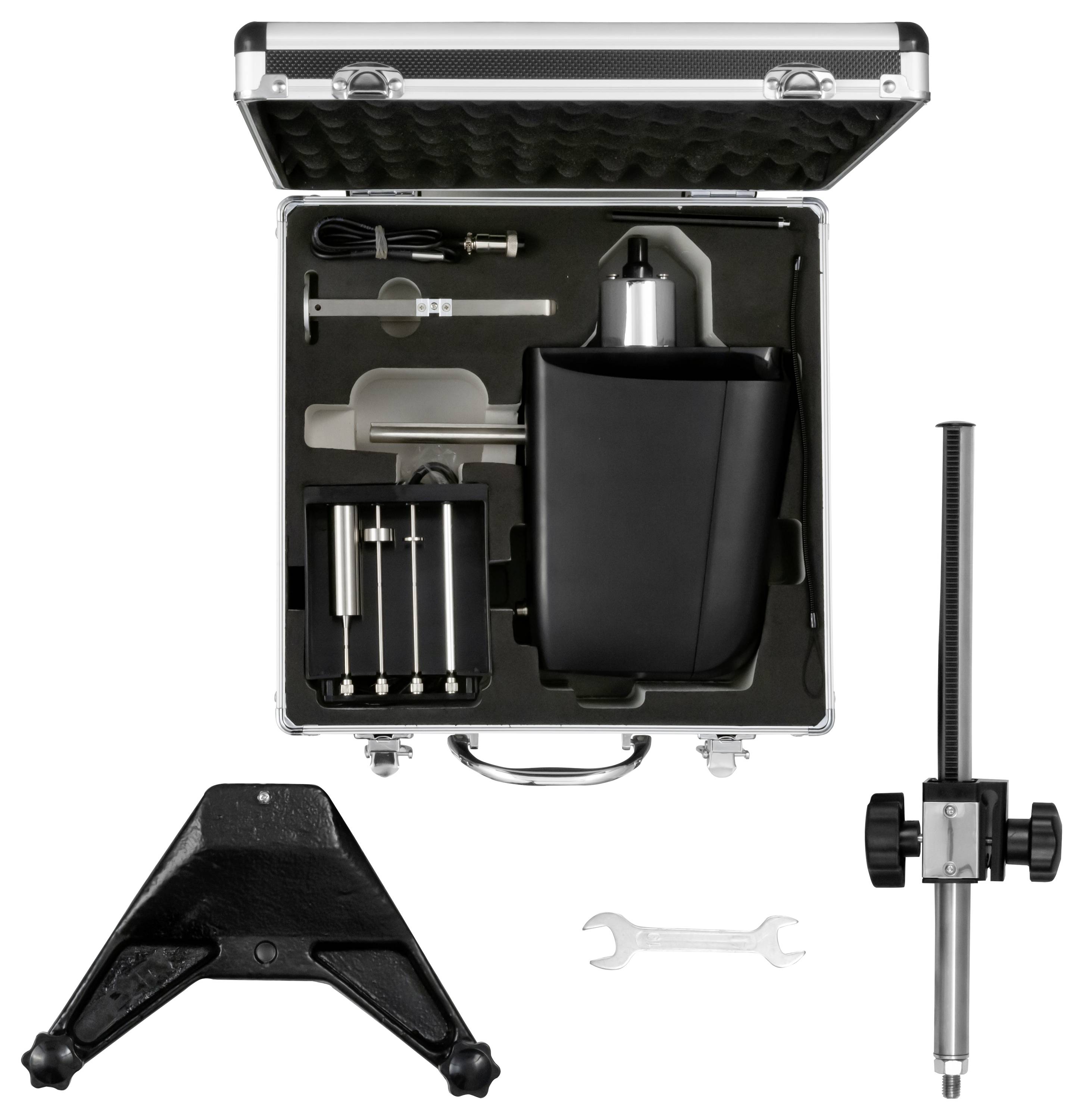

Scope of delivery
- 1 x Viscometer with touch-screen PCE-RVI 10-ICA
- 1x temperature sensor
- 1 x double open-end wrenches
- 1 x spindle set consisting of spindle L1 ... L4
- 1 x transport case
- 1 x power supply 12 V DC, 1.5 A
- 1x user manual
- 1 x ISO calibration certificate
