PCE Instruments PCE-RVI 2-ICA Viscometer Calibrated to (ISO standards)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
PCE instruments viscometer PCE-RVI 2-ICA
- Viscosity
- Measuring range 1 ... 100000 cp
- Resolution: 0.01 cp
- Accuracy +/-2 % of measurement range
- General Technical Data
- Repeat accuracy 0.5 %
- Interface RS232
- Adjustable measuring time 30 ... 3600 s
- Spindle L1 ... L4
- Sample quantity 250 ... 400 ml (depending on spindle)
- Adjustable speed: 6, 12, 30, 60 RPM
- Menu language English (US), German, English (GB)
- Protection class (device) IP21
- Power supply 100 ... 240 V AC 50/60 Hz
- Connector type for device Euro plug
- Operating conditions 5 ... 35 °C , 0 ... 80 % r.F.
- Storage conditions 5 ... 35 °C , 0 ... 80 % r.F.
- Dimensions ( L x W x H ) 400 x 200 x 430 mm
- Weighs 4800 g.
Technical specifications
- Viscosity
- Measuring range 1 ... 100000 cp
- Resolution: 0.01 cp
- Accuracy +/-2 % of measurement range
- General Technical Data
- Repeat accuracy 0.5 %
- Interface RS232
- Adjustable measuring time 30 ... 3600 s
- Spindle L1 ... L4
- Sample quantity 250 ... 400 ml (depending on spindle)
- Adjustable speed: 6, 12, 30, 60 RPM
- Menu language English (US), German, English (GB)
- Protection class (device) IP21
- Power supply 100 ... 240 V AC 50/60 Hz
- Connector type for device Euro plug
- Operating conditions 5 ... 35 °C , 0 ... 80 % r.F.
- Storage conditions 5 ... 35 °C , 0 ... 80 % r.F.
- Dimensions ( L x W x H ) 400 x 200 x 430 mm
- Weighs 4800 g.
- Product type
Viscometer
- Accuracy
2 %
- Display
LCD
ISO standards
- Operating temperature
5 - 35 °C
- Resolution
0.01 cp
- Power supply (details)
100-240 V / AC
- Dim
(L x W x H) 400 x 200 x 430 mm
- Weight
4800 g/m
- Width
200 mm
- Height
430 mm
- Length
400 mm
- Interfaces
RS232
- Plastic free packaging
Plastic-free packaging
Documents & Downloads
Datasheet
Datasheet 3812719 PCE Instruments PCE-RVI 2-ICA Viscometer Calibrated to (ISO standards)
User & Safety Instructions
User & Safety Instructions 3812719 PCE Instruments PCE-RVI 2-ICA Viscometer Calibrated to (ISO standards)
Description
Viscometer with LC display / mains operation / sample quantity 250 ... 400 ml / measuring range 1 ... 100,000 cp / adjustable rotation speed / simple operation / spindle set L1 ... L4 supplied
This text is machine translated.
This text is machine translated.
Scope of delivery
- 1 x Viscometer PCE-RVI 2-ICA
- 1 x spindle set consisting of spindle L1 ... L4
- 1 x transport case
- 1 x double open-end wrenches
- 1 x power supply 12 V DC, 2 A
- 1x user manual

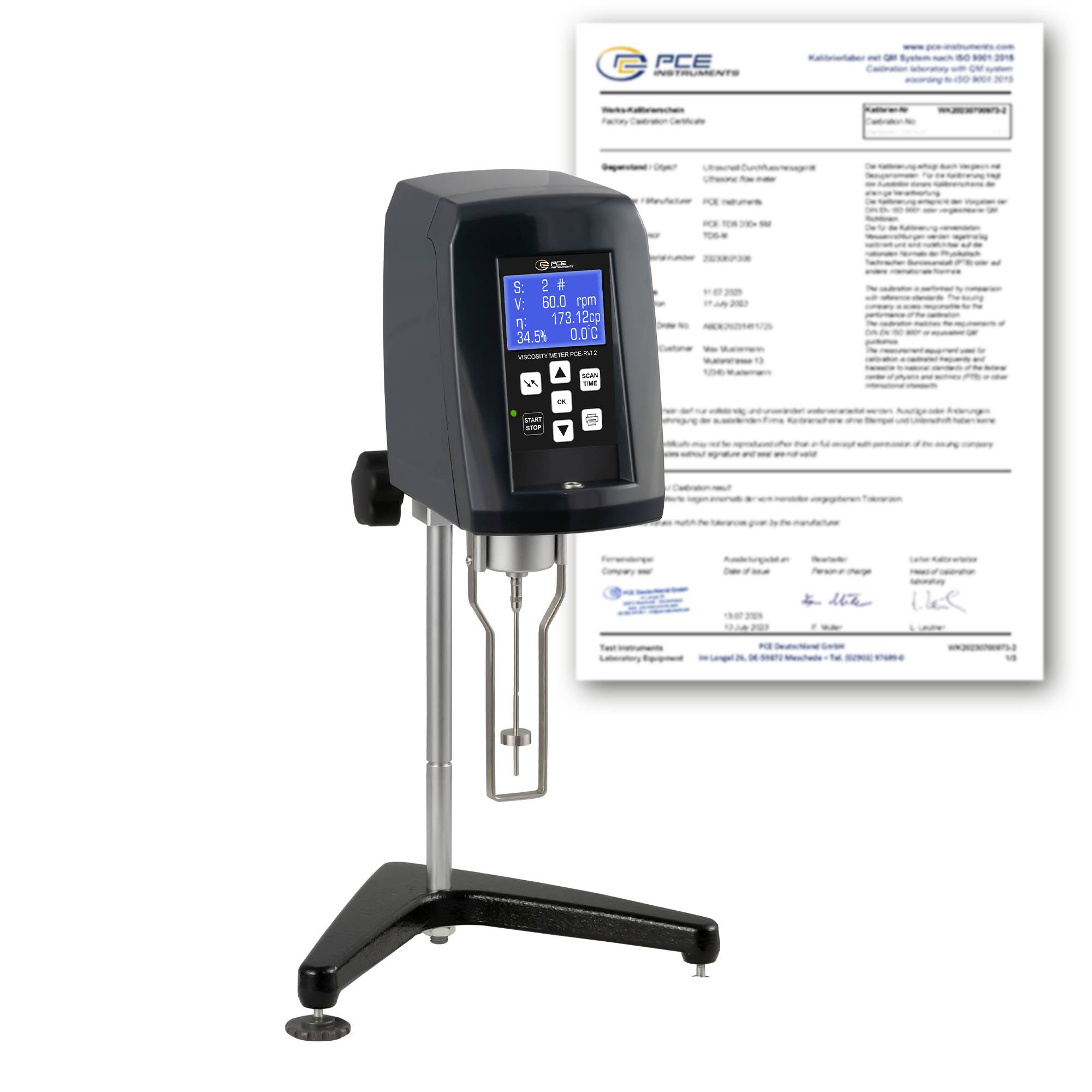

- 1 x ISO calibration certificate
