1/6
PCE Instruments PCE-RVI 8-ICA Viscometer Calibrated to (ISO standards) Temperature
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
PCE Instruments Cancer Viscometer PCE-RVI 8-ICA
- Measuring range 27 ... 5250 cp
- Automatic cut-off in case of overload
- Fixed rotation speed of 200 RPM
- Optional software for live view
- Supplied with KU1 spindle
- Large touch-screen for easy use

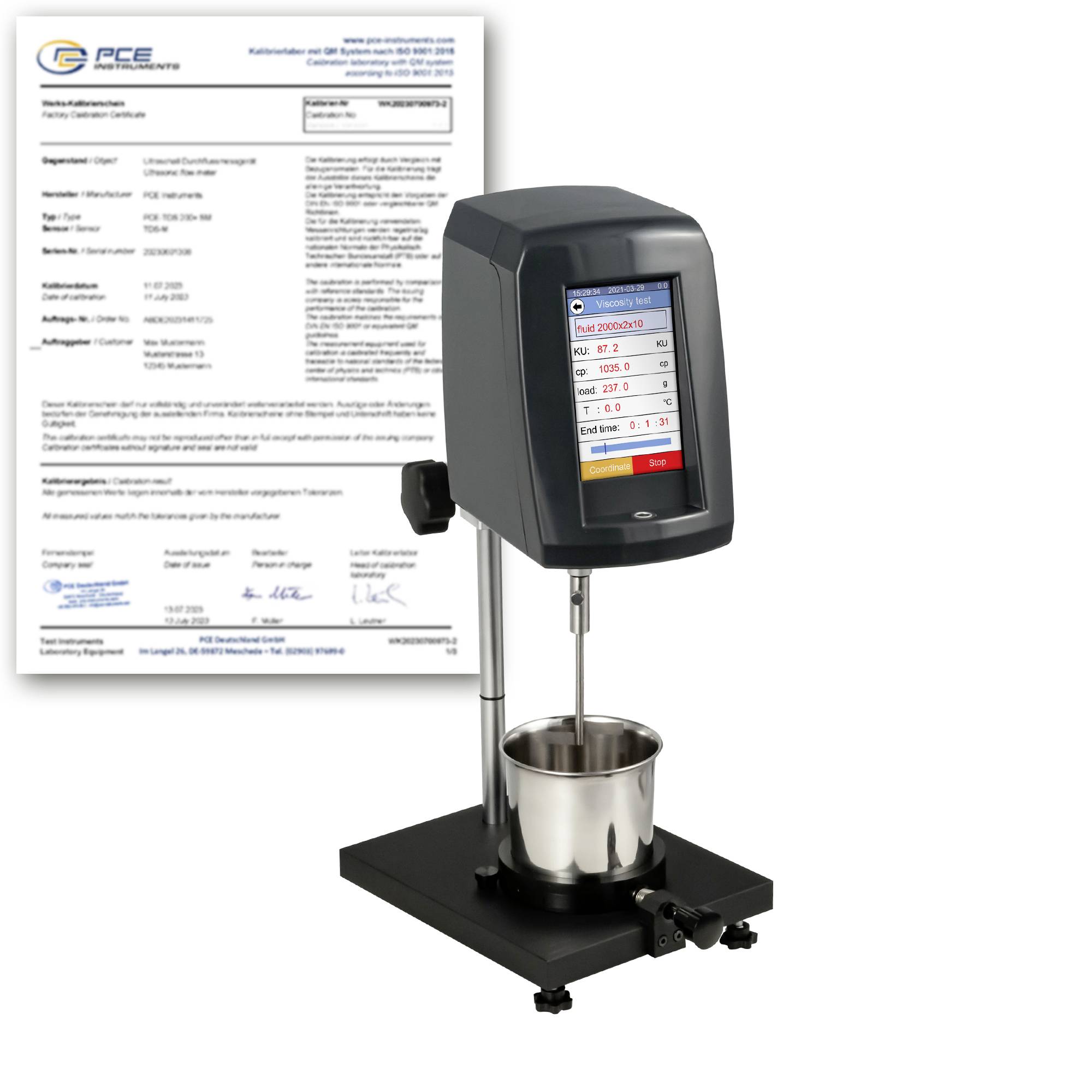

- Incl. ISO calibration certificate
Technical specifications
- Viscosity
- Measuring range 27 ... 5250 cp
- Resolution: 1 cp
- Accuracy +/-1 % of measurement range
- Viscosity
- Measuring range 40.2 ... 141 KU
- 0.1 KU resolution
- Accuracy +/-1 % of measurement range
- Viscosity
- Measuring range 32 ... 1099 g
- Resolution 1 g
- Accuracy +/-1 % of measurement range
- Temperature
- Measuring range -20 ... +250 °C
- Resolution 0.1 °C
- Accuracy +/-0.3 °C
- General Technical Data
- Display type LC Touch Display
- Display size 5 inches

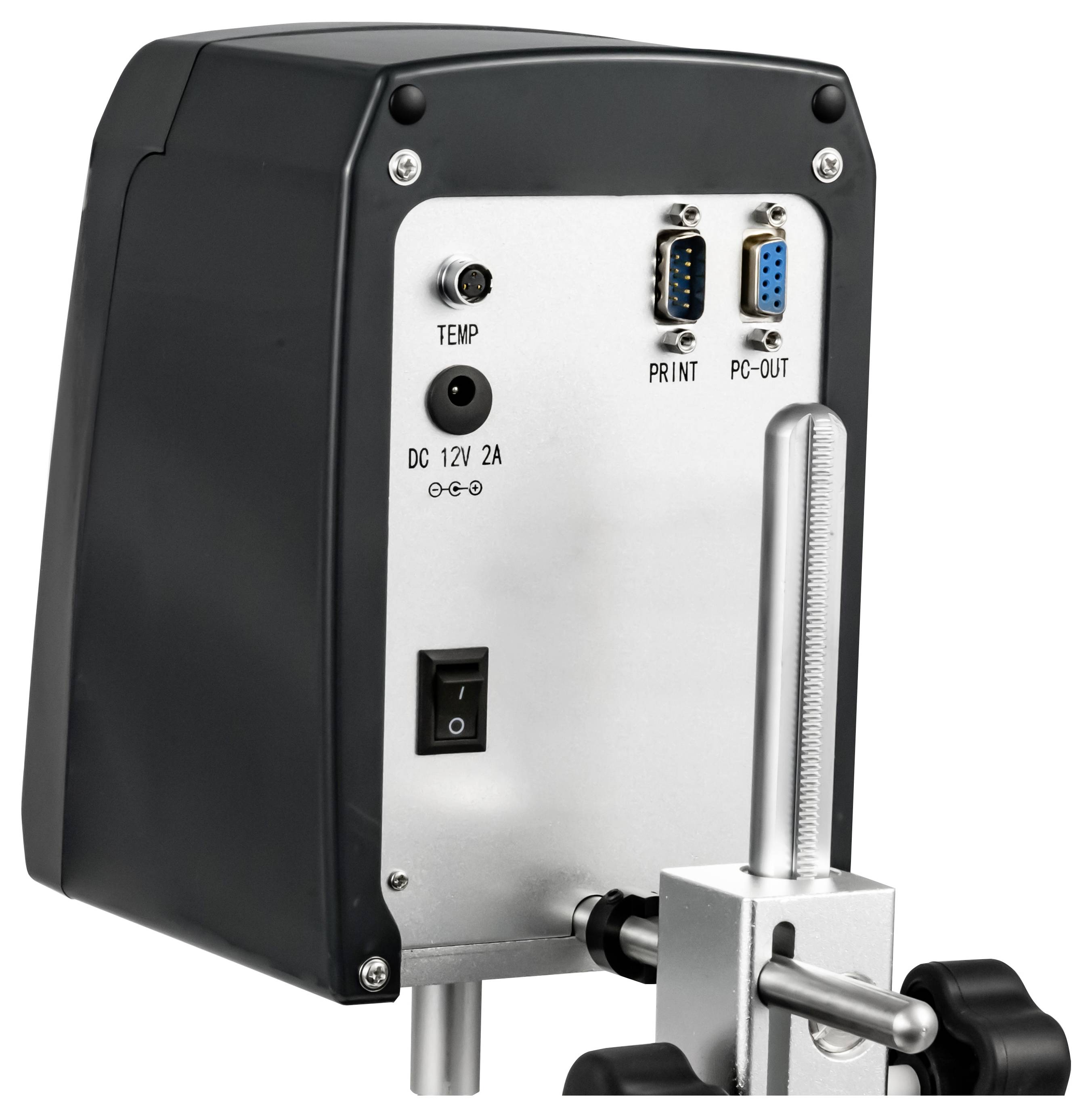

- Interface RS232
- Spindle CU1
- Sample quantity 600 ml
- Speed 200 RPM
- Menu language English (US), English (GB)
- Protection class (device) IP20
- Power supply 100 ... 240 V/AC, 0.5 A
- Connector type for device Euro plug
- Operating conditions 0 ... 35 °C , 0 ... 80 % r.F.
- Storage conditions 5 ... 35 °C , 0 ... 80 % r.F.
- Dimensions ( L x W x H ) 420 x 180 x 300 mm
- Weighs 5000 g.
- Product type
Viscometer
- Reading type
Temperature
- Accuracy
1 %
- Display
LCD
ISO standards
- Operating temperature
0 - 35 °C
- Resolution
0.1 mA
- Power supply (details)
100-240 V / AC
- Dim
(L x W x H) 420 x 180 x 300 mm
- Weight
5000 g
- Temperature reading range
-20 up to 250 °C
- Temperature reading range (max.)
250 °C
- Temperature reading range (min.)
-20 °C
- Width
180 mm
- Height
300 mm
- Length
420 mm
- Interfaces
RS232
- Plastic free packaging
Plastic-free packaging
Documents & Downloads
Datasheet
Datasheet 3812720 PCE Instruments PCE-RVI 8-ICA Viscometer Calibrated to (ISO standards) Temperature
User & Safety Instructions
User & Safety Instructions 3812720 PCE Instruments PCE-RVI 8-ICA Viscometer Calibrated to (ISO standards) Temperature
Description

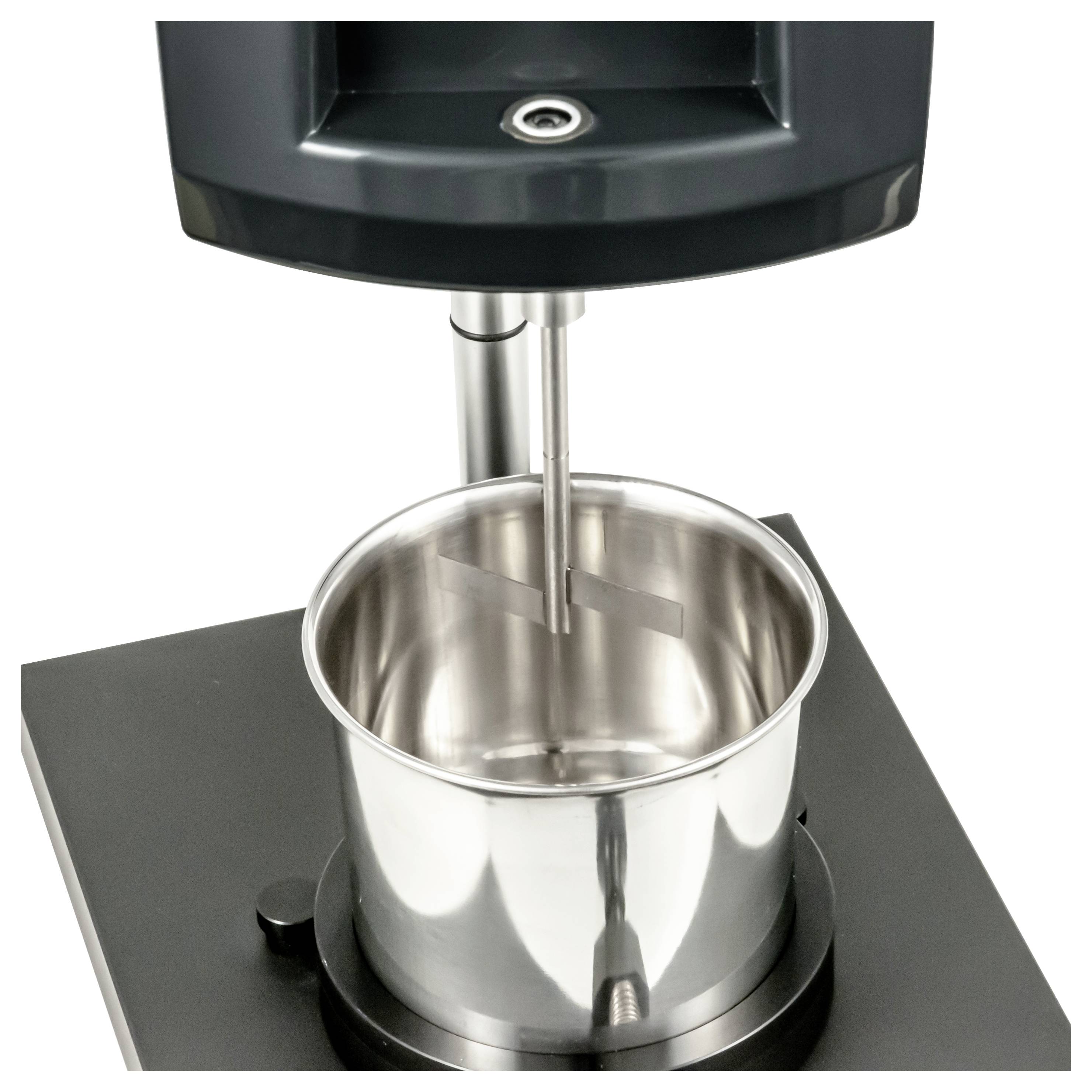

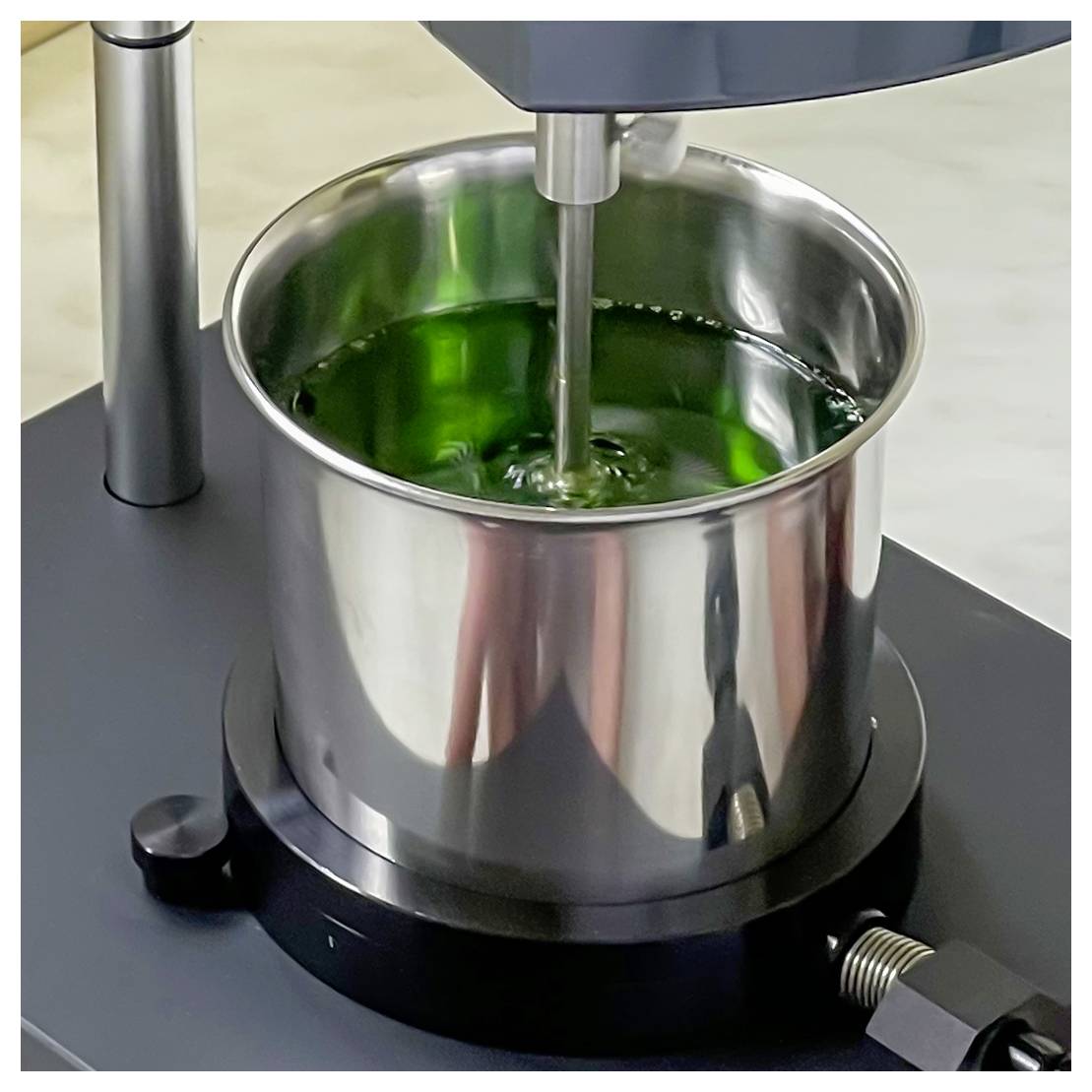

The cancer viscometer has a measuring range of 27 …. 5250 cp and an accuracy of 1% v. MB. For example, the cancer viscometer is used in the quality control of production processes. In addition, the cancer viscometer is particularly used in laboratories of all kinds. Due to the wide range of measurements, it is possible to perform an extensive range of measurements with the cancer viscometer. This allows the viscosity of paints, colors, oils and other fluids to be precisely determined with the cancer viscometer.

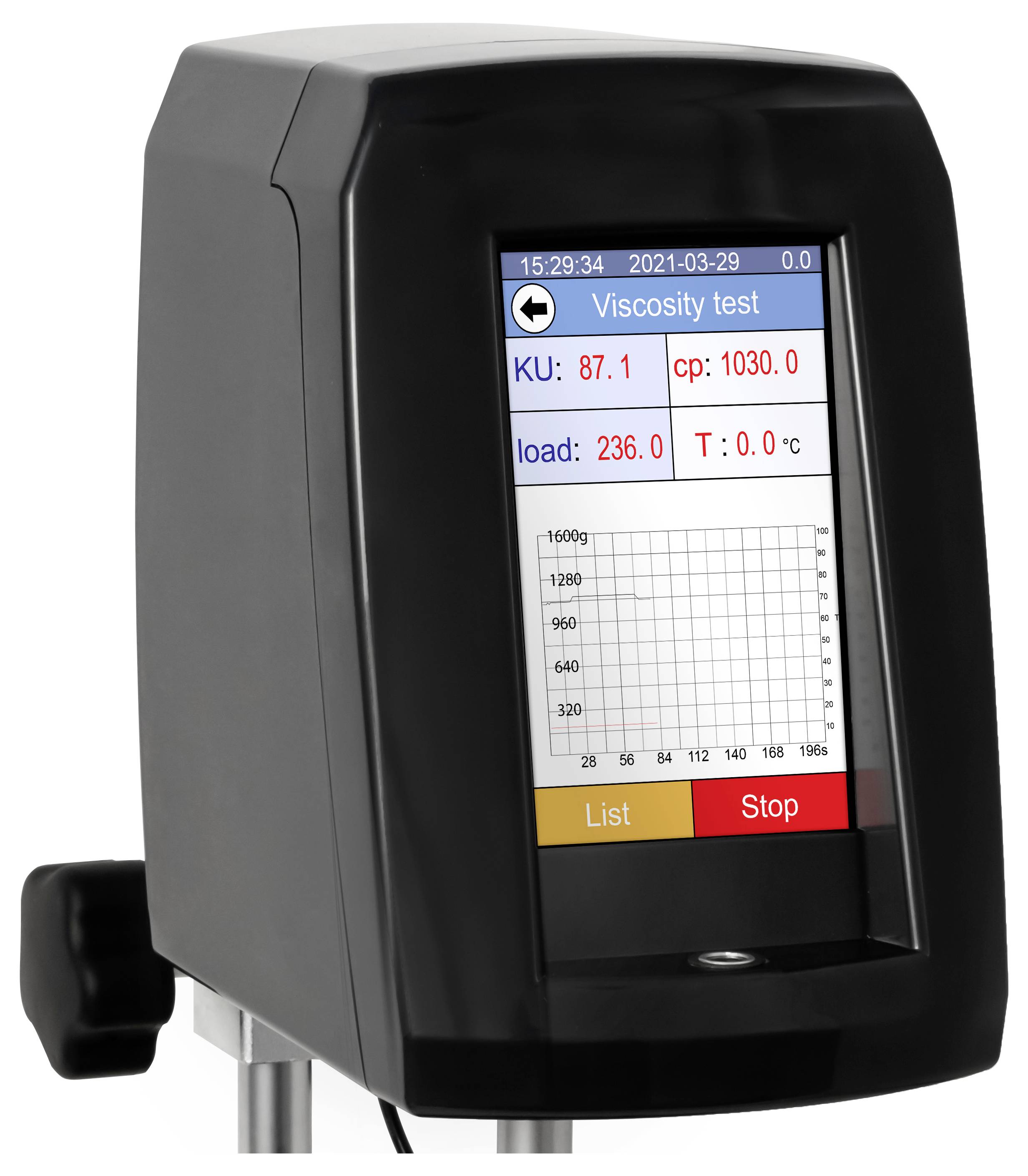

The 5-inch LCD touch screen allows easy operation of the Cancer Viscometer. The measurements from the Cancer Viscometer are displayed during the measurement. At the same time, the measurements in the cancer viscometer are displayed graphically to obtain a progression of viscosity.
The external temperature sensor on the cancer viscometer ensures that the sample has the correct temperature. This allows the measurement results to be compared to other samples because the temperature affects the viscosity. Thus, temperature measurement is an essential component in the determination of viscosity.
The optional software allows the cancer viscometer to be connected to a PC. Via the software, the measured values of the cancer viscometer are displayed during a measurement LIVE. The individual measurement points are displayed in tabular form and graphically. The recorded measured values can be exported as a .csv file for further processing.
This text is machine translated.
The 5-inch LCD touch screen allows easy operation of the Cancer Viscometer. The measurements from the Cancer Viscometer are displayed during the measurement. At the same time, the measurements in the cancer viscometer are displayed graphically to obtain a progression of viscosity.
The external temperature sensor on the cancer viscometer ensures that the sample has the correct temperature. This allows the measurement results to be compared to other samples because the temperature affects the viscosity. Thus, temperature measurement is an essential component in the determination of viscosity.
The optional software allows the cancer viscometer to be connected to a PC. Via the software, the measured values of the cancer viscometer are displayed during a measurement LIVE. The individual measurement points are displayed in tabular form and graphically. The recorded measured values can be exported as a .csv file for further processing.
This text is machine translated.
Scope of delivery
- 1 x cancer-Viscometer PCE-RVI 8-ICA
- 1 x sample tray
- 1 x increase
- 1 x spindle KU1
- 1 x Stand
- 1 x touch-screen stylus
- 1 x transport case
- 1 x power supply 12 V DC, 2 A
- 1x user manual
- 1 x ISO calibration certificate
