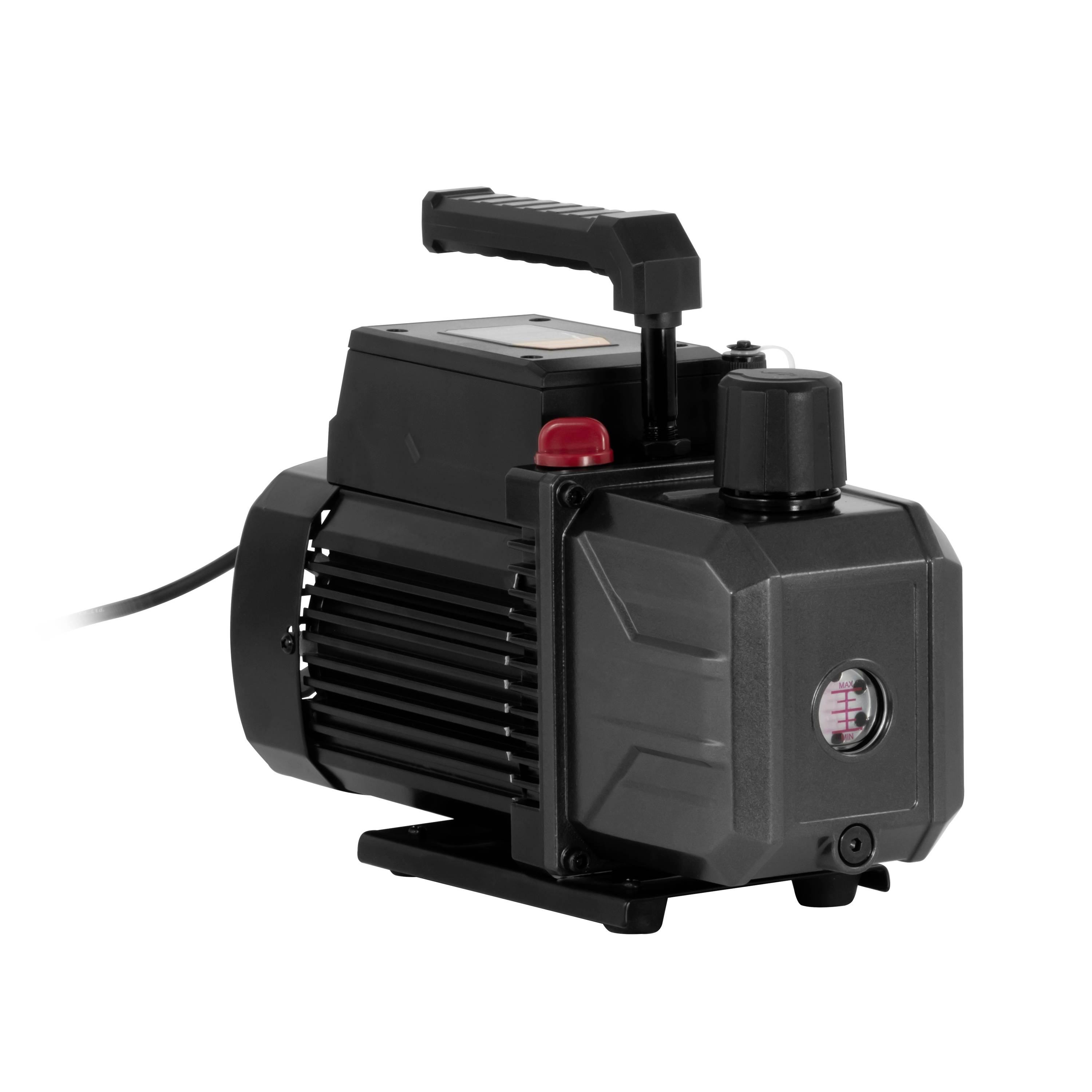

PCE Instruments PCE-RVP 120 Vacuum pump Single-stage, PG connector 68 l/min 220 V AC
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
PROFESSIONAL CALIBRATED TO EQUIPMENT. PCE-RVP 120
- For refrigerants (e.g. R12, R22, R134a)
- Motor power 0.25 PS (180 W)
- Flow rate: 56 ... 68 l/min

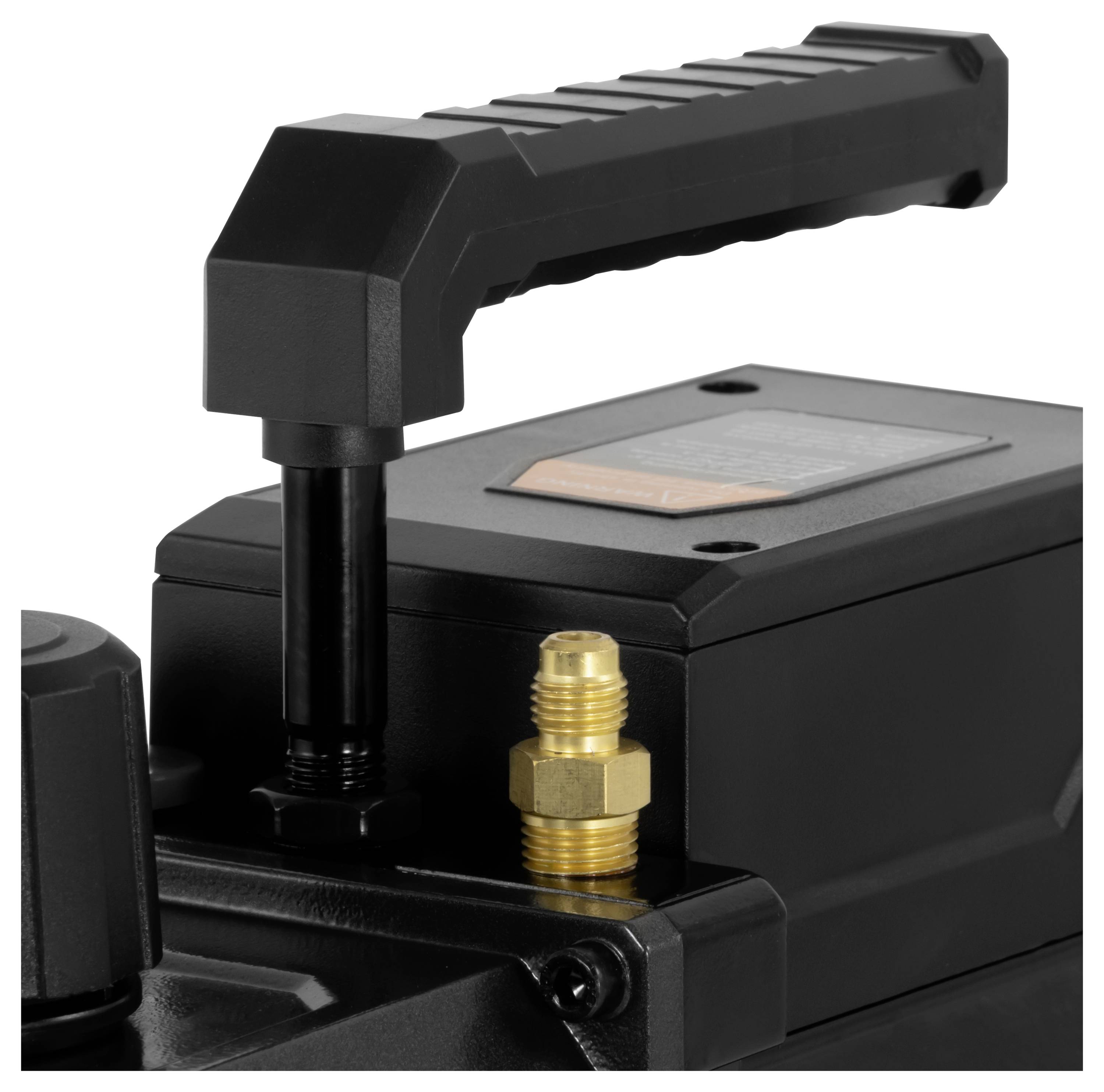

- Connection:1/4 inch
- Final vacuum: 15 micron/0.02 mbar
- Filter element for reducing oil mist

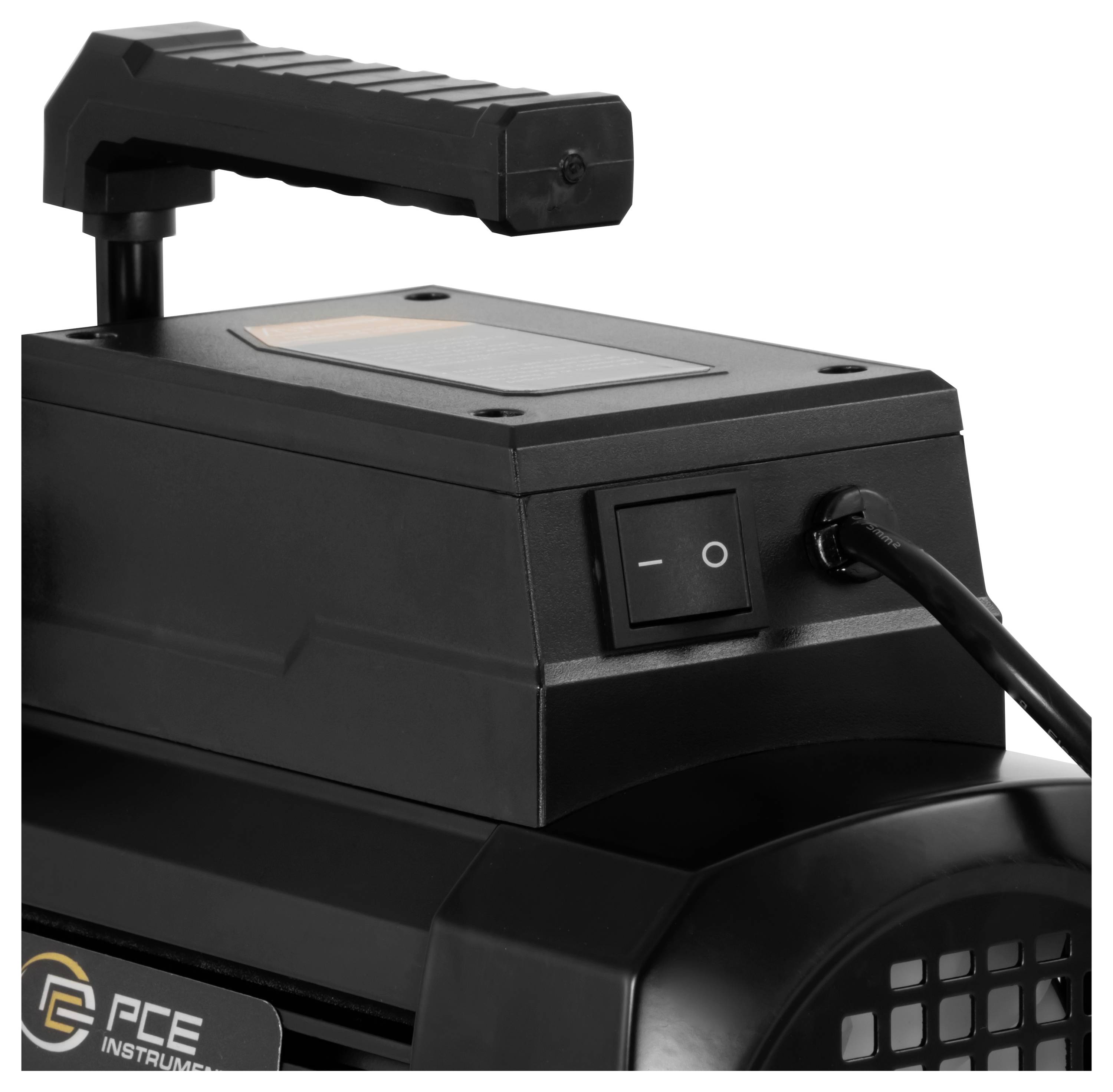

- Comfortable and robust rubber grip
Technical specifications
- General Technical Data
- Cable length 130 cm
- Connections 1/4 inch SAE
- Motor power 0.25 PS
- Oil capacity 280 ml
- Final vacuum: 0.2 mbar
- Flow rate 56 ... 68 l/min
- Protection class (device) IP20
- Power supply: 220 V AC, 50 Hz
- Socket type Safety plug
- Operating conditions 5 ... 40 °C , 20 ... 80 % r.F.
- Storage conditions 5 ... 40 °C , 20 ... 80 % r.F.
- Dimensions ( L x W x H ) 288 x 120 x 225 mm
- Weighs 5830 g.
- Product type
Vacuum pump
- Features
Single-stage
PG connector
- Type
Connection:1/4 inch
- Operating voltage
220 V AC
- Max. feed rate
68 l/min
- Max. cable length
1.3 m
- Power (P2)
180 W
- Power consumption (P1)
180 W
- Length
288 mm
- Width
120 mm
- Height
225 mm
- Dim
(L x W x H) 288 x 120 x 225 mm
- Weight
5830 g
IP20
Documents & Downloads
Datasheet
Datasheet 3812965 PCE Instruments PCE-RVP 120 Vacuum pump Single-stage, PG connector 68 l/min 220 V AC
User & Safety Instructions
User & Safety Instructions 3812965 PCE Instruments PCE-RVP 120 Vacuum pump Single-stage, PG connector 68 l/min 220 V AC
Description
The HVAC vacuum pump is equipped with a reliable motor that provides sufficient torque for stable operation. The motor output is 0.25 HP (approx. 180 W) and provides for an efficient and reliable power. With a flow rate of 56 ... 68 L/min, the HVAC vacuum pump can quickly evacuate air and moisture from air-conditioning systems, cooling systems or heat pumps.
The pump has a 1/4-inch connection, which enables the use with different refrigerant hoses. An integrated filter element reduces oil mist, extends the life of the HVAC vacuum pump and ensures a cleaner working environment. The ergonomic rubber grip makes transport and handling easier.
The HVAC vacuum pump removes air and moisture from the system before filling refrigerant, which improves the efficiency and life of the system.
This text is machine translated.
The pump has a 1/4-inch connection, which enables the use with different refrigerant hoses. An integrated filter element reduces oil mist, extends the life of the HVAC vacuum pump and ensures a cleaner working environment. The ergonomic rubber grip makes transport and handling easier.
The HVAC vacuum pump removes air and moisture from the system before filling refrigerant, which improves the efficiency and life of the system.
This text is machine translated.
Scope of delivery
- 1 x HVAC vacuum pump PCE-RVP 120
- 1 x vacuum pump oil 300 ml
- 1x user manual
