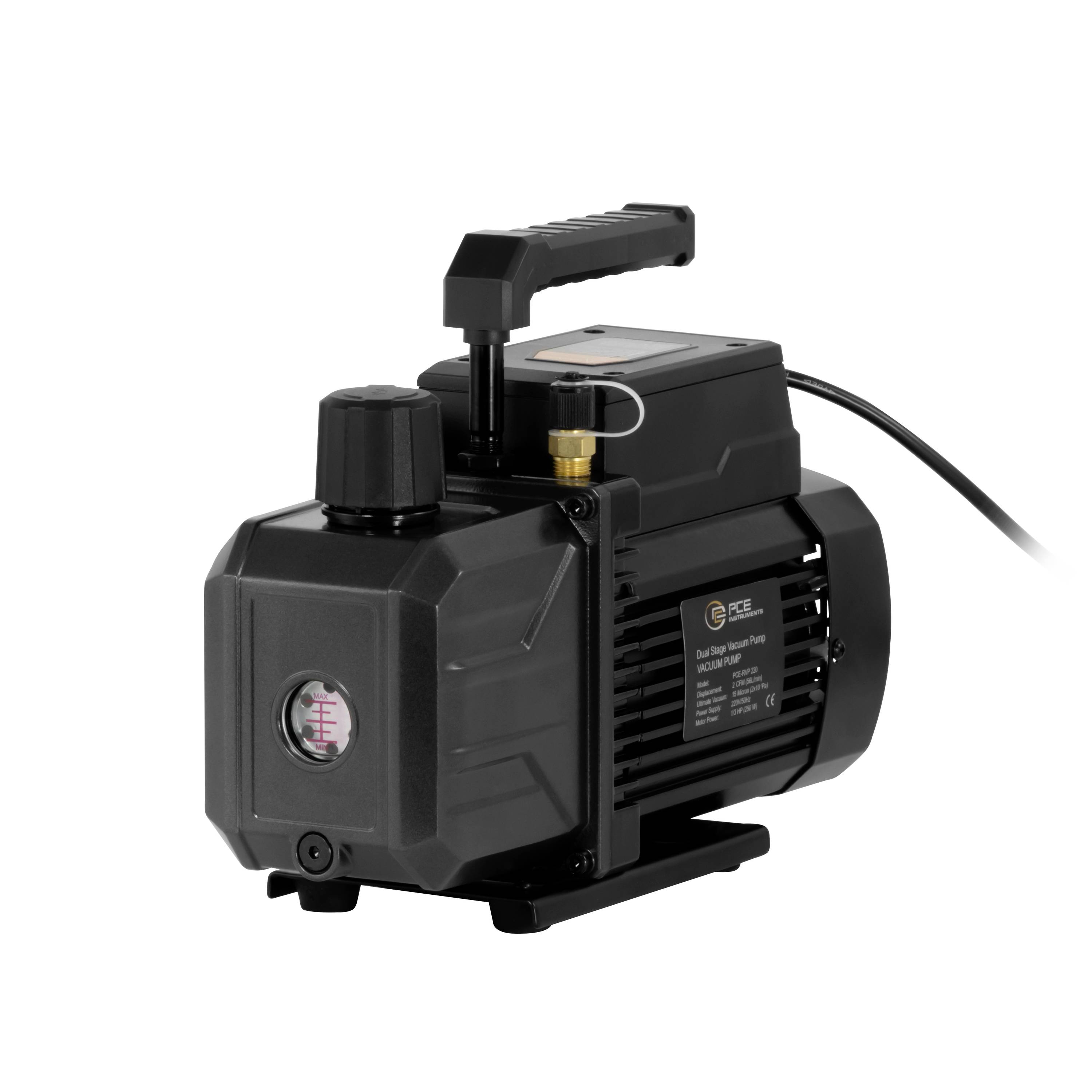

PCE Instruments PCE-RVP 220 Vacuum pump Multi-stage, PG connector 68 l/min 220 V AC
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
PROFESSIONAL CALIBRATED TO EQUIPMENT. PCE-RVP 220
- For refrigerants (e.g. R12, R22, R134a)
- High torque and efficient motor
- Motor power 0.34 PS (250 W)
- Flow rate: 56 ... 68 l/min
- Connection:1/4 inch
- Final vacuum: 15 micron/0.02 mbar
- Filter element for reducing oil mist

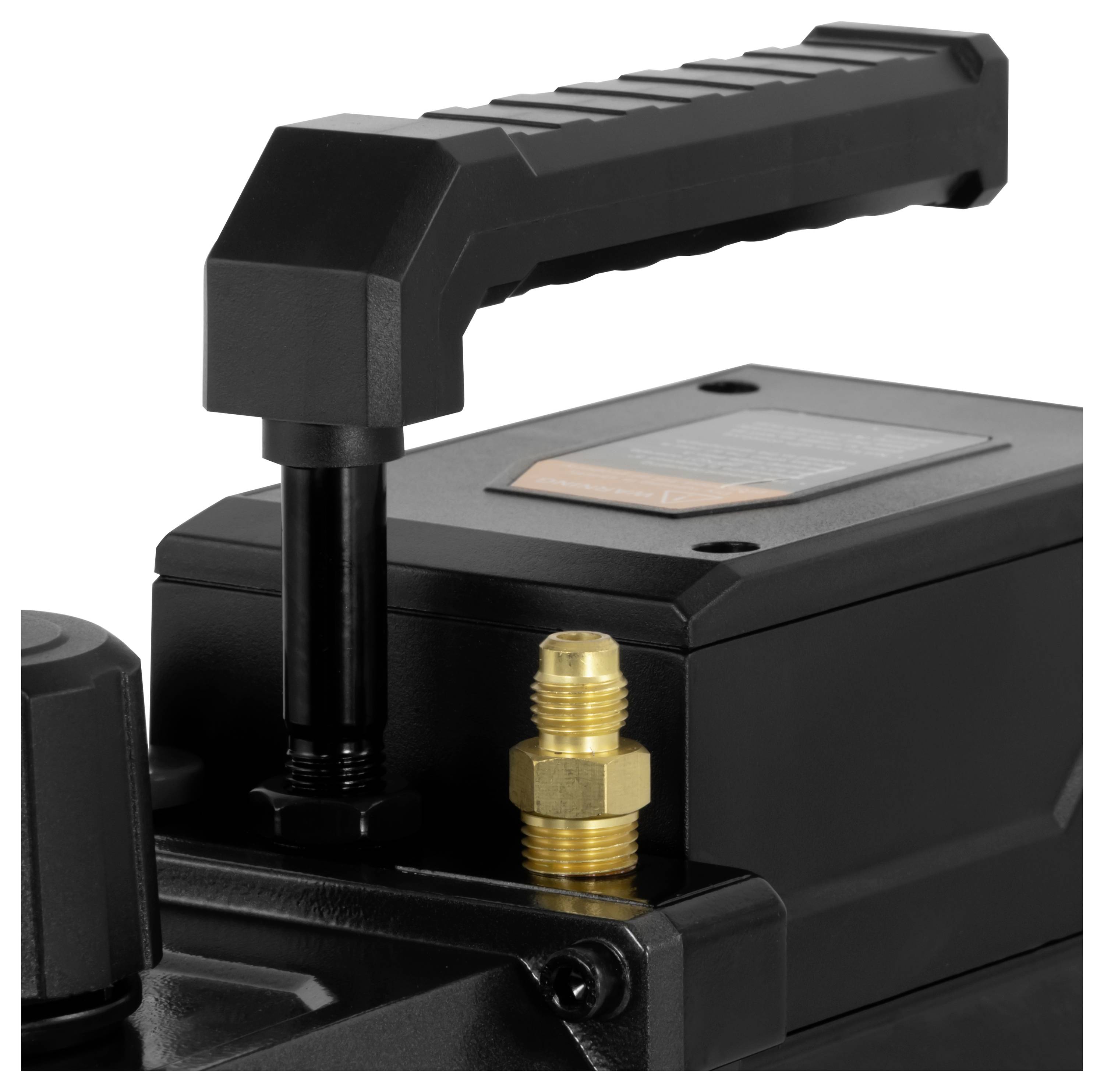

- Comfortable and robust rubber grip
- Two-stage
Technical specifications
- General Technical Data
- Cable length 130 cm
- Connections 1/4 inch SAE
- Motor power 0.34 PS

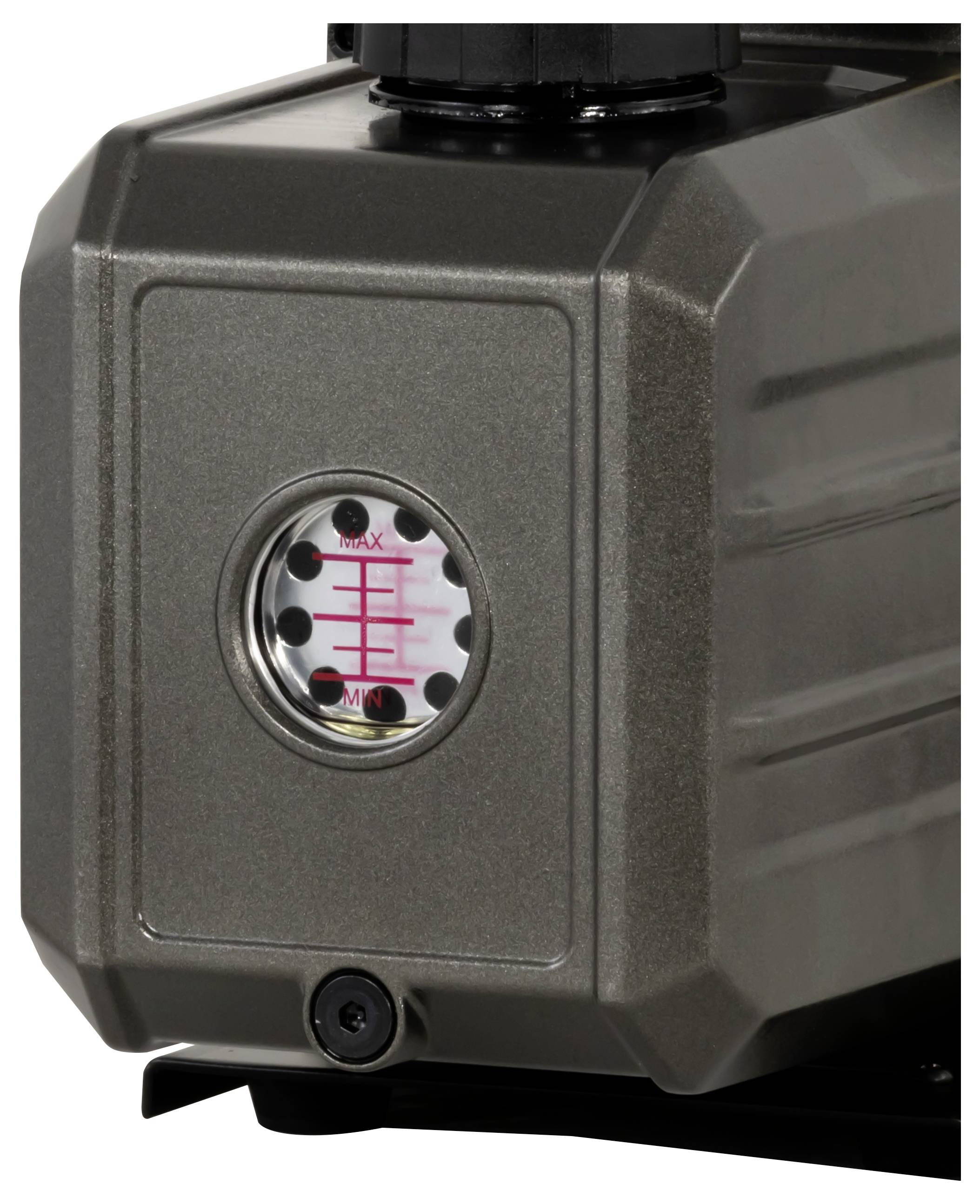

- Oil capacity 280 ml
- Final vacuum: 0.02 mbar
- Flow rate 56 ... 68 l/min
- Protection class (device) IP20
- Power supply: 220 V AC, 50 Hz
- Socket type Safety plug
- Operating conditions 5 ... 40 °C , 20 ... 80 % r.F.
- Storage conditions 5 ... 40 °C , 20 ... 80 % r.F.
- Dimensions ( L x W x H ) 305 x 123 x 230 mm
- Weighs 7863 g.
- Product type
Vacuum pump
- Features
Multi-stage
PG connector
- Type
Connection:1/4 inch
- Operating voltage
220 V AC
- Max. feed rate
68 l/min
- Max. cable length
1.3 m
- Power (P2)
250 W
- Power consumption (P1)
250 W
- Length
305 mm
- Width
123 mm
- Height
230 mm
- Dim
(L x W x H) 305 x 123 x 230 mm
- Weight
7863 g
IP20
Documents & Downloads
Datasheet
Datasheet 3812967 PCE Instruments PCE-RVP 220 Vacuum pump Multi-stage, PG connector 68 l/min 220 V AC
User & Safety Instructions
User & Safety Instructions 3812967 PCE Instruments PCE-RVP 220 Vacuum pump Multi-stage, PG connector 68 l/min 220 V AC
Description
The HVAC vacuum pump is equipped with a reliable motor that provides sufficient torque for stable operation. The motor output is 0.34 HP (250 W) and provides for an efficient and reliable power. With a flow rate of 56 ... 68 L/min, the HVAC vacuum pump can quickly evacuate air and moisture from air-conditioning systems, cooling systems or heat pumps.
The pump has a 1/4-inch connection, which enables the use with different refrigerant hoses. An integrated filter element reduces oil mist, extends the life of the HVAC vacuum pump and ensures a cleaner working environment. The ergonomic rubber grip makes transport and handling easier.
The HVAC vacuum pump removes air and moisture from the system before filling refrigerant, which improves the efficiency and life of the system.
This text is machine translated.
The pump has a 1/4-inch connection, which enables the use with different refrigerant hoses. An integrated filter element reduces oil mist, extends the life of the HVAC vacuum pump and ensures a cleaner working environment. The ergonomic rubber grip makes transport and handling easier.
The HVAC vacuum pump removes air and moisture from the system before filling refrigerant, which improves the efficiency and life of the system.
This text is machine translated.
Scope of delivery
- 1 x HVAC vacuum pump PCE-RVP 220
- 1 x vacuum pump oil 300 ml
- 1x user manual
